This guide walks you through how to check the check engine light on a 86 C10 using basic tools and the truck’s built-in diagnostic system. You’ll learn to read trouble codes, interpret flashing patterns, and take action—no OBD2 scanner needed for this vintage classic.
Key Takeaways
- Understand the 1986 C10’s diagnostic system: Unlike modern OBD2 vehicles, the ’86 C10 uses a simple ALDL (Assembly Line Diagnostic Link) system that outputs trouble codes via the check engine light.
- Use a paperclip or jumper wire to read codes: A simple metal jumper can bridge the diagnostic connector, allowing the engine light to flash trouble codes in a repeating pattern.
- Learn the code meanings: Each flash sequence corresponds to a specific issue—like ignition problems, fuel delivery, or sensor faults—so you can diagnose accurately.
- Check the ALDL connector location: Found under the dashboard on the driver’s side, this 12-pin connector is key to accessing diagnostic data.
- Clear codes manually after repairs: Once fixed, disconnect the battery for 10 minutes to reset the system and verify the repair worked.
- Know when to seek professional help: Some issues may require advanced tools or mechanical expertise, especially if multiple systems are involved.
- Maintain your classic truck regularly: Prevent future check engine light issues with routine maintenance like spark plug checks, fuel filter changes, and vacuum line inspections.
How to Check Check Engine Light on a 86 C10: A Complete 2026 Guide
If you’re the proud owner of a 1986 Chevrolet C10, you already know it’s more than just a truck—it’s a piece of American automotive history. But even classics need care, and when that dreaded check engine light flickers on, it can feel like a mystery. Unlike today’s high-tech trucks with Bluetooth diagnostics and smartphone apps, the ’86 C10 relies on a simple, mechanical-era system to communicate problems. The good news? You don’t need a $300 OBD2 scanner or a degree in automotive engineering to figure it out.
In this guide, we’ll walk you through how to check the check engine light on a 86 C10 using tools you probably already have in your garage. Whether you’re a seasoned mechanic or a weekend warrior, this step-by-step tutorial will help you read trouble codes, understand what they mean, and take action to keep your C10 running strong in 2026 and beyond.
By the end of this article, you’ll know exactly how to access your truck’s diagnostic system, interpret flashing light patterns, and decide whether it’s a quick fix or time to call in a pro. Plus, we’ll share maintenance tips to help prevent future issues. Let’s get started!
Understanding the 1986 C10’s Diagnostic System
Visual guide about How to Check Check Engine Light on a 86 C10
Image source: weldingtroop.com
Before diving into the how-to, it’s important to understand how the 1986 C10 communicates engine problems. Unlike modern vehicles that use the standardized OBD2 (On-Board Diagnostics II) system—introduced in the mid-1990s—the ’86 C10 uses an earlier system known as ALDL, or Assembly Line Diagnostic Link.
The ALDL system was GM’s way of letting technicians read engine trouble codes directly from the vehicle’s computer, or ECM (Engine Control Module). While it’s not as advanced as today’s systems, it’s surprisingly effective for basic diagnostics. The ECM monitors key sensors and systems, such as the oxygen sensor, ignition timing, and fuel mixture. When something goes out of range, the ECM stores a trouble code and triggers the check engine light on your dashboard.
Here’s the cool part: you can read these codes yourself using a simple jumper wire. No fancy tools required. The system outputs codes through the check engine light by flashing in a specific pattern—long flashes for the tens digit, short flashes for the ones digit. For example, two long flashes and three short flashes mean Code 23.
This method is reliable, low-cost, and perfect for classic truck owners who want to stay hands-on with their vehicles. In 2026, as more enthusiasts restore and drive vintage trucks, knowing how to use this system is a valuable skill.
Tools and Materials You’ll Need
One of the best things about diagnosing your ’86 C10 is how little you need to get started. Here’s a quick list of tools and materials:
- A paperclip or jumper wire: A standard paperclip works perfectly. Just straighten it out so you can insert it into the diagnostic connector.
- Safety gloves (optional but recommended): Protect your hands, especially if you’re working near the battery or under the dash.
- A flashlight: The ALDL connector is tucked away under the dashboard, so good lighting helps.
- Notepad and pen: You’ll want to write down the codes as they flash.
- Basic hand tools (for later steps): If a code points to a specific issue, you might need a socket set, screwdrivers, or pliers for repairs.
That’s it! No scanners, no apps, no internet connection. Just you, your C10, and a little bit of patience.
Step-by-Step: How to Check the Check Engine Light on a 86 C10
Now let’s get into the nitty-gritty. Follow these steps carefully to read the trouble codes from your 1986 C10.
Step 1: Locate the ALDL Diagnostic Connector
The first step is finding the ALDL connector. On the 1986 C10, it’s located under the dashboard on the driver’s side, near the steering column. It’s a rectangular plastic connector with 12 pins arranged in two rows of six.
Look for a small, gray or black plug tucked up behind the dash panel. It’s often labeled “ALDL” or “DIAGNOSTIC.” If you can’t see it right away, use your flashlight to scan the area. It’s usually within arm’s reach when you’re sitting in the driver’s seat.
Tip: Some older C10s may have the connector covered by a small plastic cap or tucked behind a wire harness. Gently move any obstructions to access it.
Step 2: Prepare the Jumper Wire
Once you’ve found the ALDL connector, it’s time to prepare your jumper. Take a standard paperclip and straighten it out so you have a straight piece of metal wire about 3–4 inches long. Alternatively, you can use a short piece of insulated wire with the ends stripped.
The goal is to create a bridge between two specific pins in the connector: Pin A (Ground) and Pin B (Diagnostic Enable). These pins are usually labeled on the connector housing, but if not, here’s how to identify them:
– Pin A is typically the top-left pin when facing the connector.
– Pin B is the one directly below it (second from the top on the left side).
Double-check your truck’s wiring diagram if you’re unsure—misconnecting pins won’t damage anything, but it won’t give you the right signal either.
Step 3: Insert the Jumper and Turn the Ignition On
With the paperclip or jumper wire ready, insert one end into Pin A and the other into Pin B. Make sure the connection is secure—wiggling the wire can cause inconsistent readings.

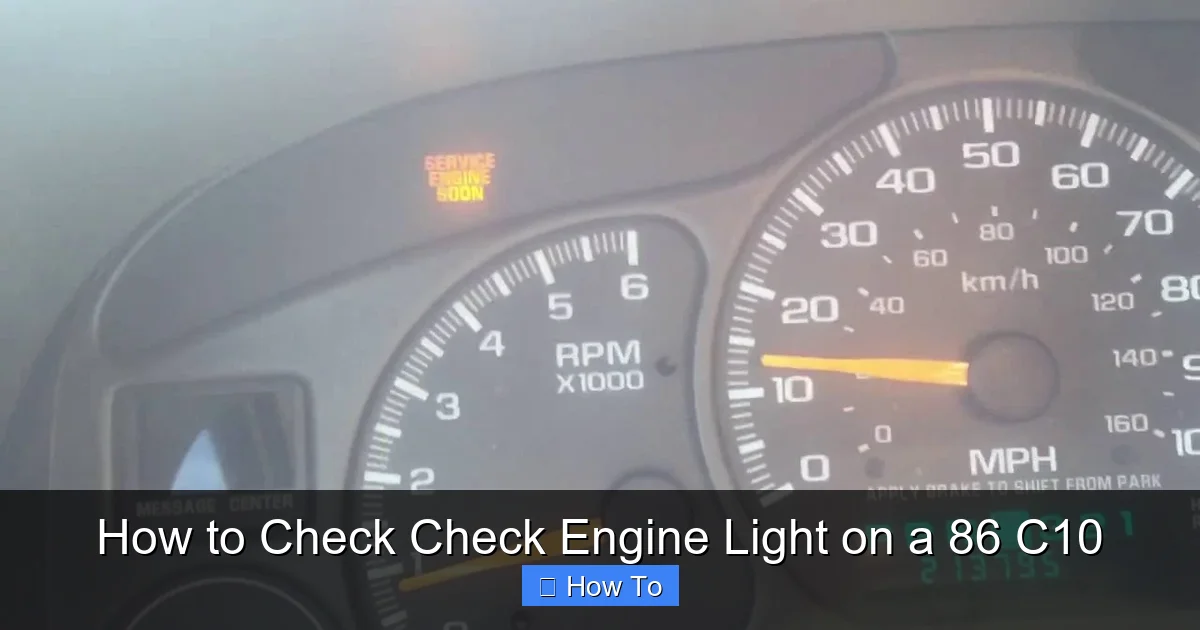

Now, turn the ignition key to the “ON” position. Do not start the engine. Just turn it so the dashboard lights up. You should see the check engine light illuminate.
At this point, the ECM will begin sending diagnostic signals through the check engine light. The light will start flashing in a pattern that corresponds to trouble codes.
Step 4: Read the Flashing Codes
This is where the magic happens. The check engine light will flash a series of long and short pulses. Here’s how to interpret them:
– Long flashes = tens digit
– Short flashes = ones digit
For example:
– One long flash, then three short flashes = Code 13
– Two long flashes, then five short flashes = Code 25
The codes will repeat in a cycle, usually three times, before pausing and starting again. Write down each code as it appears. If multiple codes are present, they’ll flash in sequence.
Common codes on the ’86 C10 include:
– Code 12: No distributor reference signal (often means the engine isn’t running or the sensor is faulty)
– Code 13: Oxygen sensor circuit open
– Code 14: Coolant temperature sensor low input
– Code 15: Coolant temperature sensor high input
– Code 21: Throttle position sensor high voltage
– Code 22: Throttle position sensor low voltage
– Code 23: Mixture control solenoid circuit
– Code 42: Electronic spark timing (EST) circuit fault
– Code 44: Lean exhaust indication
– Code 54: Fuel pump circuit low voltage
Note: Code 12 is normal when the engine is off—it just means the ECM isn’t detecting crankshaft rotation. But if it appears while the engine is running, that’s a problem.
Step 5: Record and Interpret the Codes
Once you’ve recorded all the flashing sequences, compare them to a 1986 C10 trouble code chart. You can find these in factory service manuals, online forums, or classic truck repair websites.
Each code points to a specific system or component. For example:
– A Code 13 suggests the oxygen sensor isn’t sending a signal, which could mean it’s faulty or disconnected.
– A Code 42 might indicate an issue with the ignition module or wiring.
Use this information to guide your next steps. Some issues are easy fixes—like reconnecting a loose wire or replacing a $20 sensor. Others may require more in-depth diagnosis.
Step 6: Clear the Codes (After Repairs)
After you’ve addressed the issue, you’ll want to clear the trouble codes to see if the problem is truly resolved. On the ’86 C10, this is done manually:
1. Turn off the ignition.
2. Disconnect the negative terminal of the battery.
3. Wait at least 10 minutes (this allows the ECM to fully reset).
4. Reconnect the battery.
5. Turn the ignition back on and check if the check engine light stays off.
If the light remains off, the issue is likely fixed. If it comes back on, the problem may still exist—or a new one has appeared.
Troubleshooting Common Issues
Even with the right codes, diagnosing your C10 can be tricky. Here are some common problems and how to address them.
Check Engine Light Flashes but No Codes Appear
If you’ve connected the jumper correctly and turned the ignition on, but the light just stays on or flashes randomly without a pattern, there could be a few issues:
– Faulty ECM: The computer itself may be malfunctioning. This is rare but possible in older vehicles.
– Bad ground connection: Check the ground wires from the ECM to the chassis. Corrosion or loose connections can disrupt signals.
– Damaged ALDL connector: Over time, the plastic connector can crack or the pins can bend. Inspect it for damage.
Try reseating the jumper and ensuring a solid connection. If that doesn’t work, consult a mechanic familiar with vintage GM trucks.
Multiple Codes Appear
Seeing several codes at once can be overwhelming. Start with the lowest number first—often, fixing one issue resolves others. For example, a faulty coolant sensor (Code 14 or 15) can cause the ECM to misread engine temperature, leading to incorrect fuel mixture and triggering additional codes.
Work through them systematically, and don’t assume all codes are active. Some may be “history codes” stored from past issues.
Light Comes Back On After Clearing
If the check engine light returns after you’ve cleared the codes, the underlying problem hasn’t been fixed. Double-check your repairs. For instance, if you replaced an oxygen sensor but didn’t clear corrosion from the wiring harness, the new sensor may fail quickly.
Also, ensure all connections are tight and free of corrosion. Vintage trucks are prone to rust and wear, especially in under-hood areas.
Preventative Maintenance Tips for 2026 and Beyond
The best way to avoid check engine light surprises is regular maintenance. Here are some tips to keep your ’86 C10 running smoothly:
- Inspect vacuum lines: Cracked or brittle vacuum hoses are a common cause of lean codes (like Code 44). Replace them every few years.
- Check spark plugs and wires: Worn ignition components can cause misfires and trigger EST-related codes.
- Test sensors annually: Use a multimeter to check resistance on the coolant temp sensor, throttle position sensor, and oxygen sensor.
- Keep the battery terminals clean: Poor electrical connections can cause erratic ECM behavior.
- Use quality fuel and additives: Older engines benefit from fuel system cleaners to prevent carbon buildup.
By staying proactive, you’ll reduce the chances of unexpected check engine light issues and extend the life of your classic truck.
When to Call a Professional
While the ALDL system empowers DIYers, some problems require expert help. Consider consulting a mechanic if:
– You’re getting inconsistent or confusing codes.
– The issue involves internal engine components (like a failing fuel pump or compression problems).
– You’re not comfortable working with electrical systems.
– The truck has been sitting for years and needs a full diagnostic.
A shop with experience in vintage GM vehicles can save you time and prevent costly mistakes.
Conclusion
Checking the check engine light on a 1986 C10 might seem old-school, but it’s a reliable and empowering way to stay connected with your truck’s health. With just a paperclip and a few minutes, you can read trouble codes, identify problems, and take action—no expensive tools required.
As we move through 2026, classic trucks like the C10 are more popular than ever. Whether you’re restoring one for shows or driving it daily, knowing how to diagnose issues keeps you in control. Remember: the check engine light isn’t a death sentence—it’s a conversation starter between you and your truck.
So next time that light comes on, don’t panic. Grab a paperclip, follow this guide, and get back on the road with confidence. Your ’86 C10 deserves it.
