How to Check Engine Light Obd1 Ford Ranger

This guide walks you through how to check engine light OBD1 Ford Ranger models using built-in diagnostic systems. You’ll learn to read trouble codes without a scanner, interpret them, and take action—saving time and repair costs.

Key Takeaways

OBD1 systems are self-diagnostic: Ford Rangers from 1983–1995 use OBD1, which allows you to retrieve trouble codes directly from the ECU without expensive tools.
Manual code retrieval is simple: By grounding a specific pin in the diagnostic connector, you can trigger the check engine light to flash error codes.
Codes are read via light flashes: The check engine light blinks in patterns—short and long flashes—to represent digits in a two-digit code.
Common issues include sensors and emissions: Most OBD1 codes relate to oxygen sensors, EGR valves, or fuel delivery problems—common in older Rangers.
Clearing codes requires a reset: After repairs, you must disconnect the battery or use a jumper to reset the ECU and turn off the light.
Preventive maintenance helps: Regular tune-ups and sensor checks reduce the chance of future check engine light activations.
Documentation is key: Keep a log of codes and repairs to track recurring issues and improve long-term reliability.

How to Check Engine Light OBD1 Ford Ranger: A Complete 2026 Guide

If you own a classic Ford Ranger—especially models from the 1980s and early 1990s—you’re likely driving a truck with an OBD1 (On-Board Diagnostics, Version 1) system. Unlike modern vehicles that rely on OBD2 scanners, OBD1 systems require a more hands-on approach to diagnose issues. But don’t worry: checking the engine light on your OBD1 Ford Ranger is easier than you think.

In this comprehensive guide, updated for 2026, you’ll learn exactly how to check engine light OBD1 Ford Ranger models using simple tools and techniques. Whether you’re a DIY mechanic or a proud owner of a vintage truck, this step-by-step walkthrough will help you read trouble codes, understand what they mean, and take the right action to keep your Ranger running strong.

We’ll cover everything from locating the diagnostic port to interpreting flash patterns and clearing codes. By the end, you’ll have the confidence to diagnose common engine problems without visiting a mechanic—saving time, money, and frustration.

Understanding OBD1 in Ford Rangers

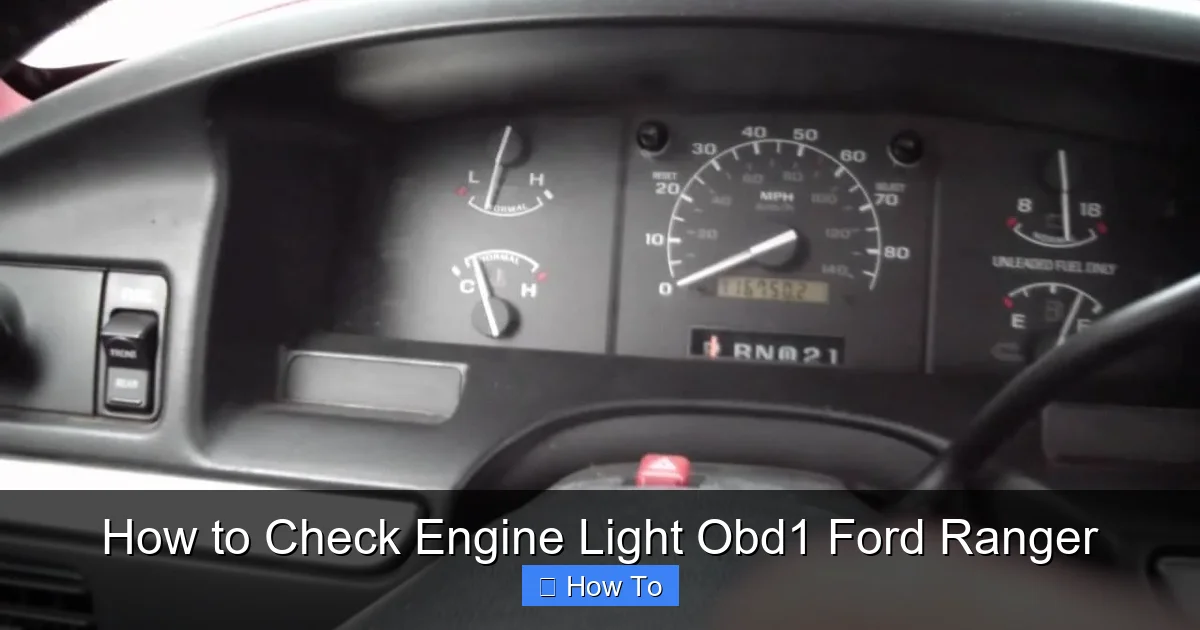

Visual guide about How to Check Engine Light Obd1 Ford Ranger

Image source: i.ytimg.com

Before diving into the how-to, it’s important to understand what OBD1 is and how it works in your Ford Ranger.

OBD1 was the first generation of onboard diagnostics, introduced in the early 1980s. Unlike today’s standardized OBD2 systems (used from 1996 onward), OBD1 was manufacturer-specific. That means Ford’s OBD1 system is different from GM’s or Chrysler’s. However, within Ford vehicles of that era—including the Ranger—the diagnostic process is consistent.

Your Ford Ranger’s OBD1 system monitors key engine functions such as fuel delivery, ignition timing, emissions, and sensor performance. When something goes wrong, the Engine Control Unit (ECU) stores a diagnostic trouble code (DTC) and triggers the check engine light on your dashboard.

The good news? You don’t need a $200 scanner to read these codes. With just a paperclip or jumper wire, you can retrieve them manually.

Which Ford Rangers Use OBD1?

Not all Ford Rangers have OBD1. Here’s a quick breakdown:

OBD1 Models: Ford Rangers built from 1983 to 1995 use OBD1 systems. These include the 2.0L, 2.3L, 2.9L, and 4.0L engines.
OBD2 Transition: Starting in 1996, Ford switched to OBD2 to comply with federal emissions standards. If your Ranger is a 1996 or newer model, you’ll need an OBD2 scanner.

So, if your truck has a carburetor or early fuel injection and was made before 1996, you’re likely working with OBD1. This guide is tailored specifically for those models.

Tools You’ll Need

One of the best things about diagnosing OBD1 systems is that you don’t need expensive equipment. Here’s what you’ll need:

A paperclip or jumper wire: This is used to ground the diagnostic connector.
A flashlight: Helps you see the diagnostic port, especially in older trucks with worn interiors.
A notepad and pen: To record the trouble codes as they flash.
Basic hand tools (optional): Screwdrivers or wrenches may be needed to access the diagnostic port or remove panels.

That’s it! No scanner, no laptop, no subscription services. Just simple tools you probably already have at home.

Step 1: Locate the Diagnostic Connector

The first step in checking the engine light on your OBD1 Ford Ranger is finding the diagnostic connector. This is where you’ll insert the jumper wire to retrieve codes.

Where to Find It

In most Ford Rangers with OBD1, the diagnostic connector is located under the hood, near the driver’s side firewall. It’s a small, rectangular plug with multiple pins—usually 6 or 10 pins, depending on the year.

Look for a black or gray plastic connector labeled “DLC” (Data Link Connector) or “Self-Test Input.” It’s often tucked behind the battery, near the brake booster, or mounted on the inner fender.

If you can’t find it, consult your owner’s manual or look for a diagram online using your specific model year and engine type.

Tip: Clean the Connector

Over time, the diagnostic port can collect dirt, grease, or corrosion. Before inserting the jumper wire, wipe the connector with a clean cloth. If there’s heavy grime, use electrical contact cleaner and a small brush to gently clean the pins.

A clean connection ensures reliable communication between the ECU and your manual diagnostic method.

Step 2: Prepare the Jumper Wire

Now that you’ve found the diagnostic connector, it’s time to prepare your jumper wire.

What to Use

A standard paperclip works perfectly. Straighten it out so you have a long, straight piece of metal. Alternatively, use a short length of insulated wire with stripped ends.

The goal is to create a temporary connection between two specific pins in the diagnostic connector.

Which Pins to Connect?

In Ford OBD1 systems, you need to ground the “Self-Test Input” (STI) pin. This is typically pin number 2 in a 6-pin connector or pin number 5 in a 10-pin connector.

To do this:

Identify the correct pin using a wiring diagram for your specific Ranger model.
Insert one end of the paperclip into the STI pin.
Touch the other end to a good ground—such as the engine block, battery negative terminal, or a grounded metal bracket.

You’re essentially telling the ECU to enter “self-test mode” so it can output diagnostic codes.

Safety Tip

Always make sure the ignition is off before inserting the jumper wire. Once the wire is in place, you can turn the key to the “ON” position (but don’t start the engine).

Step 3: Turn the Ignition On

With the jumper wire connected, it’s time to power up the system.

Turn the Key to “ON”

Insert your key and turn it to the “ON” position. You should see dashboard lights illuminate, including the check engine light.

Do not start the engine. The vehicle should remain off—only the ignition circuit is active.

Watch for the Check Engine Light

Within a few seconds, the check engine light will begin to flash. These flashes represent the diagnostic trouble codes stored in the ECU.

If the light doesn’t flash, double-check your connections:

Is the jumper wire securely in the correct pin?
Is the other end touching a solid ground?
Is the ignition truly in the “ON” position?

If everything looks correct and the light still doesn’t flash, the ECU may not be receiving power or the system may have a fault.

Step 4: Read the Flash Codes

This is the most important part of the process. The check engine light will blink in a specific pattern to indicate trouble codes.

Understanding the Flash Pattern

Each code is a two-digit number. The light will flash the first digit, pause, then flash the second digit.

For example:

A code of “12” will appear as: 1 flash, pause, 2 flashes.
A code of “24” will appear as: 2 flashes, pause, 4 flashes.

There’s usually a longer pause between codes if multiple codes are stored.

Example: Reading Code 12

Let’s say the light flashes once, pauses, then flashes twice. That’s code 12.

Code 12 in Ford OBD1 systems typically means “Engine Coolant Temperature (ECT) sensor circuit malfunction.” This could indicate a faulty sensor, wiring issue, or connector problem.

Recording the Codes

Use your notepad to write down each code as it appears. If multiple codes are present, the system will cycle through them repeatedly. Wait until the sequence repeats to ensure you’ve captured all codes.

Some Rangers may display a “Code 11” at the end, which means “No faults detected.” If you see this after other codes, it confirms the list is complete.

Step 5: Interpret the Trouble Codes

Once you’ve recorded the codes, it’s time to figure out what they mean.

Common Ford OBD1 Codes for Rangers

Here are some of the most common trouble codes you might encounter:

Code 11: No fault detected (system OK).
Code 12: Engine Coolant Temperature (ECT) sensor out of range.
Code 13: Oxygen (O2) sensor circuit malfunction (lean or rich condition).
Code 14: Throttle Position Sensor (TPS) signal out of range.
Code 15: ECT sensor indicates engine is cold when it’s hot (or vice versa).
Code 17: Engine is running too rich (high fuel mixture).
Code 21: Ignition Control Module (ICM) fault.
Code 22: Manifold Absolute Pressure (MAP) sensor low input.
Code 23: MAP sensor high input.
Code 24: Vehicle Speed Sensor (VSS) malfunction.
Code 31: Exhaust Gas Recirculation (EGR) system fault.
Code 41: O2 sensor indicates lean condition (front sensor).
Code 42: O2 sensor indicates rich condition (front sensor).
Code 44: O2 sensor indicates lean condition (rear sensor).
Code 51: ECT sensor open circuit.
Code 52: ECT sensor shorted.
Code 53: TPS sensor open circuit.
Code 54: TPS sensor shorted.
Code 61: O2 sensor circuit open (front).
Code 62: O2 sensor circuit shorted (front).
Code 63: O2 sensor circuit open (rear).
Code 64: O2 sensor circuit shorted (rear).
Code 71: Transmission range sensor fault (if equipped).
Code 72: Transmission pressure control solenoid fault.
Code 73: Transmission shift solenoid fault.
Code 74: Transmission torque converter clutch solenoid fault.
Code 75: Transmission line pressure high.
Code 76: Transmission line pressure low.
Code 77: Transmission fluid temperature sensor fault.

Note: Some codes may vary slightly depending on the year and engine. Always cross-reference with a Ford OBD1 code chart for your specific model.

What Do These Codes Mean?

Most OBD1 codes point to sensor failures or emissions-related issues. For example:

O2 sensor codes (13, 41, 42, etc.): Indicate the engine is running too rich or too lean. This affects fuel economy and emissions.
ECT sensor codes (12, 15, 51, 52): Suggest the engine isn’t warming up properly or the sensor is sending incorrect data.
TPS codes (14, 53, 54): Mean the throttle position isn’t being read correctly, which can cause poor acceleration or stalling.
MAP sensor codes (22, 23): Indicate issues with engine load detection, affecting fuel delivery and timing.
EGR codes (31): Point to a clogged or malfunctioning EGR valve, which can cause rough idle or increased emissions.

Understanding these codes helps you prioritize repairs and avoid unnecessary part replacements.

Step 6: Troubleshoot and Repair

Now that you know what the codes mean, it’s time to fix the problem.

Start with the Basics

Before replacing any parts, perform a visual inspection:

Check all sensor connectors for corrosion, looseness, or damage.
Inspect wiring harnesses for frayed or broken wires.
Look for vacuum leaks around the intake manifold and hoses.
Ensure the battery terminals are clean and tight.

Many OBD1 issues are caused by simple connection problems, not failed components.

Test Sensors and Components

Use a multimeter to test sensor resistance and voltage. For example:

ECT Sensor: Should show varying resistance as engine temperature changes.
TPS Sensor: Should have smooth voltage change as throttle opens.
O2 Sensor: Should fluctuate between 0.1V and 0.9V when engine is warm.

Refer to your service manual for specific testing procedures.

Replace Faulty Parts

If a sensor tests bad, replace it with a quality OEM or aftermarket part. Avoid cheap knockoffs—they often fail quickly and can trigger the same codes again.

After replacing a part, clear the codes (see next section) and test-drive the vehicle to see if the check engine light returns.

Step 7: Clear the Trouble Codes

Once the issue is fixed, you’ll want to clear the stored codes and turn off the check engine light.

Method 1: Disconnect the Battery

The simplest way to reset the ECU is to disconnect the battery:

Turn off the ignition and remove the key.
Disconnect the negative terminal of the battery.
Wait at least 10–15 minutes to ensure the ECU loses power.
Reconnect the battery and turn the ignition to “ON.”

The check engine light should now be off. If it returns after driving, the problem may not be fully resolved.

Method 2: Use the Jumper Wire

Some Ford OBD1 systems allow you to clear codes using the same jumper method:

With the ignition on and the jumper wire connected, wait for the codes to flash.
After the last code, leave the jumper in place for 10–15 seconds.
Remove the jumper and turn off the ignition.
Wait a few minutes, then restart the vehicle.

This method may not work on all models, so disconnecting the battery is more reliable.

Preventing Future Check Engine Light Issues

Now that you’ve diagnosed and fixed the problem, take steps to avoid future issues.

Regular Maintenance

Follow your Ford Ranger’s maintenance schedule:

Replace spark plugs and wires every 30,000 miles.
Change the fuel filter every 20,000–30,000 miles.
Inspect and clean the EGR valve annually.
Check oxygen sensors every 60,000 miles.

Use Quality Fuel and Additives

Low-quality fuel can cause carbon buildup and sensor contamination. Use top-tier gasoline and consider adding a fuel system cleaner every 5,000 miles.

Monitor Dashboard Lights

Don’t ignore the check engine light. Even if the truck seems to run fine, a stored code could indicate a developing issue.

Troubleshooting Common Problems

Even with the right steps, you might run into issues. Here are some common problems and solutions:

Check Engine Light Doesn’t Flash

Cause: Poor ground connection or faulty ECU.
Solution: Recheck the jumper wire and ground. Try a different grounding point.

Only One Code Appears Repeatedly

Cause: The ECU may be stuck in a loop or the sensor is intermittently failing.
Solution: Clear the code and monitor. If it returns, test the sensor under load.

Codes Don’t Match Symptoms

Cause: OBD1 codes can be generic. A “lean” code might be caused by a vacuum leak, not a bad O2 sensor.
Solution: Perform a smoke test to check for leaks before replacing parts.

Battery Dies After Reset

Cause: Older Rangers may have weak batteries or parasitic drains.
Solution: Test the battery and charging system. Replace if necessary.

Conclusion

Checking the engine light on your OBD1 Ford Ranger doesn’t require a mechanic or expensive tools. With a simple paperclip and a few minutes of your time, you can retrieve diagnostic codes, understand what they mean, and take action to fix the problem.

This 2026 guide has walked you through every step—from locating the diagnostic connector to interpreting flash patterns and clearing codes. Whether you’re dealing with a faulty oxygen sensor, a bad coolant temperature sensor, or an EGR issue, you now have the knowledge to diagnose and resolve it.

Remember: regular maintenance and prompt attention to warning lights are key to keeping your classic Ranger on the road for years to come. By mastering how to check engine light OBD1 Ford Ranger systems, you’re not just saving money—you’re becoming a more confident and capable vehicle owner.

So grab that paperclip, fire up your truck, and take control of your diagnostics today.
