Discover how to read OBD1 check engine light codes using basic tools like a paperclip or jumper wire. This guide walks you through the process for older vehicles (1995 and earlier) so you can identify engine problems without expensive scanners.
Key Takeaways
- OBD1 systems are found in cars made before 1996: These older systems require manual code reading, unlike modern OBD2 scanners.
- You can read codes with simple tools: A paperclip, jumper wire, or basic multimeter is all you need to access diagnostic trouble codes.
- Locate the diagnostic connector under the hood: The ALDL or OBD1 port is usually near the engine, not under the dashboard like OBD2.
- Count the flashes to get the code: The check engine light blinks in patterns that correspond to specific numbers.
- Refer to your vehicle’s service manual: Code meanings vary by manufacturer, so always check the correct reference guide.
- Clear codes by disconnecting the battery: This resets the system, but only do it after repairs to confirm the fix worked.
- Not all issues trigger a check engine light: Some problems may require a deeper inspection even if no code appears.
Introduction: Why Knowing How to Check OBD1 Codes Matters in 2026
Even in 2026, millions of classic and older vehicles still run on roads around the world. These cars—typically manufactured before 1996—use the On-Board Diagnostics Generation 1 (OBD1) system. Unlike today’s standardized OBD2 systems, OBD1 is manufacturer-specific and doesn’t rely on universal scanners. That means if your check engine light comes on, you can’t just plug in a $20 Bluetooth scanner and get instant answers.
Instead, diagnosing issues in OBD1 vehicles requires a hands-on approach. But don’t worry—it’s not as complicated as it sounds. With a few simple tools and a bit of patience, you can read the diagnostic trouble codes (DTCs) stored in your car’s computer. This guide will walk you through the entire process, from locating the diagnostic port to interpreting the blinking lights and clearing the codes.
Whether you’re restoring a vintage muscle car, maintaining a reliable daily driver from the ’90s, or just trying to save money on mechanic visits, learning how to check OBD1 check engine light codes is a valuable skill. By the end of this guide, you’ll be able to confidently troubleshoot common engine problems and understand what your car is trying to tell you.
What Is OBD1 and How Does It Work?

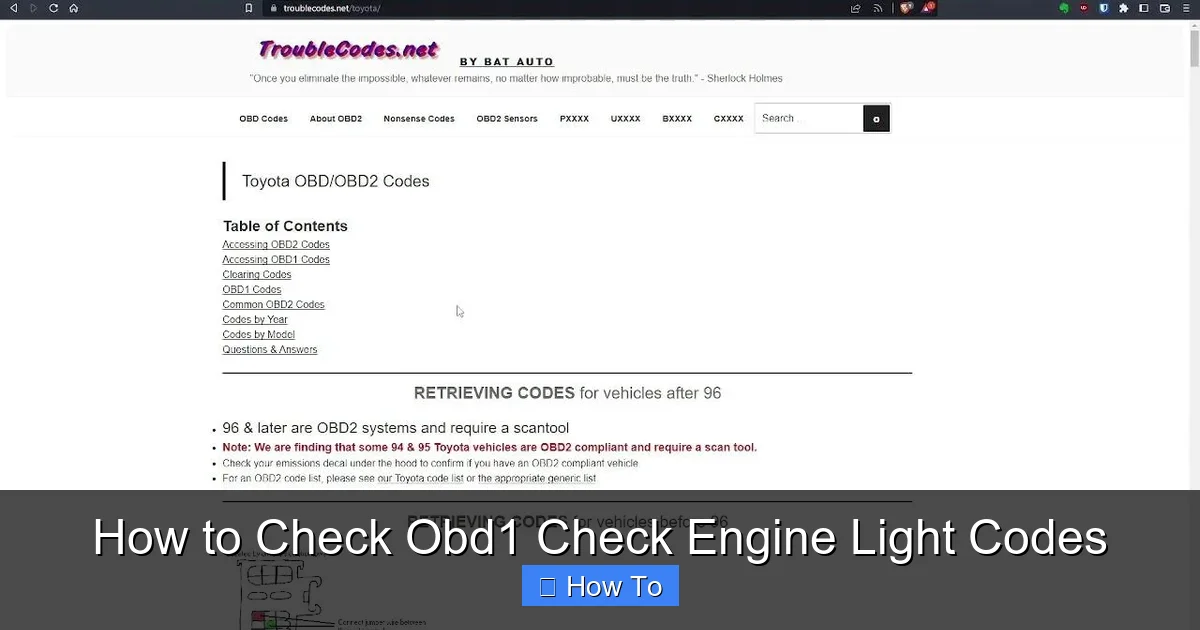

Visual guide about How to Check Obd1 Check Engine Light Codes
Image source: fixjeeps.com
Before diving into the how-to, it’s important to understand what OBD1 is and how it differs from modern systems.
OBD1, or On-Board Diagnostics Generation 1, was introduced in the late 1980s and used through the mid-1990s. It was the first attempt by automakers to monitor engine performance and emissions. However, unlike OBD2 (which became mandatory in 1996), OBD1 systems were not standardized. Each manufacturer—GM, Ford, Chrysler, Toyota, Honda, etc.—developed their own protocols, connectors, and code meanings.
The main purpose of OBD1 is to detect malfunctions in engine-related systems such as fuel delivery, ignition, emissions, and sensors. When a problem is detected, the vehicle’s computer stores a diagnostic trouble code (DTC) and turns on the check engine light (also called the “service engine soon” light).
Unlike OBD2, which uses a universal 16-pin connector under the dashboard, OBD1 systems use various connectors located under the hood—often near the engine or firewall. These are typically called ALDL (Assembly Line Diagnostic Link) ports.
The good news? You don’t need expensive equipment to read OBD1 codes. Most systems allow you to retrieve codes by grounding a specific pin in the diagnostic connector, which triggers the check engine light to flash in a sequence that corresponds to a numerical code.
Tools You’ll Need to Check OBD1 Codes
One of the best things about diagnosing OBD1 systems is that you don’t need high-tech gear. Here’s a list of tools you’ll need—most of which you probably already have at home.
- A paperclip or jumper wire: This is used to ground the diagnostic terminal. A simple stripped paperclip or a short piece of wire with alligator clips works perfectly.
- A flashlight: The diagnostic port is often tucked away in a dark corner under the hood.
- Your vehicle’s service manual: This is crucial. Code meanings vary by make and model, so you’ll need the correct reference guide.
- A notepad and pen: To record the codes and any observations.
- A multimeter (optional): Helpful if you want to test sensor voltages or check for power at the diagnostic port.
You won’t need a scan tool, laptop, or smartphone app—those are for OBD2 systems. For OBD1, simplicity is key.
Step 1: Locate the OBD1 Diagnostic Connector
The first step in reading OBD1 codes is finding the diagnostic port. This is where you’ll insert your jumper wire to initiate the code-reading process.
Where to Look
Unlike OBD2 ports, which are always under the dashboard near the driver’s side, OBD1 connectors are usually located under the hood. Common locations include:
- Near the firewall on the driver’s side
- Next to the engine control module (ECM)
- Behind the battery or near the fender
- Under the intake manifold (on some GM vehicles)
The connector is typically a rectangular or trapezoidal plug with 12 to 16 pins. It may be labeled “ALDL,” “DIAG,” or “OBD.” On some vehicles, it’s covered by a small plastic cap.
Manufacturer-Specific Locations
Here are some common locations by brand:
- GM (Chevrolet, GMC, Buick, Cadillac): Usually a 12-pin ALDL connector near the firewall or under the dash on older models. On many GM cars, it’s accessible by removing the kick panel on the driver’s side.
- Ford: Often a 6-pin or 10-pin connector near the PCM (Powertrain Control Module), usually under the hood on the driver’s side.
- Chrysler/Dodge/Plymouth: Typically a 6-pin connector near the battery or firewall.
- Toyota: A 17-pin connector under the hood, often near the fuse box.
- Honda: A 2-pin or 3-pin connector near the ECU, usually under the passenger side of the dashboard.
If you can’t find it, consult your vehicle’s service manual or search online using your make, model, and year.
Step 2: Prepare the Vehicle for Code Reading
Before you start reading codes, make sure your vehicle is ready.
Turn Off the Engine
Always perform this procedure with the engine off and the key removed. This prevents accidental short circuits or damage to the ECU.
Ensure the Battery Is Connected
The vehicle’s computer needs power to communicate. Make sure the battery is connected and has a good charge. A weak battery can cause false readings or prevent the system from responding.
Turn On the Ignition (But Don’t Start the Engine)
Turn the key to the “ON” position (also called “IGN” or “RUN”). This powers up the ECU and instrument panel without starting the engine. You should see the check engine light illuminate briefly—this is normal.
Step 3: Ground the Diagnostic Terminal
This is the core step in reading OBD1 codes. By grounding a specific pin in the diagnostic connector, you tell the computer to output the stored trouble codes via the check engine light.
Identify the Correct Pin
Each manufacturer uses a different pin for grounding. Here’s a quick reference:
- GM: Ground pin “A” (usually the leftmost pin when facing the connector). Use a jumper wire to connect pin A to pin B (or to a known ground).
- Ford: Ground the STI (Self-Test Input) pin, often labeled or found in the service manual. On many Fords, this is pin 2 in a 6-pin connector.
- Chrysler: Ground the DRB (Diagnostic Readout Box) pin, usually pin 1 in a 6-pin connector.
- Toyota: Short the “TE1” and “E1” terminals in the diagnostic box under the hood.
- Honda: Connect the two pins in the 2-pin service connector (usually under the dash).
If you’re unsure, refer to your service manual. Never guess—incorrect grounding can damage the ECU.
Use a Jumper Wire or Paperclip
Straighten a paperclip or use a short piece of insulated wire with stripped ends. Insert one end into the correct pin and touch the other end to a solid ground (like the engine block or battery negative terminal). Alternatively, connect it to another designated pin as specified in your manual.
Watch for the Check Engine Light
Once the correct pin is grounded, the check engine light will begin to flash. This is your signal that the system is outputting codes.
Step 4: Read the Blinking Codes
Now comes the fun part—decoding the flashes.
Understand the Flash Pattern
The check engine light will blink in a series of long and short pulses. Each code is represented by two digits:
- The first digit is shown by long flashes (each lasting about 1 second).
- The second digit is shown by short flashes (each lasting about 0.5 seconds).
- A pause separates the digits, and a longer pause separates each code.
For example:
- One long flash, then three short flashes = Code 13
- Two long flashes, then four short flashes = Code 24
Some systems may flash the code multiple times. Wait until the sequence repeats to confirm.
Record All Codes
Write down every code that appears. The system may store multiple codes, and they’ll be displayed in order. Some vehicles will also flash a “separator” code (like 12) between groups.
Example: Reading a GM Code
Let’s say you’re working on a 1994 Chevrolet Camaro. You ground pin A to pin B in the ALDL connector. The check engine light flashes:
- One long flash, pause, three short flashes, pause, repeat.
This is Code 13, which on GM vehicles typically indicates a problem with the oxygen sensor circuit.
Step 5: Interpret the Codes
Once you have the codes, it’s time to figure out what they mean.
Use the Correct Reference Guide
Code meanings are not universal. A Code 13 on a GM means something different than Code 13 on a Ford. Always use a service manual specific to your vehicle’s make, model, and year.
You can find these manuals:
- At auto parts stores
- Online through sites like Helm Inc. or Mitchell1
- In PDF format on forums or enthusiast websites
Common OBD1 Codes by Manufacturer
Here are a few examples:
GM (ALDL System):
- Code 12: No distributor reference pulse (system test mode)
- Code 13: Oxygen sensor circuit open
- Code 14: Coolant temperature sensor low input
- Code 15: Coolant temperature sensor high input
- Code 21: Throttle position sensor high input
- Code 22: Throttle position sensor low input
- Code 44: Lean exhaust indication
Ford (EEC-IV System):
- Code 11: System pass (no faults)
- Code 12: RPM too low for self-test
- Code 13: RPM too high for self-test
- Code 14: Ignition pickup fault
- Code 15: Transmission control switch open
- Code 18: Spark output circuit fault
Chrysler (SBEC System):
- Code 11: No crank reference signal
- Code 12: Battery disconnected recently
- Code 13: MAP sensor voltage too high
- Code 14: MAP sensor voltage too low
- Code 15: Vehicle speed sensor fault
Toyota:
- Code 12: RPM signal missing
- Code 13: Crankshaft position sensor fault
- Code 14: Ignition signal missing
- Code 21: Oxygen sensor signal stuck rich
- Code 22: Coolant temperature sensor fault
Honda:
- Code 1: Oxygen sensor circuit malfunction
- Code 3: Manifold absolute pressure sensor fault
- Code 4: Crank position sensor fault
- Code 7: Throttle position sensor fault
What If No Codes Appear?
If the check engine light doesn’t flash after grounding the terminal, it could mean:
- The system has no stored codes (the light may have come on briefly and cleared).
- The ECU is not receiving power.
- The diagnostic connector is damaged or corroded.
- You grounded the wrong pin.
Double-check your connections and consult your manual. If the light stays on but no codes appear, the issue may be intermittent or not severe enough to trigger a code.
Step 6: Clear the Codes
After diagnosing and repairing the issue, you’ll want to clear the codes to see if the problem is truly fixed.
Method 1: Disconnect the Battery
The most common way to clear OBD1 codes is to disconnect the negative battery terminal for at least 10–15 minutes. This resets the ECU and clears stored trouble codes.
Steps:
- Turn off the ignition and remove the key.
- Use a wrench to loosen the negative battery cable.
- Disconnect the cable and wait 15 minutes.
- Reconnect the cable and tighten it securely.
- Turn the ignition back on and check if the check engine light remains off.
Note: This method may also reset radio presets, clock, and other settings.
Method 2: Use a Scan Tool (If Available)
Some older scan tools can clear OBD1 codes, but these are rare and often expensive. Most DIYers stick with the battery disconnect method.
Verify the Repair
After clearing the codes, drive the vehicle for a few days. If the check engine light stays off, the repair was successful. If it returns, the issue may still exist or a new problem has developed.
Troubleshooting Common Issues
Even with the right steps, you might run into problems. Here’s how to handle common issues.
The Check Engine Light Doesn’t Flash
- Double-check that you’ve grounded the correct pin.
- Ensure the ignition is on (but engine off).
- Test for power at the diagnostic connector using a multimeter.
- Inspect the connector for corrosion or bent pins.
Codes Keep Returning
If the same code reappears after clearing, the underlying issue hasn’t been fixed. For example:
- Code 13 (O2 sensor) returning? The sensor may be faulty or the wiring damaged.
- Code 21 (TPS high) recurring? The throttle position sensor may need replacement.
Don’t just clear codes—fix the root cause.
Intermittent Codes
Some codes appear only under certain conditions (e.g., cold start, high RPM). If a code appears once and doesn’t return, it may have been a temporary glitch. Monitor the vehicle and recheck if the light comes on again.
False Codes Due to Low Battery
A weak battery can cause the ECU to misread sensor inputs. Always ensure the battery is fully charged before diagnosing.
Safety Tips and Best Practices
Working under the hood comes with risks. Follow these safety guidelines:
- Always disconnect the battery before working on electrical systems (if possible).
- Wear safety glasses to protect your eyes from debris.
- Use insulated tools to avoid short circuits.
- Never touch moving parts like belts or fans.
- Work in a well-ventilated area, especially if the engine has been running.
- Keep a fire extinguisher nearby when working with batteries and electronics.
Conclusion: Take Control of Your OBD1 Diagnostics
Checking OBD1 check engine light codes doesn’t require a degree in automotive engineering. With a paperclip, a flashlight, and this guide, you can diagnose issues in your pre-1996 vehicle just like a professional.
Remember, OBD1 systems are older and less sophisticated than modern OBD2, but they’re still reliable when understood. The key is patience, attention to detail, and using the right reference materials.
By learning how to read these codes, you save money on diagnostics, gain a deeper understanding of your vehicle, and keep your classic car running smoothly well into 2026 and beyond.
So the next time that check engine light flickers on, don’t panic—grab your jumper wire and start decoding. Your car is talking to you. Now you know how to listen.
