This guide walks you through how to clear the check engine light on OBD1 VW vehicles using simple tools and proven methods. Whether you’re a DIY enthusiast or a first-time mechanic, you’ll learn safe, effective techniques to reset the light and understand what caused it in the first place.
Key Takeaways
- OBD1 systems require manual reset methods: Unlike modern OBD2 systems, OBD1 Volkswagen models don’t support standard scan tools for clearing codes—manual procedures are essential.
- Disconnecting the battery is a common but incomplete fix: While it may reset the ECU, it won’t clear stored trouble codes or address the root cause of the check engine light.
- Use the diagnostic connector and jumper wire for accurate code clearing: This method accesses the ECU directly and allows you to erase codes safely without damaging electronics.
- Always diagnose the issue first: Clearing the light without fixing the underlying problem can lead to repeated warnings or engine damage.
- Keep a repair log for future reference: Documenting codes and fixes helps track recurring issues and improves long-term vehicle maintenance.
- Some older VW models have unique pin configurations: Always verify your vehicle’s year, engine type, and diagnostic port layout before starting.
- Prevention is better than reset: Regular maintenance reduces the chances of triggering the check engine light in the first place.
How to Clear Check Engine Light on OBD1 VW
If you own a classic Volkswagen from the 1980s or early 1990s—like a Golf Mk1, Jetta, Scirocco, or even an early Passat—you’re likely dealing with an OBD1 (On-Board Diagnostics, Generation 1) system. These older vehicles don’t have the standardized OBD2 ports found in cars from 1996 onward. That means clearing the check engine light isn’t as simple as plugging in a scanner.
In this comprehensive guide, you’ll learn exactly how to clear the check engine light on OBD1 VW models using safe, reliable methods. We’ll cover everything from identifying your diagnostic port to performing a manual ECU reset, interpreting trouble codes, and preventing future warnings. Whether you’re restoring a vintage VW or just keeping your daily driver in top shape, this guide is built for 2026 and beyond—because classic cars are here to stay.
Understanding OBD1 in Volkswagen Vehicles

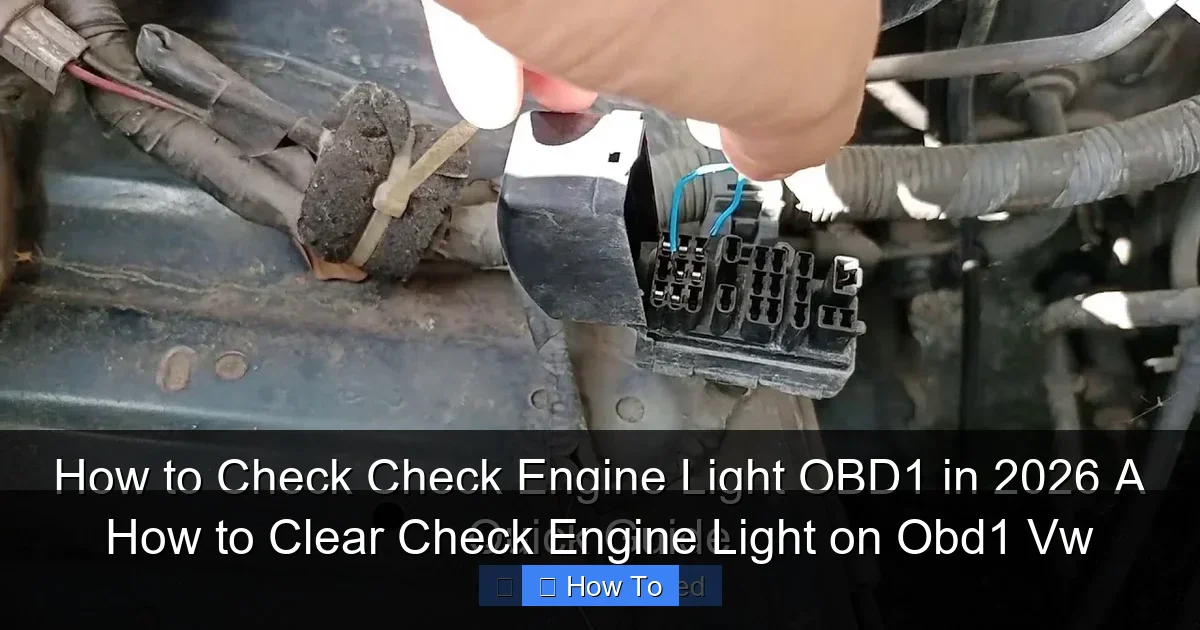

Visual guide about How to Clear Check Engine Light on Obd1 Vw
Image source: enginelightfixers.com
Before jumping into the reset process, it’s important to understand what OBD1 is and how it differs from modern systems. OBD1 was the first generation of onboard diagnostics, introduced in the late 1970s and widely used through the early 1990s. Unlike OBD2, which uses a universal 16-pin connector and standardized communication protocols, OBD1 systems vary significantly between manufacturers—and even between models from the same brand.
In Volkswagen vehicles, OBD1 typically relies on a proprietary diagnostic connector, often located under the dashboard or near the fuse box. The system monitors basic engine functions like ignition timing, fuel delivery, and emissions. When something goes out of range, the ECU (Engine Control Unit) stores a trouble code and triggers the check engine light.
One key limitation of OBD1 is that it doesn’t support real-time data streaming or advanced diagnostics. You can’t plug in a generic OBD2 scanner and expect it to work. Instead, you’ll need to use manual methods to read and clear codes. That’s why knowing how to clear the check engine light on OBD1 VW models requires a hands-on approach.
Tools and Materials You’ll Need
Before starting, gather the following tools and materials. Most are inexpensive and easy to find:
- A small jumper wire (or a paperclip bent into a U-shape)
- A flashlight (for better visibility under the dash)
- Your vehicle’s service manual (or access to a reliable online resource)
- A notepad and pen (to record trouble codes)
- Basic hand tools (screwdriver, pliers—if needed to access the diagnostic port)
- Optional: A digital multimeter (for advanced diagnostics)
Avoid using generic OBD2 code readers—they won’t work on OBD1 systems. Also, don’t rely solely on disconnecting the battery, as this method often fails to clear stored codes and can reset other systems like the radio or clock.
Step 1: Locate the Diagnostic Connector
The first step in clearing the check engine light is finding the diagnostic port. In most OBD1 Volkswagen models, this connector is a 2-pin or 3-pin port, usually black or gray, and located under the dashboard on the driver’s side.
Common Locations by Model
- Golf Mk1 (1984–1992): Under the dash, near the steering column, often behind a small plastic cover.
- Jetta (1985–1992): Similar to the Golf, usually accessible from the driver’s footwell.
- Scirocco (1981–1992): Located near the fuse box or under the dash on the left side.
- Passat (1988–1993): May have a 3-pin connector behind the glove compartment or under the dash.
If you can’t find it, consult your owner’s manual or search online using your exact model and year. Some older VWs have the port tucked behind panels or covered by insulation. Use your flashlight to inspect carefully.
Identifying the Correct Pins
Once you locate the connector, identify the correct pins for diagnostics. Most OBD1 VW systems use a 2-pin setup labeled “TEN” (Test ENable) and “GND” (Ground). The TEN pin is usually the one you’ll jumper to ground to initiate the diagnostic mode.
For example, in a 1990 VW Golf with a Digifant engine management system, the TEN pin is typically the upper pin in a 2-pin connector. Always double-check with a service manual to avoid shorting the wrong wires.
Step 2: Read the Trouble Codes
Before clearing the check engine light, it’s crucial to read the stored trouble codes. This helps you understand what triggered the warning and ensures you’re not just masking a serious issue.
Entering Diagnostic Mode
1. Turn the ignition key to the “ON” position (but don’t start the engine).
2. Locate the TEN and GND pins in the diagnostic connector.
3. Use your jumper wire to connect the TEN pin to the GND pin.
4. Watch the check engine light—it should begin to flash in a specific pattern.
Interpreting the Flash Codes
The flashing pattern corresponds to a numerical code. For example:
– One long flash followed by three short flashes = Code 13
– Two long flashes and four short flashes = Code 24
Count the flashes carefully and write them down. Long flashes represent the tens digit, short flashes the ones digit. A pause between sequences indicates the end of a code.
Common OBD1 VW trouble codes include:
- Code 13: Coolant temperature sensor malfunction
- Code 24: Engine speed sensor issue
- Code 33: Oxygen sensor (lambda) fault
- Code 44: Fuel system rich or lean condition
Refer to a VW-specific OBD1 code chart for accurate interpretation. Some codes may appear multiple times—this indicates severity or recurrence.
Step 3: Clear the Check Engine Light
Once you’ve recorded the codes, it’s time to clear them. There are two primary methods: using the jumper wire method or performing an ECU reset.
Method 1: Jumper Wire Code Clearing
This is the most reliable way to clear codes on OBD1 VW systems.
1. Ensure the ignition is ON and the TEN pin is still jumpered to GND.
2. Wait for the check engine light to finish flashing the codes.
3. Once the sequence ends, remove the jumper wire from the TEN pin.
4. Turn the ignition OFF and wait 10–15 seconds.
5. Turn the ignition back ON.
If done correctly, the check engine light should remain off. If it comes back on immediately, the issue may still be present, or the code wasn’t fully cleared.
Method 2: ECU Reset via Battery Disconnection
While less precise, disconnecting the battery can reset the ECU in some cases.
1. Turn off the ignition and remove the key.
2. Disconnect the negative terminal of the battery using a wrench.
3. Wait at least 15 minutes (this allows capacitors in the ECU to discharge).
4. Reconnect the battery and turn the ignition ON.
Note: This method may reset other systems (radio presets, clock, etc.) and doesn’t always clear stored trouble codes. It’s best used as a supplement, not a primary solution.
Step 4: Verify the Reset
After clearing the codes, verify that the check engine light stays off. Start the engine and let it idle for a few minutes. Take the car for a short drive to ensure no new codes are triggered.
If the light returns, the underlying problem hasn’t been fixed. Revisit the trouble codes and address the root cause—whether it’s a faulty sensor, vacuum leak, or ignition issue.
Troubleshooting Common Issues
Even with the right steps, you might run into problems. Here’s how to handle common issues:
Check Engine Light Won’t Turn Off
– The issue may still be active. Recheck the trouble codes and inspect related components (e.g., oxygen sensor, coolant temp sensor).
– Ensure the jumper wire made solid contact during the reset.
– Some ECUs require multiple reset attempts.
No Flash Codes Appear
– Verify the TEN and GND pins are correct.
– Check for corrosion or loose connections in the diagnostic port.
– The ECU may be faulty or not receiving power.
Battery Disconnection Causes Other Problems
– Re-sync the radio (if equipped with a security code).
– Reset the clock and trip meter.
– Re-calibrate the idle speed if the engine runs rough (some VWs require a warm-up procedure).
Preventing Future Check Engine Lights
Clearing the light is only half the battle. To avoid repeat issues, follow these preventive tips:
- Perform regular maintenance: Replace spark plugs, air filters, and fuel filters on schedule.
- Inspect vacuum lines: Cracked or loose hoses are a common cause of OBD1 faults.
- Use quality fuel and oil: Poor-quality fuel can trigger sensor errors.
- Check sensor connections: Ensure oxygen, coolant, and airflow sensors are clean and secure.
- Keep a maintenance log: Track repairs and codes to spot patterns.
Final Thoughts
Learning how to clear the check engine light on OBD1 VW vehicles empowers you to take control of your classic car’s health. While the process is more hands-on than modern systems, it’s entirely manageable with the right tools and knowledge.
Remember: clearing the light is not a fix—it’s a reset. Always diagnose the root cause to ensure your VW runs safely and efficiently. With regular care and attention, your OBD1 Volkswagen can continue to deliver the driving experience that made these cars legendary.
Whether you’re restoring a vintage Scirocco or keeping a trusty Golf on the road, this guide equips you with the skills to maintain your vehicle like a pro—now and in 2026.
