How to Diagnose Check Engine Light Obd1

Diagnosing a check engine light on an OBD1 system doesn’t require fancy tools or a mechanic. This guide walks you through simple, effective steps to read trouble codes, identify common issues, and get your older vehicle back on the road safely.

Key Takeaways

  • OBD1 systems are found in vehicles made before 1996 and use manufacturer-specific diagnostic connectors and procedures.
  • You can read OBD1 trouble codes without a scanner by using a paperclip or jumper wire to bridge the diagnostic connector.
  • Check engine light flashes correspond to specific trouble codes—count the flashes to identify the issue.
  • Common OBD1 problems include faulty oxygen sensors, vacuum leaks, and ignition system failures—many are DIY-fixable.
  • Always clear codes after repairs by disconnecting the battery or using the correct reset procedure.
  • Consult your vehicle’s service manual for exact pin layouts and code definitions, as they vary by make and model.
  • Regular maintenance helps prevent check engine light issues—keep up with tune-ups and sensor checks.

How to Diagnose Check Engine Light OBD1: A Complete Step-by-Step Guide

If you drive a car made before 1996, chances are it uses an OBD1 (On-Board Diagnostics, Version 1) system. Unlike modern OBD2 systems that use universal scanners, OBD1 requires a bit more hands-on work—but don’t worry. Diagnosing a check engine light on an OBD1 vehicle is totally doable at home with basic tools and a little patience.

In this guide, you’ll learn exactly how to read OBD1 trouble codes, understand what they mean, and take the first steps toward fixing the problem—all without spending money at the mechanic. Whether you’re restoring a classic car or just keeping your old reliable running, this guide will help you take control of your vehicle’s health.

What Is OBD1 and Why Does It Matter?

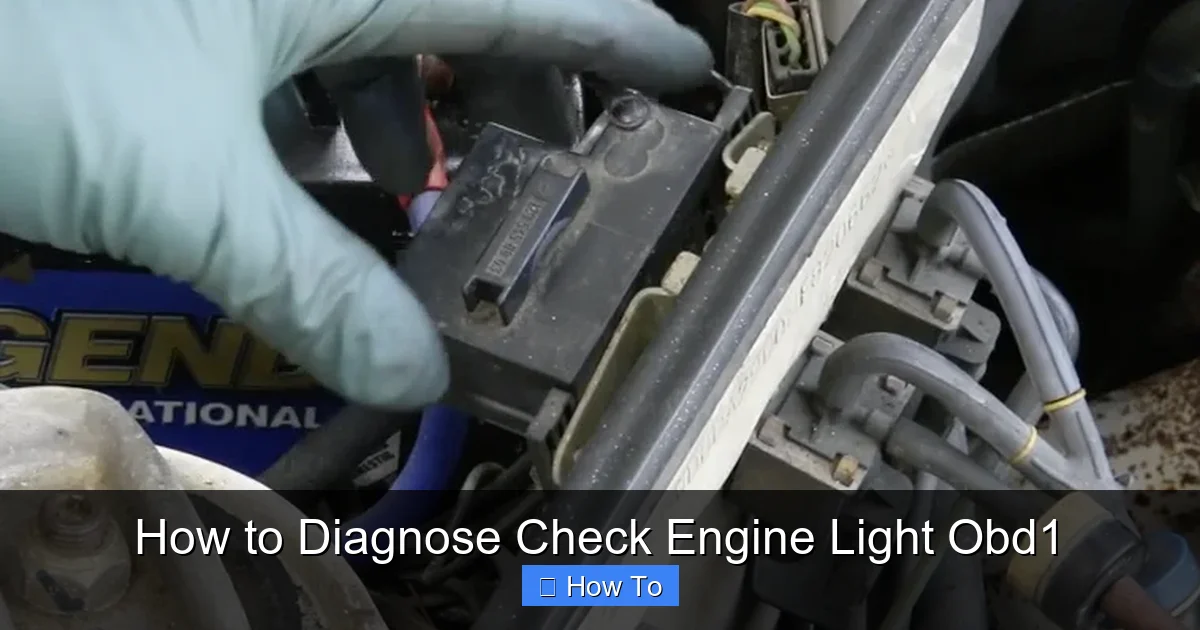

How to Diagnose Check Engine Light Obd1

Visual guide about How to Diagnose Check Engine Light Obd1

Image source: dq4zp01npifg0.cloudfront.net

OBD1 was the first generation of onboard vehicle diagnostics, introduced in the late 1980s and used through the mid-1990s. Unlike today’s standardized OBD2 systems—which use a universal 16-pin connector and consistent code formats—OBD1 systems vary by manufacturer. That means the diagnostic connector location, pin layout, and code retrieval method can differ between a Honda, Ford, GM, or Toyota.

Despite these differences, the core idea is the same: when the check engine light comes on, the car’s computer has detected a problem and stored a trouble code. Your job is to retrieve that code and figure out what’s wrong.

Tools You’ll Need

Before you start, gather these basic tools:

  • A paperclip or small jumper wire (preferably insulated)
  • A flashlight (for better visibility under the dash)
  • Your vehicle’s service manual (for code definitions and connector diagrams)
  • A notebook or phone to record the codes
  • Basic hand tools (screwdrivers, wrenches) if you plan to inspect components

You don’t need an expensive scanner—just a simple piece of wire and a bit of focus.

Step 1: Locate the OBD1 Diagnostic Connector

The first step is finding the diagnostic connector. On most OBD1 vehicles, it’s located under the dashboard on the driver’s side, near the steering column. It’s usually a small, rectangular or trapezoidal port with 4 to 12 pins.

Common Connector Locations by Manufacturer

  • GM (1991–1995): ALDL (Assembly Line Diagnostic Link) connector under the dash, often near the fuse box.
  • Ford (1991–1995): EEC-IV connector, usually under the driver’s side dash or near the brake pedal.
  • Honda/Acura (1991–1995): 2-pin or 3-pin connector under the passenger side dash or behind the glove box.
  • Toyota/Lexus (1991–1995): DLC1 or DLC2 connector under the dash, often near the center console.

If you can’t find it, check your owner’s manual or search online for your specific make, model, and year.

Step 2: Prepare to Read the Codes

Once you’ve found the connector, you’ll need to bridge two specific pins to put the system into “diagnostic mode.” This tells the computer to start flashing the check engine light in a pattern that corresponds to trouble codes.

How to Bridge the Pins

For most GM vehicles, you’ll bridge pins A and B (ground and diagnostic enable). On Fords, it’s usually pins 2 and 6. Hondas often use a single pin that’s grounded to the chassis. Toyotas may require bridging TE1 and E1.

Use a paperclip or jumper wire to connect the correct pins. Make sure the ignition is off when you insert the wire, then turn the key to the “ON” position (but don’t start the engine).

Step 3: Read the Check Engine Light Flashes

With the pins bridged and the ignition on, watch the check engine light. It will begin to flash in a series of long and short pulses. Each flash sequence represents a digit in a trouble code.

How to Interpret the Flashes

  • A long flash = 10
  • A short flash = 1
  • Pause between digits
  • Longer pause between codes

For example:

  • Two long flashes, then three short flashes = Code 23
  • One long flash, pause, four short flashes = Code 14

Write down each code as it appears. The system may cycle through multiple codes, so stay patient and keep track.

Step 4: Decode the Trouble Codes

Now that you have the codes, it’s time to figure out what they mean. This is where your service manual or a reliable online resource comes in handy.

Common OBD1 Trouble Codes by Manufacturer

GM (ALDL System):

  • Code 12: No RPM signal (often a crankshaft position sensor issue)
  • Code 13: Oxygen sensor circuit open
  • Code 14: Coolant temperature sensor low input
  • Code 44: Lean exhaust indication (vacuum leak or fuel delivery problem)

Ford (EEC-IV):

  • Code 11: System pass (no fault detected)
  • Code 14: Ignition pickup signal issue
  • Code 18: RPM signal loss
  • Code 21: Coolant temperature sensor out of range

Honda:

  • Code 1: Oxygen sensor problem
  • Code 4: Crankshaft position sensor
  • Code 7: Throttle position sensor
  • Code 9: Cylinder position sensor

Toyota:

  • Code 21: Oxygen sensor heater circuit
  • Code 22: Engine coolant temperature sensor
  • Code 24: Intake air temperature sensor
  • Code 31: Airflow meter (MAF) issue

Note: These are general examples. Always verify with your specific vehicle’s manual.

Step 5: Diagnose the Problem

Once you know the code, start diagnosing the likely cause. Here are some common issues and how to check them:

Oxygen Sensor (Codes 13, 1, 21, etc.)

The O2 sensor monitors exhaust oxygen levels. A faulty sensor can cause poor fuel economy and emissions issues. Check for:

  • Corroded or damaged wiring
  • Loose or burnt connectors
  • Exhaust leaks near the sensor

You can test resistance with a multimeter or simply replace the sensor if it’s old.

Coolant Temperature Sensor (Codes 14, 22)

This sensor tells the computer how hot the engine is. If it’s faulty, the engine may run rich or lean. Check:

  • Coolant level and condition
  • Sensor resistance (should change with temperature)
  • Wiring for corrosion or breaks

Vacuum Leaks (Code 44, Lean Codes)

A vacuum leak introduces unmetered air into the engine, causing a lean condition. Look for:

  • Cracked or disconnected vacuum hoses
  • Worn intake manifold gaskets
  • Leaky PCV valve or brake booster hose

Spray carb cleaner around suspected areas while the engine is running—if RPMs change, you’ve found a leak.

Ignition System Issues (Codes 14, 18, 4)

Problems with the distributor, coil, or crankshaft sensor can trigger these codes. Check:

  • Spark plugs and wires for wear
  • Distributor cap and rotor for cracks or carbon tracking
  • Crankshaft position sensor alignment and wiring

Troubleshooting Tips

  • Clear the codes after repairs: Disconnect the negative battery terminal for 10–15 minutes. This resets the computer and turns off the check engine light.
  • Don’t ignore intermittent codes: Even if the light goes off, the problem may return. Monitor the vehicle’s performance.
  • Use a code chart: Print or bookmark a code reference for your vehicle to save time.
  • Check grounds and fuses: Poor electrical connections can mimic sensor failures.
  • Test components before replacing: Use a multimeter to verify sensor operation—don’t just swap parts blindly.

When to Call a Mechanic

While many OBD1 issues are DIY-friendly, some problems require professional help:

  • Internal engine damage (e.g., low compression, timing issues)
  • Transmission or ECU faults
  • Complex wiring harness problems
  • If the check engine light comes back after repairs

If you’ve tried basic troubleshooting and the light persists, it’s time to consult a trusted mechanic familiar with older vehicles.

Conclusion

Diagnosing a check engine light on an OBD1 vehicle might seem intimidating at first, but with the right approach, it’s a manageable task. By locating the diagnostic connector, bridging the correct pins, and reading the flash codes, you can uncover the root of the problem—often without spending a dime on tools or labor.

Remember, OBD1 systems vary by manufacturer, so always refer to your vehicle’s service manual for accurate pin layouts and code definitions. With patience and a little practice, you’ll gain confidence in maintaining your classic or older vehicle.

Keep this guide handy, stay proactive with maintenance, and you’ll keep that check engine light off for miles to come.
