When your engine light is on, a smoke test can help pinpoint hidden vacuum leaks or intake issues. This guide walks you through how to do a smoke test engine light on safely and effectively using simple tools and clear steps.
Key Takeaways
- Smoke testing reveals hidden leaks: It’s one of the most effective ways to find small vacuum or intake leaks that trigger the check engine light.
- You don’t need professional tools: Basic smoke machines or DIY kits are affordable and easy to use at home.
- Safety first: Always work in a well-ventilated area and avoid inhaling smoke or exposing electrical components.
- Common leak locations: Focus on intake hoses, PCV valves, throttle bodies, and vacuum lines—these are frequent culprits.
- Interpret results carefully: Look for smoke escaping from unexpected areas; that’s your leak source.
- Fix before clearing codes: Repair the issue first, then reset the engine light to ensure it doesn’t return.
- When to call a pro: If you can’t locate the leak or suspect major internal damage, consult a mechanic.
Why Your Engine Light Is On—And Why a Smoke Test Helps
That little orange or yellow engine light on your dashboard isn’t just annoying—it’s your car’s way of saying something’s wrong. While it could mean anything from a loose gas cap to a faulty oxygen sensor, one common cause is a vacuum leak in the intake system. These leaks allow unmetered air into the engine, messing up the air-fuel ratio and triggering trouble codes like P0171 (system too lean).
Enter the smoke test. This diagnostic method fills your engine’s intake and vacuum systems with non-toxic smoke. If there’s a leak, you’ll see the smoke escaping—making it easy to spot even tiny cracks or disconnected hoses that are invisible during a visual inspection. Best of all, it’s fast, accurate, and doesn’t require disassembling half your engine.
In this guide, you’ll learn exactly how to do a smoke test engine light on, whether you’re using a professional smoke machine or a budget-friendly DIY alternative. We’ll cover prep, safety, step-by-step execution, and what to do once you find the leak.
What You’ll Need for a Smoke Test

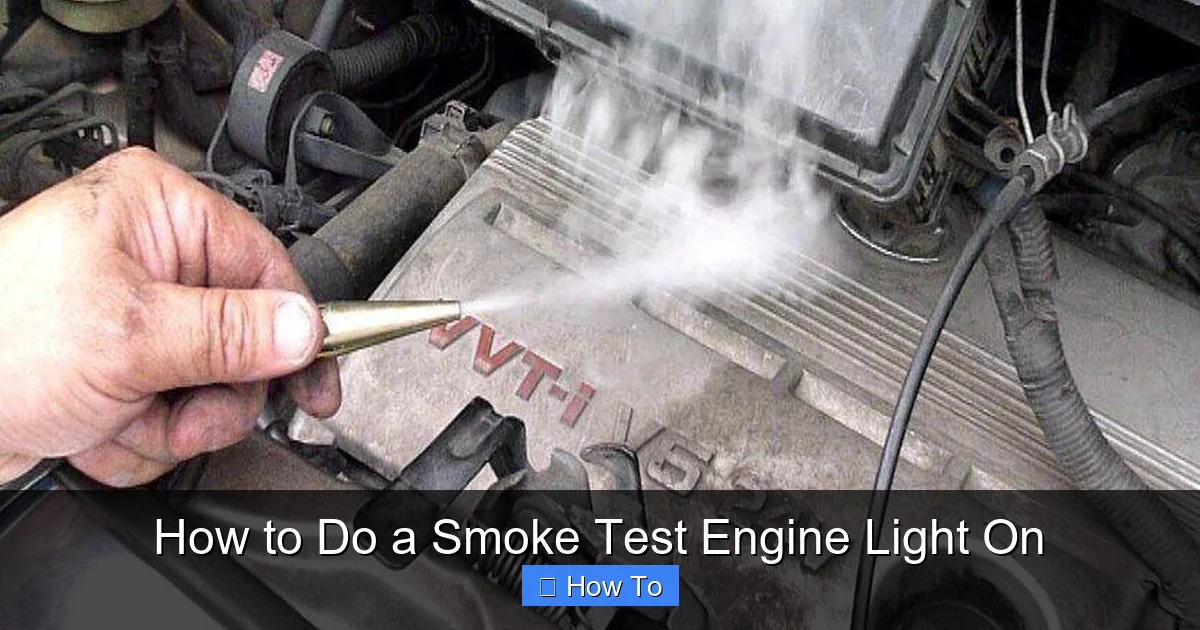

Visual guide about How to Do a Smoke Test Engine Light On
Image source: trymata.com
Before starting, gather these tools and supplies:
- Smoke machine or DIY smoke generator: Commercial units (like the OTC 6530 or Redline Detection) work best, but you can use a homemade version with a fog machine or smoke pencil for basic checks.
- Air compressor or hand pump: Needed to pressurize the system if your smoke machine doesn’t have a built-in pump.
- Adapter kit: Most smoke machines come with adapters to seal the intake manifold or throttle body. If not, you may need a rubber stopper or custom seal.
- Safety gear: Gloves, safety glasses, and a mask (especially if using chemical-based smoke).
- Flashlight or work light: To illuminate dark engine bays.
- Shop towels or rags: For cleaning and wiping surfaces.
- OBD2 scanner (optional but recommended): To read trouble codes before and after the test.
Pro tip: If you’re on a tight budget, check local auto parts stores—some loan out smoke machines for free with a deposit!
Step 1: Prepare Your Vehicle
Safety and preparation are key. Follow these steps before introducing smoke:
Park in a Safe, Well-Ventilated Area
Never perform a smoke test in a closed garage. Smoke can accumulate quickly and become hazardous. Choose a driveway or outdoor space with good airflow.
Let the Engine Cool Down
Working on a hot engine increases the risk of burns. Wait at least 30–60 minutes after driving before starting.
Disconnect the Battery (Optional but Recommended)
To prevent accidental electrical shorts—especially if you’re near sensors or wiring—disconnect the negative terminal of your battery. Reconnect it after the test.
Locate the Intake System Access Point
You’ll need to inject smoke into the intake manifold. The most common entry points are:
- The throttle body (after removing the air intake hose)
- A vacuum line port (larger ones work best)
- The PCV valve hose
Remove any components blocking access, but avoid unnecessary disassembly. Keep track of bolts and clips!
Step 2: Set Up the Smoke Machine
Now it’s time to connect your smoke source.
Seal the Intake System
Use an adapter or rubber plug to create an airtight seal at your chosen entry point. All other openings—like the mass airflow (MAF) sensor port, PCV lines, and vacuum hoses—must be sealed. Use caps, tape, or plugs to block them. Any unsealed port will let smoke escape and give false results.
Connect the Smoke Source
Attach the smoke machine’s output hose to your sealed entry point. If using a DIY fog machine, place it near the opening and direct the smoke gently into the system. For best results, use low pressure—too much force can damage delicate components.
Pressurize the System
Turn on the smoke machine or compressor. Most systems operate at 1–2 psi (pounds per square inch). Watch for smoke beginning to fill the intake manifold. You should see slight pressure buildup, but no loud hissing or sudden bursts.
Step 3: Perform the Smoke Test
With everything connected and pressurized, it’s time to look for leaks.
Inspect the Engine Bay Carefully
Use your flashlight to scan all hoses, gaskets, and connections. Pay special attention to:
- Cracked or brittle vacuum hoses
- Throttle body gasket
- Intake manifold gaskets
- PCV valve and hose
- Brake booster vacuum line
- Evaporative emissions (EVAP) system lines
Watch for Smoke Escaping
If you see smoke leaking from any area, that’s your problem spot. Mark it with tape or a marker so you can find it later. Even a tiny wisp indicates a significant leak—modern engines are very sensitive to air intrusion.
Check Under the Dashboard (If Needed)
Some vacuum lines run inside the cabin (e.g., for HVAC controls). If you suspect an interior leak, have a helper watch under the dash while you run the test.
Step 4: Identify and Fix the Leak
Once you’ve found the leak, it’s time to fix it.
Common Fixes
- Replace cracked hoses: Cut out the damaged section and use hose clamps to attach a new piece of vacuum hose.
- Reconnect loose fittings: Push hoses fully onto nipples and secure with clamps if needed.
- Tighten or replace gaskets: If the intake manifold or throttle body gasket is leaking, you may need to remove and reseal it with new gasket material.
- Clean or replace the PCV valve: A stuck-open PCV valve can mimic a vacuum leak.
Re-test After Repair
After making repairs, repeat the smoke test to confirm the leak is gone. No smoke should escape from the repaired area.
Step 5: Clear the Engine Light
With the leak fixed, it’s time to turn off that pesky engine light.
Use an OBD2 Scanner
Plug in your scanner and clear the trouble codes. If the repair was successful, the light should stay off after a short drive cycle (usually 10–20 minutes of mixed driving).
Monitor for Recurrence
If the light comes back, there may be another leak or a different issue (like a faulty MAF sensor). Don’t assume one fix solves everything—some cars have multiple weak points.
Troubleshooting Common Smoke Test Issues
Even with careful prep, things can go wrong. Here’s how to handle common problems:
No Smoke Appears
Check your connections. Is the system properly sealed? Is the smoke machine working? Try testing the machine on a simple sealed container first.
Smoke Comes Out of Expected Places
Some smoke exiting through the exhaust or PCV system is normal—it means the smoke is flowing through the engine as intended. Only unexpected leaks (like from a hose or gasket) are problematic.
Engine Won’t Start After Test
This is rare but can happen if smoke residue coats sensors. Disconnect the battery for 10 minutes to reset the ECU, then reconnect and try starting. If problems persist, check for moisture or debris in electrical connectors.
False Leaks Due to Poor Sealing
If you’re getting smoke from multiple spots, double-check your seals. Use high-quality plugs and ensure all hoses are capped tightly.
When to Call a Professional
While many smoke tests can be done at home, some situations require expert help:
- You can’t locate the leak after multiple attempts
- The intake manifold needs removal (complex on some engines)
- You suspect internal engine damage (e.g., cracked head or blown head gasket)
- Your vehicle has a turbocharger or supercharger (higher risk of damage from improper testing)
A professional mechanic has advanced tools and experience to diagnose tricky leaks quickly and safely.
Final Thoughts
Learning how to do a smoke test engine light on empowers you to tackle one of the most frustrating car problems head-on. Vacuum leaks are sneaky, but with the right approach, they’re totally fixable. By following this guide, you’ll save money on diagnostics, avoid unnecessary part replacements, and keep your engine running smoothly.
Remember: always prioritize safety, double-check your seals, and don’t rush the inspection. A few extra minutes spent looking for that tiny wisp of smoke could save you hundreds in repair bills down the road. And once that engine light finally stays off? There’s no better feeling.
