Discover how to quickly and accurately find the diagnostic trouble code (DTC) when your check engine light turns on. This guide walks you through using an OBD2 scanner, reading codes, and understanding what they mean—no mechanic required.
Key Takeaways
- Use an OBD2 scanner: Most modern vehicles (1996 and newer) have an OBD2 port that lets you read engine codes with a simple scanner.
- Locate the OBD2 port: It’s usually under the dashboard near the driver’s side, often behind a small panel or near the steering column.
- Turn the ignition on (but don’t start the engine): This powers the scanner and allows communication with the vehicle’s computer.
- Read the code carefully: Codes like P0300 or P0420 follow a standard format—first letter, then four digits—that tells you the problem area.
- Don’t panic over the code: A code only points to a system, not always the exact failed part—further diagnosis may be needed.
- Clear codes after repairs: Use the scanner to reset the check engine light once the issue is fixed to confirm it’s resolved.
- Keep a code log: Track recurring codes over time to spot patterns and prevent future breakdowns.
How to Find the Code When Check Engine Light Comes On
If your check engine light just popped up on the dashboard, don’t panic—you don’t need to rush to the mechanic right away. In most cases, you can find the code that triggered the light yourself using a simple tool called an OBD2 scanner. This guide will walk you through every step, from locating the right port to understanding what the code means. By the end, you’ll know how to find the code when check engine light appears and what your next steps should be.
What Is the Check Engine Light?

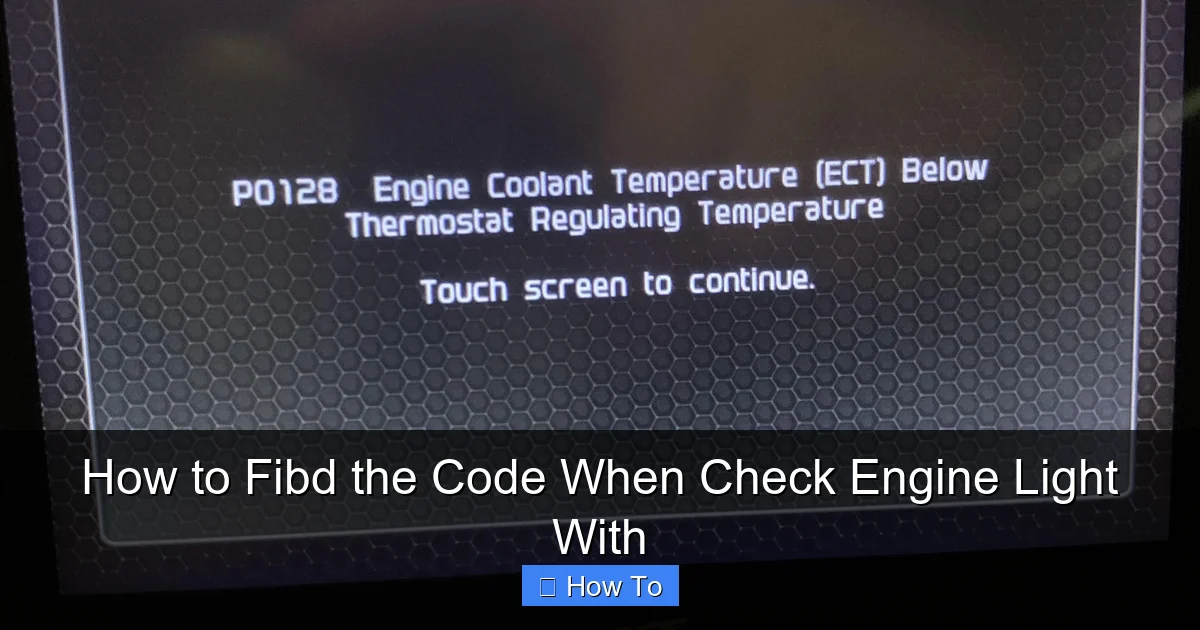

Visual guide about How to Fibd the Code When Check Engine Light With
Image source: i.redd.it
The check engine light—also known as the malfunction indicator lamp (MIL)—is your car’s way of saying something isn’t working right under the hood. It could be something minor like a loose gas cap or something more serious like a failing oxygen sensor or catalytic converter. But the light itself doesn’t tell you what’s wrong. That’s where the diagnostic trouble code (DTC) comes in.
Modern vehicles (1996 and newer in the U.S.) are equipped with an onboard diagnostic system (OBD2) that monitors engine performance, emissions, and other critical systems. When a problem is detected, the system stores a code and turns on the check engine light. Your job is to retrieve that code so you can figure out what needs fixing.
Tools You’ll Need
Before you begin, make sure you have the right tools:
- OBD2 scanner: This is the most important tool. You can buy a basic one for $20–$50 online or at auto parts stores. Some are Bluetooth-enabled and work with smartphone apps.
- Your vehicle’s owner’s manual: Helpful for locating the OBD2 port and understanding basic warning lights.
- A pen and notepad (or phone): To write down the code and any notes.
You don’t need to be a mechanic to use an OBD2 scanner. Most are plug-and-play—just connect, press a button, and read the result.
Step 1: Locate the OBD2 Port
The first step to finding the code when check engine light turns on is finding the OBD2 port. This is where you’ll plug in your scanner.
Where to Look
In most vehicles, the OBD2 port is located under the dashboard on the driver’s side. It’s usually within arm’s reach of the steering wheel—often just below the steering column or behind a small plastic panel. In some cars, it might be tucked behind the ashtray or near the center console.
If you can’t find it, check your owner’s manual. It will have a diagram showing the exact location.
What It Looks Like
The OBD2 port is a 16-pin connector, typically trapezoid-shaped. It’s black or gray and may have a small cover. Don’t force anything—if it’s not obvious, double-check the manual.
Step 2: Plug in the OBD2 Scanner
Once you’ve found the port, it’s time to connect your scanner.
Turn the Ignition On
Insert your key and turn the ignition to the “ON” position. You don’t need to start the engine—just turn it far enough that the dashboard lights up. This powers the vehicle’s computer and allows the scanner to communicate with it.
Connect the Scanner
Plug the OBD2 scanner into the port. Make sure it’s fully inserted and secure. Most scanners will light up or display a welcome message once connected.
If your scanner uses Bluetooth, open the companion app on your phone and follow the pairing instructions. Some apps will automatically detect the scanner once it’s plugged in.
Step 3: Read the Diagnostic Trouble Code
Now comes the main event: retrieving the code.
Follow the Scanner’s Prompts
Most basic scanners have a “Read” or “Scan” button. Press it, and the device will communicate with your car’s computer. Within a few seconds, it should display one or more diagnostic trouble codes (DTCs).
Write Down the Code
The code will look something like P0300, P0420, or P0171. Write it down exactly as it appears. Some scanners will also show a brief description (e.g., “Random/Multiple Cylinder Misfire Detected”), which can be helpful.
If multiple codes appear, note them all. Sometimes one problem triggers several codes.
Understand the Code Format
OBD2 codes follow a standard format:
- First character: Letter indicating the system (P = Powertrain, B = Body, C = Chassis, U = Network)
- Next digit: 0 = Generic (standard across all vehicles), 1 = Manufacturer-specific
- Last three digits: Specific fault identifier
For example, P0300 means a random misfire in the engine (powertrain issue). P0420 indicates a problem with the catalytic converter’s efficiency.
Step 4: Interpret the Code
Finding the code is only half the battle—now you need to understand what it means.
Use Online Resources
Search the code online using a trusted source like:
- OBD-Codes.com
- RepairPal.com
- Your vehicle manufacturer’s website
These sites explain what the code means, common causes, and estimated repair costs.
Example: P0420
Let’s say your scanner shows P0420. This means “Catalyst System Efficiency Below Threshold (Bank 1).” In plain English, your catalytic converter isn’t cleaning exhaust gases as well as it should. Possible causes include a failing catalytic converter, oxygen sensor issues, or engine misfires.
But here’s the catch: the code doesn’t tell you *which* part is bad. It only points to the system. You’ll need to do more testing—or take it to a mechanic—for a precise diagnosis.
Step 5: Decide on Next Steps
Once you know the code, you have options.
Simple Fixes You Can Do Yourself
Some codes are easy to fix:
- Loose gas cap (P0455, P0457): Tighten it or replace it if cracked.
- Dirty mass airflow sensor (P0171, P0174): Clean it with MAF cleaner spray.
- Faulty spark plugs or coils (P0300–P0308): Replace them if worn.
These are low-cost fixes that can clear the code and turn off the light.
When to See a Mechanic
If the code points to something complex—like a transmission issue, internal engine damage, or electrical problem—it’s best to consult a professional. Attempting advanced repairs without experience can cause more damage.
Also, if the check engine light is flashing, that’s a sign of a severe misfire that can damage the catalytic converter. In that case, stop driving and call a tow truck.
Step 6: Clear the Code (After Repair)
Once you’ve fixed the issue, you’ll want to clear the code and reset the check engine light.
Use the Scanner to Clear Codes
Most OBD2 scanners have a “Clear” or “Erase” button. Press it after the repair is complete. The scanner will send a command to the car’s computer to delete the stored code and turn off the light.
Wait and Test Drive
After clearing the code, take your car for a short drive (10–15 minutes). This allows the computer to run its self-tests. If the problem is truly fixed, the light should stay off.
If the light comes back on, the issue wasn’t resolved—or there’s another problem. Recheck the code and consider professional help.
Troubleshooting Common Issues
Sometimes, finding the code isn’t straightforward. Here’s how to handle common problems.
Scanner Won’t Connect
- Make sure the ignition is on (but engine off).
- Check that the OBD2 port is clean and undamaged.
- Try a different scanner or app.
- Some older or imported vehicles may not be fully OBD2 compliant.
No Codes Found
If the scanner says “No Codes” but the light is on, it could mean:
- The light was recently turned off but hasn’t completed a full drive cycle.
- The issue is intermittent and hasn’t triggered a code yet.
- The scanner is incompatible or malfunctioning.
Try driving for a few days and rescanning. If the light stays on, visit a mechanic.
Multiple Codes Appear
This is common. Start with the most critical code (e.g., misfires or fuel system issues) and work your way down. Sometimes fixing one problem clears others.
Tips for Success
- Act quickly: Don’t ignore the check engine light. Small issues can become big (and expensive) problems.
- Keep a log: Record codes, dates, and repairs. This helps track patterns and can be useful for future diagnostics.
- Use quality parts: If replacing sensors or components, choose OEM or reputable aftermarket brands.
- Don’t clear codes prematurely: Always diagnose the issue before erasing the code. Otherwise, you might lose valuable information.
Conclusion
Finding the code when check engine light comes on is easier than most people think. With an OBD2 scanner and a few minutes of your time, you can uncover what’s wrong with your vehicle—no mechanic required. From locating the port to reading and interpreting the code, this process empowers you to take control of your car’s health.
Remember, the code is just the starting point. It tells you *where* to look, not always *what* to fix. But armed with this knowledge, you can make informed decisions, save money on diagnostics, and keep your car running smoothly.
So the next time that little orange light flashes on, don’t panic. Grab your scanner, follow these steps, and find the code like a pro.
