This guide walks you through how to hook up engine warning lights in your vehicle, whether you’re installing new lights or troubleshooting existing ones. You’ll learn about tools, wiring, sensors, and safety tips to ensure your warning system works reliably.
Key Takeaways
- Understand the purpose of engine warning lights: These lights alert you to issues like low oil pressure, overheating, or electrical faults, helping prevent serious engine damage.
- Gather the right tools and materials: You’ll need a multimeter, wire strippers, electrical tape, connectors, and the correct warning light kit for your vehicle.
- Locate the correct sensor or switch: Most warning lights connect to sensors in the engine bay, such as oil pressure switches or coolant temperature sensors.
- Follow proper wiring techniques: Use color-coded wires, secure connections, and avoid short circuits by insulating all exposed wires.
- Test the system before finalizing: Always verify that the warning light activates under the right conditions and turns off when the issue is resolved.
- Practice safety first: Disconnect the battery before working on electrical systems to avoid shocks or accidental shorts.
- Consult your vehicle’s manual: Wiring diagrams and specifications vary by make and model, so always refer to the manufacturer’s guide.
How to Hook Up Engine Warning Lights: A Complete Step-by-Step Guide
If you’re a car enthusiast, a DIY mechanic, or just someone who likes to stay on top of their vehicle’s health, knowing how to hook up engine warning lights is a valuable skill. These small but crucial indicators can save you from costly repairs by alerting you to problems before they become serious. Whether you’re installing a new oil pressure warning light, upgrading your temperature gauge setup, or troubleshooting a faulty warning system, this guide will walk you through the entire process—safely and effectively.
In this comprehensive how-to, you’ll learn everything from understanding how warning lights work to selecting the right components, wiring them correctly, and testing the final setup. We’ll cover common warning lights like oil pressure, coolant temperature, and battery charge indicators, and explain how to connect them to your dashboard or gauge cluster. By the end, you’ll have the confidence and knowledge to install or repair engine warning lights like a pro.
Why Engine Warning Lights Matter

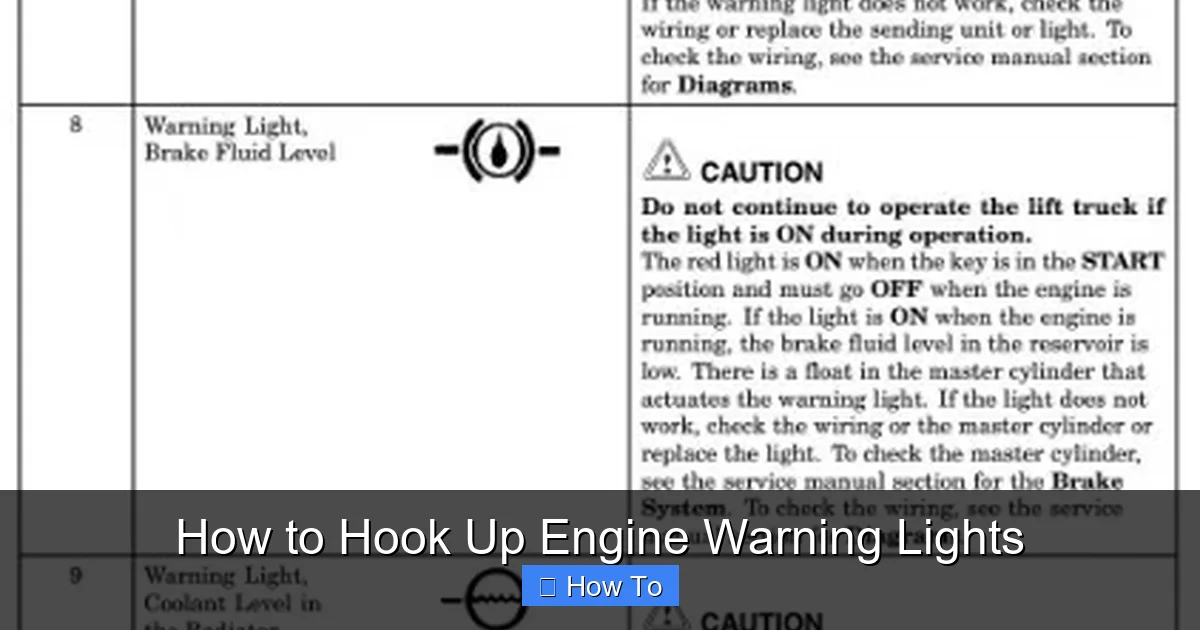

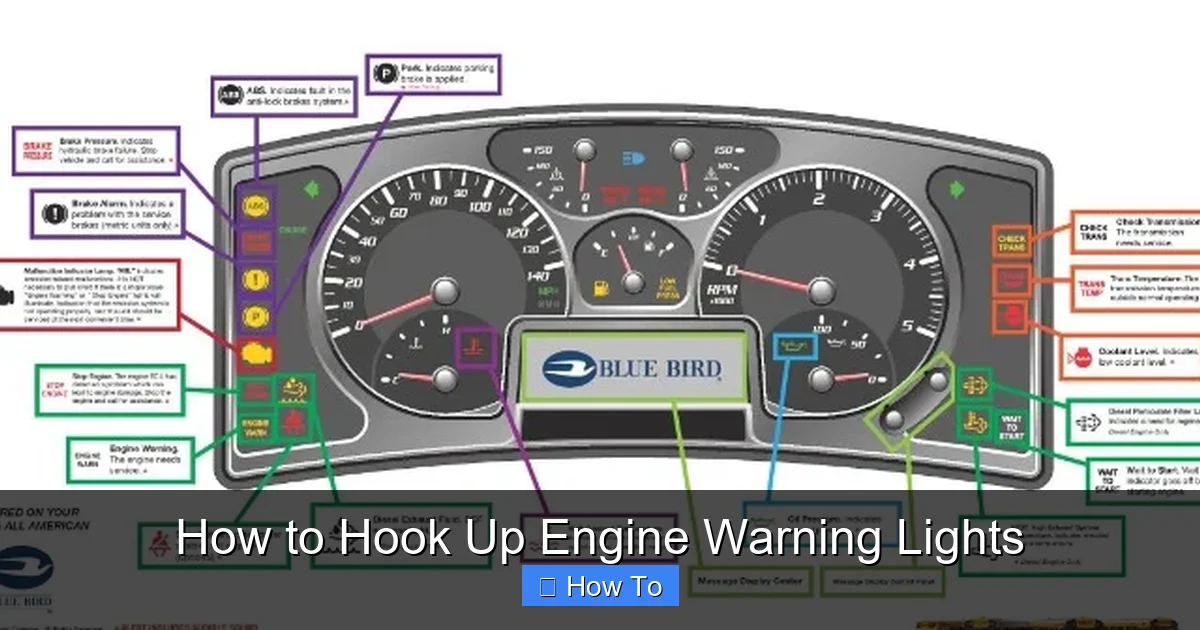

Visual guide about How to Hook Up Engine Warning Lights
Image source: warninglights.net
Engine warning lights are your vehicle’s first line of defense against mechanical failure. They monitor critical systems and flash alerts when something goes wrong. For example, the oil pressure light might come on if your engine isn’t getting enough lubrication—a problem that can lead to seized pistons or destroyed bearings within minutes. Similarly, the temperature warning light can prevent your engine from overheating, which could warp cylinder heads or blow head gaskets.
Without these lights, you’d have no way of knowing about hidden issues until it’s too late. That’s why ensuring your warning lights are properly installed and functioning is so important. Even if your car came with factory-installed lights, they can fail over time due to worn sensors, corroded wiring, or faulty bulbs. Learning how to hook up engine warning lights gives you the power to maintain, upgrade, or repair these essential safety features yourself.
Tools and Materials You’ll Need
Before you start, make sure you have the right tools and parts. Having everything ready will save you time and frustration. Here’s a checklist of what you’ll need:
- Multimeter: Essential for testing voltage, continuity, and sensor resistance.
- Wire strippers and crimpers: For cleanly removing insulation and securing connections.
- Electrical tape or heat shrink tubing: To insulate and protect wire joints.
- Wire connectors (butt connectors, spade terminals): For reliable, solder-free connections.
- Fuse holder and inline fuse: To protect the circuit from overloads.
- Warning light kit or individual components: Includes the light bulb or LED, socket, and wiring harness.
- Wiring diagram for your vehicle: Found in the owner’s manual or online repair guides.
- Screwdrivers and pliers: For removing panels and accessing wiring.
- Zip ties: To neatly secure wires and prevent them from dangling.
Optional but helpful tools include a test light, soldering iron (if you prefer soldered joints), and a digital multimeter with a backlight for better visibility in dark engine bays.
Understanding How Engine Warning Lights Work
Most engine warning lights operate on a simple principle: they’re part of a circuit that completes when a sensor detects a problem. For example, an oil pressure warning light is usually connected to a switch in the engine block. When oil pressure drops below a safe level, the switch closes, completing the circuit and turning on the light. When pressure returns to normal, the switch opens, and the light turns off.
There are two main types of warning light systems:
- Ground-switched systems: The sensor grounds the circuit when activated. This is common in older vehicles and many oil pressure setups.
- Voltage-switched systems: The sensor sends a voltage signal to trigger the light. These are often used in modern vehicles with electronic control units (ECUs).
Understanding which type your vehicle uses is crucial for proper installation. Most traditional warning lights (like oil pressure or alternator failure) are ground-switched, meaning the light is always powered, and the sensor completes the ground path when needed.
Step 1: Disconnect the Battery
Safety should always come first when working on your vehicle’s electrical system. Before touching any wires, disconnect the negative terminal of the battery. This prevents accidental short circuits, which can damage electronics or cause sparks—especially dangerous near fuel lines or batteries.
Use a wrench to loosen the clamp on the negative (-) battery terminal and carefully remove the cable. Tuck it away from the terminal so it doesn’t accidentally reconnect while you’re working.
Step 2: Locate the Sensor or Switch
The next step is finding where your warning light will connect. This depends on the type of warning light you’re installing. Here are the most common locations:
Oil Pressure Warning Light
Look for the oil pressure switch, usually located near the oil filter or on the engine block. It’s a small, threaded sensor with a single wire connected to it. On many vehicles, it’s near the oil pan or cylinder head.
Coolant Temperature Warning Light
The temperature sensor is typically found in the thermostat housing or near the cylinder head. Some vehicles have a dedicated warning switch separate from the gauge sender.
Battery/Charging System Warning Light
This light is often connected to the alternator or voltage regulator. In older cars, it may be wired through the ignition switch.
Use your vehicle’s wiring diagram to confirm the exact location. If you’re unsure, consult a repair manual or search online for your make and model.
Step 3: Prepare the Wiring
Now it’s time to prepare the wires for connection. Follow these steps:
Identify the Light Circuit
Most warning lights have two wires:
– One that’s always powered (usually from the ignition switch or fuse box).
– One that connects to the sensor (which completes the ground when activated).
Use your multimeter to test for power. Set it to DC voltage and touch the probes to the wires. The powered wire should show 12 volts when the ignition is on.
Strip and Connect the Wires
Strip about 1/2 inch of insulation from the ends of the wires. Use wire strippers for a clean cut—avoid nicking the copper strands.
If you’re using butt connectors, insert the stripped ends into the connector and crimp them firmly with a crimping tool. For spade terminals, attach them to the sensor and light socket.
Add a Fuse for Protection
Always install an inline fuse (usually 5–10 amps) on the power wire. This protects the circuit from shorts or overloads. Mount the fuse holder near the fuse box or battery for easy access.
Step 4: Connect the Warning Light
Now it’s time to hook up the light itself. Here’s how:
Mount the Light
If you’re installing a new light, choose a spot on the dashboard or gauge cluster where it’s clearly visible. Drill a small hole if needed, and secure the light socket with the provided nut or clip.
Wire the Light
Connect the power wire (from the fuse) to one terminal of the light socket. Connect the other terminal to the sensor wire. On ground-switched systems, this wire will go to the sensor, which grounds the circuit when activated.
Double-check your connections. A loose wire can cause intermittent operation or complete failure.
Secure and Insulate
Use electrical tape or heat shrink tubing to cover all exposed connections. This prevents shorts and protects against moisture and vibration.
Step 5: Reconnect the Battery and Test
Once everything is wired, reconnect the negative battery terminal. Turn the ignition to the “on” position (but don’t start the engine) and check if the warning light comes on.
For oil pressure lights, the light should illuminate when the ignition is on and turn off once the engine starts and builds pressure. If it stays on, there may be a wiring issue or a faulty sensor.
For temperature lights, the light may not come on immediately unless the engine is overheating. You can simulate a fault by temporarily grounding the sensor wire—this should trigger the light.
Use your multimeter to verify voltage at the light socket and sensor. If the light doesn’t work, check for blown fuses, loose connections, or incorrect wiring.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues:
Light Doesn’t Come On
– Check the fuse—replace if blown.
– Test for power at the light socket with the ignition on.
– Verify the sensor is properly grounded or sending a signal.
– Ensure the bulb or LED is functional.
Light Stays On When It Should Be Off
– The sensor may be stuck closed or faulty.
– There could be a short in the wiring.
– Check for continuity between the sensor wire and ground when the engine is running.
Light Flickers or Works Intermittently
– Loose or corroded connections are often the cause.
– Inspect all wire joints and clean or re-crimp as needed.
– Secure wires with zip ties to prevent vibration damage.
Battery Drains Overnight
– A short circuit or parasitic draw may be present.
– Use a multimeter to check for current draw with the ignition off.
– Disconnect the warning light circuit to see if the drain stops.
Safety Tips and Best Practices
Working with car electrical systems can be risky if you’re not careful. Follow these safety guidelines:
- Always disconnect the battery first. This is the most important step to prevent shocks or shorts.
- Use insulated tools. They reduce the risk of accidental contact with live wires.
- Avoid working in wet conditions. Water and electricity don’t mix—wait for a dry day.
- Label your wires. Use tape or markers to identify power, ground, and sensor wires.
- Don’t overload circuits. Use the correct fuse rating and avoid tapping into wires that are already carrying high current.
- Test as you go. Check connections with a multimeter before finalizing the install.
Final Thoughts
Learning how to hook up engine warning lights might seem intimidating at first, but with the right tools, knowledge, and patience, it’s a manageable task for most DIYers. These lights are vital for protecting your engine and ensuring safe driving, so taking the time to install or repair them properly is well worth the effort.
Whether you’re upgrading your dashboard with custom warning indicators or fixing a faulty oil pressure light, this guide gives you the foundation to do it right. Remember to always prioritize safety, double-check your wiring, and test the system thoroughly.
With practice, you’ll gain confidence in handling more complex electrical projects—and your car will thank you with better reliability and peace of mind on the road.
