This guide teaches you how to read the check engine light on a C5 Corvette using simple tools and built-in diagnostics. You’ll learn to retrieve trouble codes, understand what they mean, and take the right next steps—no mechanic required.
Key Takeaways
- Understand the check engine light: It signals a problem with the engine or emissions system and should never be ignored.
- Use the OBD-II port: Located under the dashboard, this port connects to diagnostic tools to read trouble codes.
- Retrieve codes manually or with a scanner: You can use a paperclip method or an OBD-II scanner to get diagnostic trouble codes (DTCs).
- Decode the meaning of DTCs: Each code (like P0420) points to a specific issue, such as a faulty oxygen sensor or catalytic converter.
- Reset the light after repairs: Clear codes using a scanner or by disconnecting the battery—but only after fixing the root cause.
- Know when to seek professional help: Some issues require advanced tools or expertise beyond basic diagnostics.
- Prevent future problems: Regular maintenance and early diagnosis can keep your C5 Corvette running smoothly.
How to Read Check Engine Light C5 Corvette: A Complete Step-by-Step Guide
If you own a C5 Corvette—whether it’s a 1997, 2000, or 2004 model—you know how thrilling it is to drive a high-performance American sports car. But when that little yellow or orange “Check Engine” light pops up on your dashboard, the excitement can quickly turn to worry. Don’t panic. Understanding how to read the check engine light on a C5 Corvette is easier than you think, and it could save you hundreds in diagnostic fees at the shop.
In this guide, we’ll walk you through everything you need to know about reading and interpreting the check engine light on your C5 Corvette. You’ll learn how to retrieve diagnostic trouble codes (DTCs), what those codes mean, and what steps to take next—whether it’s a simple fix you can do yourself or a sign that it’s time to visit a professional. With a little know-how and the right tools, you can take control of your Corvette’s health and keep it running like new.
What Is the Check Engine Light?

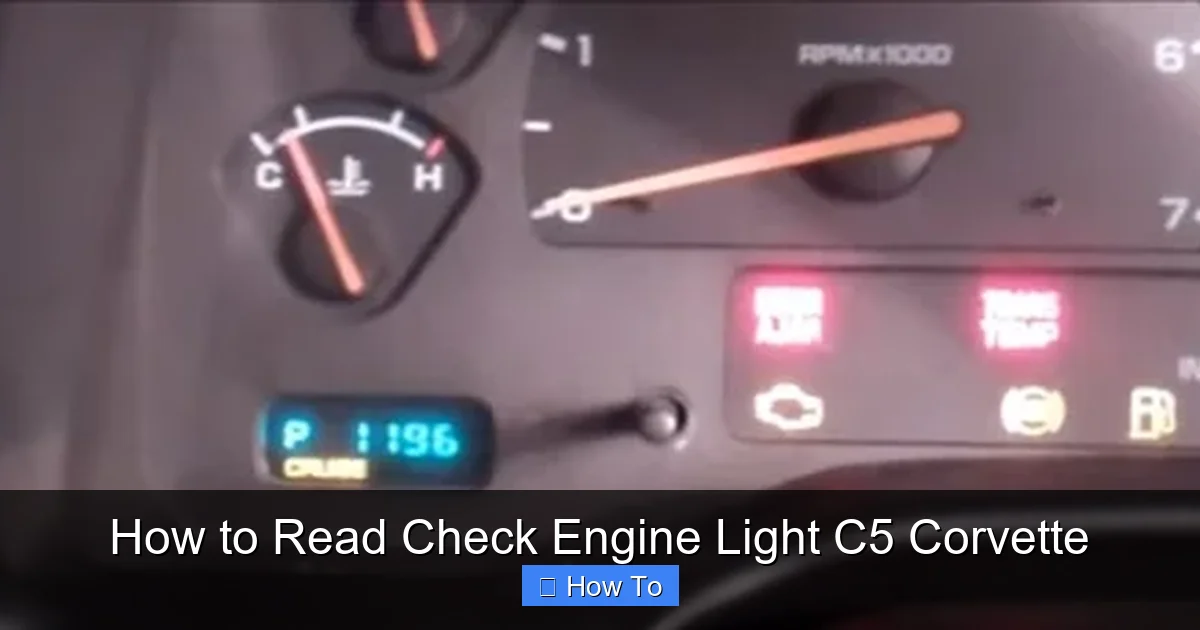

Visual guide about How to Read Check Engine Light C5 Corvette
Image source: backyardmechanic.org
The check engine light, also known as the malfunction indicator lamp (MIL), is part of your Corvette’s onboard diagnostics system. It’s designed to alert you when the engine control module (ECM) detects a problem that could affect emissions, performance, or fuel efficiency.
On the C5 Corvette, this light is typically located on the instrument cluster and may appear as a picture of an engine or the words “Check Engine.” When it illuminates, it means the ECM has logged one or more trouble codes. These codes help pinpoint the source of the issue, whether it’s a loose gas cap, a failing oxygen sensor, or something more serious.
It’s important to note that the check engine light can come on for a variety of reasons—some minor, some serious. A blinking light usually indicates a severe problem, such as engine misfire that could damage the catalytic converter. A steady light often means a less urgent issue, but it still shouldn’t be ignored.
Why You Should Never Ignore the Check Engine Light
Many drivers make the mistake of ignoring the check engine light, thinking it’s just a minor glitch. But doing so can lead to bigger problems down the road. For example, a small vacuum leak might seem harmless, but over time it can cause poor fuel economy, rough idling, or even engine damage.
On a high-performance vehicle like the C5 Corvette, even small issues can affect handling, acceleration, and safety. Plus, unresolved emissions problems can cause your car to fail an emissions test—something you’ll need to pass if you live in a state with regular inspections.
By learning how to read the check engine light, you’re not just fixing a problem—you’re protecting your investment and ensuring your Corvette stays in top condition.
Tools You’ll Need to Read the Check Engine Light
Before you start diagnosing the issue, you’ll need a few basic tools. The good news is, you don’t need to be a mechanic to do this. Here’s what you’ll need:
- OBD-II scanner: This is the easiest and most accurate way to read trouble codes. You can buy a basic scanner for under $30 online or at an auto parts store. Look for one that’s compatible with GM vehicles and supports OBD-II protocols.
- Paperclip or jumper wire (optional): If you don’t have a scanner, you can use the “paperclip method” to retrieve codes manually. This works on older C5 models and doesn’t require any special equipment.
- Owner’s manual: Your Corvette’s manual may have specific instructions or troubleshooting tips.
- Flashlight: The OBD-II port is usually located under the dashboard, so good lighting helps.
- Notebook or phone: To write down the trouble codes and any notes about symptoms.
Step 1: Locate the OBD-II Port
The first step in reading the check engine light is finding the OBD-II (On-Board Diagnostics) port. This is where you’ll plug in your scanner or connect your jumper wire.
On the C5 Corvette, the OBD-II port is typically located under the dashboard on the driver’s side, near the steering column. It’s a 16-pin connector that looks like a trapezoid-shaped plug. You may need to crouch down or use a flashlight to spot it.
If you can’t find it, check near the fuse box or behind a small panel. Some C5 models have it tucked up high near the brake pedal. Once you locate it, make sure it’s clean and free of debris before connecting anything.
Step 2: Use an OBD-II Scanner (Recommended Method)
Using an OBD-II scanner is the fastest and most reliable way to read trouble codes on your C5 Corvette. Here’s how to do it:
Turn Off the Engine
Make sure your Corvette is parked, in park (or neutral for manual), and the engine is completely off. This prevents any electrical issues while connecting the scanner.
Plug in the Scanner
Insert the OBD-II scanner into the port. It should fit snugly—don’t force it. Most scanners have a locking mechanism that clicks into place.
Turn the Ignition to “On”
Turn the key to the “On” position without starting the engine. This powers up the vehicle’s electronics and allows the scanner to communicate with the ECM.
Follow the Scanner’s Instructions
Most scanners will display a menu. Select “Read Codes” or “Scan for DTCs.” The device will then retrieve any stored trouble codes from the ECM.
Record the Codes
Write down the codes that appear. They usually start with a letter (like P, B, C, or U) followed by four numbers (e.g., P0420). These codes tell you exactly what system or component is having trouble.
Interpret the Codes
Use the scanner’s built-in code library or look up the codes online. For example, P0420 means “Catalyst System Efficiency Below Threshold,” which often points to a failing catalytic converter.
Clear the Codes (After Repair)
Once you’ve fixed the issue, use the scanner to clear the codes. This turns off the check engine light. If the problem is truly fixed, the light shouldn’t come back on.
Step 3: Use the Paperclip Method (Manual Code Retrieval)
If you don’t have an OBD-II scanner, you can still read the check engine light using the paperclip method. This technique works on C5 Corvettes from 1997 to 2004 and doesn’t require any special tools.
Prepare the Paperclip
Straighten a paperclip or use a small piece of wire. You’ll use it to bridge two specific pins in the OBD-II port.
Locate the Correct Pins
Look at the OBD-II port. You’ll see 16 pins arranged in two rows. For the paperclip method, you need to connect pin 16 (the top-right pin when facing the port) to pin 4 (the bottom-left pin). Pin 16 is the power supply (12V), and pin 4 is ground.
Insert the Paperclip
Carefully insert one end of the paperclip into pin 16 and the other end into pin 4. Make sure the metal doesn’t touch any other pins.
Turn the Ignition to “On”
With the paperclip in place, turn the key to the “On” position. Do not start the engine.
Watch the Check Engine Light
The check engine light will begin to flash. These flashes represent the trouble codes in a series of long and short pulses.
Count the Flashes
Each code is displayed as a sequence of flashes. For example:
- A long flash = 10
- A short flash = 1
- A pause separates digits
So, two long flashes followed by three short flashes means code 23.
Record All Codes
The system will display all stored codes, one after another. Write them down as they appear. After all codes are shown, the sequence may repeat.
Remove the Paperclip
Once you’ve recorded the codes, remove the paperclip and turn off the ignition.
Understanding Common C5 Corvette Trouble Codes
Now that you’ve retrieved the trouble codes, it’s time to understand what they mean. Here are some of the most common codes you might see on a C5 Corvette:
P0420 – Catalyst System Efficiency Below Threshold
This code indicates that the catalytic converter isn’t working as efficiently as it should. It’s often caused by a failing catalytic converter, but it can also be triggered by a faulty oxygen sensor or exhaust leak. On the C5, this is a common issue due to the car’s age and high mileage.
P0171 / P0174 – System Too Lean
These codes mean the engine is running with too much air and not enough fuel. Causes include vacuum leaks, dirty mass airflow (MAF) sensor, or a weak fuel pump. A common fix is cleaning the MAF sensor with MAF cleaner spray.
P0300 – Random/Multiple Cylinder Misfire Detected
This code means one or more cylinders aren’t firing properly. It can be caused by bad spark plugs, ignition coils, fuel injectors, or low compression. On the C5, the LS1 engine is known for coil pack issues, especially in humid climates.
P0440 – Evaporative Emission Control System Malfunction
This code relates to the EVAP system, which captures fuel vapors. It’s often caused by a loose or missing gas cap. Simply tightening or replacing the gas cap can fix this issue.
P0135 / P0141 – Oxygen Sensor Heater Circuit Malfunction
These codes point to a problem with the oxygen sensor’s heating element. The O2 sensor helps regulate fuel mixture, and a faulty one can hurt performance and fuel economy. Replacing the sensor usually resolves the issue.
What to Do After Reading the Codes
Once you’ve identified the problem, it’s time to take action. Here’s what to do next:
Research the Code
Look up the specific code online or in a repair manual. Understand what component is affected and what symptoms to expect.
Inspect Related Components
Check for obvious issues like loose wires, damaged hoses, or a dirty sensor. For example, if you have a P0171 code, inspect the air intake system for leaks.
Perform Basic Repairs
Some fixes are simple and can be done at home:
- Replace a loose gas cap
- Clean the MAF sensor
- Replace spark plugs or ignition coils
- Tighten vacuum hoses
Clear the Codes
After making repairs, use your OBD-II scanner to clear the trouble codes. This resets the ECM and turns off the check engine light.
Test Drive the Car
Drive your Corvette for a few miles to see if the light comes back on. If it does, the problem may not be fully resolved, or there could be multiple issues.
Seek Professional Help if Needed
If the light returns or you’re unsure about the repair, take your car to a qualified mechanic. Some issues, like internal engine problems or transmission faults, require specialized tools and expertise.
Troubleshooting Tips and Common Mistakes
Even with the right tools, diagnosing the check engine light can be tricky. Here are some tips to avoid common pitfalls:
Don’t Just Clear the Code
Clearing the code without fixing the problem is a waste of time. The light will come back on, and you’ll be back where you started.
Check the Gas Cap First
A loose or damaged gas cap is one of the most common causes of the check engine light. Always check it before diving into complex diagnostics.
Use Quality Replacement Parts
Cheap sensors or coils may fail quickly. Stick to reputable brands like AC Delco, Bosch, or Delphi for best results.
Be Patient with Intermittent Codes
Some codes appear only under certain conditions (like cold starts or high speeds). If the light is intermittent, try to replicate the driving conditions when it came on.
Keep a Repair Log
Write down every code, repair, and part replaced. This helps track recurring issues and makes future diagnostics easier.
Preventing Future Check Engine Light Issues
The best way to deal with the check engine light is to prevent it from coming on in the first place. Here’s how:
Follow the Maintenance Schedule
Your C5 Corvette’s owner’s manual includes a recommended maintenance schedule. Stick to it for oil changes, spark plug replacements, and air filter changes.
Use High-Quality Fuel
Premium fuel can help keep the engine clean and reduce carbon buildup, especially in high-performance engines like the LS1.
Inspect Hoses and Belts Regularly
Cracked or loose vacuum hoses can cause lean codes. Check them during oil changes.
Clean Sensors Periodically
The MAF sensor and throttle body can get dirty over time. Clean them with appropriate cleaners every 30,000 to 50,000 miles.
Address Small Issues Early
Don’t wait for a major failure. If you notice rough idling, poor acceleration, or decreased fuel economy, investigate right away.
Conclusion
Learning how to read the check engine light on a C5 Corvette empowers you to take control of your car’s health. With just a few tools and some basic knowledge, you can diagnose problems, save money on diagnostics, and keep your Corvette running smoothly for years to come.
Whether you use an OBD-II scanner or the paperclip method, retrieving trouble codes is the first step toward a solution. Once you understand what the codes mean, you can decide whether to fix the issue yourself or consult a professional.
Remember, the check engine light is your car’s way of saying, “Hey, something’s not right.” Don’t ignore it. With the steps in this guide, you’ll be ready to respond quickly and confidently—keeping your C5 Corvette in peak condition and your driving experience as thrilling as it was meant to be.
