How to Read Check Engine Light Codes OBD1: A Complete DIY Guide
If your car is from the 1980s or early 1990s and the check engine light starts flashing, don’t panic—you can likely figure out what’s wrong without spending money at a repair shop. That’s because older vehicles use an On-Board Diagnostics system called OBD1, which allows you to read trouble codes directly from your car’s computer using simple tools—sometimes just a paperclip.
In this guide, you’ll learn how to read check engine light codes OBD1 step by step. Whether you’re driving a classic Honda, an old Ford, or a vintage Toyota, this method works for most pre-1996 vehicles. You’ll discover how to access the diagnostic port, trigger the code readout, interpret the flashing patterns, and understand what each code means. Plus, we’ll cover how to clear the codes once the issue is fixed.
No expensive scanner? No problem. With a little patience and this guide, you’ll be diagnosing your car like a pro.
What Is OBD1 and How Is It Different from OBD2?

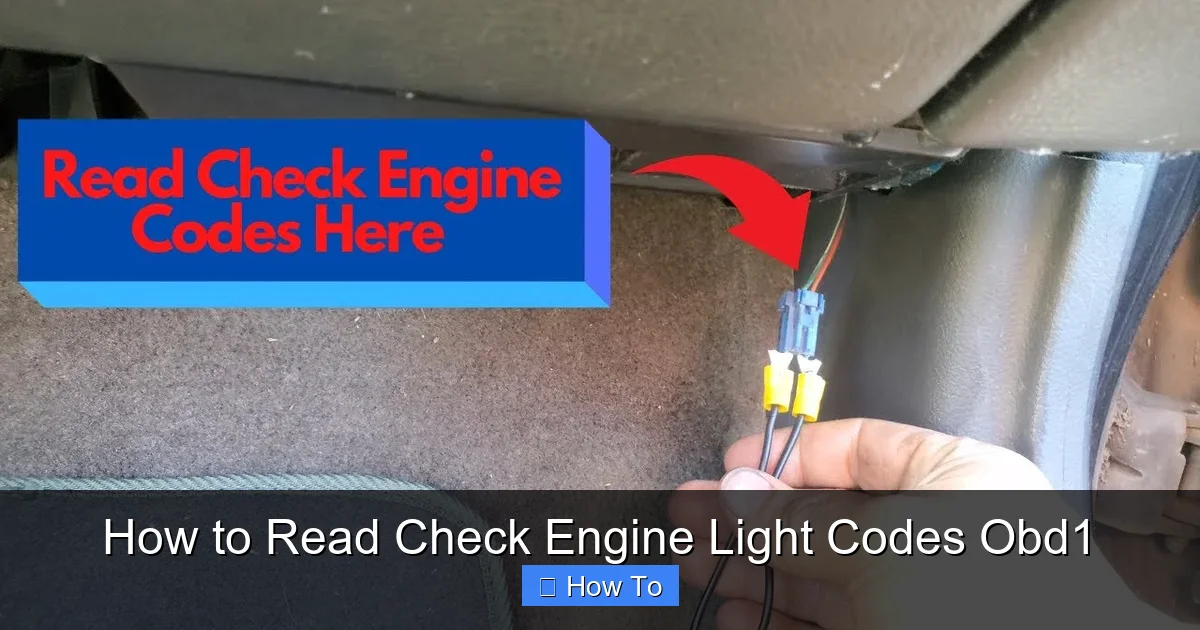

Visual guide about How to Read Check Engine Light Codes Obd1
Image source: thumbnails.odycdn.com
Before diving into the how-to, it’s important to understand what OBD1 actually is—and why it’s different from the OBD2 system found in most cars made after 1996.
OBD stands for On-Board Diagnostics, and it refers to the vehicle’s self-diagnostic system that monitors engine performance, emissions, and other critical functions. When something goes wrong, the system stores a trouble code and turns on the check engine light (also called the “Service Engine Soon” light).
The key difference between OBD1 and OBD2 is standardization. OBD2, introduced in the mid-1990s, uses a universal 16-pin connector and standardized trouble codes across all manufacturers. That means a generic OBD2 scanner works on almost any car from 1996 onward.
OBD1, on the other hand, is manufacturer-specific. Each automaker—Honda, GM, Ford, Toyota, etc.—used its own diagnostic connector, wiring, and code format. There’s no universal scanner, and the way you read codes varies from one car to another.
For example:
– Honda uses a 2-pin or 3-pin connector under the dashboard.
– GM vehicles often have a 12-pin ALDL (Assembly Line Diagnostic Link) under the hood.
– Ford uses a 6-pin or 10-pin connector, usually near the driver’s side kick panel.
Because of these differences, reading OBD1 codes requires knowing your car’s make, model, and year—and sometimes even the engine type.
But the good news? You don’t need a fancy tool. Most OBD1 systems let you read codes by grounding a specific pin in the diagnostic connector and watching the check engine light flash.
Tools You’ll Need to Read OBD1 Codes
The beauty of OBD1 diagnostics is that it’s low-tech and accessible. Here’s what you’ll need:
- A paperclip or jumper wire: This is used to bridge two terminals in the diagnostic connector. A simple paperclip works fine—just straighten it out.
- A flashlight: The diagnostic port is often tucked away in dark areas under the dash or near the engine.
- Your vehicle’s repair manual or code chart: Since OBD1 codes vary by manufacturer, you’ll need a reference to interpret the numbers. You can find these online, in forums, or in factory service manuals.
- A notepad and pen: To write down the codes as they flash.
- Basic safety gear: Gloves and eye protection are optional but recommended, especially if you’re working near the engine.
That’s it! No scanner, no smartphone app, no subscription. Just a few simple items you probably already have at home.
Step 1: Locate the OBD1 Diagnostic Connector
The first step in reading OBD1 codes is finding the diagnostic connector. This is where you’ll insert the paperclip or jumper wire to trigger the code readout.
The location varies by manufacturer, so here’s a quick guide:
Honda (1986–1995)
Look under the dashboard on the driver’s side. You’ll find a small 2-pin or 3-pin connector, usually labeled “Service Check Connector” or “DLC.” It’s often near the fuse box or steering column.
GM (1981–1995)
GM vehicles use the ALDL connector, typically a 12-pin port located under the hood near the firewall or on the driver’s side of the engine bay. It’s often black or gray and may be labeled “ALDL” or “Diagnostic.”
Ford (1983–1995)
Ford’s OBD1 connector is usually a 6-pin or 10-pin port found under the dashboard on the driver’s side, near the kick panel or under the steering column. Some models have it behind a small cover.
Toyota (1982–1995)
Toyota’s diagnostic port is often a 3-pin or 4-pin connector under the hood, near the fuse box or ECU (Engine Control Unit). On some models, it’s labeled “TDCL” (Toyota Diagnostic Communication Link).
Other Manufacturers
Chrysler, Nissan, and others also have unique connectors. If you’re unsure, consult your owner’s manual or search online using your car’s year, make, and model.
Pro tip: If you can’t find the connector, look for a small label or diagram under the hood or in the glove box. Some cars have a sticker showing the location.
Step 2: Prepare the Vehicle for Diagnostics
Before you start reading codes, make sure your car is ready:
- Turn off the engine: Never work on the diagnostic system with the engine running.
- Ensure the key is in the “OFF” position: This prevents accidental starts.
- Make sure the battery is connected: The ECU needs power to communicate.
- Let the engine cool down: If you’ve been driving, wait 10–15 minutes to avoid burns.
Safety first! Even though this is a simple process, always treat your car like it could start unexpectedly.
Step 3: Jump the Diagnostic Connector
Now it’s time to trigger the code readout. This is done by grounding a specific pin in the diagnostic connector using a paperclip or jumper wire.
The exact pins to connect depend on your vehicle. Here’s how to do it for common brands:
Honda
– Locate the 2-pin or 3-pin connector under the dash.
– Use a paperclip to bridge the two pins (or the two outer pins if it’s 3-pin).
– Turn the ignition to “ON” (but don’t start the engine).
– The check engine light will begin to flash.
GM
– Find the 12-pin ALDL connector under the hood.
– Use a jumper wire to connect pin “A” (ground) to pin “B” (diagnostic enable).
– Turn the key to “ON.”
– Watch the “Check Engine” or “Service Engine Soon” light on the dashboard.
Ford
– Locate the 6-pin or 10-pin connector under the dash.
– Bridge the “Signal Return” (ground) pin to the “Self-Test Input” pin.
– Turn the ignition to “ON.”
– The “Check Engine” light will flash.
Toyota
– Find the 3-pin or 4-pin TDCL connector under the hood.
– Use a paperclip to connect the “TE1” and “E1” terminals.
– Turn the key to “ON.”
– The “Check Engine” light will start flashing.
Note: The pin labels may be printed near the connector or listed in your repair manual. If not, search online for your specific model.
Step 4: Read the Flashing Check Engine Light
Once you’ve jumped the correct pins and turned the key to “ON,” the check engine light will begin to flash in a specific pattern. This pattern represents the trouble codes stored in the ECU.
Here’s how to interpret the flashes:
- Long flashes = tens digit
- Short flashes = ones digit
For example:
– 2 long flashes + 3 short flashes = code 23
– 1 long flash + 5 short flashes = code 15
– 4 long flashes + 0 short flashes = code 40
The light will pause between codes and may repeat the sequence. Write down each code as it appears.
Some systems also show a “code 12” at the beginning or end, which is normal—it indicates the start or end of the diagnostic cycle.
Pro tip: If the light flashes rapidly or doesn’t flash at all, double-check your connections. Make sure the paperclip is securely bridging the correct pins and the ignition is on.
Step 5: Decode the Trouble Codes
Now that you have the numbers, it’s time to figure out what they mean. This is where your repair manual or online code chart comes in.
Because OBD1 codes are manufacturer-specific, a code 12 on a Honda means something completely different than code 12 on a Ford.
Here are some common OBD1 codes by manufacturer:
Honda Common Codes
– Code 1: Oxygen (O2) sensor circuit malfunction
– Code 3: Manifold Absolute Pressure (MAP) sensor issue
– Code 4: Crank Position Sensor problem
– Code 7: Throttle Position Sensor (TPS) fault
– Code 9: Cylinder Position Sensor error
GM Common Codes
– Code 12: No distributor reference signal (normal at start)
– Code 13: Oxygen sensor circuit open
– Code 14: Coolant temperature sensor high input
– Code 15: Coolant temperature sensor low input
– Code 44: Lean exhaust indication
Ford Common Codes
– Code 11: System pass (no faults)
– Code 12: RPM too low during self-test
– Code 13: RPM too high during self-test
– Code 14: Ignition pickup coil fault
– Code 18: Vehicle speed sensor issue
Toyota Common Codes
– Code 12: No crank signal
– Code 13: Crank angle sensor fault
– Code 14: Ignition signal missing
– Code 21: Oxygen sensor signal stuck rich
– Code 22: Coolant temperature sensor high
Remember: These are general examples. Always verify with your vehicle’s specific code chart.
Step 6: Diagnose and Fix the Problem
Once you know the code, it’s time to figure out what’s causing it. Here’s how to approach common issues:
Oxygen Sensor (O2) Codes
If you get a code related to the O2 sensor (like Honda code 1 or GM code 13), the sensor may be dirty, damaged, or failing. Symptoms include poor fuel economy, rough idle, or black smoke from the exhaust.
Solution: Inspect the sensor for damage or corrosion. Replace if necessary. O2 sensors typically last 60,000–100,000 miles.
MAP or TPS Sensor Issues
Codes like Honda code 3 or 7 often point to sensor problems. A faulty MAP sensor can cause hesitation or stalling. A bad TPS may lead to erratic throttle response.
Solution: Check the sensor connections for looseness or corrosion. Use a multimeter to test resistance if you’re comfortable. Replace if readings are out of spec.
Coolant Temperature Sensor Faults
GM codes 14 and 15 indicate the engine is reading too hot or too cold. This can affect fuel mixture and emissions.
Solution: Inspect the sensor and wiring. Replace if the engine temperature gauge behaves erratically.
Ignition or Crank Sensor Problems
Codes like Ford 14 or Toyota 13 suggest ignition system issues. The car may not start or may stall unexpectedly.
Solution: Check the sensor and its wiring harness. Replace if damaged or if the car won’t start.
Vacuum Leaks
Even if no specific code appears, a vacuum leak can trigger lean codes (like GM 44). Listen for hissing sounds under the hood.
Solution: Inspect vacuum hoses for cracks or disconnections. Replace damaged hoses.
Pro tip: Sometimes, a loose gas cap can trigger a check engine light on older cars. Always check the cap first—it’s a free fix!
Step 7: Clear the OBD1 Trouble Codes
After fixing the issue, you’ll want to clear the codes so the check engine light turns off. Here’s how:
Method 1: Disconnect the Battery
– Turn off the ignition.
– Disconnect the negative terminal of the battery.
– Wait 10–15 minutes (this resets the ECU).
– Reconnect the battery.
– Start the car and check if the light is off.
Note: This method may also reset radio presets and clock settings.
Method 2: Use the Diagnostic Connector
Some OBD1 systems allow you to clear codes by grounding a specific pin after repairs.
For example:
– On Honda: After fixing the issue, turn the ignition ON, then bridge the service connector again. Wait for the light to flash, then turn the key OFF. The codes should be cleared.
– On GM: Some models let you clear codes by cycling the ignition or using a specific pin sequence.
Check your repair manual for the correct procedure.
Method 3: Drive the Vehicle
In some cases, the ECU will automatically clear the code after a certain number of error-free drive cycles (usually 3–5). Drive normally and see if the light stays off.
Troubleshooting Common Issues
Even with the right steps, you might run into problems. Here’s how to handle them:
The Check Engine Light Doesn’t Flash
– Double-check your connections. Is the paperclip bridging the correct pins?
– Make sure the ignition is ON (not just in accessory mode).
– Verify the battery has enough charge—low voltage can prevent communication.
You Get Code 12 Repeatedly
– On many systems, code 12 is normal and indicates the start or end of the diagnostic cycle.
– If it’s the only code, your system may be functioning properly.
The Light Comes Back On After Clearing
– The problem wasn’t fully fixed. Recheck your repair.
– There may be an intermittent issue, like a loose wire or failing sensor.
– Drive the car for a few days and re-read the codes to see if they return.
You Can’t Find the Diagnostic Connector
– Search online forums or YouTube for your specific model.
– Check under the hood, under the dash, and near the ECU.
– Some connectors are hidden behind panels or covers.
When to See a Mechanic
While reading OBD1 codes is a great DIY skill, there are times when you should seek professional help:
- You’re unsure about the repair: If the fix involves complex wiring or engine work, don’t risk making it worse.
- The problem persists after repair: If the light keeps coming back, there may be a deeper issue.
- You don’t have the right tools: Some sensors require special tools to test or replace.
- Safety concerns: If the car is unsafe to drive (e.g., stalling, overheating), get it towed.
Remember: The goal is to fix the problem safely—not just turn off the light.
Final Tips for Success
– Keep a code log: Write down codes and repairs for future reference.
– Use quality parts: Cheap sensors can fail quickly and trigger more codes.
– Stay patient: Diagnosing old cars takes time. Don’t rush.
– Learn your car: The more you work on it, the better you’ll understand its quirks.
Conclusion
Reading check engine light codes on an OBD1 system might seem intimidating at first, but it’s actually a straightforward process once you know the steps. With just a paperclip, a flashlight, and a little patience, you can diagnose common engine problems, save money on diagnostics, and keep your classic car running smoothly.
Whether you’re driving a vintage Honda Civic, a GM pickup, or a Ford Mustang, this method puts the power of diagnostics in your hands. So the next time that little light comes on, don’t panic—grab your tools, follow this guide, and take control of your car’s health.
You’ve got this!
