How to Read Check Engine Light Codes on OBD1 Honda Vehicles
If you own an older Honda—like a 1992 Civic, 1994 Accord, or 1995 Prelude—you might have noticed the check engine light come on and wondered what it means. Unlike newer cars with OBD2 systems that require a scanner, older Honda models use an OBD1 (On-Board Diagnostics 1) system. The good news? You can read the trouble codes yourself—no fancy tools or mechanic visit needed.
In this guide, we’ll walk you through the simple process of reading check engine light codes on OBD1 Honda vehicles. You’ll learn how to locate the diagnostic port, use a paperclip to retrieve codes, interpret the flashing light patterns, and understand what each code means. Whether you’re a DIY enthusiast or just trying to save money on diagnostics, this step-by-step tutorial will empower you to take control of your car’s health.
What Is OBD1 and Why Does It Matter?
Before diving into the how-to, let’s clarify what OBD1 means. OBD stands for On-Board Diagnostics, a system built into vehicles to monitor engine performance and emissions. OBD1 was the first generation of this technology, used primarily from the mid-1980s to 1995 in many American-market vehicles, including Honda.
Unlike OBD2—which became standard in 1996 and uses a universal 16-pin connector—OBD1 systems vary by manufacturer. Honda’s OBD1 system is relatively simple and doesn’t require a scanner. Instead, it uses the check engine light (also called the Malfunction Indicator Lamp or MIL) to flash diagnostic trouble codes (DTCs) when a problem is detected.
Knowing your car uses OBD1 is crucial. If your Honda was made before 1996, there’s a strong chance it’s OBD1. You can confirm this by checking the diagnostic connector (we’ll cover that next) or consulting your owner’s manual.
Step 1: Confirm Your Honda Uses OBD1
Not all older Hondas are OBD1. Some early 1990s models had transitional systems, and a few were even OBD2-ready before the mandate. To be sure, follow these steps:
Check the Model Year
Honda began phasing in OBD2 in 1996. If your car was manufactured in 1995 or earlier, it’s almost certainly OBD1. For example, a 1993 Honda Civic DX or a 1994 Honda Accord LX both use OBD1.

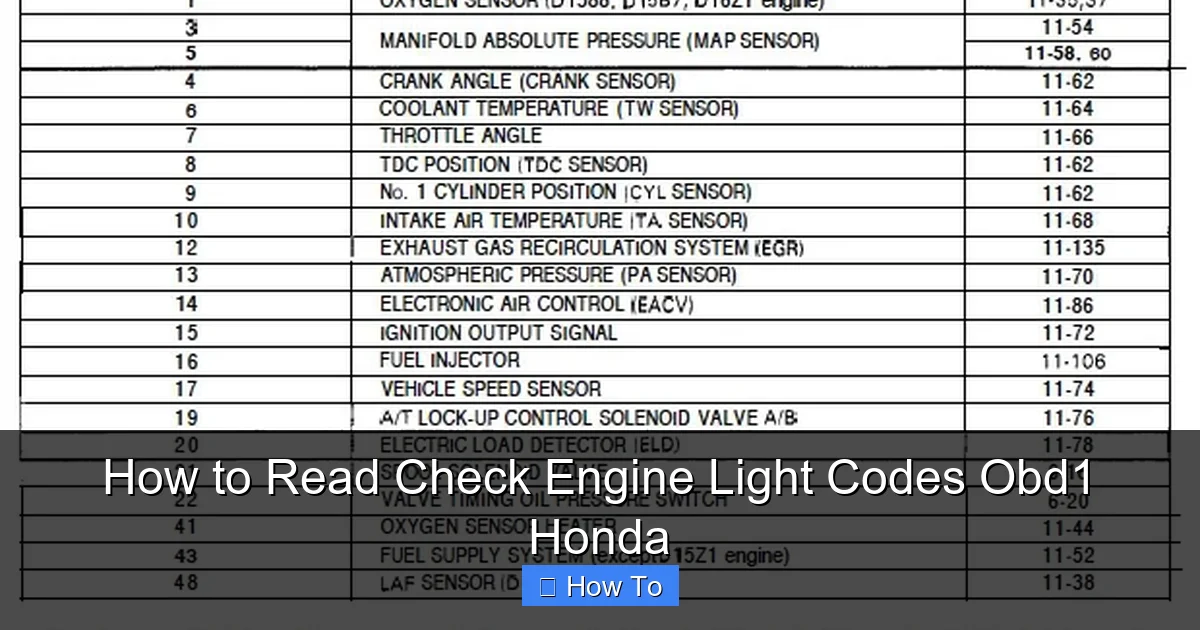

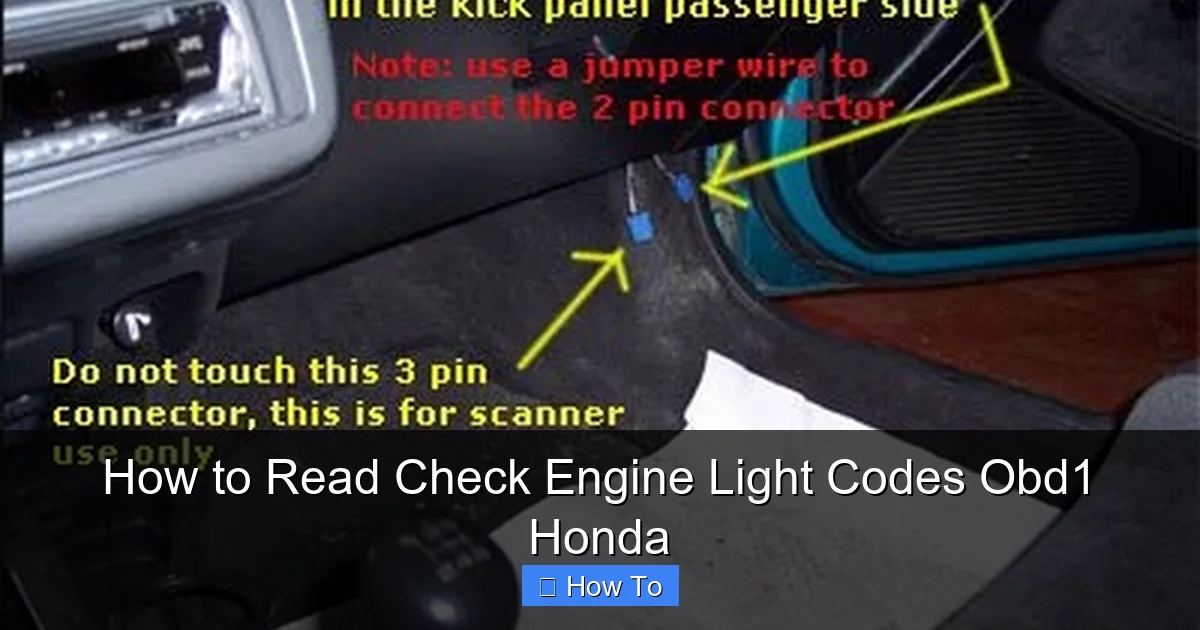

Visual guide about How to Read Check Engine Light Codes Obd1 Honda
Image source: honda-tech.com
Locate the Diagnostic Connector
The OBD1 diagnostic connector on Honda vehicles is a small, 2-pin port usually found under the dashboard on the driver’s side. It’s often near the fuse box or steering column. Look for a black or gray plastic connector with two metal pins inside. It may be labeled “DLC” (Data Link Connector) or simply tucked away behind a panel.
Verify the Connector Type
OBD1 Honda connectors are typically 2-pin and rectangular. If you see a 16-pin trapezoidal connector under the dash, your car might be OBD2—even if it’s a 1995 model. When in doubt, consult a Honda-specific repair manual or online forum for your exact model and year.
Step 2: Prepare Your Tools
One of the best things about reading OBD1 codes on a Honda is that you don’t need expensive equipment. Here’s what you’ll need:
- A paperclip, small jumper wire, or paperclip straightened out
- A flashlight (to see under the dashboard)
- A notepad and pen (to record the codes)
- Optional: A friend to help watch the check engine light
That’s it! No scan tool, no smartphone app, no subscription. Just basic household items.
Step 3: Locate the 2-Pin Service Connector
Now it’s time to find the diagnostic port. This is the key to accessing your car’s trouble codes.
Where to Look
The 2-pin service connector is typically located under the dashboard on the driver’s side. It’s often tucked behind the lower dash panel, near the steering column or fuse box. On many Hondas, it’s within arm’s reach when you’re sitting in the driver’s seat.
How to Identify It
The connector is small—about the size of a USB port—and has two metal pins inside. It’s usually black or gray and may be labeled “SERVICE CONNECTOR” or “DLC.” Some models have a small plastic cap covering it. If you can’t find it, check your owner’s manual or search online for “OBD1 Honda [your model] diagnostic connector location.”
Example: 1992 Honda Civic
In a 1992 Civic, the 2-pin connector is often found near the fuse box, just below the steering wheel. You may need to remove a small plastic panel to access it. Use your flashlight to peer into tight spaces.
Step 4: Use a Jumper Wire to Retrieve Codes
This is the core of the process. By bridging the two pins in the connector, you’re telling the ECU (Engine Control Unit) to output the stored trouble codes via the check engine light.
Straighten a Paperclip or Use a Jumper Wire
Take a standard paperclip and straighten it out. Alternatively, use a short piece of insulated wire with the ends stripped. The goal is to create a temporary bridge between the two pins.
Insert the Jumper
Carefully insert one end of the paperclip into each of the two pins in the service connector. Make sure the metal parts are touching the pins—don’t force it. The connection should be snug but not tight.
Turn the Ignition to “ON” (Do Not Start the Engine)
With the jumper in place, turn the key to the “ON” position. You should see the dashboard lights illuminate, including the check engine light. Do not start the engine—just leave it in the “ON” position.
Watch the Check Engine Light
Within a few seconds, the check engine light will begin to flash. These flashes represent the diagnostic trouble codes. Pay close attention—the pattern of long and short flashes tells you the code number.
Step 5: Interpret the Flash Pattern
This is where it gets interesting. The ECU communicates codes through a series of flashes. Each code is a two-digit number, with long flashes representing the tens digit and short flashes representing the ones digit.
How to Count the Flashes
Let’s say the light flashes like this: two long flashes, a pause, then three short flashes. That’s code 23. Here’s how to read it:
- Long flash = 10
- Short flash = 1
- Two long flashes = 20
- Three short flashes = 3
- Total: 20 + 3 = code 23
Example: Code 12
If the light flashes once (long), pauses, then flashes twice (short), that’s code 12. One long flash = 10, two short = 2 → 10 + 2 = 12.
Pauses Matter
The ECU will pause between digits and between codes. Wait for the full sequence to complete. If multiple codes are stored, the system will display them one after another, with a longer pause between each code.
Write Down the Codes
Keep a notepad handy. Write down each code as it appears. For example: “Code 12, Code 23.” This helps you track multiple issues.
Step 6: Understand What the Codes Mean
Once you’ve retrieved the codes, it’s time to figure out what they mean. Honda OBD1 codes are typically two-digit numbers ranging from 1 to 99. Each corresponds to a specific system or component.
Common OBD1 Honda Codes
Here are some of the most frequently encountered codes and their meanings:
- Code 1: Oxygen (O2) sensor circuit malfunction. This sensor monitors exhaust gases and helps regulate fuel mixture. A faulty O2 sensor can reduce fuel efficiency and increase emissions.
- Code 3: Manifold Absolute Pressure (MAP) sensor issue. The MAP sensor measures engine load. Problems here can cause poor acceleration or rough idle.
- Code 4: Crankshaft Position (CKP) sensor problem. This sensor tells the ECU when to fire the spark plugs. A failure can prevent the engine from starting.
- Code 7: Throttle Position (TP) sensor malfunction. This sensor monitors throttle opening. Issues can cause hesitation or surging.
- Code 9: Cylinder 1 top dead center (TDC) sensor problem. This helps the ECU determine piston position. A fault may cause misfires.
- Code 12: Exhaust Gas Recirculation (EGR) system issue. The EGR valve reduces emissions by recirculating exhaust gas. A clogged or stuck valve can cause rough idle or stalling.
- Code 23: Knock sensor malfunction. This sensor detects engine knocking and adjusts timing. A bad sensor can lead to reduced performance.
Use a Code Chart
For a complete list, refer to a Honda OBD1 code chart. You can find these in repair manuals, online forums, or Honda-specific websites. Always double-check the code against your specific model and year, as some codes may vary slightly.
Example: Diagnosing Code 12
If you get code 12, check the EGR valve and passages. Carbon buildup is a common cause. Clean the valve and passages with carburetor cleaner. If the valve is stuck or damaged, it may need replacement.
Step 7: Clear the Codes
After diagnosing and fixing the issue, you’ll want to clear the codes and turn off the check engine light.
Disconnect the Battery
The simplest way to clear OBD1 codes on a Honda is to disconnect the battery. Here’s how:
- Turn off the ignition and remove the key.
- Locate the negative (-) battery terminal.
- Use a wrench to loosen the clamp and remove the negative cable.
- Wait at least 10 minutes. This allows the ECU to reset and lose its stored memory.
- Reconnect the negative cable and tighten the clamp.
Alternative: Use the Jumper Method (Advanced)
Some Honda models allow you to clear codes by using the jumper wire method. With the ignition on and the jumper in place, turn the ignition off and remove the jumper. Wait 10 seconds, then reinsert the jumper and turn the ignition back on. However, the battery method is more reliable and widely recommended.
Verify the Light Is Off
After reconnecting the battery, turn the ignition to “ON.” The check engine light should briefly illuminate and then turn off. If it stays on, the problem may still exist, or the code wasn’t fully cleared.
Troubleshooting Common Issues
Even with this simple process, you might run into a few hiccups. Here’s how to handle them:
The Check Engine Light Doesn’t Flash
If the light doesn’t flash when you turn the ignition on with the jumper in place, double-check the following:
- Is the jumper making good contact with both pins?
- Is the ignition in the “ON” position (not “START”)?
- Is the check engine light working? Test it by turning the key to “ON” without the jumper—it should light up briefly.
- Is the ECU receiving power? Check fuses related to the ECU or ignition system.
You Get Code 0 or No Code
Code 0 or no flashes usually means no trouble codes are stored. This could mean the light came on due to a temporary glitch, or the issue has already been resolved. However, if the light is still on, there may be an intermittent problem or a sensor that’s not triggering a code yet.
Multiple Codes Appear
If you see several codes, prioritize them based on severity. For example, a code 4 (crankshaft sensor) is more urgent than a code 12 (EGR). Address the most critical issues first, as some problems can trigger secondary codes.
The Light Comes Back On
If the check engine light returns after clearing the codes, the underlying issue hasn’t been fixed. Re-run the diagnostic process and double-check your repairs. Some problems, like a failing O2 sensor, may take a few drive cycles to reappear.
Safety Tips and Best Practices
While reading OBD1 codes is safe and straightforward, keep these tips in mind:
- Always work in a well-ventilated area. Even though you’re not running the engine, battery fumes can be harmful.
- Wear safety glasses when working under the dashboard to protect your eyes from dust and debris.
- Don’t force the jumper wire into the connector. If it doesn’t fit easily, double-check the pin layout.
- Keep water and liquids away from the battery and electrical components.
- Take your time. Rushing can lead to mistakes or misread codes.
When to See a Mechanic
While many OBD1 issues can be diagnosed and fixed at home, some problems require professional help. Consider visiting a mechanic if:
- You’re unsure how to interpret or fix the code.
- The problem involves internal engine components (e.g., timing belt, head gasket).
- You lack the tools or confidence to perform the repair.
- The check engine light flashes continuously (indicating a severe misfire that can damage the catalytic converter).
Even if you go to a shop, knowing how to read the codes yourself helps you communicate better with the technician and avoid unnecessary charges.
Conclusion
Reading check engine light codes on an OBD1 Honda is a simple, cost-effective way to diagnose engine problems without a scanner. By using a paperclip to bridge the 2-pin service connector, you can retrieve trouble codes directly from the ECU and interpret them using the flashing pattern of the check engine light.
This skill empowers you to take control of your vehicle’s maintenance, save money on diagnostics, and make informed repair decisions. Whether you’re troubleshooting a rough idle, poor fuel economy, or a mysterious warning light, understanding OBD1 codes is a valuable tool in any DIY mechanic’s toolkit.
Remember: safety first, take your time, and always double-check your work. With practice, you’ll be able to read and clear codes like a pro—keeping your classic Honda running smoothly for years to come.
