Discover how to read the check engine light on a 1991 Honda Accord without expensive tools. This guide walks you through using a paperclip to access diagnostic trouble codes (DTCs) from your car’s ECU. Save time and money by diagnosing issues yourself before visiting a mechanic.
Key Takeaways
- No OBD2 scanner required: The 1991 Honda Accord uses OBD1, so you can read codes manually with a paperclip.
- Locate the diagnostic connector: Find the 2-pin service connector under the dashboard on the driver’s side.
- Use a paperclip to bridge terminals: Insert a paperclip between the two pins to trigger the check engine light flash sequence.
- Interpret flash patterns: Count the long and short flashes to identify specific trouble codes.
- Common codes include lean fuel mix or ignition issues: Codes like 12 (EGR) or 4 (crank position sensor) are frequent on older Accords.
- Reset the ECU after repairs: Disconnect the battery for 10 minutes to clear codes once the issue is fixed.
- Document codes for mechanics: Writing down codes helps professionals diagnose problems faster.
How to Read Check Engine Light on 91 Honda Accord: A Complete DIY Guide
If you own a 1991 Honda Accord and the check engine light has just flickered on, don’t panic. Unlike modern cars that require expensive OBD2 scanners, your Accord uses an older but reliable diagnostic system called OBD1. The best part? You can read the trouble codes yourself—no special tools needed. All it takes is a paperclip, a few minutes, and this step-by-step guide.
In this comprehensive how-to, you’ll learn exactly how to read the check engine light on your 1991 Honda Accord. We’ll walk you through locating the diagnostic port, triggering the code readout, interpreting the flash patterns, and understanding what those codes mean. Whether you’re a seasoned DIYer or a first-time car owner, this guide will empower you to diagnose common engine issues without spending money at the repair shop.
By the end of this article, you’ll be able to confidently read your Accord’s check engine light, understand the underlying problems, and decide whether you can fix it yourself or need professional help. Let’s get started.
Why the Check Engine Light Comes On

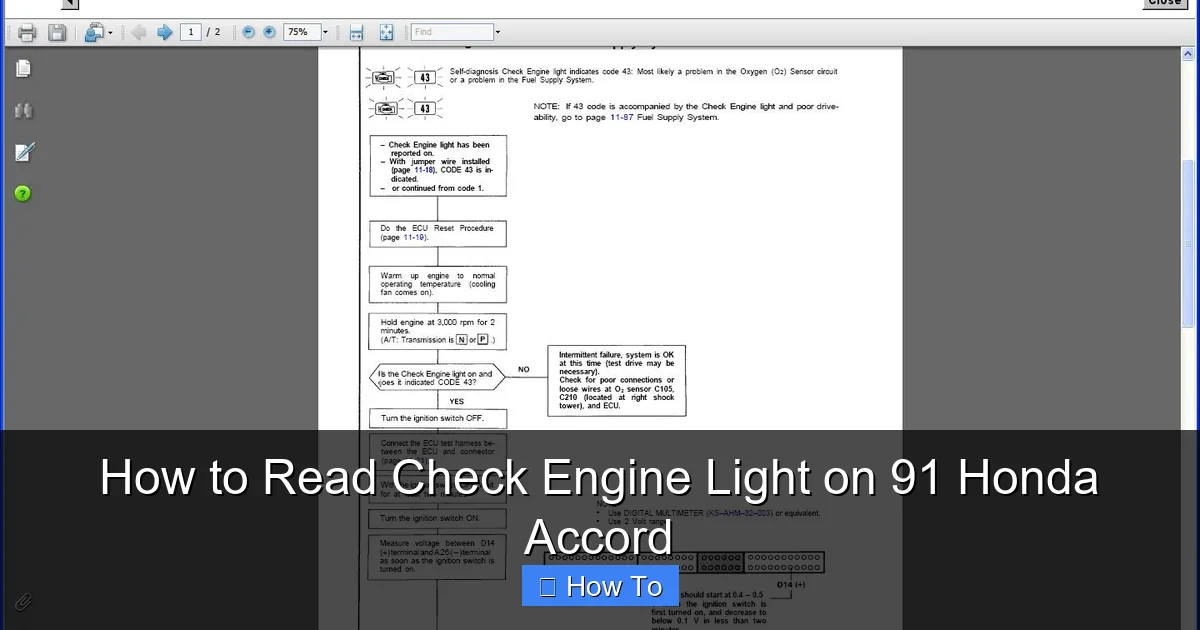

Visual guide about How to Read Check Engine Light on 91 Honda Accord
Image source: ww2.justanswer.com
Before diving into the how-to, it’s important to understand why the check engine light might illuminate in your 1991 Honda Accord. Unlike newer vehicles with complex emission and engine management systems, the 1991 Accord’s ECU (Engine Control Unit) monitors a limited set of sensors and components. When something goes out of range, the ECU stores a diagnostic trouble code (DTC) and turns on the check engine light to alert you.
Common reasons for the light to come on include:
- A faulty oxygen sensor
- Issues with the EGR (Exhaust Gas Recirculation) system
- Problems with the ignition system (e.g., bad spark plugs or distributor)
- Vacuum leaks in the intake manifold
- Malfunctioning coolant temperature sensor
- Loose or damaged gas cap (though less common on older models)
The good news? Most of these issues can be identified using the car’s built-in self-diagnostic system. And since the 1991 Accord doesn’t have a dashboard OBD2 port like newer cars, you’ll use the older method: manually retrieving codes via the ECU.
Tools and Materials You’ll Need
One of the best things about reading the check engine light on a 1991 Honda Accord is that you don’t need fancy equipment. Here’s what you’ll need:
- A paperclip (or a small piece of wire): This will be used to bridge the diagnostic connector terminals.
- A pen and paper: To record the flash codes.
- Good lighting: You’ll be working under the dashboard, so a flashlight helps.
- Patience and focus: Counting flashes accurately is key.
That’s it! No scan tools, no smartphone apps, no subscription services. Just simple, old-school automotive diagnostics.
Step 1: Locate the Diagnostic Connector
The first step in reading the check engine light is finding the diagnostic connector. On the 1991 Honda Accord, this is a small, 2-pin connector located under the dashboard on the driver’s side.
Where to Look
Sit in the driver’s seat and look down near the left side of the steering column. You’re searching for a small, rectangular plastic connector—usually black or gray—with two metal pins inside. It’s often tucked up near the firewall or behind a small panel.
If you can’t see it right away, don’t worry. It’s common for this connector to be hidden behind a trim piece or tucked into the wiring harness. Gently pull back any plastic covers or felt liners near the lower dashboard area.
Confirming the Right Connector
Not all connectors under the dash are the diagnostic port. The correct one is specifically labeled (in some models) or identifiable by its two-pin design. It’s not the larger OBD1 connector used in later models—this one is much smaller.
If you’re unsure, consult your owner’s manual or look for a label that says “Service Check Connector” or “DLC.” On many 1991 Accords, it’s located just above the brake pedal, slightly to the left.
Step 2: Prepare the Paperclip
Once you’ve located the 2-pin connector, it’s time to prepare your paperclip. This simple tool will act as a jumper wire to tell the ECU to start outputting diagnostic codes.
Straighten the Paperclip
Take a standard-sized paperclip and straighten it out as much as possible. You only need about 2–3 inches of straight wire. Bend one end into a small loop or hook to make it easier to insert and remove.
Insert the Paperclip
Carefully insert the straight end of the paperclip into both pins of the 2-pin connector. You’re essentially creating a short circuit between the two terminals. This tells the ECU to enter “diagnostic mode” and begin flashing the check engine light.
Important: Make sure the paperclip is fully inserted and making contact with both metal pins. A loose connection will prevent the system from activating.
Step 3: Turn the Ignition to “On”
With the paperclip in place, turn the ignition key to the “ON” position. Do not start the engine—just turn it so the dashboard lights up. This powers the ECU and allows it to communicate via the check engine light.
Watch the Check Engine Light
Once the ignition is on, the check engine light on your dashboard should begin to flash. These flashes represent the diagnostic trouble codes stored in the ECU. The pattern of long and short flashes corresponds to specific numbers.
For example:
- A long flash = 10
- A short flash = 1
- Two long flashes followed by three short flashes = Code 23
The ECU will cycle through all stored codes, then repeat the sequence. It’s important to watch carefully and count the flashes accurately.
Step 4: Interpret the Flash Codes
Now comes the most important part: reading and interpreting the flash patterns. The 1991 Honda Accord uses a simple numeric code system, where each code corresponds to a specific issue.
Understanding the Flash Pattern
The ECU outputs codes in a series of long and short flashes. Here’s how to decode them:
- Long flashes (about 1 second each): Represent tens (10, 20, 30, etc.)
- Short flashes (about 0.5 seconds each): Represent ones (1, 2, 3, etc.)
- Pause between codes: A longer pause (about 2 seconds) separates individual codes.
For example, if you see:
- One long flash, then two short flashes = Code 12
- Three long flashes, then four short flashes = Code 34
The system will repeat the sequence after a brief pause. Write down each code as it appears.
Common 1991 Honda Accord Trouble Codes
Here are some of the most common diagnostic trouble codes you might encounter:
- Code 1: Oxygen sensor (O2 sensor) malfunction
- Code 2: Throttle position sensor (TPS) issue
- Code 3: Manifold absolute pressure (MAP) sensor problem
- Code 4: Crank position sensor fault
- Code 7: Throttle position sensor out of range
- Code 12: Exhaust gas recirculation (EGR) system malfunction
- Code 13: Knock sensor issue
- Code 14: Idle air control (IAC) valve problem
- Code 15: Ignition output circuit fault
- Code 17: Vehicle speed sensor (VSS) malfunction
Each of these codes points to a specific system or component that may need attention. For example, Code 12 (EGR) is very common on older Accords and often results from carbon buildup in the EGR valve or passages.
Step 5: Research and Diagnose the Issue
Once you’ve recorded the trouble codes, it’s time to figure out what they mean and how to fix them. While some issues are simple, others may require more advanced troubleshooting.
Use Reliable Resources
Consult your 1991 Honda Accord service manual for detailed explanations of each code. You can also search online using the code number and “1991 Honda Accord” to find forums, repair guides, and videos.
For example, a quick search for “Honda Accord Code 12 EGR” will show you how to clean or replace the EGR valve, which is a common fix.
Prioritize the Codes
If multiple codes appear, start with the most critical ones. For instance, a crank position sensor issue (Code 4) can prevent the engine from starting, while an oxygen sensor problem (Code 1) may only affect fuel economy.
Check for Intermittent Issues
Sometimes, the ECU stores codes from past problems that have since resolved. If the check engine light is no longer on but codes appear, it could be a historical record. However, if the light is currently illuminated, the issue is likely active.
Step 6: Clear the Codes (After Repair)
Once you’ve identified and fixed the problem, you’ll want to clear the trouble codes from the ECU. This turns off the check engine light and confirms the repair was successful.
How to Reset the ECU
The simplest way to clear codes on a 1991 Honda Accord is to disconnect the battery:
- Turn off the ignition and remove the key.
- Locate the negative terminal on the battery (marked with a “-”).
- Use a wrench to loosen and remove the negative cable.
- Wait at least 10 minutes to ensure the ECU fully resets.
- Reconnect the negative cable and tighten it securely.
- Turn the ignition back on and check if the light remains off.
Note: Disconnecting the battery may also reset your radio presets, clock, and other settings. Be prepared to reprogram them.
Troubleshooting Tips and Common Mistakes
Even with the right steps, things can go wrong. Here are some common pitfalls and how to avoid them:
Paperclip Not Making Contact
If the check engine light doesn’t flash, the paperclip may not be making proper contact with both pins. Try wiggling it slightly or using a different paperclip. Ensure the connector isn’t damaged or corroded.
Ignition Not in “ON” Position
The engine must be off, but the ignition must be on. If the key is in “ACC” or “OFF,” the ECU won’t power up. Double-check the key position.
Misreading Flash Patterns
It’s easy to miscount flashes, especially if you’re nervous. Take your time, write down each sequence, and watch for the pause between codes. If you miss a code, wait for the sequence to repeat.
Assuming One Code Means One Problem
Sometimes, one faulty sensor can trigger multiple codes. For example, a bad MAP sensor might cause both Code 3 and Code 14. Focus on the root cause, not just the symptoms.
Ignoring Intermittent Codes
Even if the light is off, stored codes can reveal recurring issues. Don’t ignore them—they may indicate a problem that will worsen over time.
When to See a Mechanic
While many issues can be diagnosed and fixed at home, some problems require professional attention. Consider visiting a mechanic if:
- The check engine light flashes continuously (indicating a severe misfire)
- You’re unable to identify or fix the issue after research
- The problem involves internal engine components (e.g., timing belt, head gasket)
- You lack the tools or confidence to perform the repair
Even if you go to a shop, knowing the trouble codes beforehand can save time and money. Mechanics appreciate when customers come prepared with diagnostic information.
Maintaining Your 1991 Honda Accord
Preventing future check engine light issues starts with regular maintenance. Here are a few tips to keep your Accord running smoothly:
- Replace spark plugs and wires every 30,000 miles.
- Clean the EGR valve and passages annually.
- Check and replace the oxygen sensor every 60,000–100,000 miles.
- Inspect vacuum hoses for cracks or leaks.
- Use high-quality fuel and additives to reduce carbon buildup.
A well-maintained Accord can easily reach 200,000 miles or more. Regular care not only prevents check engine light problems but also improves performance and fuel economy.
Conclusion
Reading the check engine light on a 1991 Honda Accord is simpler than most people think. With just a paperclip and a few minutes of your time, you can access valuable diagnostic information that helps you understand what’s wrong under the hood. No scanner, no guesswork—just clear, actionable data.
By following this guide, you’ve learned how to locate the diagnostic connector, trigger the code readout, interpret flash patterns, and take the next steps toward repair. Whether you fix the issue yourself or bring it to a mechanic, you’re now equipped with the knowledge to make informed decisions.
Remember, the check engine light is your car’s way of asking for help. Don’t ignore it. With a little patience and the right approach, you can keep your 1991 Honda Accord running strong for years to come.
