Reading the check engine light on a 1994 Honda Accord is easier than you think—no scanner required. This guide shows you how to retrieve diagnostic trouble codes (DTCs) using the car’s built-in system, interpret them, and take the right next steps.
Key Takeaways
- No OBD2 scanner needed: The 1994 Honda Accord uses an older OBD1 system, so you can read codes manually using the ECU and check engine light.
- Locate the diagnostic connector: Find the 2-pin service connector under the passenger-side dashboard to access the ECU.
- Use a paperclip or jumper wire: Bridge the two pins in the connector to trigger code flashing.
- Count the light flashes: The check engine light will blink in patterns that correspond to specific trouble codes.
- Interpret codes correctly: Two-digit codes range from 1 to 99, with each number representing a different system or component issue.
- Clear codes manually: After repairs, disconnect the battery for 10 minutes to reset the ECU and turn off the light.
- Know when to seek help: Some codes require professional diagnosis, especially if the problem persists after basic fixes.
How to Read Check Engine Light on 94 Honda Accord
If you own a 1994 Honda Accord and the dreaded check engine light has popped up on your dashboard, don’t panic. Unlike modern cars that require expensive OBD2 scanners, your Accord uses an older but reliable OBD1 (On-Board Diagnostics, version 1) system. The best part? You can read the diagnostic trouble codes (DTCs) yourself—no special tools or mechanic visit needed.
In this complete guide, you’ll learn exactly how to read the check engine light on your 1994 Honda Accord using simple, DIY-friendly steps. We’ll walk you through locating the diagnostic port, retrieving the codes, interpreting what they mean, and deciding your next move. Whether you’re a seasoned DIYer or a first-time car owner, this guide is designed to be clear, practical, and easy to follow.
By the end, you’ll know how to turn that blinking light from a source of stress into a helpful diagnostic tool. Let’s get started.
Understanding the 1994 Honda Accord’s OBD1 System
Before diving into the steps, it’s important to understand how the 1994 Honda Accord’s diagnostic system works. Unlike newer vehicles that use OBD2 (standardized in 1996 and later), the 1994 Accord uses OBD1. This means the diagnostic process is manufacturer-specific and doesn’t rely on a universal port under the steering wheel.
Instead, Honda built a simple but effective system that communicates directly with the Engine Control Unit (ECU). When a sensor or system detects a problem, the ECU stores a trouble code and triggers the check engine light. To read these codes, you don’t need a scanner—just a paperclip and a few minutes of your time.
The OBD1 system in the 1994 Accord is reliable and straightforward. It monitors key components like the oxygen sensor, ignition system, fuel delivery, and emissions controls. When something goes out of range, the ECU logs a code and lights up the dashboard warning.
This system was designed for mechanics in the 90s, but it’s still accessible to everyday drivers today. With the right steps, you can retrieve and interpret these codes at home, saving time and money on diagnostics.
Tools and Materials You’ll Need
One of the best things about reading the check engine light on a 1994 Honda Accord is that you don’t need fancy equipment. Here’s what you’ll need:
- A paperclip or small jumper wire: This is used to bridge the diagnostic connector pins. A standard paperclip works perfectly—just straighten it out.
- A flashlight (optional): The diagnostic port is under the dashboard, so a little extra light helps.
- A notepad and pen: You’ll want to write down the codes as they flash.
- Patience and focus: Counting light flashes requires attention, so find a quiet spot to work.
That’s it! No scanners, no apps, no subscriptions. Just simple tools you likely already have at home.
Step 1: Locate the Diagnostic Connector
The first step in reading the check engine light is finding the diagnostic connector. On the 1994 Honda Accord, this is a small, 2-pin connector located under the passenger-side dashboard.
Where to Look
Sit in the front passenger seat and look down near the floor. The connector is usually mounted on the side of the center console, about halfway between the door and the center tunnel. It’s a small, rectangular plastic plug with two metal pins inside.

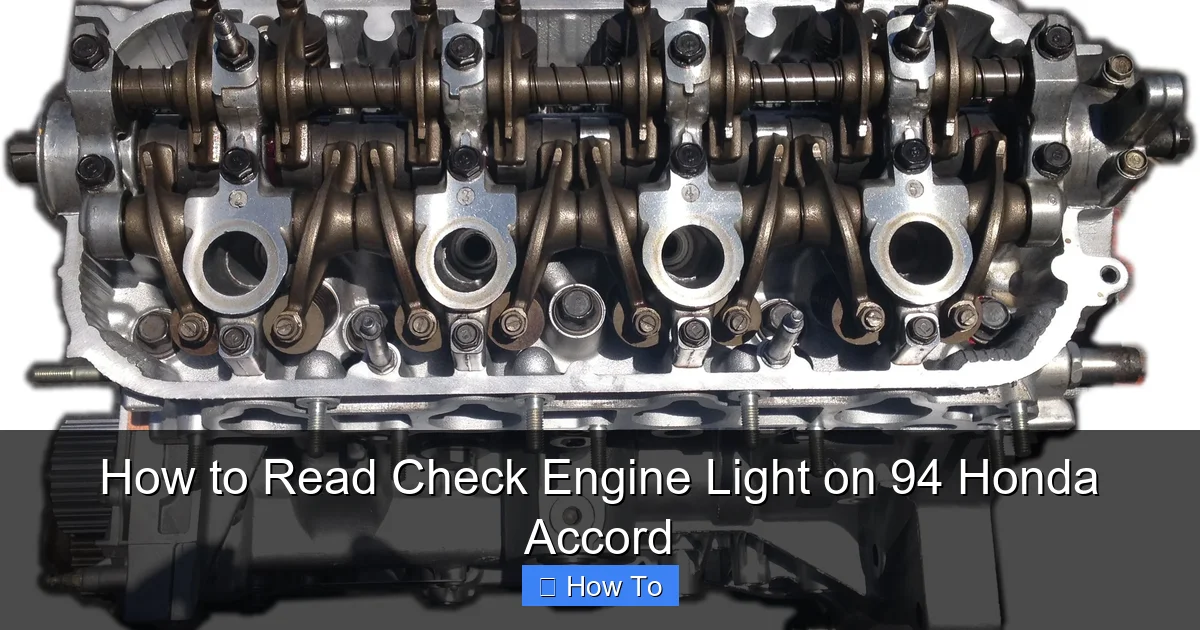

Visual guide about How to Read Check Engine Light on 94 Honda Accord
Image source: ehcar.net
What It Looks Like
The connector is often labeled “Service Check Connector” or “DLC” (Diagnostic Link Connector). It’s about the size of a USB port but with only two pins. It may be tucked behind a panel or secured with a small clip—gently pull it out if needed.
Pro Tip
If you can’t find it, check your owner’s manual or look for a small cover labeled “SERVICE.” Some models have it hidden under a removable panel. Don’t force anything—gentle pressure usually releases it.
Once you’ve located the connector, you’re ready for the next step.
Step 2: Prepare the Jumper Wire
Now that you’ve found the diagnostic connector, you’ll need to create a simple circuit to tell the ECU to start outputting codes.
Straighten the Paperclip
Take a standard paperclip and straighten it out so you have a long, straight piece of metal. You only need about 3–4 inches. Make sure the ends are smooth to avoid scratching the connector pins.
Insert the Jumper
Carefully insert one end of the paperclip into each of the two pins in the diagnostic connector. It doesn’t matter which pin goes where—the system is designed to work either way. You’re essentially “jumping” the circuit to signal the ECU to begin diagnostics.
Safety Note
Make sure the car is off and the key is removed from the ignition before inserting the jumper. This prevents any electrical issues or accidental starts.
Once the jumper is in place, you’re ready to retrieve the codes.
Step 3: Turn the Ignition to “On” (Do Not Start the Engine)
With the jumper wire in place, it’s time to power up the system—but don’t start the engine.
Turn the Key to “ON”
Insert the key into the ignition and turn it to the “ON” position. You’ll see the dashboard lights come on, including the check engine light. Do not start the engine—just leave it in the “ON” position.
Watch the Check Engine Light
The check engine light should begin to flash. These flashes represent the diagnostic trouble codes stored in the ECU. The pattern of flashes tells you which code is active.
Stay Patient
It may take 5–10 seconds for the light to start flashing. Don’t panic if it doesn’t happen immediately. The system needs a moment to recognize the jumper and begin output.
Now comes the most important part: counting the flashes.
Step 4: Read and Count the Flashes
This is where you translate the blinking light into usable information. The check engine light will flash in a specific pattern to indicate a two-digit code.
Understanding the Flash Pattern
The first digit is represented by long flashes (about 1 second each), and the second digit is represented by short flashes (about 0.5 seconds each). There’s a pause between the first and second digits, and a longer pause before the next code (if there is one).
For example:
- Code 12: One long flash, pause, then two short flashes.
- Code 45: Four long flashes, pause, then five short flashes.
Write It Down
Have your notepad ready. As the light flashes, count carefully and write down each code. If multiple codes are stored, the system will cycle through them. Wait for the full sequence to finish before moving on.
Example Walkthrough
Let’s say the light flashes like this: long, long, pause, short, short, short, short, short. That’s two long flashes (2) and five short flashes (5)—so the code is 25.
Pro Tip
If you miss a code, don’t worry. The system will repeat the sequence after a short pause. Just wait and try again. Some codes may appear multiple times—only record each unique code once.
Once you’ve recorded all the codes, you can move on to interpreting them.
Step 5: Interpret the Diagnostic Trouble Codes
Now that you have the codes, it’s time to figure out what they mean. The 1994 Honda Accord uses a specific set of OBD1 codes, each corresponding to a different system or component.
Common 1994 Honda Accord DTCs
Here are some of the most common codes and what they indicate:
- Code 1: Oxygen sensor (O2 sensor) malfunction. This affects fuel mixture and emissions. Check the sensor and wiring.
- Code 3: Manifold Absolute Pressure (MAP) sensor issue. Can cause poor fuel economy or rough idle.
- Code 4: Crankshaft Position Sensor (CKP) problem. May cause stalling or no-start conditions.
- Code 7: Throttle Position Sensor (TPS) out of range. Can lead to hesitation or surging.
- Code 9: Cylinder 1 or 2 misfire. Check spark plugs, wires, or ignition coil.
- Code 12: Exhaust Gas Recirculation (EGR) valve stuck or clogged. Causes rough idle or pinging.
- Code 13: Idle Air Control (IAC) valve malfunction. May result in high or fluctuating idle.
- Code 14: Electronic Air Control (EACV) issue. Similar to IAC problems.
- Code 17: Vehicle Speed Sensor (VSS) failure. Affects speedometer and transmission shifting.
- Code 25: Knock sensor problem. Can cause engine knocking under load.
How to Use a Code Chart
For a full list of codes, refer to a 1994 Honda Accord OBD1 code chart. These are widely available online or in repair manuals. Match your recorded code to the description to identify the likely issue.
Multiple Codes
If you have more than one code, prioritize them. Some codes are more critical than others. For example, a misfire (Code 9) is more urgent than a minor sensor glitch. Address the most serious issues first.
When in Doubt, Research
Don’t guess. Look up each code in a trusted source like a Honda service manual or reputable automotive forum. Misinterpreting a code can lead to unnecessary repairs.
Step 6: Troubleshoot and Repair the Issue
Once you know what the code means, it’s time to take action. Some issues are easy to fix at home; others may require professional help.
Simple Fixes You Can Do Yourself
Many common problems can be resolved with basic tools and a little know-how:
- Replace a faulty oxygen sensor: Located in the exhaust manifold. Use a wrench to remove and install the new one. Disconnect the battery first.
- Clean or replace the EGR valve: Remove the valve, clean it with carburetor cleaner, or replace it if clogged.
- Check spark plugs and wires: Remove and inspect for wear, cracks, or carbon buildup. Replace if necessary.
- Inspect the TPS or MAP sensor: Use a multimeter to test resistance. Replace if out of spec.
When to Call a Mechanic
Some issues are more complex and require specialized tools or expertise:
- Internal engine problems: Codes related to compression or timing may indicate serious mechanical issues.
- Transmission faults: If the VSS or shift solenoid is involved, a mechanic may be needed.
- Electrical gremlins: Intermittent wiring or ECU problems can be hard to diagnose without advanced tools.
Safety First
Always disconnect the battery before working on electrical components. Wear safety glasses and gloves when handling sensors or fluids.
Test Drive After Repair
After making repairs, start the car and see if the check engine light stays off. Take it for a short drive to ensure the problem is resolved.
Step 7: Clear the Check Engine Light
After fixing the issue, you’ll want to clear the stored codes and turn off the check engine light. On the 1994 Accord, this is done manually.
Disconnect the Battery
Turn off the car and remove the key. Disconnect the negative terminal of the battery using a wrench. Wait at least 10 minutes to ensure the ECU fully resets.
Reconnect the Battery
After 10 minutes, reconnect the negative terminal and tighten it securely. Turn the ignition to “ON” and check that the check engine light comes on briefly (this is normal) and then turns off.
Verify the Fix
Start the engine and let it run for a few minutes. If the light stays off, the problem is likely resolved. If it comes back, the issue may still exist or a new code has been triggered.
Alternative Method
Some older Hondas allow you to clear codes by turning the ignition on and off three times within five seconds. However, the battery method is more reliable for the 1994 Accord.
Common Mistakes to Avoid
Even with the right steps, it’s easy to make mistakes. Here are some common pitfalls and how to avoid them:
Mistake 1: Starting the Engine While Reading Codes
Never start the engine while the jumper is in place. This can damage the ECU or cause inaccurate readings. Always keep the key in the “ON” position only.
Mistake 2: Misreading the Flash Pattern
It’s easy to miscount flashes, especially with short ones. Go slowly, use a pen to tally, and wait for the full sequence to repeat if needed.
Mistake 3: Ignoring Multiple Codes
Don’t focus on just one code. Multiple codes can point to a root cause. For example, a bad O2 sensor (Code 1) might trigger a fuel trim issue (Code 13).
Mistake 4: Replacing Parts Without Testing
Don’t assume a sensor is bad just because of a code. Test it first with a multimeter or visual inspection. Many codes are caused by wiring or connection issues, not the sensor itself.
Mistake 5: Not Clearing Codes After Repair
Even if the light goes off, the code may still be stored. Always clear the codes after repairs to ensure the system recognizes the fix.
When the Light Comes Back On
Sometimes, the check engine light returns even after you’ve fixed the issue. This doesn’t always mean the repair failed.
Possible Reasons
- Intermittent problem: The issue may only occur under certain conditions (e.g., cold start, high speed).
- Incomplete repair: The root cause wasn’t fully addressed. For example, a clogged EGR passage may need more than just valve cleaning.
- New issue: A different component has failed, triggering a new code.
- ECU memory: The ECU may take a few drive cycles to confirm the problem is gone.
What to Do
Re-read the codes using the same method. Compare the new codes to the previous ones. If it’s the same code, revisit your repair. If it’s a new code, start the process over.
Keep a Log
Maintain a simple log of codes, repairs, and dates. This helps track patterns and makes future diagnostics easier.
Final Thoughts
Reading the check engine light on a 1994 Honda Accord is a valuable skill that saves time, money, and stress. With just a paperclip and a few minutes, you can access vital diagnostic information and take control of your car’s health.
This OBD1 system may be old, but it’s reliable and accessible. By following the steps in this guide, you’ve learned how to locate the diagnostic port, retrieve codes, interpret them, and take appropriate action. Whether you’re fixing a simple sensor or deciding when to call a mechanic, you’re now equipped with the knowledge to make informed decisions.
Remember, the check engine light is your car’s way of asking for help. Instead of ignoring it or panicking, use it as a tool to keep your Accord running smoothly for years to come.
