Discover how to read the check engine light on your Jeep Wrangler using built-in tools or an OBD2 scanner. This guide covers step-by-step instructions, common codes, and when to seek professional help to keep your off-roader in top shape.
Key Takeaways
- Understand what the check engine light means: It signals a problem with your Jeep’s engine or emissions system, ranging from minor issues like a loose gas cap to serious engine trouble.
- Use the built-in flash method (older models): On 1996–2006 Jeep Wranglers, you can read diagnostic trouble codes (DTCs) by turning the ignition key on and off three times to trigger flashing patterns.
- Invest in an OBD2 scanner for newer models: Most 2007 and newer Wranglers require an OBD2 scanner to read and clear codes quickly and accurately.
- Know common Jeep Wrangler trouble codes: Codes like P0455 (evap leak) or P0300 (random misfire) are frequent in Wranglers and often relate to the gas cap, oxygen sensors, or spark plugs.
- Don’t ignore the light: Even if your Jeep runs fine, a check engine light can indicate hidden issues that may worsen over time.
- Clear codes after repairs: Always reset the light after fixing the issue to confirm the problem is resolved and prevent false alerts.
- When to see a mechanic: If the light flashes, stays on after repairs, or you’re unsure of the code, consult a certified technician.
How to Read Check Engine Light on Jeep Wrangler
So, your Jeep Wrangler’s check engine light just came on. Don’t panic—this glowing orange icon on your dashboard doesn’t always mean disaster. In fact, it’s your vehicle’s way of saying, “Hey, something’s not quite right, and I need your attention.” Whether you’re cruising down the highway or tackling a muddy trail, understanding how to read the check engine light on your Jeep Wrangler can save you time, money, and stress.
In this complete guide, you’ll learn exactly how to interpret that mysterious light. We’ll walk you through two main methods: using your Jeep’s built-in diagnostic system (for older models) and using an OBD2 scanner (for newer models). You’ll also discover common trouble codes specific to Jeep Wranglers, what they mean, and when it’s time to call in a professional. By the end, you’ll feel confident diagnosing issues and keeping your off-road warrior in peak condition.
Let’s get started.
What Does the Check Engine Light Mean?
Visual guide about How to Read Check Engine Light on Jeep Wrangler
Image source: jeepfan.com
Before diving into how to read the light, it’s important to understand what it’s trying to tell you. The check engine light—also known as the malfunction indicator lamp (MIL)—is part of your Jeep’s onboard diagnostics system (OBD2). This system constantly monitors engine performance, emissions, fuel efficiency, and other critical functions.
When a sensor detects something out of the ordinary—like a drop in fuel pressure, a misfiring spark plug, or a leak in the emissions system—it sends a signal to the engine control unit (ECU). The ECU then triggers the check engine light to alert you.
But here’s the thing: the light doesn’t tell you *exactly* what’s wrong. It only tells you that *something* is off. That’s why you need to read the diagnostic trouble code (DTC) behind it.
There are two types of check engine lights:
- Solid (steady) light: This means there’s a problem, but it’s not immediately critical. You should still address it soon.
- Flashing light: This is serious. It usually indicates a severe misfire that could damage your catalytic converter. Pull over safely and get help immediately.
Ignoring the light—especially a flashing one—can lead to expensive repairs down the road. So even if your Jeep seems to run fine, don’t brush it off.
Method 1: Reading Codes with the Ignition Key (Older Jeep Wranglers)
If you own a 1996 to 2006 Jeep Wrangler (TJ or earlier YJ models), you’re in luck. These vehicles have a built-in feature that lets you read trouble codes without any special tools. It’s called the “key dance” or “ignition cycle method.”
This method works by accessing the OBD2 system through the dashboard. Here’s how to do it step by step.
Step 1: Prepare Your Jeep
Make sure your Jeep is parked on a flat surface, the engine is off, and the key is out of the ignition. You don’t need to start the engine for this method—just use the key to cycle the ignition.
Step 2: Turn the Key On and Off Three Times
Insert the key and follow this sequence:
- Turn the key to the “ON” position (dashboard lights up, but engine stays off).
- Wait about 2 seconds.
- Turn the key back to “OFF.”
- Repeat this cycle two more times, for a total of three times.
- On the third time, leave the key in the “ON” position.
You should now see the check engine light begin to flash. This is your signal that the system is ready to display the trouble code.
Step 3: Count the Flashes
The check engine light will flash in a pattern that corresponds to a two-digit code. For example:
- A long flash (about 1 second) = first digit.
- A short flash (about 0.5 seconds) = second digit.
Let’s say the light flashes: long, long, pause, short, short.
That’s “2 long” and “2 short” = code P022.
Wait about 3 seconds between codes. If there’s more than one code, the system will display them in sequence.
Step 4: Write Down the Code(s)
Keep a pen and paper handy. Write down every code you see. Some Jeeps may show multiple codes, so don’t stop after the first one.
Once all codes are displayed, the light will turn off. You can now look up what each code means.
Step 5: Look Up the Code
Use a Jeep-specific repair manual or an online OBD2 code database to interpret your code. For example:
- P0455: Large evaporative emissions leak (often a loose or faulty gas cap).
- P0300: Random/multiple cylinder misfire detected.
- P0171: System too lean (bank 1)—could mean a vacuum leak or bad oxygen sensor.
Keep in mind that older Jeeps may not support all OBD2 codes, so some readings might be limited.
Step 6: Clear the Code (Optional)
To reset the check engine light after fixing the issue, you can disconnect the battery for about 10–15 minutes. This resets the ECU and clears the stored codes. Reconnect the battery, start the Jeep, and see if the light stays off.
Pro Tip: Always fix the underlying issue before clearing the code. Just resetting the light won’t solve the problem—it’ll likely come back.
Method 2: Using an OBD2 Scanner (2007 and Newer Wranglers)
If you drive a 2007 or newer Jeep Wrangler (JK or JL model), the ignition key method won’t work. These vehicles require an OBD2 scanner to read and clear trouble codes. The good news? OBD2 scanners are affordable, easy to use, and widely available.
Here’s how to use one.
Step 1: Get an OBD2 Scanner
You can buy a basic OBD2 scanner for as little as $20 on Amazon, at auto parts stores, or from retailers like AutoZone or O’Reilly. Look for one that’s compatible with your Jeep’s year and model.
Some popular options include:
- BlueDriver Bluetooth Scanner (works with smartphone apps)
- Innova 3100 (simple, handheld)
- Autel MaxiCOM (advanced, for serious DIYers)
For most Jeep owners, a basic scanner is more than enough.
Step 2: Locate the OBD2 Port

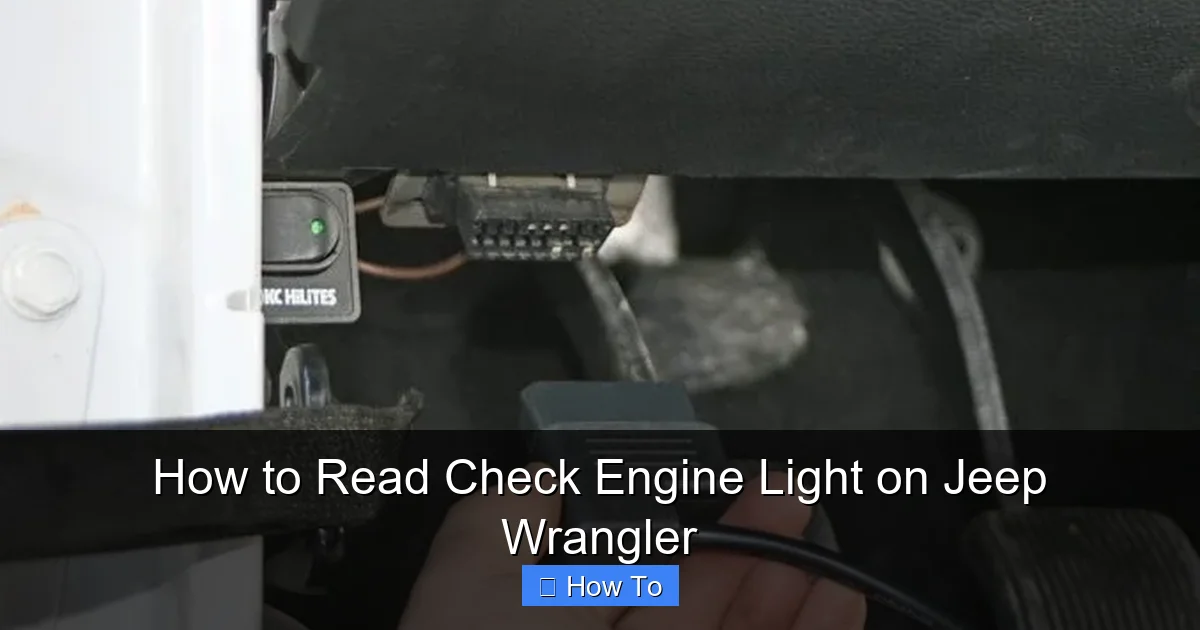

In all Jeep Wranglers, the OBD2 port is located under the dashboard on the driver’s side. It’s usually near the steering column, about knee-level. It’s a 16-pin connector that looks like a trapezoid.
You don’t need tools to access it—just reach under and plug in the scanner.
Step 3: Turn the Ignition On (Don’t Start the Engine)
Insert your key and turn it to the “ON” position. The dashboard lights should come on, but the engine should remain off. This powers the OBD2 system so the scanner can communicate with the ECU.
Step 4: Plug in the Scanner
Connect the OBD2 scanner to the port. Most scanners will power up automatically when plugged in.
Step 5: Follow the Scanner’s Instructions
Turn on the scanner and follow the on-screen prompts. Most devices will ask you to:
- Select your vehicle make (Jeep)
- Choose the model year
- Press “Read Codes” or “Scan”
Within seconds, the scanner will display any stored trouble codes.
Step 6: Write Down the Codes
The scanner will show codes like P0420, P0135, or P0304. Write them down or take a photo for reference.
Many scanners also provide a brief description of what each code means. For example:
- P0420: Catalyst system efficiency below threshold (bank 1)—could mean a failing catalytic converter.
- P0135: O2 sensor heater circuit malfunction (bank 1, sensor 1)—often a bad oxygen sensor.
- P0304: Cylinder 4 misfire detected—could be a bad spark plug or ignition coil.
Step 7: Clear the Codes (After Repairs)
Once you’ve fixed the issue—like replacing a gas cap or spark plug—return to the scanner and select “Clear Codes” or “Erase DTCs.” This resets the check engine light.
Start your Jeep and check if the light stays off. If it comes back, the problem may not be fully resolved.
Pro Tip: Some scanners can also show live data (like engine temperature, RPM, and fuel trim), which helps diagnose intermittent issues.
Common Jeep Wrangler Check Engine Light Codes
Jeep Wranglers are known for their ruggedness, but they’re not immune to common mechanical issues. Here are some of the most frequent trouble codes you might encounter—and what they usually mean.
P0455 – Large Evaporative Emissions Leak
This is one of the most common codes in Wranglers. It means there’s a significant leak in the fuel vapor system, often caused by:
- A loose or missing gas cap
- A cracked or disconnected EVAP hose
- A faulty purge valve
Solution: First, check and tighten your gas cap. If that doesn’t work, inspect the EVAP lines under the hood. Many Wrangler owners carry a spare gas cap just in case.
P0300 – Random/Multiple Cylinder Misfire
This code indicates that one or more cylinders aren’t firing properly. Causes include:
- Worn spark plugs
- Faulty ignition coils
- Low fuel pressure
- Vacuum leaks
Solution: Replace spark plugs and coils as part of regular maintenance. Wranglers often need new plugs every 30,000–50,000 miles.
P0171 – System Too Lean (Bank 1)
This means the engine is running with too much air and not enough fuel. Common causes:
- Vacuum leaks (cracked hoses or intake gaskets)
- Faulty mass airflow (MAF) sensor
- Clogged fuel injectors
Solution: Use a smoke test to find vacuum leaks. Clean or replace the MAF sensor if needed.
P0420 – Catalyst System Efficiency Below Threshold
This suggests your catalytic converter isn’t working efficiently. It’s often triggered by:
- A failing catalytic converter
- Bad oxygen sensors
- Engine misfires (which damage the converter over time)
Solution: This one’s tricky. If the converter is truly bad, it’s expensive to replace. But first, rule out oxygen sensor or misfire issues.
P0135 – O2 Sensor Heater Circuit Malfunction
This code points to a problem with the oxygen sensor’s heating element. It’s common in cold climates or after off-roading.
Solution: Replace the faulty O2 sensor. Wranglers have multiple sensors, so make sure you’re replacing the right one (bank 1, sensor 1, etc.).
Troubleshooting Tips and Best Practices
Reading the check engine light is just the first step. Here are some tips to help you troubleshoot effectively.
Don’t Panic—But Don’t Ignore It
A check engine light doesn’t always mean a major repair. Sometimes it’s as simple as a loose gas cap. But even small issues can lead to bigger problems if ignored.
Check the Gas Cap First
Before spending money on diagnostics, make sure your gas cap is tight. A loose cap is the #1 cause of false check engine lights in Wranglers.
Use Quality Parts
When replacing sensors, spark plugs, or coils, use OEM (original equipment manufacturer) or high-quality aftermarket parts. Cheap parts can fail quickly and trigger new codes.
Keep a Maintenance Log
Track when you replace parts, clear codes, or notice changes in performance. This helps identify patterns and prevents repeat issues.
Watch for Recurring Codes
If the same code keeps coming back after repairs, the root cause may not be fixed. For example, a P0300 code that returns after replacing spark plugs could indicate a deeper issue like a bad fuel pump.
Consider a Professional Scan
If you’re unsure about a code or the light won’t go off, visit a mechanic. They have advanced tools that can perform deeper diagnostics, like checking fuel pressure or running a compression test.
When to See a Mechanic
While many check engine light issues can be handled at home, some situations require professional help.
- The light is flashing: This indicates a severe misfire. Driving with a flashing light can destroy your catalytic converter in minutes.
- The light stays on after repairs: If you’ve fixed the issue but the light won’t clear, there may be a wiring problem or sensor failure.
- You’re not comfortable diagnosing: If you’re unsure what a code means or how to fix it, don’t guess. A mechanic can save you from making things worse.
- Multiple codes appear: This could signal a complex issue like a failing ECU or major engine problem.
Conclusion
Reading the check engine light on your Jeep Wrangler doesn’t have to be intimidating. Whether you’re using the ignition key method on an older model or an OBD2 scanner on a newer one, you now have the tools to diagnose issues quickly and confidently.
Remember: the light is your Jeep’s way of communicating. Listen to it. Address problems early. And don’t forget the simple fixes—like tightening the gas cap—before jumping to conclusions.
With regular maintenance and a little know-how, you can keep your Wrangler running strong for years of off-road adventures. Stay safe, stay informed, and keep exploring.
