This guide explains how to remove the catalytic converter check engine signal light using OBD2 tools, spacers, or ECU tuning. Always check local laws first, as tampering may be illegal in some areas.
Key Takeaways
- Understand the cause: The check engine light often triggers due to catalytic converter inefficiency detected by oxygen sensors.
- Use an OBD2 scanner: This tool helps read and clear error codes related to the catalytic converter.
- Install a catalytic converter spacer: A spacer tricks the downstream O2 sensor into thinking the converter is working properly.
- Consider ECU remapping: Reprogramming the engine control unit can disable specific emissions-related alerts.
- Check legality: Removing or bypassing a catalytic converter is illegal in many regions, including most U.S. states and the EU.
- Monitor performance: After any modification, watch for changes in fuel economy, power, or new warning lights.
- Seek professional help if unsure: Incorrect modifications can damage your engine or void your warranty.
How to Remove Catalytic Converter Check Engine Signal Light
If your car’s check engine light is on and you’ve confirmed it’s due to a catalytic converter issue, you might be wondering how to turn off that persistent warning without spending thousands on a replacement. While the catalytic converter plays a vital role in reducing harmful emissions, some drivers choose to bypass or remove it—especially on older vehicles or for off-road use. However, doing so comes with legal, environmental, and mechanical implications.
This comprehensive guide will walk you through how to remove the catalytic converter check engine signal light safely and effectively. We’ll cover everything from diagnosing the problem to using tools like OBD2 scanners, installing spacers, and even reprogramming your vehicle’s computer. But before we dive in, it’s crucial to understand what you’re dealing with—and whether it’s legal where you live.
Understanding the Catalytic Converter and Check Engine Light

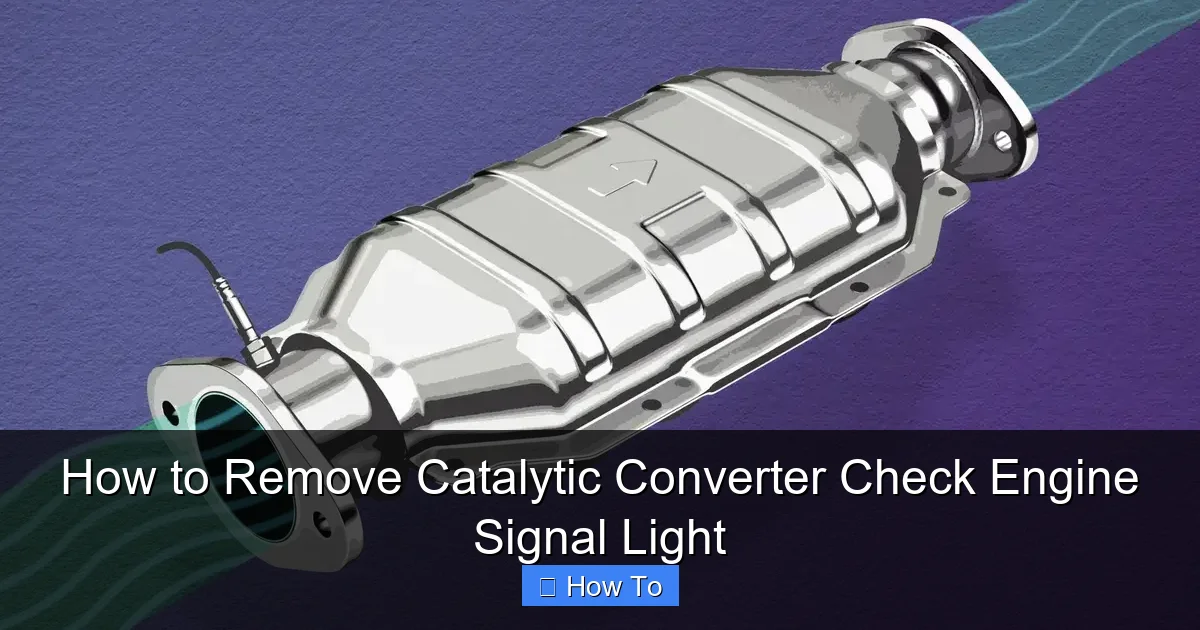

Visual guide about How to Remove Catalytic Converter Check Engine Signal Light
Image source: i.ytimg.com
The catalytic converter is an emissions control device located in your vehicle’s exhaust system. It converts toxic gases like carbon monoxide, nitrogen oxides, and unburned hydrocarbons into less harmful substances such as carbon dioxide and water vapor. Modern cars use oxygen (O2) sensors before and after the catalytic converter to monitor its efficiency.
When the downstream O2 sensor detects that the converter isn’t reducing emissions effectively, the engine control unit (ECU) triggers the check engine light and stores a diagnostic trouble code (DTC), commonly P0420 (“Catalyst System Efficiency Below Threshold”).
While a failing catalytic converter often causes this code, other issues—like a faulty O2 sensor, exhaust leak, or engine misfire—can also trigger it. That’s why proper diagnosis is the first and most important step.
Step 1: Diagnose the Problem Accurately
Before attempting to remove or bypass the check engine light, confirm that the catalytic converter is truly the issue.
Use an OBD2 Scanner
Plug an OBD2 scanner into your vehicle’s diagnostic port (usually under the dashboard near the steering wheel). Turn the ignition to “ON” (without starting the engine) and let the scanner communicate with the ECU.
Look for codes like:
– P0420 – Catalyst System Efficiency Below Threshold (Bank 1)
– P0430 – Catalyst System Efficiency Below Threshold (Bank 2)
These indicate the ECU has detected low catalytic converter efficiency.
Check Live Data
Many advanced OBD2 scanners allow you to view live sensor data. Compare the upstream (pre-cat) and downstream (post-cat) O2 sensor readings:
– The upstream sensor should fluctuate rapidly as it monitors air-fuel mixture changes.
– The downstream sensor should show a steady, flat signal if the catalytic converter is working properly.
If both sensors behave similarly (both fluctuating), the converter isn’t doing its job.
Perform a Visual and Physical Inspection
Inspect the catalytic converter for:
– Physical damage (dents, cracks)
– Rattling sounds (indicating broken internal honeycomb structure)
– Overheating (bluish or discolored metal)
Also, check for exhaust leaks upstream of the converter, which can skew sensor readings.
Rule Out Other Causes
Common culprits that mimic catalytic converter failure include:
– Faulty O2 sensors
– Engine misfires
– Vacuum leaks
– Rich or lean fuel mixtures
Fix these issues first—they may resolve the check engine light without touching the converter.
Step 2: Consider Your Options
Once you’ve confirmed the catalytic converter is the issue, you have several options to address the check engine light:
1. Replace the catalytic converter (most reliable but expensive)
2. Install a catalytic converter spacer
3. Use an O2 sensor simulator or extender
4. Reprogram the ECU (remap or tune)
5. Physically remove the catalytic converter (not recommended or legal in most areas)
We’ll focus on methods that allow you to remove the check engine signal light without replacing the converter—especially spacers and ECU tuning.
Step 3: Use an OBD2 Scanner to Clear the Code
Sometimes, the check engine light appears after a temporary issue (like a cold start or minor misfire). Clearing the code may resolve it—if the underlying problem is fixed.
How to Clear the Code
1. Connect your OBD2 scanner.
2. Navigate to “Clear Codes” or “Erase DTCs.”
3. Confirm the action.
4. Turn off the ignition and wait 30 seconds.
5. Restart the engine.
If the light returns after driving, the issue persists.
Tip: Drive Cycle Matters
After clearing codes, your vehicle must complete a “drive cycle” for the ECU to re-evaluate emissions systems. This typically involves:
– Cold start
– Highway driving at steady speed
– Deceleration and idling
If the converter is truly failing, the light will come back.
Step 4: Install a Catalytic Converter Spacer

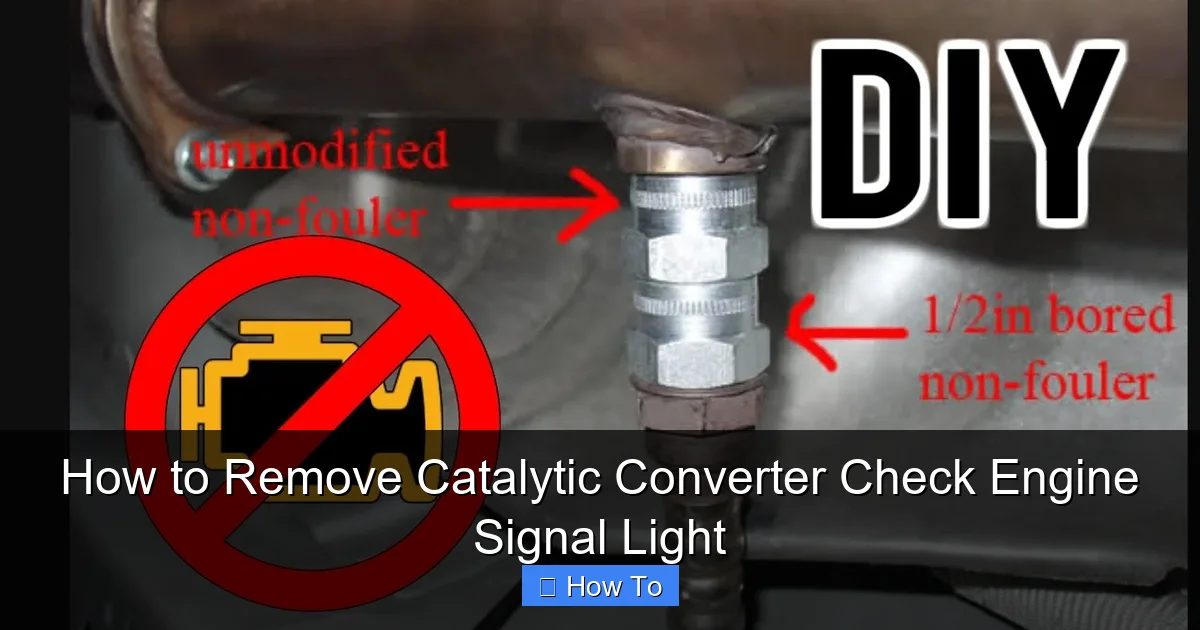

A catalytic converter spacer (also called an O2 sensor spacer or extender) is a threaded adapter that moves the downstream O2 sensor away from the exhaust stream. This reduces the sensor’s ability to detect low converter efficiency, tricking the ECU into thinking everything is fine.
How It Works
The spacer screws into the exhaust pipe where the O2 sensor mounts. The sensor then screws into the spacer. By positioning the sensor further away from the hot exhaust gases, it receives a cooler, less reactive signal—mimicking a properly functioning converter.
Types of Spacers
– Basic Spacer: A simple threaded tube (2–3 inches long). Affordable but may not work on all vehicles.
– Anti-Fouling Spacer: Includes a deflector or heat shield to further reduce sensor exposure.
– Electronic Simulator: Some spacers include a resistor or circuit to mimic the correct sensor signal (more advanced).
Installation Steps
1. Locate the downstream O2 sensor: It’s usually mounted in the exhaust pipe after the catalytic converter.
2. Disconnect the battery: Prevent electrical shorts.
3. Unplug the O2 sensor: Press the release tab and gently pull the connector.
4. Remove the sensor: Use an O2 sensor socket and ratchet. Apply penetrating oil if it’s stuck.
5. Install the spacer: Screw the spacer into the exhaust pipe where the sensor was.
6. Reinstall the sensor: Thread the O2 sensor into the spacer.
7. Reconnect the sensor and battery.
8. Clear the check engine light using your OBD2 scanner.
Tips for Success
– Use high-temperature anti-seize on threads to prevent seizing.
– Ensure the spacer is compatible with your vehicle’s sensor type (wideband vs. narrowband).
– Some spacers require welding or custom fabrication—consider professional installation.
Limitations
– May not work on newer vehicles with advanced OBD2 systems.
– Can fail emissions tests.
– May trigger other codes if the ECU detects anomalies.
Step 5: Use an O2 Sensor Simulator
For vehicles with wideband O2 sensors or strict monitoring, a spacer alone may not suffice. An O2 sensor simulator (or emulator) electronically mimics the correct signal.
How It Works
The simulator plugs between the O2 sensor and the vehicle’s wiring harness. It intercepts the sensor’s signal and sends a modified one to the ECU, indicating normal converter operation.
Installation
1. Disconnect the downstream O2 sensor.
2. Plug the simulator into the sensor’s connector.
3. Plug the vehicle’s harness into the other end of the simulator.
4. Secure the device away from heat and moving parts.
5. Clear the check engine light.
Pros and Cons
Pros:
– Highly effective on many modern vehicles.
– No mechanical modifications needed.
Cons:
– Expensive ($100–$300).
– May not work on all makes/models.
– Still illegal in many areas.
Step 6: Reprogram the ECU (ECU Tuning or Remapping)
The most effective—and advanced—method is to reprogram the engine control unit to ignore catalytic converter efficiency codes.
How It Works
A tuner or mechanic uses specialized software to modify the ECU’s firmware. They can disable specific emissions monitors, including the catalyst efficiency test.
Methods
– Custom Tune: A professional tunes your ECU for your specific setup (e.g., aftermarket exhaust, deleted cat).
– Preloaded Tune: Some companies offer “catless” or “emissions-off” tunes for popular vehicles.
– OBD2 Flashing Tools: Devices like HP Tuners, EFILive, or Cobb Accessport allow DIY tuning (requires knowledge).
Steps for ECU Remapping
1. Backup your current ECU settings.
2. Connect the tuning device to the OBD2 port.
3. Load the modified tune (disable P0420/P0430 monitoring).
4. Flash the ECU.
5. Clear any existing codes.
6. Test drive and verify the light stays off.
Important Notes
– Tuning may void your warranty.
– Can affect fuel economy and performance if not done correctly.
– Requires technical knowledge or professional help.
Step 7: Physical Removal (Not Recommended)
Some people remove the catalytic converter entirely and install a straight pipe or “test pipe.” While this eliminates the converter, it often triggers the same check engine light unless combined with tuning or spacers.
Risks
– Illegal in most places: Violates the Clean Air Act in the U.S. and similar laws elsewhere.
– Fails emissions tests: Your vehicle won’t pass inspection.
– Environmental harm: Increases toxic emissions.
– Check engine light returns: Without tuning, the ECU will still detect the missing converter.
If You Proceed
– Use a test pipe that mimics the converter’s shape to avoid exhaust turbulence.
– Always combine with ECU tuning or a spacer.
– Only consider for off-road or race vehicles.
Step 8: Monitor and Maintain
After implementing any solution, monitor your vehicle closely.
Check for New Codes
Use your OBD2 scanner weekly to ensure no new issues arise.
Watch Performance
Look for changes in:
– Fuel economy
– Engine power
– Exhaust smell (a strong sulfur odor may indicate problems)
Inspect Regularly
Check O2 sensors, wiring, and exhaust components for damage or leaks.
Troubleshooting Common Issues
Check Engine Light Returns After Clearing
– The underlying issue (bad converter, sensor, or tune) wasn’t resolved.
– Drive cycle not completed.
– Spacer or simulator incompatible.
New Codes Appear
– P0135, P0141: O2 sensor heater circuit faults (sensor damaged during install).
– P0420/P0430: Spacer or tune not working.
– P0300: Random misfire (unrelated but common).
Reduced Fuel Economy
– ECU may run rich if it can’t properly monitor emissions.
– Check air filter, spark plugs, and fuel injectors.
Rough Idle or Poor Performance
– Exhaust leak introduced during modification.
– Incorrect tune or sensor misalignment.
Legal and Environmental Considerations
Before modifying your catalytic converter, understand the laws in your area.
United States
– The Clean Air Act prohibits tampering with emissions equipment.
– Federal law requires catalytic converters on all gasoline vehicles made after 1974.
– California and states adopting CARB rules have even stricter regulations.
– Penalties include fines up to $4,500 per violation.
European Union
– Tampering with emissions systems violates EU regulations.
– Vehicles must pass periodic inspections (e.g., MOT in the UK).
Off-Road and Race Use
– Modifications may be legal if the vehicle is not driven on public roads.
– Always check local ordinances.
Insurance and Warranty
– Modifications may void your warranty.
– Insurance claims could be denied if tampering contributed to damage.
When to Seek Professional Help
If you’re unsure about any step, consult a qualified mechanic or tuner. They can:
– Diagnose the root cause accurately
– Recommend the best solution for your vehicle
– Perform safe and legal modifications
Conclusion
Removing the catalytic converter check engine signal light is possible using tools like OBD2 scanners, spacers, simulators, or ECU tuning. However, it’s not a decision to take lightly. While these methods can save money and restore dashboard peace, they come with legal, environmental, and mechanical risks.
Always start with proper diagnosis. If the catalytic converter is truly failing, consider replacement—especially if you plan to keep the vehicle long-term or live in an emissions-tested area. For off-road or performance builds, tuning combined with hardware modifications may be the best route.
Remember: the check engine light exists for a reason. Ignoring it can lead to bigger problems down the road. Use this guide responsibly, stay informed about local laws, and prioritize your vehicle’s health and the environment.
