This guide walks you through how to replace the check engine light on a 2013 Subaru Outback, covering diagnosis, bulb replacement, and resetting the system. Whether you’re a DIY enthusiast or a first-time mechanic, you’ll find clear, practical steps to get your dashboard back to normal.
Key Takeaways
- Diagnose the issue first: Use an OBD2 scanner to confirm if the check engine light is due to a faulty bulb or an actual engine problem.
- Access the instrument cluster: You’ll need to remove the dashboard trim and cluster bezel to reach the bulbs behind the gauge panel.
- Replace only the faulty bulb: The check engine light uses a small incandescent or LED bulb that can be swapped individually.
- Use proper tools: A trim removal tool, socket wrench, and OBD2 scanner are essential for a smooth process.
- Reset the system after replacement: Clear error codes and test the new bulb to ensure it functions correctly.
- Safety first: Disconnect the battery before starting to avoid electrical shorts or damage.
- Consider professional help: If you’re unsure about any step, consult a certified Subaru technician.
How to Replace Check Engine Light 2013 Subaru Outback
If you’re driving a 2013 Subaru Outback and notice that the check engine light on your dashboard isn’t lighting up—or worse, it’s stuck on when it shouldn’t be—you might be dealing with a burnt-out bulb or an underlying engine issue. While the check engine light is designed to alert you to potential problems with your vehicle’s engine or emissions system, sometimes the light itself fails. This guide will walk you through how to replace the check engine light on a 2013 Subaru Outback safely and effectively.
Replacing the check engine light isn’t just about swapping a bulb—it involves diagnosing the root cause, accessing the instrument cluster, and ensuring the new bulb works properly. Whether you’re a seasoned DIYer or tackling your first car repair, this step-by-step guide will help you get the job done with confidence.
By the end of this article, you’ll know how to:
– Determine if the issue is the bulb or an engine fault
– Safely access the dashboard components
– Remove and replace the faulty bulb
– Reset the system and verify the repair
Let’s get started.
Understanding the Check Engine Light

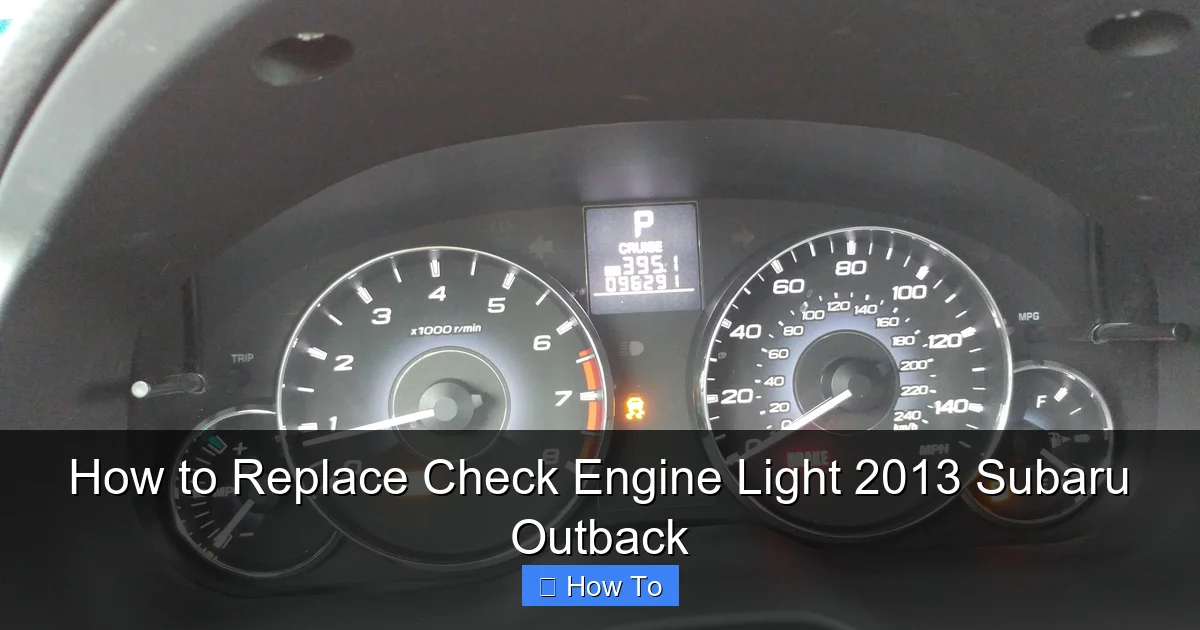

Visual guide about How to Replace Check Engine Light 2013 Subaru Outback
Image source: i.redd.it
Before jumping into the replacement process, it’s important to understand what the check engine light actually does. In your 2013 Subaru Outback, the check engine light (also known as the Malfunction Indicator Lamp or MIL) is part of the vehicle’s onboard diagnostics system (OBD2). When the engine control unit (ECU) detects a problem—such as a faulty oxygen sensor, loose gas cap, or misfiring cylinder—it triggers the light to illuminate on your dashboard.
However, the light itself is just a small bulb or LED behind the instrument cluster. Over time, this bulb can burn out, just like any other light in your car. If the bulb fails, the light won’t turn on even when there’s a real issue—meaning you could miss critical warnings.
That’s why it’s essential to first confirm whether the problem is the bulb or an actual engine fault. A burnt-out bulb won’t trigger any diagnostic trouble codes (DTCs), but an engine problem will. So, before replacing anything, you need to run a scan.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials to ensure a smooth and safe repair:
- OBD2 scanner (preferably one that can read and clear codes)
- Trim removal tool (plastic pry tool)
- Socket wrench set (typically 10mm socket)
- Screwdrivers (Phillips and flathead)
- Replacement bulb (Type 194 or 168 wedge base, or confirm with your owner’s manual)
- Electrical tape (optional, for securing connections)
- Gloves and safety glasses
- Clean cloth or microfiber towel
You can find most of these tools at your local auto parts store or online. The OBD2 scanner is especially important—it’s your best friend when diagnosing check engine light issues. A basic scanner costs around $20–$50 and can save you hundreds in diagnostic fees.
Step 1: Diagnose the Problem
The first and most crucial step is to determine whether the check engine light isn’t working because the bulb is dead or because there’s an actual engine issue.
Use an OBD2 Scanner
Plug your OBD2 scanner into the diagnostic port, which is usually located under the dashboard on the driver’s side, near the steering column. Turn the ignition to the “ON” position (but don’t start the engine) and follow the scanner’s instructions to read any stored trouble codes.
If the scanner shows no codes and the light still doesn’t come on during startup (most vehicles perform a bulb check when you turn the key), then the bulb is likely burnt out. However, if codes are present, you may have an engine problem that needs attention before replacing the bulb.
Perform a Visual Check
Turn the ignition to “ON” and observe the dashboard. All warning lights—including the check engine light—should briefly illuminate as part of the system check. If the check engine light doesn’t light up at all, even for a second, the bulb is probably dead.
Note: Some newer vehicles use LED bulbs that last much longer than traditional incandescent bulbs. If your Outback has LED indicators, the bulb may not be the issue—there could be a wiring or circuit problem.
Step 2: Disconnect the Battery
Safety is paramount when working with electrical components. Before you start removing any parts, disconnect the negative terminal of the battery to prevent accidental shorts or electrical damage.
Locate the Battery
Open the hood and locate the battery. The negative terminal is marked with a “-” symbol and usually has a black cable.
Remove the Negative Cable
Use a 10mm socket wrench to loosen the nut on the negative terminal. Once loose, carefully lift the cable off the terminal and tuck it aside so it doesn’t accidentally touch the battery post.
Wait at least 5 minutes to allow any residual electrical charge to dissipate before proceeding.
Step 3: Remove the Dashboard Trim
To access the instrument cluster and the bulbs behind it, you’ll need to remove the dashboard trim pieces. This process requires patience and care to avoid breaking clips or scratching surfaces.
Remove the Center Console Trim
Start by removing the trim panel that surrounds the climate controls and audio system. Use a plastic trim removal tool to gently pry around the edges. Work slowly and methodically—these clips can be fragile.
Once the clips are released, carefully pull the trim panel away from the dashboard. You may need to disconnect any electrical connectors for buttons or lights behind the panel. Label them if necessary to avoid confusion during reassembly.
Remove the Instrument Cluster Bezel
Next, locate the bezel that surrounds the instrument cluster (the panel with your speedometer, tachometer, and warning lights). This is usually held in place by a few screws or clips.
Use a Phillips screwdriver to remove any visible screws. Then, use the trim tool to gently pry the bezel away from the dashboard. Again, work slowly to avoid damaging the plastic.
Once the bezel is free, set it aside in a safe place.
Step 4: Access the Instrument Cluster
With the trim and bezel removed, you should now have access to the back of the instrument cluster.
Remove the Cluster Mounting Screws
Look for screws securing the instrument cluster to the dashboard. These are typically located at the top and bottom of the cluster. Use your socket wrench or screwdriver to remove them.
Keep the screws in a small container so you don’t lose them.
Gently Pull Out the Cluster
Once the screws are removed, carefully pull the instrument cluster toward you. Don’t yank it—there are electrical connectors on the back that need to be disconnected.
Disconnect the Electrical Connectors
On the back of the cluster, you’ll see several multi-pin connectors. Press the release tabs and gently pull each connector free. Take a photo or make a note of their positions to ensure correct reassembly.
Once all connectors are disconnected, you can remove the cluster and place it on a clean, flat surface (like a towel) to protect the face.
Step 5: Locate and Replace the Check Engine Light Bulb
Now that the cluster is out, you can access the bulbs behind the warning lights.
Identify the Check Engine Light Socket
Look for the small bulb sockets on the back of the cluster. Each warning light has its own socket. The check engine light is usually labeled or positioned near the center of the cluster.
The bulb is typically a small wedge-base type, such as a 194 or 168 bulb. These are common and inexpensive.
Remove the Old Bulb
Gently twist the socket counterclockwise to unlock it from the cluster. Pull the socket out, and then remove the bulb by pulling it straight out of the socket.
Inspect the bulb—if the filament is broken or the glass is blackened, it’s definitely burnt out.
Install the New Bulb
Insert the new bulb into the socket, making sure it’s seated properly. Then, reinsert the socket into the cluster and twist it clockwise to lock it in place.
Double-check that the bulb is secure and the socket is fully seated.
Step 6: Reassemble the Dashboard
Now that the new bulb is installed, it’s time to put everything back together.
Reconnect the Electrical Connectors
Carefully reconnect each electrical connector to the back of the instrument cluster. Make sure each one clicks into place.
Reinstall the Instrument Cluster
Slide the cluster back into position and secure it with the mounting screws. Tighten them snugly but don’t over-tighten, as this can crack the plastic.
Reattach the Bezel and Trim
Place the instrument cluster bezel back into position and secure it with screws or clips. Then, reattach the center console trim, pressing firmly to snap the clips back into place.
Reconnect any electrical connectors for buttons or lights on the trim panel.
Step 7: Reconnect the Battery and Test
With everything reassembled, it’s time to restore power and test your work.
Reconnect the Battery
Reattach the negative cable to the battery terminal and tighten the nut with your socket wrench.
Turn on the Ignition
Turn the key to the “ON” position (without starting the engine). Watch the dashboard—the check engine light should now illuminate briefly as part of the system check.
If it lights up, great! The bulb replacement was successful.
Start the Engine
Start the engine and observe the dashboard. The check engine light should turn off after a few seconds if there are no active issues.
If the light stays on, use your OBD2 scanner to check for trouble codes. There may be an underlying engine problem that needs repair.
Troubleshooting Common Issues
Even with careful work, you might run into a few hiccups. Here’s how to handle common problems:
Check Engine Light Still Doesn’t Come On
If the light still doesn’t illuminate during startup, double-check the bulb installation. Make sure the socket is fully seated and the bulb is the correct type. Also, verify that the electrical connectors are properly attached.
Light Comes On But Won’t Turn Off
If the check engine light stays on after starting the engine, use your OBD2 scanner to read the trouble codes. Common causes include a loose gas cap, faulty oxygen sensor, or catalytic converter issue. Address the root cause before assuming the bulb is the problem.
Blinking Check Engine Light
A blinking check engine light indicates a severe misfire that can damage the catalytic converter. Stop driving immediately and have the vehicle inspected by a professional.
Dashboard Lights Flicker or Don’t Work
This could indicate a loose connection or a blown fuse. Check the fuse box (usually under the dashboard or in the engine compartment) and replace any blown fuses. Also, recheck all electrical connections.
When to Seek Professional Help
While replacing the check engine light bulb is a manageable DIY task, there are times when it’s best to consult a professional:
– If you’re uncomfortable working with electrical systems
– If the OBD2 scanner shows multiple or complex trouble codes
– If the bulb replacement doesn’t resolve the issue
– If you suspect a wiring or circuit problem
Subaru dealerships and certified mechanics have specialized tools and training to diagnose and repair complex issues. Don’t hesitate to seek help if you’re unsure.
Final Thoughts
Replacing the check engine light on a 2013 Subaru Outback is a straightforward process if you take it step by step. By diagnosing the issue first, using the right tools, and following safety precautions, you can save time and money while keeping your vehicle in top condition.
Remember, the check engine light is your car’s way of communicating with you. Ensuring it works properly means you’ll never miss an important warning. With this guide, you’re now equipped to handle the replacement confidently—and get back on the road with peace of mind.
