Replacing the check engine light bulb in your Ford Ranger is a straightforward DIY task that saves time and money. This guide walks you through every step, from identifying the issue to testing the new bulb, using simple tools and clear instructions.
Key Takeaways
- Understand the difference between a warning light and a bulb issue: The check engine light is controlled by the vehicle’s computer, not a traditional bulb. If it’s not illuminating when the key is turned on, the issue may be electrical or sensor-related.
- Use the right tools for safe access: A trim removal tool, screwdriver, and flashlight are essential for safely removing dashboard panels without damage.
- Always disconnect the battery before starting: This prevents accidental shorts or electrical damage while working on the instrument cluster.
- Handle the instrument cluster with care: The cluster contains delicate circuits and connectors. Avoid touching pins or applying excessive force.
- Test the system after replacement: Turn the ignition on to verify the light illuminates during the startup sequence. If it doesn’t, recheck connections or consult a mechanic.
- Know when to seek professional help: If the light still doesn’t work after replacement, the issue may be a faulty sensor, wiring problem, or ECU malfunction.
- Keep your owner’s manual handy: It provides model-specific details about your Ford Ranger’s dashboard layout and electrical system.
How to Replace Check Engine Light Bulb Ford Ranger
If you’ve noticed that the check engine light on your Ford Ranger isn’t lighting up when you turn the key to the “on” position—even though the engine is off—you might be dealing with a burnt-out bulb or a deeper electrical issue. While the check engine light is typically controlled by the vehicle’s onboard computer and not a traditional incandescent bulb, some older Ford Ranger models (especially those from the 1990s to early 2000s) use small bulbs or LEDs behind the instrument cluster to illuminate warning lights. In newer models, the lights are usually integrated LEDs soldered onto the cluster board, which may require professional repair or replacement.
This guide will walk you through the process of diagnosing and replacing the check engine light bulb (or LED) in your Ford Ranger. Whether you’re driving a 1993 Ford Ranger or a 2011 model, the steps are similar, though access and bulb types may vary. We’ll cover everything from safety precautions to troubleshooting, so you can complete this job confidently and correctly.
By the end of this guide, you’ll know how to safely remove the instrument cluster, identify the correct bulb or LED, replace it, and test the system. You’ll also learn when it’s time to call in a professional. Let’s get started!
Understanding the Check Engine Light System

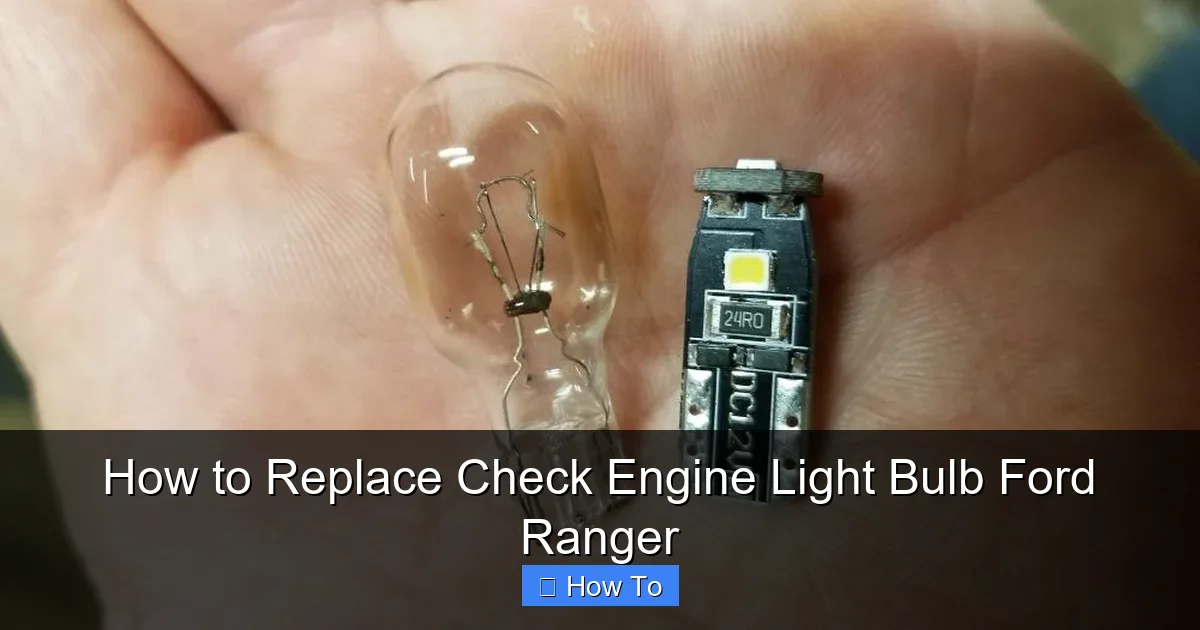

Visual guide about How to Replace Check Engine Light Bulb Ford Ranger
Image source: therangerstation.com
Before diving into the replacement process, it’s important to understand how the check engine light works in your Ford Ranger. Unlike interior dome lights or turn signal bulbs, the check engine light is part of the vehicle’s onboard diagnostics system (OBD-II in models from 1996 onward). When you turn the ignition key to the “on” position (without starting the engine), all warning lights—including the check engine light—should briefly illuminate as part of a self-test. This confirms that the bulb and circuit are functioning.
If the check engine light doesn’t come on during this startup sequence, it could mean:
– The bulb or LED has burned out.
– There’s a loose or corroded connection.
– The instrument cluster has a fault.
– The vehicle’s computer isn’t sending the signal (rare, but possible).
In older Ford Rangers (1993–2001), the instrument cluster uses small wedge-base bulbs (like the #74 or #194 type) to illuminate warning lights. These can be replaced individually. In newer models (2002–2011), the lights are often surface-mounted LEDs on a circuit board, which are more difficult to replace and may require soldering or cluster replacement.
Knowing your model year and cluster type will help you choose the right approach. If you’re unsure, consult your owner’s manual or look up your vehicle’s specifications online.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials to ensure a smooth and safe repair:
- Trim removal tool (plastic pry tool) – Prevents damage to dashboard panels
- Phillips and flathead screwdrivers – For removing screws
- Socket wrench set (usually 7mm or 8mm sockets) – For cluster bolts
- Flashlight or work light – For better visibility
- Needle-nose pliers – For handling small bulbs or connectors
- Replacement bulb or LED – Match the type used in your cluster (e.g., #74, #194, or specific LED)
- Electrical contact cleaner (optional) – To clean connectors
- Microfiber cloth – For cleaning the cluster lens
- Safety gloves and glasses – For protection
You can find replacement bulbs at auto parts stores, online retailers like Amazon or RockAuto, or even salvage yards. Be sure to confirm the correct part number for your Ford Ranger’s year and model.
Step 1: Prepare Your Workspace and Vehicle
Safety and preparation are key to a successful repair. Follow these steps to set up your workspace:
Park on a Level Surface
Park your Ford Ranger on a flat, level surface and engage the parking brake. This prevents the vehicle from rolling while you work.
Disconnect the Battery
To avoid electrical shocks or short circuits, disconnect the negative terminal of the battery. Use a wrench to loosen the clamp and carefully remove the cable. Tuck it away from the battery terminal so it doesn’t accidentally reconnect.
Clear the Dashboard Area
Remove any items from the dashboard, such as garage door openers, sunglasses, or phone mounts. This gives you more room to work and reduces the risk of dropping tools or parts.
Gather Your Tools
Place all your tools within reach. Having everything ready minimizes the need to leave your workspace, which can lead to lost parts or forgotten steps.
Step 2: Remove the Instrument Cluster Bezel
The instrument cluster bezel is the plastic trim piece that surrounds the gauges and warning lights. It must be removed to access the cluster itself.
Locate the Screws or Clips
In most Ford Rangers, the bezel is held in place by screws at the top and bottom, or by plastic clips. Check around the edges of the bezel for visible screws. On some models, screws are hidden under small plastic covers—use a flathead screwdriver to gently pry them off.
Use a Trim Removal Tool
Insert the plastic trim removal tool between the bezel and the dashboard. Gently pry around the edges to release the clips. Work slowly and evenly to avoid breaking the clips or cracking the plastic.
Lift the Bezel Away
Once all clips are released, carefully lift the bezel away from the dashboard. You may need to wiggle it slightly to free it from the steering column or surrounding trim. Set it aside in a safe place.
Step 3: Remove the Instrument Cluster
With the bezel removed, you can now access the instrument cluster.
Locate the Mounting Screws
Look for screws securing the cluster to the dashboard. These are typically located at the top and bottom of the cluster. Use a Phillips screwdriver or socket wrench to remove them.
Disconnect the Electrical Connectors
Behind the cluster, you’ll see one or more electrical connectors. These supply power and data to the gauges and lights. Press the release tab on each connector and gently pull them apart. Do not yank on the wires—only pull on the connector housing.
Carefully Pull Out the Cluster
Once the screws and connectors are removed, gently pull the cluster toward you. It may stick slightly due to rubber gaskets or tight fit. Support the cluster with both hands to avoid dropping it.
Place the Cluster on a Soft Surface
Lay the cluster face-down on a clean, soft cloth or towel to protect the lens and internal components.
Step 4: Access the Check Engine Light Bulb
Now that the cluster is out, you can access the back where the bulbs or LEDs are located.
Inspect the Back of the Cluster
Look for small bulbs or LED modules. In older models, you’ll see twist-lock bulb sockets. In newer models, you may see small surface-mounted LEDs on a circuit board.
Identify the Check Engine Light
The check engine light is usually labeled or positioned near the center of the cluster. Compare it to other warning lights (like oil pressure or battery) to confirm.
Remove the Old Bulb or LED
- For twist-lock bulbs: Gently twist the socket counterclockwise and pull it out. Then, remove the bulb by pulling it straight out of the socket.
- For press-fit bulbs: Use needle-nose pliers to gently wiggle and pull the bulb out.
- For surface-mounted LEDs: These are soldered in place. Unless you have soldering experience, it’s best to replace the entire cluster or seek professional help.
If you’re replacing a bulb, note its type (e.g., #74) so you can buy the correct replacement.
Step 5: Install the New Bulb or LED
Once the old bulb is removed, it’s time to install the new one.
Insert the New Bulb
Place the new bulb into the socket, making sure it’s seated properly. For twist-lock sockets, insert the bulb and twist the socket clockwise to lock it in place.
Check for Proper Fit
Ensure the bulb is secure and not loose. A loose bulb can cause flickering or failure to illuminate.
Clean the Lens (Optional)
While the cluster is out, use a microfiber cloth to gently clean the inside of the lens. Remove any dust or fingerprints that could affect visibility.
Step 6: Reinstall the Instrument Cluster
With the new bulb installed, it’s time to put everything back together.
Reconnect the Electrical Connectors
Align the connectors and push them firmly into place until they click. Double-check that each one is fully seated.
Position the Cluster
Carefully slide the cluster back into the dashboard opening. Make sure it sits flush and aligns with the screw holes.
Secure with Screws
Reinstall the mounting screws and tighten them securely—but don’t over-tighten, as this can crack the plastic.
Reattach the Bezel
Align the bezel with the dashboard and press it into place. Use the trim tool to snap the clips back in. Replace any hidden screws or covers.
Step 7: Reconnect the Battery and Test
Now that everything is reassembled, it’s time to test your work.
Reconnect the Battery
Reattach the negative battery cable and tighten the clamp. Make sure it’s secure.
Turn the Ignition to “On”
Without starting the engine, turn the key to the “on” position. Watch the instrument panel—all warning lights, including the check engine light, should illuminate for a few seconds.
Check for Proper Function
If the check engine light comes on during the startup sequence, the replacement was successful. If it doesn’t, recheck the bulb installation, connections, and battery.
Start the Engine
Start the engine and observe the lights. The check engine light should turn off after a few seconds if no issues are detected. If it stays on, there may be an actual engine problem—use an OBD-II scanner to check for trouble codes.
Troubleshooting Common Issues
Even with careful work, you might encounter problems. Here’s how to troubleshoot:
Check Engine Light Still Doesn’t Come On
– Recheck the bulb installation.
– Ensure the socket is making good contact.
– Test the new bulb in another socket (if possible).
– Inspect the fuse for the instrument cluster (usually in the fuse box under the dash or hood).
Other Lights Are Out
If multiple lights are out, the issue may be a blown fuse or faulty cluster. Check the fuse box and replace any blown fuses.
Blinking or Flickering Light
This usually indicates a loose connection or poor contact in the socket. Re-seat the bulb and connector.
Light Comes On But Engine Runs Fine
If the light stays on after startup, use an OBD-II scanner to read trouble codes. The bulb replacement didn’t cause this—it’s likely an engine issue.
When to Call a Professional
While replacing a check engine light bulb is a DIY-friendly task, some situations call for professional help:
- Your Ford Ranger has surface-mounted LEDs that require soldering.
- The instrument cluster is cracked or damaged.
- Multiple lights are out, suggesting a deeper electrical issue.
- You’re uncomfortable working with electrical systems.
- The light still doesn’t work after replacement and troubleshooting.
A certified mechanic or auto electrician can diagnose and repair complex issues safely and efficiently.
Final Tips for Success
– Always work in a well-lit area.
– Take photos during disassembly to help with reassembly.
– Label connectors if you’re removing multiple ones.
– Use only the recommended bulb type—using the wrong bulb can cause electrical issues.
– Keep your owner’s manual nearby for reference.
Conclusion
Replacing the check engine light bulb in your Ford Ranger is a manageable task that can save you a trip to the mechanic and a hefty repair bill. By following this step-by-step guide, you’ve learned how to safely remove the instrument cluster, replace the bulb, and test the system. Remember, the key to success is patience, the right tools, and attention to detail.
While the check engine light is primarily a diagnostic tool controlled by your vehicle’s computer, ensuring it illuminates properly during startup is essential for confirming system readiness. If your light now works as it should, you’ve not only fixed a small issue but also gained valuable DIY experience.
If you encounter problems beyond a simple bulb replacement, don’t hesitate to seek professional assistance. Your safety and your vehicle’s performance are worth the investment.
With this guide, you’re equipped to handle not just the check engine light, but other dashboard repairs with confidence. Happy wrenching!
