Discover how to reset the engine light on your 1994 Mercedes E320 using simple, proven methods. This guide walks you through manual reset techniques, diagnostic checks, and when to seek professional help—ensuring your classic Mercedes runs smoothly again.
Key Takeaways
- Understand the cause first: Always diagnose the underlying issue before resetting the engine light to avoid recurring problems.
- Use the diagnostic connector: The 1994 E320 uses a proprietary OBD-I system accessed via the ALDL port under the hood.
- Manual reset with a jumper wire: A simple paperclip or wire can trigger the reset process when used correctly.
- Battery disconnection method: Temporarily disconnecting the battery can clear codes, but may reset other systems like radio presets.
- Check for persistent codes: If the light returns, the problem hasn’t been fixed—further diagnosis is needed.
- Use a compatible scan tool: Some OBD-I readers work with older Mercedes models for more accurate code reading and clearing.
- Prevent future issues: Regular maintenance and timely repairs reduce the chances of engine light activation.
How to Reset a 1994 Mercedes E320 Engine Light
If you own a 1994 Mercedes E320, you know it’s a classic luxury sedan built with precision engineering and timeless design. But like any vehicle from the 90s, it’s not immune to occasional warning lights—especially the dreaded check engine light. When that amber glow appears on your dashboard, it can be stressful, confusing, or even alarming. The good news? Resetting the engine light on your 1994 E320 is often simpler than you think—especially if you understand the older OBD-I (On-Board Diagnostics I) system it uses.
In this comprehensive guide, you’ll learn exactly how to reset the engine light on your 1994 Mercedes E320. We’ll walk you through the tools you need, the step-by-step process, troubleshooting tips, and important safety precautions. Whether you’re a DIY enthusiast or just want to save a trip to the mechanic, this guide will empower you to take control of your car’s diagnostics.
We’ll cover both manual reset methods—like using a jumper wire—and alternative approaches such as battery disconnection. You’ll also learn how to interpret diagnostic trouble codes (DTCs), why the light might come back on, and when it’s time to consult a professional. By the end, you’ll have the confidence and knowledge to handle this common issue like a pro.
Why the Engine Light Comes On

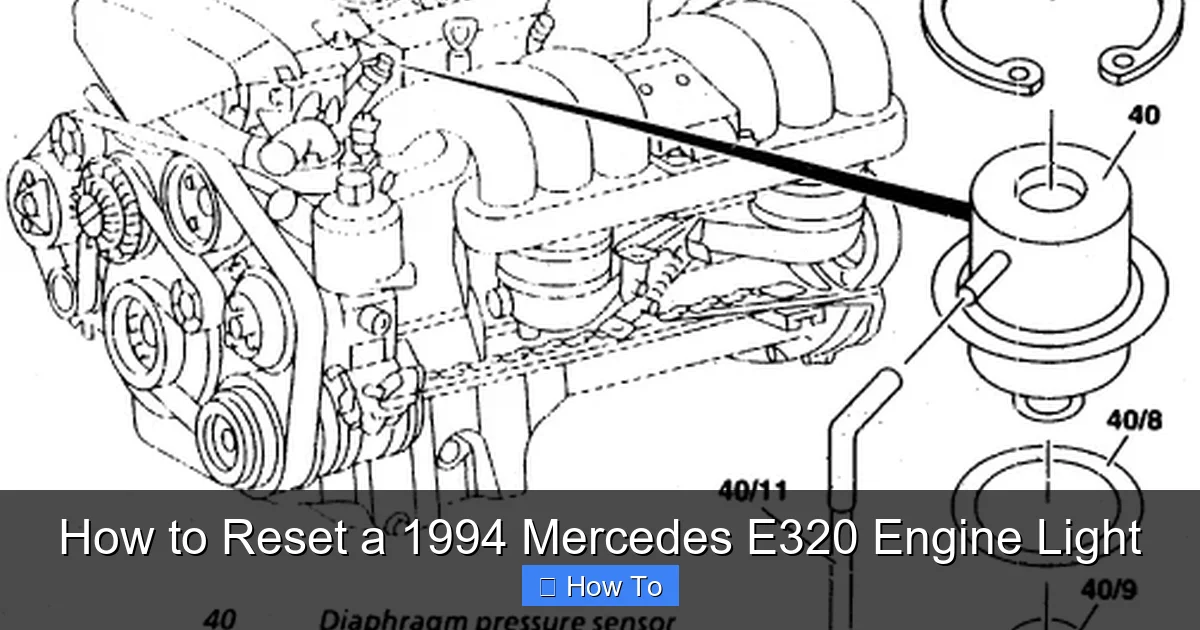

Visual guide about How to Reset a 1994 Mercedes E320 Engine Light
Image source: justanswer.com
Before you reset the engine light, it’s crucial to understand why it turned on in the first place. The check engine light—also known as the malfunction indicator lamp (MIL)—is part of your car’s onboard diagnostic system. When the engine control unit (ECU) detects a problem with the engine, emissions, or related systems, it stores a diagnostic trouble code (DTC) and illuminates the light.
In the 1994 Mercedes E320, the system is OBD-I, which predates the standardized OBD-II systems used in most cars made after 1996. OBD-I systems are manufacturer-specific, meaning the diagnostic process and connectors vary by brand. For Mercedes-Benz, this means using a proprietary ALDL (Assembly Line Diagnostic Link) port and specific procedures to read and clear codes.
Common reasons the engine light might come on include:
– A loose or faulty gas cap
– Oxygen sensor malfunction
– Mass airflow (MAF) sensor issues
– Spark plug or ignition coil problems
– Exhaust gas recirculation (EGR) valve failure
– Catalytic converter inefficiency
– Vacuum leaks
Ignoring the light can lead to reduced fuel efficiency, increased emissions, or even engine damage over time. So while resetting the light is helpful, it’s not a fix—it’s a reset. You must address the root cause to prevent the light from returning.
Tools You’ll Need
Resetting the engine light on a 1994 Mercedes E320 doesn’t require expensive equipment—just a few basic tools. Here’s what you should have on hand:
- Jumper wire or paperclip: A simple piece of insulated wire with stripped ends or a straightened paperclip works perfectly.
- Safety gloves and glasses: Always protect yourself when working near the engine.
- Flashlight: The diagnostic port is under the hood and may be hard to see.
- Owner’s manual: Helpful for locating components and understanding warnings.
- Multimeter (optional): Useful for checking battery voltage or sensor resistance.
- OBD-I scan tool (optional): Some third-party tools are compatible with older Mercedes models for advanced diagnostics.
Most of these items are inexpensive and likely already in your garage. The jumper wire method is the most common and reliable for manual resets, so we’ll focus on that.
Locating the Diagnostic Port
The first step in resetting the engine light is finding the diagnostic connector. On the 1994 Mercedes E320, this is the ALDL port, and it’s located under the hood—not under the dashboard like in newer cars.
Step 1: Open the Hood
Pop the hood and secure it with the prop rod. Make sure the engine is off and cool to avoid burns or electrical issues.
Step 2: Find the ALDL Port
Look for a rectangular connector near the driver’s side of the engine bay, close to the firewall. It’s usually black or gray and has 31 pins arranged in two rows. This is the ALDL (Assembly Line Diagnostic Link) port—your gateway to the ECU.
It may be tucked behind a plastic cover or near the brake fluid reservoir. If you’re having trouble finding it, consult your owner’s manual or look for a label that says “DIAGNOSTIC” or “ALDL.”
Step 3: Identify the Correct Pins
Not all pins are used for resetting. For the engine light reset, you’ll need to access two specific pins:
– Pin 1: Ground (usually black wire)
– Pin 2: Diagnostic trigger (usually white or yellow wire)
These pins are typically on the top row of the connector. Refer to a Mercedes E320 wiring diagram if you’re unsure—many are available online for free.
Method 1: Manual Reset Using a Jumper Wire
This is the most effective and widely used method for resetting the engine light on a 1994 E320. It forces the ECU to clear stored trouble codes by simulating a diagnostic command.
Step 1: Prepare the Jumper Wire
Straighten a paperclip or use a short piece of insulated wire. Strip about 1/4 inch of insulation from both ends to expose the metal.
Step 2: Insert the Jumper Wire
Carefully insert one end of the jumper wire into Pin 1 (ground) and the other end into Pin 2 (diagnostic trigger) on the ALDL connector. Make sure the wires don’t touch each other or any metal parts to avoid short circuits.
Step 3: Turn the Ignition On
With the jumper wire in place, turn the ignition key to the “ON” position—but do not start the engine. You should see the dashboard lights illuminate, including the check engine light.
Step 4: Wait for the Light to Flash
The check engine light will begin to flash in a specific pattern. This indicates that the ECU is communicating and reading stored codes. The pattern corresponds to the trouble code (e.g., two long flashes followed by three short flashes = Code 23).
If the light doesn’t flash, double-check your jumper wire connections. Ensure the pins are correctly identified and the wire is making solid contact.
Step 5: Clear the Codes
After the light finishes flashing, leave the ignition on for about 10–15 seconds. Then, turn the ignition off and remove the jumper wire.
Step 6: Start the Engine
Start the car and observe the dashboard. If the reset was successful, the check engine light should remain off. If it comes back on immediately, the underlying issue hasn’t been resolved.
Method 2: Battery Disconnection Reset
If you don’t have a jumper wire or prefer a simpler method, disconnecting the battery can also reset the engine light—though it’s less precise and may affect other systems.
Step 1: Turn Off the Engine
Make sure the car is off and the key is removed from the ignition.
Step 2: Disconnect the Negative Terminal
Use a wrench to loosen the nut on the negative (black) battery terminal. Carefully remove the cable and tuck it away from the battery to prevent accidental contact.
Step 3: Wait 10–15 Minutes
Leave the battery disconnected for at least 10–15 minutes. This allows the ECU to fully discharge and reset its memory.
Step 4: Reconnect the Battery
Reattach the negative terminal and tighten the nut securely. Make sure the connection is clean and tight.
Step 5: Start the Car
Turn the ignition on and start the engine. The check engine light should be off—at least temporarily.
Important Notes on Battery Reset
While this method works, it has drawbacks:
– It resets all electronic systems, including radio presets, clock, and sometimes the climate control settings.
– It may not clear all trouble codes, especially if the issue persists.
– Some Mercedes models require a “relearn” procedure for the idle speed after battery disconnection.
Use this method only if the jumper wire approach isn’t feasible.
Reading and Interpreting Trouble Codes
Resetting the light is only half the battle. To prevent it from returning, you need to know what caused it in the first place. The flashing pattern during the jumper wire method gives you the trouble code.
How to Read the Flashes
The check engine light will flash in sequences that represent numbers. For example:
– One long flash = 10
– One short flash = 1
– A pause separates digits
So, one long flash followed by three short flashes = Code 13.
Common OBD-I codes for the 1994 E320 include:
– Code 12: No RPM signal (crankshaft position sensor issue)
– Code 13: Oxygen sensor circuit malfunction
– Code 21: Throttle position sensor problem
– Code 23: Mass airflow sensor fault
– Code 34: EGR valve malfunction
Refer to a Mercedes E320 OBD-I code chart for a full list. Many are available online or in repair manuals.
What to Do After Reading the Code
Once you’ve identified the code, research the likely cause. For example, Code 13 often points to a faulty oxygen sensor. Replacing it may resolve the issue and prevent the light from returning.
If you’re unsure, consult a repair manual or take the car to a trusted mechanic. Some issues—like catalytic converter failure—can be expensive and complex.
Troubleshooting Common Issues
Even after resetting the light, you might run into problems. Here’s how to handle common scenarios:
The Light Comes Back On Immediately
If the check engine light returns right after startup, the problem hasn’t been fixed. The ECU is detecting the same fault. Re-read the trouble code and address the root cause.
No Flashing Pattern During Reset
If the light doesn’t flash when using the jumper wire, check:
– Are you using the correct pins?
– Is the jumper wire making good contact?
– Is the ignition in the “ON” position?
– Is the battery fully charged?
A weak battery can prevent the ECU from communicating properly.
Battery Reset Didn’t Work
Disconnecting the battery doesn’t always clear OBD-I codes. Some systems retain memory even when power is lost. In this case, the jumper wire method is more reliable.
Radio or Clock Reset After Battery Disconnect
This is normal. Re-enter your radio presets and reset the clock. Some models may require a security code to unlock the radio—check your owner’s manual.
Check Engine Light Flashes While Driving
A flashing light while driving indicates a severe misfire that can damage the catalytic converter. Pull over safely and have the car towed to a repair shop.
When to See a Mechanic
While many engine light issues can be resolved at home, some problems require professional attention. Seek a mechanic if:
– The light returns repeatedly after reset
– You’re unable to read or interpret the trouble code
– The car is running rough, stalling, or losing power
– You suspect a major component failure (e.g., catalytic converter, fuel pump)
– You’re uncomfortable working with electrical systems
A certified Mercedes technician has specialized tools and knowledge to diagnose and repair complex issues. They can also perform a full system scan and verify that repairs were successful.
Preventing Future Engine Light Issues
The best way to avoid engine light problems is through regular maintenance. Here are some tips:
- Replace spark plugs and wires every 30,000–50,000 miles.
- Inspect and clean the mass airflow sensor regularly.
- Use high-quality fuel and change the fuel filter as recommended.
- Check the gas cap for cracks or looseness—it’s a common cause of false alarms.
- Monitor engine performance and address unusual sounds or smells promptly.
Keeping up with scheduled service—like oil changes, air filter replacements, and emissions checks—can prevent many issues before they trigger the engine light.
Conclusion
Resetting the engine light on your 1994 Mercedes E320 is a straightforward process once you understand the OBD-I system and the correct procedures. Whether you use the jumper wire method or disconnect the battery, you now have the tools and knowledge to handle this common issue with confidence.
Remember: resetting the light is not a repair. Always diagnose the underlying problem to prevent it from recurring. Use the flashing code patterns to identify faults, and don’t hesitate to seek professional help when needed.
With regular maintenance and a proactive approach to car care, your classic E320 can continue to deliver the smooth, luxurious driving experience Mercedes is known for. Keep this guide handy, and you’ll never be left in the dark when that check engine light comes on again.
