This guide walks you through how to reset the check engine light on a 2005 Toyota Prius using an OBD2 scanner or the manual method. You’ll also learn why the light comes on and how to prevent future issues.
Key Takeaways
- Understand the cause: The check engine light can signal minor issues like a loose gas cap or serious engine problems—diagnose first before resetting.
- Use an OBD2 scanner: This is the safest and most reliable way to read codes and reset the light on a 2005 Prius.
- Manual reset method works: If you don’t have a scanner, you can reset the light by disconnecting the 12V battery for 10–15 minutes.
- Clear codes after repairs: Only reset the light after fixing the underlying issue to avoid it coming back on.
- Hybrid system awareness: The 2005 Prius has a complex hybrid system—avoid tampering with high-voltage components.
- Monitor after reset: Drive the car for a few days to ensure the light doesn’t return, indicating a persistent problem.
- Regular maintenance helps: Keep up with oil changes, air filters, and spark plugs to reduce check engine light triggers.
Introduction: Why Your 2005 Toyota Prius Check Engine Light Is On
If you own a 2005 Toyota Prius, you know it’s a reliable, fuel-efficient hybrid that’s built to last. But like any vehicle, it can develop issues over time—and one of the most common signs something might be wrong is the dreaded check engine light. That little yellow or orange icon on your dashboard can cause instant anxiety, but don’t panic. In many cases, it’s a simple fix.
This guide will show you exactly how to reset the check engine light on a 2005 Toyota Prius, whether you’re using a diagnostic tool or going the manual route. More importantly, we’ll help you understand what might have triggered the light in the first place, so you can address the root cause and avoid future problems.
By the end of this guide, you’ll know how to safely reset the light, interpret diagnostic codes, and keep your Prius running smoothly for years to come.
What Does the Check Engine Light Mean?

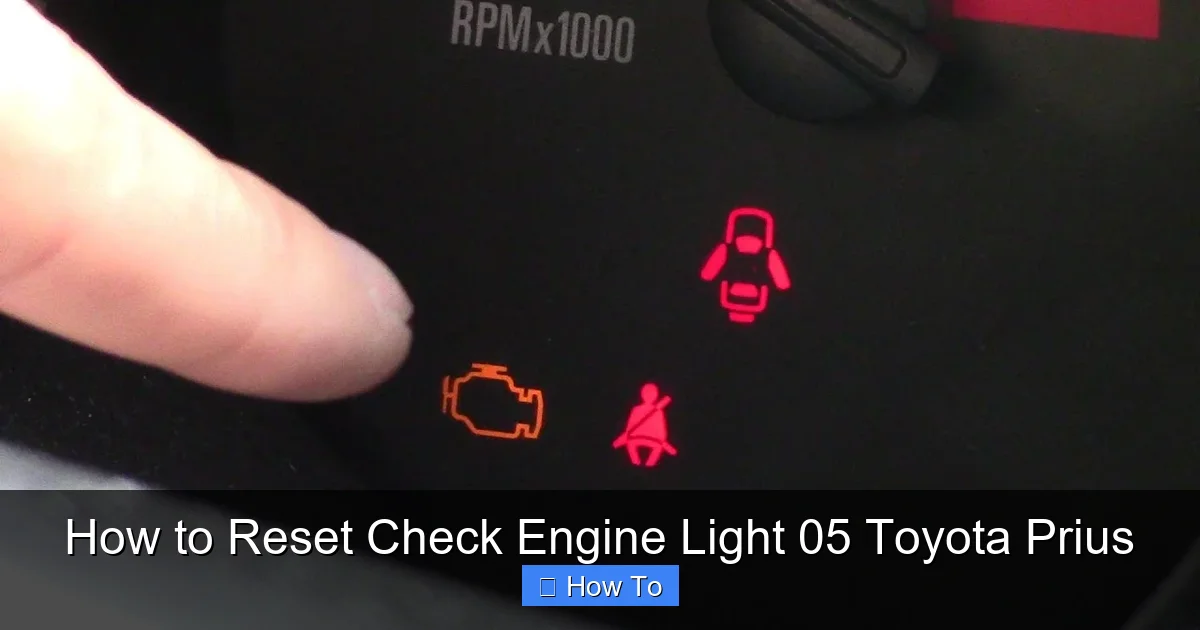

Visual guide about How to Reset Check Engine Light 05 Toyota Prius
Image source: i.ytimg.com
Before you reset the light, it’s important to understand what it’s trying to tell you. The check engine light—also known as the malfunction indicator lamp (MIL)—is part of your car’s onboard diagnostics system (OBD2). When it comes on, it means the computer has detected a problem with the engine, emissions system, or related components.
In a 2005 Toyota Prius, the light can be triggered by a wide range of issues, from minor to serious. Common causes include:
- A loose or faulty gas cap
- A failing oxygen (O2) sensor
- A clogged air filter
- Spark plug or ignition coil problems
- Evaporative emissions system leaks
- Catalytic converter issues
- Hybrid battery or inverter problems (less common but possible)
The key is not to ignore the light. Even if your car seems to be running fine, an unresolved issue could lead to reduced fuel efficiency, increased emissions, or even engine damage over time.
Step 1: Diagnose the Problem Before Resetting
Never reset the check engine light without first diagnosing the issue. Resetting it without fixing the problem is like turning off a fire alarm while the house is still on fire—it doesn’t solve anything.
Here’s how to find out what’s causing the light:
Use an OBD2 Scanner
An OBD2 (On-Board Diagnostics, Generation 2) scanner is a small handheld device that plugs into your car’s diagnostic port. It reads trouble codes stored in the car’s computer and tells you exactly what’s wrong.
For the 2005 Toyota Prius, you’ll need a scanner that’s compatible with OBD2 systems. Most modern scanners work with all OBD2 vehicles, including hybrids.
Steps to use an OBD2 scanner:
- Turn off the ignition and locate the OBD2 port. In the 2005 Prius, it’s usually under the dashboard on the driver’s side, near the steering column.
- Plug the scanner into the port.
- Turn the ignition to the “ON” position (but don’t start the engine).
- Follow the scanner’s instructions to read the trouble codes. The device will display a code like “P0420” or “P0171.”
- Write down the code(s) and look them up online or in the scanner’s manual to understand what they mean.
For example:
- P0420 = Catalyst system efficiency below threshold (usually a catalytic converter issue)
- P0171 = System too lean (could be a vacuum leak or faulty O2 sensor)
- P0455 = Large evaporative emissions leak (often a loose gas cap)
Visit a Mechanic or Auto Parts Store
If you don’t own an OBD2 scanner, don’t worry. Most auto parts stores (like AutoZone, O’Reilly, or Advance Auto Parts) offer free code reading services. Just drive in, and they’ll plug in their scanner and tell you what the code means.
This is a great option if you’re not comfortable diagnosing the issue yourself. However, keep in mind that they may not explain the full implications of the code or recommend repairs—so you might still need to do some research.
Step 2: Fix the Underlying Issue
Once you know what’s causing the check engine light, it’s time to fix it. Here are some common fixes for the 2005 Prius:
Tighten or Replace the Gas Cap
A loose or damaged gas cap is one of the most common reasons for the check engine light to come on. It can cause a small leak in the evaporative emissions system, triggering a code like P0455.
How to fix it:
- Turn off the car and open the fuel door.
- Remove the gas cap and check for cracks, wear, or a damaged seal.
- Tighten it firmly until you hear it click 3–4 times.
- If it’s damaged, replace it with a new OEM or high-quality aftermarket cap.
After tightening or replacing the cap, drive the car for a few days. The light may turn off on its own if the issue was minor.
Replace the Oxygen Sensor
The 2005 Prius has multiple oxygen sensors that monitor exhaust gases. A faulty O2 sensor can reduce fuel efficiency and increase emissions.
How to replace it:
- Locate the sensor (usually in the exhaust manifold or downpipe).
- Use an O2 sensor socket and wrench to remove the old sensor.
- Install the new sensor and reconnect the electrical connector.
- Clear the code and test drive the car.
This job may require some mechanical skill. If you’re not comfortable doing it yourself, take it to a mechanic.
Replace the Air Filter
A dirty air filter can restrict airflow to the engine, causing a lean fuel mixture and triggering a P0171 code.
How to replace it:
- Open the hood and locate the air filter box (usually on the driver’s side).
- Unclip the box and remove the old filter.
- Insert a new filter and close the box securely.
This is a quick and inexpensive fix that can improve performance and fuel economy.
Address Spark Plug or Ignition Coil Issues
Worn spark plugs or faulty ignition coils can cause misfires, leading to codes like P0300 (random misfire) or P0301–P0304 (cylinder-specific misfires).
How to fix it:
- Remove the ignition coils (located on top of the engine).
- Use a spark plug socket to remove and inspect the plugs.
- Replace any worn or damaged plugs.
- Test the ignition coils with a multimeter or replace them if suspected faulty.
Again, this is a job best left to a professional if you’re not experienced.
Step 3: Reset the Check Engine Light
Once you’ve fixed the problem, it’s time to reset the check engine light. There are two main methods: using an OBD2 scanner or disconnecting the battery.
Method 1: Use an OBD2 Scanner (Recommended)
This is the safest and most reliable way to reset the light.
Steps:
- Plug the OBD2 scanner into the diagnostic port.
- Turn the ignition to the “ON” position.
- Navigate the scanner menu to find the “Clear Codes” or “Reset MIL” option.
- Confirm the reset. The scanner will erase the stored trouble codes and turn off the check engine light.
- Turn off the ignition and unplug the scanner.
After resetting, start the car and verify that the light is off. If it comes back on immediately, the problem may not be fully resolved.
Method 2: Disconnect the 12V Battery (Manual Reset)
If you don’t have a scanner, you can reset the light by disconnecting the 12V auxiliary battery. This method works because it resets the car’s computer (ECU), clearing stored codes.
Important: This method only works for the 12V battery, not the high-voltage hybrid battery. Never disconnect the hybrid battery unless you’re a trained technician.
Steps:
- Turn off the ignition and remove the key.
- Open the trunk and locate the 12V battery (it’s in a black box on the right side of the trunk).
- Use a 10mm wrench to loosen the negative (-) terminal clamp.
- Disconnect the negative cable and wait 10–15 minutes. This allows the ECU to fully reset.
- Reconnect the negative cable and tighten it securely.
- Close the trunk and start the car.
The check engine light should be off. However, note that this method may also reset other systems, such as the radio presets, clock, and adaptive transmission settings. You may need to re-enter your radio code if your Prius has one.
Step 4: Test Drive and Monitor
After resetting the light, take your Prius for a test drive. Drive normally for at least 20–30 minutes, including city and highway speeds. This allows the car’s computer to run its self-diagnostic tests.
If the check engine light stays off, congratulations—you’ve successfully resolved the issue!
If the light comes back on, it means the problem wasn’t fully fixed, or there’s another issue. In that case:
- Re-scan for new or recurring codes.
- Double-check your repair work.
- Consult a mechanic if needed.
Troubleshooting Common Issues
Even after following these steps, you might run into problems. Here’s how to handle them:
The Light Won’t Turn Off
If the check engine light remains on after resetting, the issue likely wasn’t resolved. Possible causes:
- The repair wasn’t completed correctly.
- There’s a secondary problem you haven’t diagnosed.
- The ECU hasn’t completed its drive cycle yet (some codes require multiple drive cycles to clear).
Try driving the car for a few more days. If the light persists, re-scan for codes and investigate further.
The Light Comes Back On Immediately
This usually means the problem is still present. For example:
- A new gas cap may not be sealing properly.
- An O2 sensor may be failing intermittently.
- There could be a wiring issue or short circuit.
Don’t ignore this. Persistent codes often indicate a serious issue that needs professional attention.
You Can’t Find the OBD2 Port
In the 2005 Prius, the OBD2 port is typically under the dashboard on the driver’s side, near the steering column. It’s a 16-pin connector, usually black or gray. If you can’t find it, check behind small panels or consult your owner’s manual.
You’re Worried About the Hybrid System
The 2005 Prius has a high-voltage hybrid battery and inverter system. While the check engine light usually relates to the gasoline engine or emissions, it’s natural to worry about the hybrid components.
Important: Never attempt to service the high-voltage system yourself. If you suspect a hybrid battery or inverter issue (e.g., reduced electric mode, warning lights on the dashboard), take your car to a certified Toyota hybrid technician.
Preventing Future Check Engine Light Issues
The best way to avoid check engine light problems is through regular maintenance. Here are some tips:
- Check the gas cap regularly: Make sure it’s tight after every fill-up.
- Replace the air filter every 15,000–30,000 miles: A clean filter improves performance and reduces strain on the engine.
- Use high-quality fuel: Top-tier gasoline with detergent additives helps keep fuel injectors clean.
- Follow the maintenance schedule: Refer to your owner’s manual for oil changes, spark plug replacements, and other services.
- Listen for unusual sounds: Rattling, knocking, or rough idling can be early signs of engine trouble.
- Monitor fuel economy: A sudden drop in MPG could indicate an emissions or engine issue.
By staying proactive, you can keep your 2005 Prius running efficiently and avoid unexpected check engine light surprises.
Conclusion: Take Control of Your Prius’s Health
Resetting the check engine light on a 2005 Toyota Prius doesn’t have to be intimidating. With the right tools and knowledge, you can diagnose the problem, fix it, and clear the light safely and effectively.
Remember: always diagnose before you reset. The light is there for a reason, and ignoring it could lead to bigger, more expensive problems down the road.
Whether you use an OBD2 scanner or the manual battery method, the key is to address the root cause and verify the fix with a test drive. And with regular maintenance, you can keep your Prius in top shape for years to come.
So the next time that little light flickers on, don’t panic—grab your scanner, follow this guide, and take control of your car’s health.
