Resetting the check engine light on a 1995 Toyota 22RE is a straightforward process that doesn’t require special tools. This guide walks you through the correct method to clear the light, verify repairs, and ensure your truck runs smoothly.
Key Takeaways
- Understand the cause first: Always diagnose the underlying issue before resetting the check engine light to avoid recurring problems.
- Use the OBD-I system correctly: The 1995 Toyota 22RE uses an older OBD-I system, so standard OBD-II scanners won’t work.
- Manual reset method is reliable: You can reset the light by disconnecting the battery or using the diagnostic port jumper method.
- Check for stored trouble codes: Retrieve trouble codes manually using the diagnostic connector before resetting to confirm repairs.
- Test drive after reset: Always take your vehicle for a short drive to ensure the light stays off and the engine runs properly.
- Prevent future issues: Regular maintenance helps avoid triggering the check engine light repeatedly.
- Seek professional help if needed: If the light returns frequently, consult a mechanic to rule out serious engine problems.
How to Reset Check Engine Light 1995 Toyota 22RE
If you’re driving a classic 1995 Toyota 22RE pickup or 4Runner, you know these trucks are built to last. But even the most reliable engines can trigger the dreaded check engine light. Whether you’ve just fixed a faulty oxygen sensor, replaced a vacuum hose, or simply want to clear a past error code, knowing how to reset the check engine light on your 1995 Toyota 22RE is essential.
This comprehensive guide will walk you through everything you need to know—from understanding why the light comes on, to safely resetting it using proven methods. You’ll learn how to read trouble codes manually, perform a proper reset, and ensure your truck continues running smoothly. No fancy tools or expensive diagnostic equipment required.
By the end of this guide, you’ll be confident in handling check engine light issues on your 22RE, saving time and money on unnecessary mechanic visits. Let’s get started.
Why the Check Engine Light Comes On

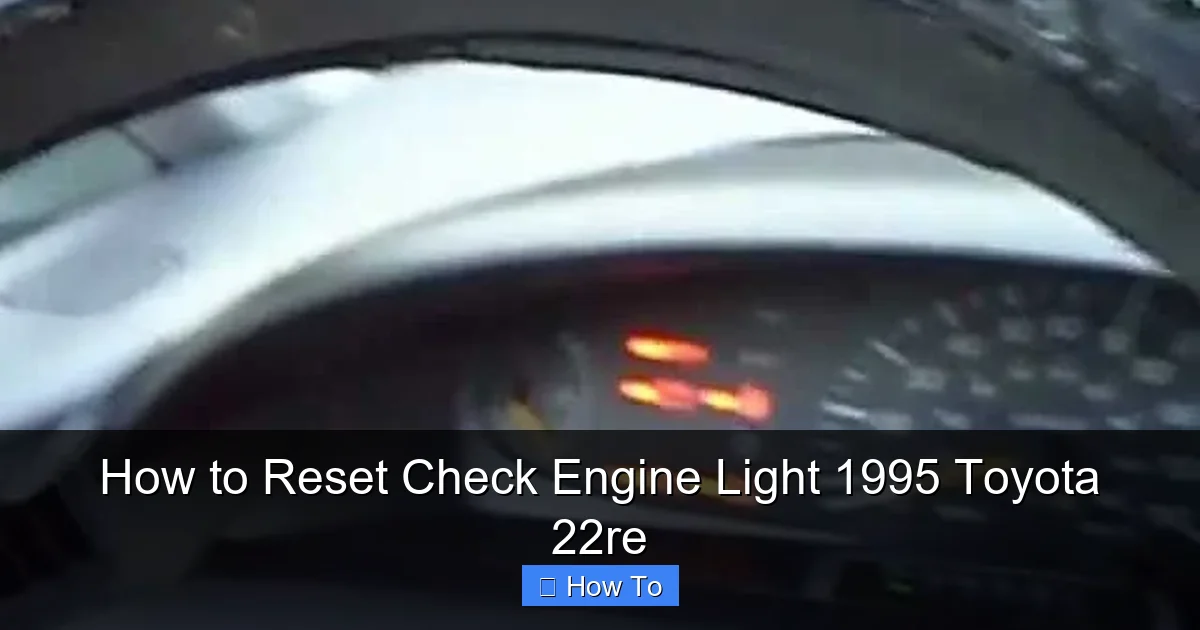

Visual guide about How to Reset Check Engine Light 1995 Toyota 22re
Image source: media.karousell.com
Before you reset the check engine light, it’s important to understand what caused it to illuminate in the first place. The 1995 Toyota 22RE is equipped with an On-Board Diagnostics I (OBD-I) system, which monitors engine performance and emissions. When the system detects a fault—such as a misfire, sensor failure, or emissions issue—it triggers the check engine light to alert you.
Common causes include:
- A faulty oxygen (O2) sensor
- Loose or damaged vacuum hoses
- Failing mass airflow (MAF) sensor
- Bad spark plugs or ignition wires
- Exhaust gas recirculation (EGR) valve problems
- Fuel system issues, like a clogged fuel injector
Ignoring the light can lead to reduced fuel efficiency, poor performance, or even engine damage over time. That’s why diagnosing the root cause is the first step—not just resetting the light and hoping it stays off.
Tools You’ll Need
The beauty of working on a 1995 Toyota 22RE is that you don’t need high-tech equipment. Most of the tools required are basic and likely already in your garage.
Here’s what you’ll need:
- A 10mm wrench or socket (for battery terminal)
- A small piece of wire or a paperclip (for jumper method)
- A flashlight (to see under the dashboard)
- A notepad and pen (to record trouble codes)
- Safety gloves and glasses (optional but recommended)
No OBD-II scanner is needed—this truck predates that technology. Instead, you’ll use the built-in diagnostic capabilities of the OBD-I system.
Step 1: Retrieve Trouble Codes (Before Resetting)
Before you reset the check engine light, you should always retrieve the trouble codes. This tells you exactly what’s wrong and helps confirm that your repair was successful.
The 1995 Toyota 22RE stores trouble codes in the Engine Control Unit (ECU). You can access them using the diagnostic connector under the hood.
Locate the Diagnostic Connector
Open the hood and look for a rectangular connector near the driver’s side firewall. It’s usually labeled “DIAGNOSTIC” or “DLC” (Data Link Connector). It has six pins and is often covered by a small plastic cap.
If you can’t find it, check near the brake master cylinder or behind the air intake box. Some models have it tucked behind a panel.
Jump the Diagnostic Port
To read the codes, you need to short two specific pins in the connector:
- Pin T (Test) – usually the top-right pin
- Pin E1 (Ground) – usually the bottom-left pin
Use a paperclip or a small piece of wire to connect these two pins. Make sure the wire fits snugly and makes good contact.
Turn the Ignition On (Do Not Start the Engine)
With the pins jumped, turn the key to the “ON” position. The dashboard lights should illuminate, including the check engine light.
Watch the check engine light carefully. It will begin to flash in a pattern that corresponds to the trouble code.
Read the Flash Pattern
The flashes indicate a two-digit code:
- Long flashes = tens digit
- Short flashes = ones digit
For example:
- Two long flashes, then three short flashes = Code 23
- One long flash, then four short flashes = Code 14
Write down each code as it appears. The system may display multiple codes. After the last code, it will repeat the sequence.
Interpret the Codes
Here are some common OBD-I trouble codes for the 1995 Toyota 22RE:
- Code 12: RPM signal missing (crankshaft position sensor issue)
- Code 14: Ignition signal problem (ignition coil or distributor)
- Code 21: Oxygen sensor circuit malfunction
- Code 22: Engine coolant temperature sensor fault
- Code 23: Intake air temperature sensor issue
- Code 31: Airflow meter (MAF) problem
- Code 32: EGR system malfunction
- Code 41: Throttle position sensor (TPS) out of range
Use a Toyota-specific OBD-I code chart for a full list. Once you’ve identified the issue, proceed with the appropriate repair.
Step 2: Fix the Underlying Problem
Resetting the check engine light without fixing the root cause is like putting a bandage on a broken bone. The light will likely come back on within a few miles.
Take the time to address the issue indicated by the trouble code. For example:
- If you have Code 21 (O2 sensor), replace the oxygen sensor.
- If you have Code 32 (EGR), clean or replace the EGR valve.
- If you have Code 14 (ignition), inspect the distributor cap, rotor, and coil.
After completing the repair, double-check all connections and hoses. A loose vacuum line or unplugged sensor can also trigger the light.
Step 3: Reset the Check Engine Light
Now that the problem is fixed, it’s time to reset the check engine light. There are two reliable methods: the battery disconnect method and the ECU reset method using the diagnostic port.
Method 1: Battery Disconnect (Simplest Option)
This is the most common and effective way to reset the check engine light on a 1995 Toyota 22RE.
Step-by-Step Instructions
- Turn off the engine and remove the key.
- Open the hood and locate the battery.
- Use a 10mm wrench to loosen the negative (-) terminal clamp.
- Carefully remove the negative cable from the battery post.
- Wait at least 10–15 minutes. This allows the ECU to fully discharge and reset.
- Reconnect the negative cable and tighten the clamp securely.
- Close the hood.
Why Wait 10–15 Minutes?
The ECU retains power through a small capacitor even when the battery is disconnected. Waiting ensures all stored data—including trouble codes—is erased.
What to Expect
After reconnecting the battery:
- The check engine light should be off.
- The radio and clock may reset (you’ll need to reprogram them).
- The engine may run slightly rough for the first few minutes as the ECU relearns fuel trim values.
This is normal. The ECU will adapt within a few drive cycles.
Method 2: ECU Reset Using Diagnostic Port (Advanced)
If you prefer not to disconnect the battery, you can reset the ECU using the diagnostic connector. This method is faster but requires precision.
Step-by-Step Instructions
- Ensure the ignition is off.
- Locate the diagnostic connector under the hood.
- Use a paperclip or jumper wire to connect Pin T (Test) and Pin E1 (Ground).
- Turn the ignition to the “ON” position (do not start the engine).
- Wait for the check engine light to begin flashing.
- Within 3 seconds of the first flash, disconnect the jumper wire.
- Turn the ignition off.
- Wait 10 seconds, then turn it back on.
- The check engine light should now be off.
Important Notes
- Timing is critical. If you disconnect the jumper too late, the reset may not work.
- This method only clears codes—it won’t fix mechanical issues.
- Some older ECUs may not respond to this method. If it fails, use the battery disconnect method.
Step 4: Verify the Reset
After resetting the check engine light, it’s important to confirm the reset was successful.
Start the Engine
Turn the key and start the engine. The check engine light should remain off. If it flashes or stays on, the ECU may still detect a fault.
Take a Test Drive
Drive the vehicle for at least 10–15 minutes under normal conditions. This allows the ECU to complete its self-check and monitor all systems.
During the drive:
- Listen for unusual noises.
- Monitor engine performance (smooth idle, acceleration, etc.).
- Check for any warning lights.
If the check engine light remains off and the engine runs well, the reset was successful.
Recheck for Codes (Optional)
If you’re unsure, you can re-enter the diagnostic mode to see if any codes return:
- Reconnect the jumper wire to Pin T and E1.
- Turn the ignition to “ON.”
- Watch the check engine light.
If no codes flash, the system is clear. If codes appear, you may have an unresolved issue.
Troubleshooting Common Issues
Even with the correct steps, you might run into problems. Here’s how to handle common issues.
Check Engine Light Comes Back On
If the light returns shortly after resetting, the original problem likely wasn’t fixed. Re-check your repairs and verify all connections.
Possible causes:
- Incomplete repair (e.g., new sensor not properly installed)
- Intermittent electrical issue (loose wire, corroded connector)
- Multiple faults (one code masked another)
Use the diagnostic method again to retrieve new codes.
Battery Disconnect Didn’t Work
If disconnecting the battery didn’t reset the light:
- Ensure you waited at least 10–15 minutes.
- Check that the negative cable was fully disconnected.
- Try disconnecting both battery terminals (positive and negative).
- Some ECUs require a longer reset time—up to 30 minutes.
Radio or Clock Reset
Disconnecting the battery will reset the radio presets and clock. To avoid this:
- Use a memory saver device (plugs into the cigarette lighter to maintain power).
- Note your radio settings before disconnecting.
Engine Runs Rough After Reset
This is normal. The ECU uses adaptive learning to adjust fuel and timing. After a reset, it relearns based on sensor input.
Symptoms usually resolve within 50–100 miles of driving. If the problem persists, check for vacuum leaks or sensor issues.
Preventing Future Check Engine Light Issues
An ounce of prevention is worth a pound of cure. Keep your 1995 Toyota 22RE running smoothly with regular maintenance.
Follow a Maintenance Schedule
- Replace spark plugs every 30,000 miles.
- Inspect and replace ignition wires if cracked or worn.
- Clean the MAF sensor with MAF cleaner every 15,000 miles.
- Check vacuum hoses for cracks or leaks annually.
- Replace the oxygen sensor every 60,000–100,000 miles.
Use Quality Fuel and Oil
Low-quality fuel can cause sensor fouling and engine knock. Use top-tier gasoline and change the oil every 3,000–5,000 miles.
Inspect the EGR System
The EGR valve on the 22RE is prone to carbon buildup. Clean it every 30,000 miles to prevent Code 32.
Check the Coolant Temperature Sensor
A faulty coolant sensor can cause false codes and poor fuel economy. Test it with a multimeter if you suspect issues.
When to See a Mechanic
While many check engine light issues can be resolved at home, some problems require professional diagnosis.
Seek a mechanic if:
- The light flashes continuously (indicates a severe misfire)
- Multiple codes appear, especially related to the catalytic converter
- You’ve replaced parts but the light keeps returning
- The engine is overheating, stalling, or losing power
A certified Toyota technician with OBD-I experience can perform advanced diagnostics and ensure your 22RE is in top condition.
Conclusion
Resetting the check engine light on a 1995 Toyota 22RE is a simple process that anyone can do with basic tools and a little patience. The key is to always diagnose the problem first, fix it properly, and then reset the light using either the battery disconnect method or the diagnostic port jumper technique.
By following this guide, you’ll not only clear the light but also gain valuable insight into your truck’s health. Regular maintenance and prompt attention to warning signs will keep your 22RE running strong for years to come.
Remember: the check engine light is your vehicle’s way of saying, “Hey, something’s not right.” Don’t ignore it. Address the issue, reset the light, and enjoy the peace of mind that comes with a well-maintained classic Toyota.
