This guide walks you through how to reset the engine light on a 2010 Toyota Prius using simple tools and methods. Whether you’ve fixed the issue or just want to clear the warning, we’ll help you do it the right way—without risking damage to your hybrid system.
Key Takeaways
- Understand why the engine light comes on: The check engine light can signal anything from a loose gas cap to a serious engine problem. Always diagnose the issue before resetting.
- Use an OBD2 scanner for safe resetting: A diagnostic tool is the most reliable way to clear the engine light and confirm the problem is resolved.
- Battery disconnection is a temporary fix: While disconnecting the 12V battery can reset the light, it may also reset other systems like radio presets and trip data.
- Resetting won’t fix the problem: Clearing the light doesn’t repair the underlying issue. If the problem persists, the light will return.
- Drive cycle completion is essential: After resetting, drive your Prius under normal conditions so the onboard computer can complete its self-tests.
- Avoid cheap or unreliable tools: Use a quality OBD2 scanner compatible with hybrid vehicles to prevent errors or incomplete resets.
- Consult a professional if unsure: If you’re not confident in diagnosing or fixing the issue, visit a certified Toyota technician.
How to Reset Engine Light on 2010 Toyota Prius
If you’ve noticed the dreaded check engine light glowing on your 2010 Toyota Prius dashboard, you’re not alone. This warning light—often shaped like a small engine or labeled “Check Engine”—can cause anxiety, especially in a hybrid vehicle known for its reliability and efficiency. But don’t panic. In many cases, the light appears due to minor issues like a loose gas cap or a temporary sensor glitch. Once the problem is fixed, you’ll want to reset the engine light so your Prius can return to normal operation.
This comprehensive guide will walk you through how to reset the engine light on a 2010 Toyota Prius safely and effectively. Whether you’ve already addressed the root cause or you’re preparing to do so, we’ll cover multiple methods—from using an OBD2 scanner to disconnecting the battery—and explain when each approach is appropriate. We’ll also help you understand what the light means, how to avoid common mistakes, and what to do if the light comes back on.
By the end of this guide, you’ll have the knowledge and confidence to handle the check engine light like a pro—without unnecessary trips to the dealership or costly diagnostic fees.
Why Does the Check Engine Light Come On?

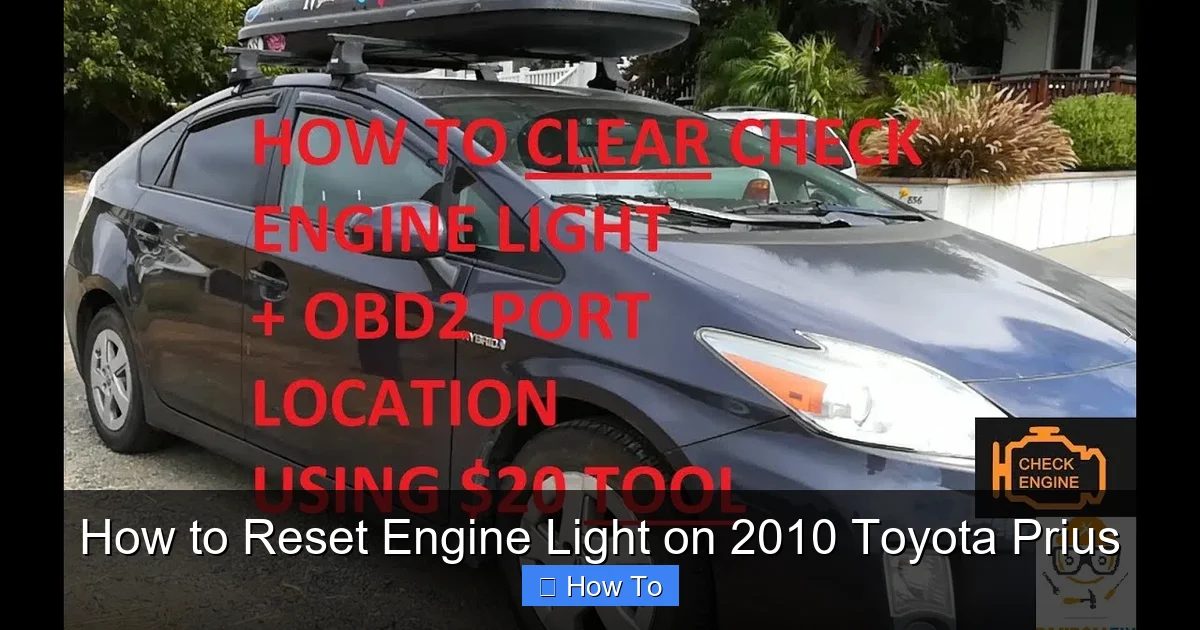

Visual guide about How to Reset Engine Light on 2010 Toyota Prius
Image source: i.ytimg.com
Before diving into the reset process, it’s important to understand why the check engine light activates in the first place. The 2010 Toyota Prius, like all modern vehicles, is equipped with an onboard diagnostic system (OBD2) that continuously monitors engine performance, emissions, and hybrid system functions. When the system detects a problem—such as a misfire, faulty sensor, or emissions issue—it triggers the check engine light to alert you.
Common causes include:
- A loose or damaged gas cap
- Faulty oxygen (O2) sensor
- Mass airflow (MAF) sensor issues
- Catalytic converter problems
- Spark plug or ignition coil failure
- Hybrid battery cooling system malfunction
- EVAP system leaks
In the Prius, some issues are unique to hybrid systems. For example, the hybrid battery’s cooling fan or inverter coolant pump might trigger the light if they’re not functioning properly. That’s why it’s crucial to diagnose the problem before resetting the light. Simply clearing the code without fixing the issue will only result in the light returning—sometimes within minutes.
Method 1: Using an OBD2 Scanner (Recommended)
The most reliable and professional way to reset the engine light on your 2010 Toyota Prius is by using an OBD2 scanner. This handheld device plugs into your car’s diagnostic port and communicates with the onboard computer to read trouble codes, clear them, and monitor system status.
Step 1: Locate the OBD2 Port
In the 2010 Prius, the OBD2 port is located under the dashboard on the driver’s side, near the steering column. It’s a 16-pin connector, usually black or gray, and may be covered by a small plastic flap. You don’t need any tools to access it—just reach under the dash and feel for the port.
Step 2: Turn the Ignition to “ON”
Do not start the engine. Instead, turn the ignition key to the “ON” position (or press the “Power” button twice without pressing the brake pedal). This powers up the vehicle’s electrical systems without engaging the engine or hybrid motor. The dashboard lights should illuminate, including the check engine light.
Step 3: Plug in the OBD2 Scanner
Insert the scanner’s connector into the OBD2 port. Make sure it’s fully seated and secure. Most scanners will power on automatically when connected to a live port.
Step 4: Read the Trouble Codes
Follow the scanner’s instructions to retrieve the diagnostic trouble codes (DTCs). These codes—such as P0420 (catalytic converter efficiency) or P0171 (system too lean)—tell you exactly what the problem might be. Write down the codes or take a photo for reference.
If you’re unsure what a code means, use the scanner’s built-in database or search online. Many scanners also provide plain-English descriptions of the issue.
Step 5: Fix the Underlying Problem
Before resetting the light, address the root cause. For example:
- If the code indicates a loose gas cap, tighten it or replace it if damaged.
- If it’s an O2 sensor issue, you may need to replace the sensor (a job best left to a mechanic if you’re not experienced).
- If it’s a minor EVAP leak, check the gas cap and fuel filler neck for cracks.
Fixing the problem ensures the light won’t return immediately after reset.
Step 6: Clear the Codes
Once the issue is resolved, use the scanner to clear the trouble codes. Most scanners have a “Clear Codes” or “Erase DTCs” option in the menu. Select it and confirm. The scanner will send a command to the vehicle’s computer to reset the check engine light.
Step 7: Verify the Reset
After clearing the codes, turn the ignition off and then back on. The check engine light should remain off. If it comes back on, the problem may not be fully resolved, or a new issue has been detected.
Step 8: Complete a Drive Cycle
To ensure the vehicle’s systems are fully reset and monitored, drive your Prius under normal conditions for about 20–30 minutes. This allows the onboard computer to run its self-tests and confirm everything is working properly. The drive cycle typically includes:
- City driving with frequent stops
- Highway driving at steady speeds
- Idling for a few minutes
- Accelerating and decelerating smoothly
After completing the drive cycle, check that the check engine light remains off and no new codes appear.
Method 2: Disconnecting the 12V Battery
If you don’t have an OBD2 scanner, you can reset the engine light by disconnecting the 12V auxiliary battery. This method forces the vehicle’s computer to reset, clearing stored trouble codes and turning off the check engine light. However, it’s less precise than using a scanner and may reset other systems.
Step 1: Turn Off the Vehicle
Ensure the Prius is completely powered down. Press the “Power” button until all dashboard lights go out. Remove the key or ensure the smart key is away from the vehicle.
Step 2: Locate the 12V Battery
In the 2010 Prius, the 12V battery is located in the trunk on the right side, behind a plastic cover. Open the trunk, remove the cover, and you’ll see the battery housed in a protective case.
Step 3: Disconnect the Negative Terminal
Use a 10mm wrench to loosen the nut on the negative (black) battery terminal. Carefully remove the cable and tuck it away from the battery to prevent accidental contact. Do not disconnect the positive (red) terminal unless necessary.
Step 4: Wait 15–30 Minutes
Leave the battery disconnected for at least 15 minutes. This allows the vehicle’s computer to fully discharge and reset. Some recommend up to 30 minutes for a complete reset.
Step 5: Reconnect the Battery
Reattach the negative terminal and tighten the nut securely. Replace the battery cover and close the trunk.
Step 6: Turn On the Vehicle
Press the “Power” button to turn on the Prius. The check engine light should be off. If it remains on, the problem may still exist, or the reset didn’t take effect.
Important Notes About Battery Disconnection
- This method resets more than just the engine light—it also clears radio presets, trip data, and adaptive learning values for the transmission and engine.
- The hybrid battery (located under the rear seat) is not affected by disconnecting the 12V battery.
- If the light returns after driving, the original issue is likely still present.
Method 3: Using the Toyota Techstream (Professional Option)
For advanced users or professionals, the Toyota Techstream is a factory-level diagnostic tool used by dealerships. It provides full access to the Prius’s hybrid system, engine controls, and emissions data. While expensive and complex, it’s the most thorough way to diagnose and reset the engine light.
How It Works
Techstream connects via a USB or Bluetooth interface to a laptop and the OBD2 port. It can read detailed hybrid system data, perform system resets, and even reprogram modules if needed.
When to Use It
Only use Techstream if:
- You’re a trained technician or experienced DIYer
- Standard OBD2 scanners can’t access hybrid-specific codes
- You suspect a complex issue with the inverter, hybrid battery, or motor generator
For most owners, a standard OBD2 scanner is sufficient.
Troubleshooting Common Issues
Even after following the steps above, you might encounter problems. Here’s how to handle common scenarios:
The Light Comes Back On Immediately
If the check engine light returns right after resetting, the underlying issue hasn’t been fixed. Use an OBD2 scanner to read the new code and investigate further. Common culprits include:
- A faulty oxygen sensor that needs replacement
- A clogged catalytic converter
- A persistent EVAP system leak
The Light Flashes Instead of Staying Solid
A flashing check engine light indicates a severe problem, such as a misfire that could damage the catalytic converter. In this case, stop driving immediately and have the vehicle towed to a repair shop. Continuing to drive could cause expensive damage.
The OBD2 Scanner Won’t Connect
If your scanner fails to communicate with the Prius:
- Ensure the ignition is in the “ON” position
- Check that the OBD2 port is clean and undamaged
- Try a different scanner or update the software
- Verify the scanner is compatible with hybrid vehicles
Some cheap scanners don’t support Toyota’s hybrid protocols.
The Battery Disconnection Didn’t Work
If disconnecting the 12V battery didn’t reset the light:
- Wait longer—up to 30 minutes
- Ensure the terminal was fully disconnected
- Try disconnecting both positive and negative terminals (with caution)
- Use an OBD2 scanner instead
Tips for Preventing Future Check Engine Lights
While you can’t prevent every issue, regular maintenance can reduce the chances of the check engine light coming on:
- Check the gas cap: After every fill-up, make sure the cap is tight and the seal is intact.
- Use quality fuel: Stick to reputable gas stations to avoid contaminated fuel.
- Replace air filters: A dirty air filter can affect engine performance and trigger sensors.
- Monitor hybrid system warnings: Pay attention to messages like “Hybrid System Warning” or “Check Hybrid System.”
- Schedule regular inspections: Have a certified Toyota technician inspect your Prius annually, especially the hybrid battery and cooling system.
When to See a Mechanic
While many check engine light issues can be resolved at home, some problems require professional attention. Visit a mechanic if:
- The light is flashing
- You hear unusual noises or notice performance issues
- The OBD2 code indicates a serious problem (e.g., P0300 – random misfire)
- You’re uncomfortable performing repairs yourself
- The light keeps returning after multiple resets
A certified Toyota technician has access to specialized tools and knowledge about hybrid systems, ensuring accurate diagnosis and repair.
Conclusion
Resetting the engine light on your 2010 Toyota Prius doesn’t have to be intimidating. With the right tools and knowledge, you can safely clear the warning and get back to enjoying your fuel-efficient hybrid. The best method is using an OBD2 scanner, which allows you to diagnose the problem, fix it, and reset the light with confidence. Disconnecting the 12V battery is a viable alternative, but it’s less precise and may affect other systems.
Remember, resetting the light doesn’t fix the problem—it only clears the warning. Always address the root cause to prevent the light from returning. And if you’re ever in doubt, don’t hesitate to consult a professional.
By following this guide, you’ll not only reset the engine light but also gain a better understanding of your Prius’s health and performance. Stay proactive, stay informed, and keep that check engine light off for good.
