How to Reset Xheck Engine Light 02 Highlander

Resetting the check engine light on a 2002 Toyota Highlander doesn’t have to be complicated. This guide walks you through simple, safe methods—from using an OBD2 scanner to manual battery disconnection—so you can clear the light and keep your SUV running smoothly.

Quick Answers to Common Questions

Tip/Question?

Can I reset the check engine light without a scanner?

Yes, you can disconnect the battery for 15–30 minutes, but this method is less reliable and may not clear all codes. An OBD2 scanner is strongly recommended.

Tip/Question?

How long does it take for the light to turn off after fixing the problem?

It can take anywhere from a few minutes to several days, depending on the issue and drive cycle. Some problems clear immediately; others require multiple driving cycles.

Tip/Question?

Will resetting the light pass an emissions test?

Only if the underlying issue is fixed and the vehicle completes a full drive cycle. Most states require all monitors to be “ready” before passing.

Tip/Question?

Can a bad gas cap really trigger the check engine light?

Yes! A loose, damaged, or missing gas cap is one of the most common causes. Always double-check it after filling up.

Tip/Question?

Is it safe to drive with the check engine light on?

If the light is steady, you can usually drive short distances. But if it’s flashing, stop driving immediately—it could indicate a serious misfire.

How to Reset Check Engine Light on a 2002 Toyota Highlander

If you’re driving a 2002 Toyota Highlander and the dreaded check engine light has popped up on your dashboard, don’t panic—you’re not alone. This common warning signal can mean anything from a loose gas cap to a serious engine issue. But once you’ve diagnosed and fixed the problem, the next step is resetting that persistent light so your dashboard stays clean and your peace of mind returns.

In this comprehensive guide, you’ll learn exactly how to reset the check engine light on your 2002 Highlander. We’ll cover multiple methods—from high-tech OBD2 scanners to old-school battery disconnects—so you can choose the one that fits your tools, skill level, and situation. You’ll also learn why simply clearing the light isn’t enough, how to avoid common mistakes, and what to do if the light comes back on.

By the end of this guide, you’ll not only know how to reset the light, but also how to keep your Highlander running efficiently and avoid future surprises. Let’s get started.

Why the Check Engine Light Comes On

Before we jump into resetting the light, it’s important to understand why it turned on in the first place. The check engine light—also known as the malfunction indicator lamp (MIL)—is part of your vehicle’s onboard diagnostics system (OBD2). When the system detects a problem that could affect emissions or engine performance, it stores a trouble code and illuminates the light.

Common causes in a 2002 Highlander include:
– A loose or damaged gas cap
– Faulty oxygen (O2) sensor
– Mass airflow (MAF) sensor issues
– Spark plug or ignition coil problems
– Catalytic converter inefficiency
– Evaporative emissions (EVAP) system leaks

Ignoring the light can lead to reduced fuel efficiency, increased emissions, and even engine damage over time. That’s why diagnosing the root cause is the first and most critical step—even before you think about resetting the light.

Tools You’ll Need

Depending on the method you choose, you may need one or more of the following tools:

• OBD2 Scanner: The most effective tool for reading and clearing trouble codes. Affordable options start around $20–$50.
• Socket Wrench or Wrench Set: Needed if you plan to disconnect the battery.
• Safety Gloves and Glasses: Always a good idea when working under the hood.
• Owner’s Manual: Helpful for locating the OBD2 port and understanding vehicle-specific procedures.
• Notepad or Phone: To record trouble codes before clearing them.

Most 2002 Highlanders have the OBD2 port located under the dashboard, near the driver’s left knee. It’s a 16-pin connector, usually black or gray, and easy to spot once you know where to look.

Method 1: Using an OBD2 Scanner (Recommended)

The safest and most reliable way to reset the check engine light on your 2002 Highlander is by using an OBD2 scanner. This tool not only clears the light but also helps you understand what caused it in the first place.

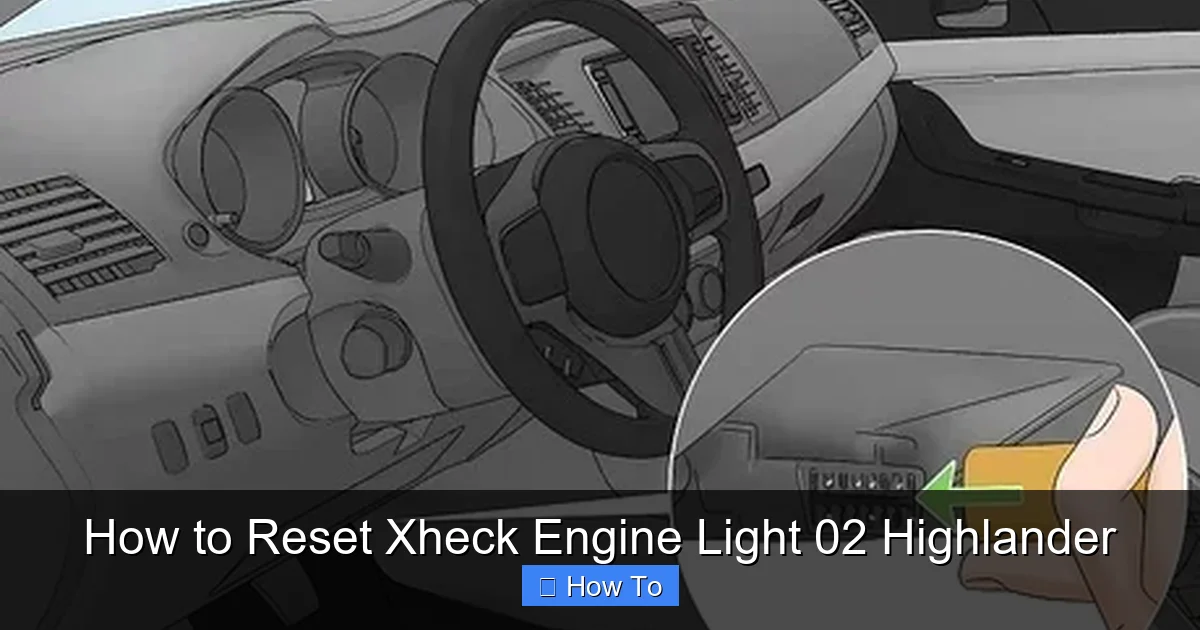

Step 1: Locate the OBD2 Port

Sit in the driver’s seat and look under the dashboard, just to the left of the steering column. You should see a small, rectangular port—this is where you’ll plug in the scanner. If you can’t find it, consult your owner’s manual or look for a diagram online.

Step 2: Turn Off the Engine

Make sure the engine is completely off before connecting the scanner. This prevents any electrical issues and ensures accurate readings.

Step 3: Plug in the OBD2 Scanner

Insert the scanner’s connector into the OBD2 port. It should fit snugly—don’t force it. Once connected, turn the ignition to the “ON” position (but don’t start the engine). This powers up the scanner and allows it to communicate with the vehicle’s computer.

Step 4: Read the Trouble Codes

Follow the scanner’s on-screen instructions to read the stored trouble codes. Most scanners will display codes like “P0420” or “P0171.” Write these down or take a photo—you’ll want to know what they mean before clearing them.

Use a free online code lookup tool (like those on OBD-Codes.com) to interpret the codes. For example:
– P0420 = Catalyst system efficiency below threshold
– P0171 = System too lean (bank 1)
– P0300 = Random/multiple cylinder misfire detected

Understanding the code helps you confirm whether the issue has been fixed. If you’re unsure, consult a mechanic before proceeding.

Step 5: Clear the Codes

Once you’ve confirmed the problem is resolved, use the scanner’s “Clear Codes” or “Erase DTCs” function. This will reset the check engine light and clear the stored trouble codes.

Step 6: Turn Off the Ignition and Disconnect

After clearing the codes, turn the ignition back to “OFF” and unplug the scanner. Start the engine to see if the light stays off. If it does, great! If it comes back on within a few minutes, the problem may still exist.

Step 7: Complete a Drive Cycle

Even after clearing the codes, your vehicle’s computer needs to run a series of self-tests—called a drive cycle—to verify that the issue is truly fixed. A typical drive cycle for a 2002 Highlander includes:
– Cold start (engine off for at least 8 hours)
– Drive at varying speeds (city and highway)
– Allow the engine to reach normal operating temperature
– Come to a complete stop and idle for 30 seconds

This process can take 20–30 minutes and may need to be repeated over a few days. Once completed, the vehicle’s computer will recheck all systems. If no new codes appear, the check engine light should remain off.

Method 2: Disconnecting the Battery (Alternative Method)

If you don’t have an OBD2 scanner, you can try resetting the check engine light by disconnecting the battery. This method forces the vehicle’s computer to reset, but it’s less reliable and may not clear all stored data.

Step 1: Turn Off the Engine and Remove the Key

Ensure the vehicle is completely off and the key is out of the ignition.

Step 2: Locate the Battery

Open the hood and find the battery—usually on the driver’s side. It’s a rectangular box with two large cables attached (positive and negative).

Step 3: Disconnect the Negative Terminal

Using a wrench or socket, loosen the nut on the negative (black) battery terminal. Carefully remove the cable and tuck it away from the battery so it doesn’t accidentally touch the terminal.

Step 4: Wait 15–30 Minutes

Leave the battery disconnected for at least 15 minutes. This allows the vehicle’s computer (ECU) to fully reset. Some sources recommend up to 30 minutes for older models like the 2002 Highlander.

Step 5: Reconnect the Battery

Reattach the negative cable and tighten the nut securely. Make sure it’s snug but don’t overtighten.

Step 6: Start the Engine

Turn the ignition to “ON” and then start the engine. The check engine light may flash briefly, then turn off. If it stays off, the reset was successful.

Important Notes on Battery Disconnection

While this method can work, it has drawbacks:
– It may not clear all trouble codes—especially if the issue persists.
– It can reset other systems, like the radio presets, clock, and anti-theft settings.
– Some vehicles require a relearn procedure for the idle speed after battery disconnection.

Because of these limitations, battery disconnection should only be used as a last resort or temporary fix.

Method 3: Fix the Problem and Drive (Natural Reset)

Sometimes, the best way to reset the check engine light is to simply fix the underlying issue and drive normally. Many modern vehicles—including the 2002 Highlander—will automatically clear the light after a certain number of successful drive cycles with no faults detected.

For example:
– If the light came on because of a loose gas cap, tightening it and driving 50–100 miles may cause the light to turn off on its own.
– If you replaced a faulty O2 sensor, the system may recognize the fix after a few days of driving.

This method requires patience but is completely safe and doesn’t require any tools. Just make sure the problem is truly resolved—otherwise, the light will return.

Troubleshooting Common Issues

Even after following these steps, you might run into problems. Here’s how to handle common scenarios:

The Light Comes Back On Immediately

If the check engine light returns right after resetting, the issue hasn’t been fixed. Use an OBD2 scanner to read the new codes and address the root cause. Common culprits include:
– A failing oxygen sensor
– A clogged catalytic converter
– Persistent misfires

The Scanner Won’t Connect

If your OBD2 scanner won’t communicate with the vehicle:
– Check that the ignition is in the “ON” position.
– Ensure the scanner is compatible with OBD2 (all 1996 and newer vehicles are).
– Try a different scanner or have the port inspected for damage.

The Light Flashes While Driving

A flashing check engine light indicates a severe misfire that can damage the catalytic converter. Pull over safely, turn off the engine, and call for a tow. Continuing to drive can cause expensive damage.

The Battery Reset Didn’t Work

If disconnecting the battery didn’t clear the light, the problem is likely still active. Use an OBD2 scanner to confirm, and avoid repeated battery disconnections—they can drain the battery and harm the electrical system.

Preventing Future Check Engine Lights

The best way to avoid dealing with the check engine light is to prevent it from coming on in the first place. Here are some proactive tips for your 2002 Highlander:

• Use quality gasoline: Stick to reputable gas stations and avoid ethanol-heavy fuels if possible.
• Tighten the gas cap after every fill-up: A loose cap is one of the most common causes of the light.
• Follow the maintenance schedule: Replace spark plugs, air filters, and oxygen sensors as recommended (typically every 30,000–100,000 miles).
• Listen for unusual sounds: Knocking, pinging, or rough idling can signal engine problems before the light comes on.
• Check for recalls: Visit Toyota’s website to see if your Highlander has any open recalls related to emissions or engine performance.

Regular maintenance not only prevents check engine lights but also extends the life of your vehicle and improves fuel economy.

When to See a Mechanic

While many check engine light issues can be resolved at home, some problems require professional attention. Seek a qualified mechanic if:
– The light is flashing
– You’re unable to read or interpret the trouble codes
– The problem involves the transmission, catalytic converter, or internal engine components
– You’ve tried fixing the issue but the light keeps returning

A certified Toyota technician has access to advanced diagnostic tools and can perform repairs that go beyond basic troubleshooting.

Conclusion

Resetting the check engine light on your 2002 Toyota Highlander is a straightforward process—but only after you’ve addressed the underlying issue. Using an OBD2 scanner is the most effective and reliable method, giving you insight into what caused the light and confirming that the problem is truly fixed. While disconnecting the battery can work in a pinch, it’s not a long-term solution and may cause other system resets.

Remember, the check engine light is your vehicle’s way of saying, “Hey, something’s not right.” Ignoring it can lead to bigger problems down the road. By diagnosing the issue, applying the right fix, and completing a proper drive cycle, you’ll keep your Highlander running smoothly and your dashboard free of warnings.

With the tips and steps in this guide, you’re now equipped to handle the check engine light with confidence. Stay proactive, stay informed, and enjoy the reliable performance your 2002 Highlander is known for.
