How to Set Engine Timing with a Timing Light

Setting engine timing with a timing light ensures your engine runs efficiently and delivers optimal power. This guide walks you through the entire process—from safety prep to fine-tuning—so you can do it confidently at home.

Quick Answers to Common Questions

Tip/Question?

Can I use a timing light on a modern fuel-injected engine?

Yes, but only if the engine has a distributor. Most modern cars use distributorless ignition systems (DIS) or coil-on-plug setups controlled by the ECU, so manual timing adjustment isn’t possible or necessary.

Tip/Question?

How often should I check engine timing?

Unless you’re tuning or modifying your engine, timing should be checked every 30,000–50,000 miles or if you notice performance issues like poor fuel economy or knocking.

Tip/Question?

What if my timing marks are worn off?

You can recreate them using a degree wheel or by marking the pulley at TDC (Top Dead Center) with a piston stop tool. Consult a repair manual for detailed instructions.

Tip/Question?

Can I adjust timing without a timing light?

It’s not recommended. Guesswork leads to poor performance and potential engine damage. A timing light is an affordable tool that ensures accuracy.

Tip/Question?

Why does my timing change when I rev the engine?

This is normal—it’s called centrifugal advance. The distributor uses weights and springs to advance timing as RPM increases, improving performance and efficiency.

Introduction: Why Engine Timing Matters

If your car feels sluggish, uses more fuel than usual, or makes odd noises under the hood, the problem might be as simple as incorrect engine timing. Engine timing—specifically ignition timing—controls when the spark plug fires in each cylinder. If it fires too early or too late, your engine won’t run efficiently. That’s where a timing light comes in. This handy tool lets you see exactly when the spark occurs and adjust it to match your vehicle’s specifications.

In this guide, you’ll learn how to set engine timing with a timing light like a pro. Whether you’re tuning up an older carbureted engine or fine-tuning a classic muscle car, this step-by-step process works for most gasoline-powered vehicles. You don’t need to be a mechanic—just follow along, stay safe, and take your time.

By the end, you’ll know how to connect the timing light, read the timing marks, adjust the distributor, and verify your work. Plus, we’ll cover common mistakes and troubleshooting tips so you can avoid frustration and get your engine running smoothly.

What You’ll Need

Before you start, gather these tools and supplies. Having everything ready saves time and reduces the risk of mistakes.

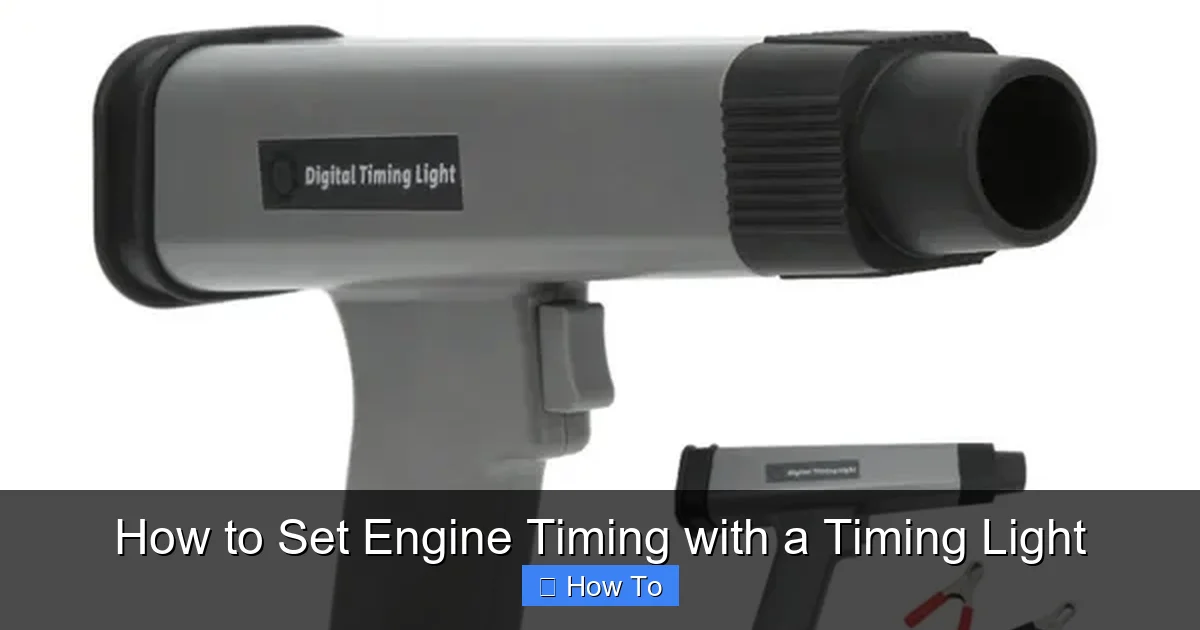

• Timing light: Choose an inductive type—it clamps onto the spark plug wire and doesn’t require direct contact with high-voltage parts.
• Wrench or socket set: Usually a 10mm or 13mm socket for loosening the distributor hold-down bolt.
• Screwdriver (flathead or Phillips): For adjusting the distributor if needed.
• Owner’s or service manual: Contains the correct timing specifications (in degrees BTDC—Before Top Dead Center).
• Safety gear: Safety glasses and gloves are a must.
• Jack and jack stands (if needed): Some vehicles require lifting the front end to access the timing marks.
• Chalk or white paint pen: Helps make timing marks easier to see under the bright flash of the timing light.
• Assistant (optional but helpful): Someone to rev the engine while you watch the timing marks.

Understanding Engine Timing Basics

Before diving into the steps, it helps to understand what engine timing actually means.

Engine timing refers to the precise moment the spark plug ignites the air-fuel mixture in the combustion chamber. This ignition must happen at just the right time—usually a few degrees before the piston reaches the top of its compression stroke (hence “BTDC”). If the spark comes too early (advanced), the engine may knock or ping. If it’s too late (retarded), you’ll lose power and fuel economy.

Modern cars with electronic fuel injection often have timing controlled by the engine computer (ECU), but many older vehicles and some performance builds still use a mechanical distributor. These require manual timing adjustment using a timing light.

The timing light works by flashing a bright strobe each time the #1 cylinder fires. This flash “freezes” the motion of the rotating crankshaft pulley, allowing you to see where the timing mark aligns with the timing scale on the engine block.

Step 1: Prepare Your Vehicle

Safety and preparation are key. Rushing this step can lead to injury or incorrect results.

Park on a Level Surface

Make sure your car is on flat ground. Engage the parking brake and, if necessary, chock the rear wheels. This prevents the vehicle from rolling while you work.

Turn Off the Engine and Let It Cool

Never work on a hot engine. Wait at least 30 minutes after driving so you don’t burn yourself on hot components.

Disconnect the Battery (Optional but Recommended)

While not always required, disconnecting the negative terminal of the battery reduces the risk of accidental sparks or electrical shorts. Reconnect it when you’re ready to test.

Locate the Timing Marks

Open the hood and find the crankshaft pulley (also called the harmonic balancer) at the front of the engine. On the pulley, you’ll see a notch or line. Nearby, on the engine block or timing cover, there’s a timing scale marked in degrees (e.g., 0°, 5°, 10°, 15° BTDC).

If the marks are hard to see, clean them with a rag and mark the pulley notch with chalk or white paint. This makes them easier to spot under the timing light’s flash.

Identify Cylinder #1

Most timing adjustments are made based on cylinder #1 (the front cylinder on inline engines, or the front-left on V6/V8 engines). Confirm this in your service manual. The spark plug wire for #1 should be clearly labeled or follow the firing order diagram.

Step 2: Connect the Timing Light

Now it’s time to hook up the timing light. This tool detects the spark from the #1 cylinder and flashes in sync, letting you “see” the timing.

Clamp the Inductive Pickup

Take the inductive clamp (usually red and black) from your timing light and attach it to the #1 spark plug wire. Make sure it’s clamped securely and not touching any hot or moving parts. The arrow on the clamp should point toward the spark plug.

Connect the Power Cables

Attach the red (positive) clip to the positive terminal of the battery and the black (negative) clip to the negative terminal or a clean ground on the engine block. Ensure the connections are tight to avoid flickering or false readings.

Double-Check Connections

Before starting the engine, verify that:

• The inductive clamp is on the correct wire (#1 cylinder).
• The power clips are secure and not dangling into the engine bay.
• No tools or loose items are near belts or fans.

Step 3: Start the Engine and Warm It Up

With everything connected, it’s time to fire up the engine.

Start the Engine

Turn the key and let the engine idle. Allow it to warm up to normal operating temperature. Cold engines can give inaccurate timing readings.

Turn Off Accessories

Turn off the AC, radio, headlights, and any other electrical loads. These can affect engine load and timing, especially on older vehicles with mechanical advance systems.

Check for Vacuum Advance (If Applicable)

Some distributors have a vacuum advance hose connected to the intake manifold. For initial timing adjustment, this hose may need to be disconnected and plugged (check your manual). This ensures you’re setting base timing without vacuum influence.

Step 4: Aim the Timing Light and Read the Marks

This is the core of the process—using the timing light to see where the timing mark aligns.

Point the Light at the Timing Marks

Stand in front of the engine and aim the timing light at the crankshaft pulley and timing scale. The light will flash each time cylinder #1 fires, making the pulley appear stationary.

Observe the Alignment

Look for the notch on the pulley. Under the strobe light, it should align with a specific degree mark on the scale (e.g., 10° BTDC). If it’s not aligned, you’ll need to adjust the distributor.

Note the Current Timing

Write down the current reading. For example, if the mark lines up with 8° BTDC but your manual calls for 12° BTDC, you need to advance the timing by 4 degrees.

Step 5: Adjust the Distributor

The distributor controls when the spark is sent to each cylinder. Rotating it changes the timing.

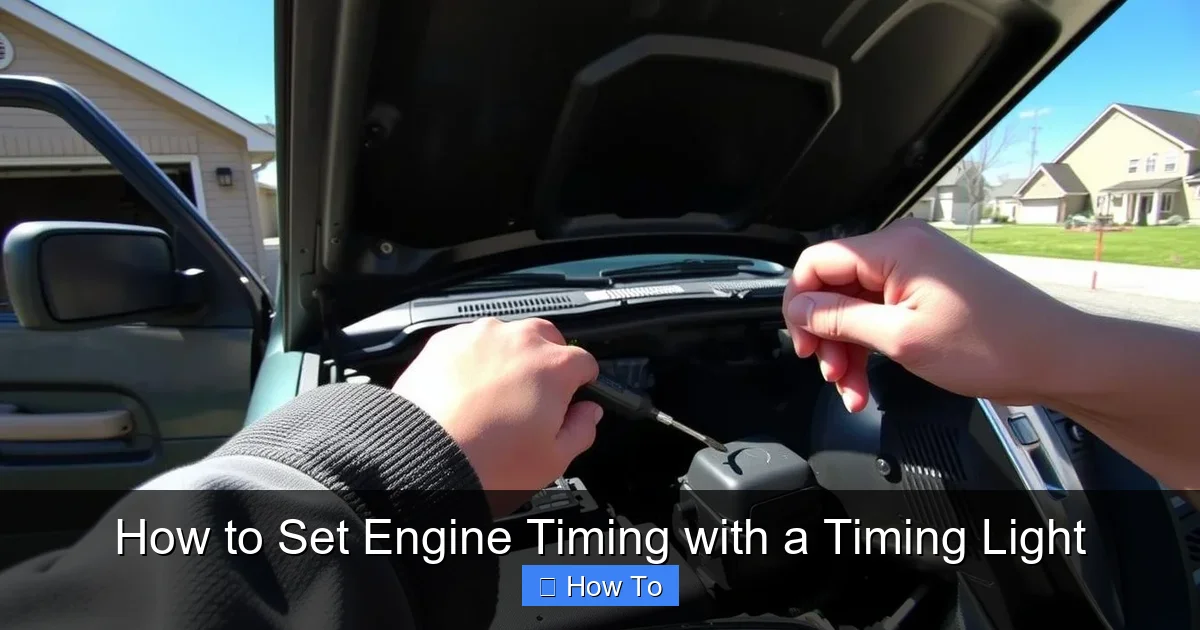

Loosen the Distributor Hold-Down Bolt

Use a wrench or socket to slightly loosen the bolt that secures the distributor to the engine. Don’t remove it completely—just enough so the distributor can rotate freely.

Rotate the Distributor

Gently turn the distributor:

• To advance timing: Rotate the distributor counterclockwise (viewed from above).
• To retard timing: Rotate it clockwise.

Make small adjustments—no more than 2–3 degrees at a time.

Recheck with the Timing Light

After each adjustment, watch the timing mark again. The goal is to get the pulley notch aligned exactly with the specified degree on the scale.

Tighten the Hold-Down Bolt

Once the timing is correct, tighten the distributor bolt securely. Be careful not to move the distributor while tightening.

Step 6: Verify and Test

Don’t assume you’re done—always double-check your work.

Recheck Timing at Idle

With the engine still running, aim the timing light again. Confirm the mark stays aligned at the correct degree. If it drifts, the distributor may be loose or the advance mechanism faulty.

Test Under Load (Optional)

Have an assistant rev the engine to 2,500–3,000 RPM while you watch the timing. On engines with mechanical advance, the timing should increase smoothly. If it jumps or doesn’t change, there may be an issue with the distributor weights or springs.

Reconnect Vacuum Advance (If Disconnected)

If you disconnected the vacuum hose earlier, reconnect it now. Recheck timing—it may shift slightly, which is normal.

Test Drive

Take the car for a short drive. Listen for knocking, pinging, or hesitation. The engine should feel smoother, respond better, and idle more steadily.

Troubleshooting Common Issues

Even with careful work, problems can arise. Here’s how to handle the most common ones.

Timing Mark Won’t Stay Still

If the mark jumps around under the timing light, the distributor may be worn, the hold-down bolt isn’t tight, or the engine has excessive vibration. Check for loose mounts or a failing harmonic balancer.

Engine Knocks or Pings

This usually means timing is too advanced. Retard the timing slightly (1–2 degrees) and test again. Also check fuel octane—low-octane fuel can cause knocking even with correct timing.

No Flash from Timing Light

Check connections: Is the inductive clamp on the right wire? Are the battery clips secure? Try a different spark plug wire to test the light.

Timing Drifts After Adjustment

This suggests a mechanical issue—worn distributor bushings, sticky advance mechanism, or a faulty ignition module. Inspect the distributor and consider replacement if needed.

Incorrect Timing Specifications

Always double-check your manual. Some engines have different specs for manual vs. automatic transmissions, or with/without emissions equipment.

Safety Tips and Best Practices

Working under the hood comes with risks. Follow these guidelines to stay safe.

• Wear safety glasses: Debris or sparks can fly unexpectedly.
• Avoid loose clothing and jewelry: They can get caught in belts or fans.
• Never reach into the engine while it’s running: Even at idle, moving parts can cause injury.
• Use jack stands, not just a jack: If lifting the vehicle, always support it with stands.
• Keep a fire extinguisher nearby: Especially when working with fuel and sparks.

Conclusion: Enjoy a Smoother, More Efficient Ride

Setting engine timing with a timing light might seem intimidating at first, but it’s a straightforward process once you understand the basics. With the right tools, a little patience, and attention to detail, you can fine-tune your engine for better performance, improved fuel economy, and a longer lifespan.

Remember: always consult your vehicle’s manual for the correct timing specifications. Take your time, make small adjustments, and verify your work. And if something doesn’t feel right, don’t hesitate to seek help from a professional.

Now that you know how to set engine timing with a timing light, you’re equipped to maintain your vehicle like a seasoned gearhead. Whether you’re restoring a classic car or just keeping your daily driver in top shape, this skill will serve you well for years to come.
