How to Test Lighting Coil Small Engine

Testing a lighting coil on a small engine is essential for diagnosing electrical issues and ensuring proper voltage output. This guide walks you through safe, accurate methods using a multimeter to check coil resistance and output, helping you maintain reliable engine performance.

Quick Answers to Common Questions

Tip/Question?

Can I test the lighting coil without starting the engine?

Yes, you can test resistance with the engine off, but voltage testing requires cranking the engine to simulate real operation.

Tip/Question?

What if my multimeter doesn’t have an ohms setting?

You’ll need a multimeter with resistance measurement capability. Analog meters can work, but digital is more accurate and easier to read.

Tip/Question?

Is it safe to test the coil while the engine is running?

No. Always disconnect the spark plug before testing. Only measure voltage while cranking with the plug disconnected and grounded.

Tip/Question?

Can a bad lighting coil damage other parts?

Yes, a faulty coil can overload the regulator or cause voltage spikes, potentially damaging lights or electronics.

Tip/Question?

How often should I test the lighting coil?

Test it annually during routine maintenance or whenever you notice lighting or charging problems.

How to Test Lighting Coil Small Engine

If your lawn mower, generator, or other small engine-powered equipment isn’t producing light or charging the battery properly, the lighting coil could be the culprit. The lighting coil—also known as the alternator coil or stator coil—is a critical part of the engine’s electrical system. It generates alternating current (AC) to power lights, charge batteries, or run accessories.

In this comprehensive guide, you’ll learn how to test the lighting coil on a small engine safely and accurately. Whether you’re a DIY enthusiast or a weekend mechanic, these step-by-step instructions will help you diagnose electrical issues, avoid unnecessary replacements, and keep your equipment running smoothly. We’ll cover everything from gathering tools to interpreting multimeter readings and troubleshooting common problems.

By the end of this guide, you’ll be able to confidently test your lighting coil, understand what the results mean, and take the right action—whether that’s cleaning connections, adjusting components, or replacing the coil entirely.

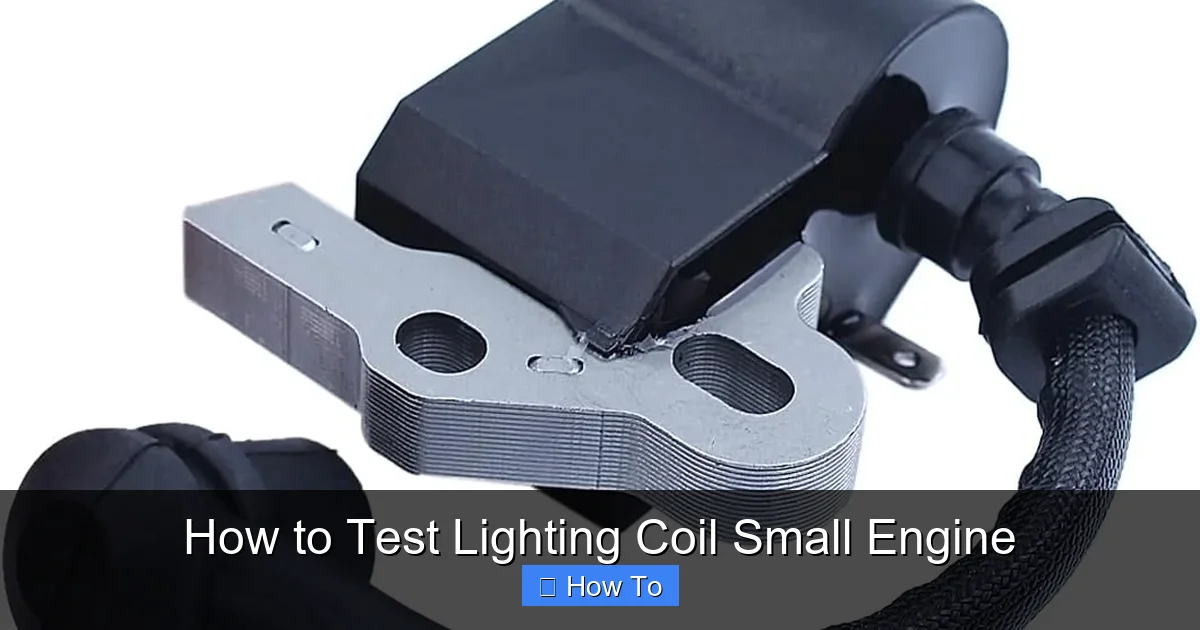

What Is a Lighting Coil and Why Test It?

The lighting coil is a stationary set of wire windings mounted on the engine’s stator plate, typically near the flywheel. As the engine runs, the rotating magnets on the flywheel pass by the coil, inducing an electrical current through electromagnetic induction. This current powers headlights, taillights, or charges a battery in some models.

Over time, the lighting coil can fail due to heat, vibration, moisture, or age. Symptoms of a failing coil include dim or flickering lights, no light output, or a dead battery that won’t charge. Testing the coil helps you confirm whether it’s the source of the problem before replacing other components.

Testing is especially important because electrical issues can mimic fuel or ignition problems. For example, a weak coil might cause poor performance at night, but the engine runs fine during the day—leading you to suspect carburetor issues when the real problem is electrical.

Tools and Materials You’ll Need

Before you begin, gather the following tools and safety gear:

• Digital multimeter: Essential for measuring resistance (ohms) and AC voltage. An auto-ranging model is easiest to use.
• Safety gloves and glasses: Protect your hands and eyes from sharp edges and electrical hazards.
• Wrench or socket set: For removing engine covers or accessing the stator plate.
• Clean rags: To wipe down components and connections.
• Wire brush or contact cleaner: For cleaning corroded terminals.
• Engine manual (optional but helpful): Contains specific resistance values and wiring diagrams for your model.

Having the right tools ensures accurate testing and reduces the risk of damage or injury.

Safety Precautions Before Testing

Working on small engines involves electrical and mechanical risks. Follow these safety steps every time:

Disconnect the Spark Plug

Remove the spark plug wire and ground it away from the plug. This prevents the engine from accidentally starting while you’re working. Even a small engine can cause injury if it kicks over unexpectedly.

Turn Off the Fuel Supply

If your engine has a fuel shut-off valve, close it. For carbureted engines, you may also want to disconnect the fuel line or run the engine until it stalls to clear residual fuel.

Allow the Engine to Cool

Never work on a hot engine. Let it cool for at least 30 minutes to avoid burns from hot surfaces.

Work in a Well-Ventilated Area

Even with the engine off, fumes can linger. Work outdoors or in a garage with the door open.

Wear Protective Gear

Safety glasses protect your eyes from debris, and gloves prevent cuts and electrical contact.

Taking these precautions ensures a safe testing environment and protects both you and your equipment.

Step-by-Step Guide to Testing the Lighting Coil

Now that you’re prepared, follow these steps to test your lighting coil.

Step 1: Locate the Lighting Coil

The lighting coil is usually found under the engine’s blower housing or near the flywheel. On most small engines, it’s mounted to the stator plate with two or more wires leading to a connector. Look for a bundle of wires coming from the engine block—these often lead to the coil.

Refer to your engine’s manual if you’re unsure. Some models label the stator or alternator section clearly. On Briggs & Stratton or Kohler engines, the coil is typically near the flywheel magnets.

Step 2: Disconnect the Wiring Harness

Carefully unplug the connector that links the lighting coil to the rest of the electrical system. Avoid pulling on the wires—grip the connector itself. If the connector is tight, use a flathead screwdriver to gently release the locking tab.

Label the wires if there are multiple connections (e.g., red for lighting, yellow for charging). This helps when reconnecting later.

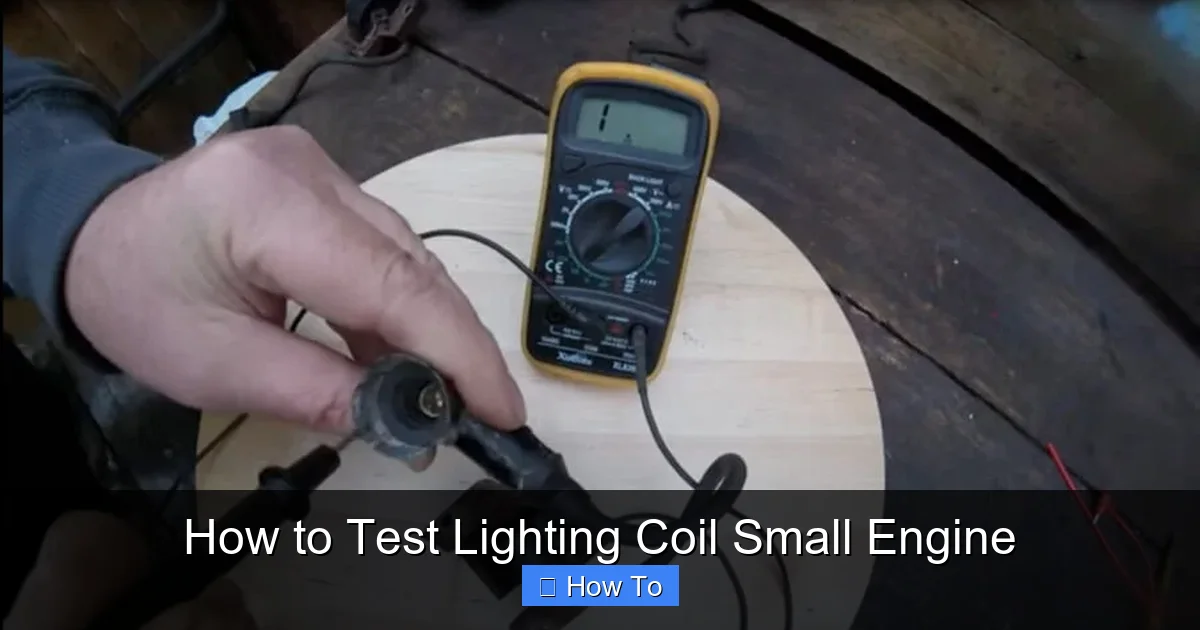

Step 3: Set Up Your Multimeter

Turn on your digital multimeter and set it to measure resistance (ohms, symbolized by Ω). If your meter has an auto-ranging feature, it will automatically select the correct range. Otherwise, start with the lowest ohms setting (e.g., 200Ω) and adjust as needed.

For voltage testing later, you’ll switch to AC voltage mode (V~).

Step 4: Test Coil Resistance (Ohms)

Resistance testing checks the integrity of the coil windings. A broken or shorted coil will show incorrect resistance.

Touch the multimeter probes to the two terminals of the lighting coil. One probe on each wire lead. Do not touch the metal parts of the probes with your fingers to avoid false readings.

Read the display. Typical resistance values for small engine lighting coils are:

• Primary winding (low voltage): 0.5 to 3 ohms
• Secondary winding (high voltage): 5,000 to 15,000 ohms (5kΩ to 15kΩ)

If your multimeter shows “OL” (open loop) or infinite resistance, the coil is broken and needs replacement. If the reading is near zero, the coil may be shorted.

Compare your reading to the manufacturer’s specifications. If you don’t have the manual, a reading within the typical range is usually acceptable.

Step 5: Test AC Voltage Output

Resistance alone doesn’t confirm the coil works under load. You must test voltage output while the engine is running or being cranked.

Reconnect the coil’s wiring harness. Set your multimeter to AC voltage (V~). Start with the highest range (e.g., 200V) and adjust down if needed.

Have a helper crank the engine while you monitor the multimeter. Touch one probe to each wire of the lighting coil output. Do not let the probes touch each other or ground.

A healthy lighting coil should produce 12 to 30 volts AC when cranked at moderate speed. Some high-output coils can generate up to 50 volts.

If the reading is zero or very low (under 5V), the coil is likely faulty. If the voltage fluctuates wildly, there may be a loose connection or damaged winding.

Step 6: Inspect for Physical Damage

Even if the electrical tests pass, visually inspect the coil for signs of damage:

• Burnt or melted insulation: Indicates overheating or shorting.
• Corroded terminals: Clean with a wire brush or contact cleaner.
• Cracked or broken coil body: Can cause intermittent connections.
• Loose mounting screws: Vibration can loosen the coil, affecting performance.

Tighten any loose screws and clean corroded parts. If the coil is physically damaged, replace it regardless of test results.

Step 7: Reconnect and Test Operation

After testing, reconnect all wiring securely. Reinstall any covers or panels you removed. Reconnect the spark plug wire.

Start the engine and observe the lights or charging system. If the lights are bright and steady, the coil is working. If the battery charges (check with a voltmeter at the terminals), the coil is likely functional.

If problems persist, double-check connections or test other components like the regulator or rectifier.

Troubleshooting Common Issues

Even with proper testing, you might encounter issues. Here’s how to handle them:

No Voltage Output

If the multimeter shows zero volts while cranking:

• Check that the flywheel magnets are strong and properly aligned.
• Ensure the coil is close enough to the flywheel (typically 0.010 to 0.030 inches).
• Test the wiring harness for continuity.
• Verify the multimeter is set to AC voltage, not DC.

Intermittent Voltage

Fluctuating readings suggest a loose connection or damaged wire. Inspect the entire circuit, including connectors and grounding points. Wiggle the wires while testing to identify loose spots.

High Resistance Reading

A reading much higher than expected (e.g., over 20kΩ on a secondary winding) may indicate a partial break in the wire. Replace the coil.

Low Voltage Under Load

If voltage drops significantly when lights are turned on, the coil may be weak or the regulator faulty. Test the regulator separately if your engine has one.

Coil Tests Good But Lights Still Don’t Work

The problem may not be the coil. Check the bulbs, fuses, switches, and ground connections. A bad ground is a common cause of lighting failure.

When to Replace the Lighting Coil

Replace the lighting coil if:

• Resistance readings are outside the specified range.
• No voltage is produced during cranking.
• Voltage is inconsistent or drops under load.
• Physical damage is present (burns, cracks, corrosion).
• The coil fails multiple tests after cleaning and rechecking.

Replacing a lighting coil is usually straightforward. Purchase a compatible replacement (check your engine model number), disconnect the old coil, install the new one, and reconnect the wiring. Always torque mounting screws to the manufacturer’s specification to avoid vibration damage.

Maintenance Tips to Prevent Future Failures

To extend the life of your lighting coil:

• Keep the engine clean: Dirt and debris can trap heat and cause overheating.
• Check connections regularly: Loose or corroded wires reduce efficiency.
• Avoid overloading the electrical system: Don’t run too many accessories at once.
• Store equipment properly: Keep it dry and covered to prevent moisture damage.
• Test annually: Include coil testing in your seasonal maintenance routine.

Regular care helps prevent unexpected failures and keeps your small engine running reliably.

Conclusion

Testing the lighting coil on a small engine is a straightforward process that can save you time, money, and frustration. By using a multimeter to check resistance and voltage output, you can accurately diagnose electrical issues and determine whether the coil needs repair or replacement.

Remember to prioritize safety, follow the step-by-step instructions, and compare your readings to manufacturer specifications. Even if the coil tests fine, inspect it for physical damage and ensure all connections are secure.

With this knowledge, you’re equipped to maintain your small engine’s electrical system and enjoy consistent performance from your equipment. Whether it’s a lawn mower, generator, or snowblower, a healthy lighting coil ensures you have light when you need it most.
