How to Time Your Engine Without a Timing Light

Timing your engine without a timing light is possible with basic tools and careful observation. This guide walks you through safe, effective methods using piston stop tools, degree wheels, and visual cues to achieve accurate ignition timing.

Quick Answers to Common Questions

Tip/Question?

Can I use a screwdriver instead of a piston stop tool?

Yes, in a pinch, you can use a long screwdriver inserted into the spark plug hole to feel when the piston reaches TDC. Just be careful not to damage the piston or cylinder walls.

Tip/Question?

How do I know if my engine is on the compression or exhaust stroke?

Place your thumb over the spark plug hole and rotate the engine. If air is pushed out, you’re on the compression stroke. If air is sucked in, it’s the exhaust stroke.

Tip/Question?

What if my timing marks are worn or missing?

Clean the area with a wire brush and use a permanent marker to create new, clear marks. You can also use a timing tape or make your own degree wheel.

Tip/Question?

Can I time a modern engine without a timing light?

Most modern engines use electronic ignition and don’t require manual timing. However, if you’re working on a classic or carbureted engine, these methods still apply.

Tip/Question?

How often should I check my engine timing?

Check timing whenever you replace the distributor, timing belt, or spark plugs. Also, inspect it if the engine runs poorly or knocks.

How to Time Your Engine Without a Timing Light

If you’re working on a classic car, motorcycle, or any engine without modern electronic ignition, you might not have access to a timing light. But don’t worry—timing your engine accurately is still very much possible. In fact, many experienced mechanics prefer manual timing methods because they give you a deeper understanding of how your engine works.

In this guide, you’ll learn how to time your engine without a timing light using simple tools, careful observation, and proven mechanical techniques. Whether you’re restoring a vintage vehicle or just want to avoid buying specialized equipment, these step-by-step instructions will help you get your engine running smoothly and efficiently.

We’ll cover everything from finding top dead center (TDC) to aligning the distributor and verifying your work. By the end, you’ll have the confidence to time your engine by hand—no fancy tools required.

Understanding Engine Timing Basics

Before diving into the process, it’s important to understand what engine timing actually means. In a four-stroke engine, the spark plug must fire at just the right moment—usually a few degrees before the piston reaches top dead center (TDC) on the compression stroke. This is called “advance” and allows the air-fuel mixture to ignite and build pressure just as the piston begins its downward power stroke.

If the spark happens too early (over-advanced), it can cause knocking or pre-ignition, which may damage the engine. If it’s too late (retarded), the engine will lose power, run poorly, and may overheat.

Timing is controlled by the distributor (in older engines) or the engine control unit (ECU) in modern vehicles. Since we’re focusing on non-electronic methods, we’ll assume you’re working with a distributor-based ignition system.

The goal is to align the distributor so that the spark plug fires at the correct crankshaft angle. Without a timing light, we’ll use mechanical reference points and visual cues to achieve this.

Gather Your Tools and Prepare the Engine

You don’t need much to time an engine manually. Here’s what you’ll need:

• A socket wrench set with the correct size for your crankshaft pulley bolt
• A piston stop tool (or a long bolt that fits into the spark plug hole)
• A timing tape or degree wheel (optional but helpful)
• A permanent marker or chalk
• A flashlight
• A helper (optional but useful)
• A feeler gauge (for checking distributor clearance, if needed)

Before starting, make sure the engine is cool and the ignition is off. Disconnect the battery to prevent accidental starts. Remove the distributor cap and rotor so you can see the distributor shaft and rotor position.

Also, locate the timing marks on your crankshaft pulley and timing cover. These are usually small notches or lines that align when the engine is at TDC. If they’re worn or hard to see, clean them with a wire brush and mark them clearly with a marker.

Step 1: Find Top Dead Center (TDC)

The first and most critical step in timing your engine is finding TDC on the compression stroke. This is the point where the piston is at its highest position and both intake and exhaust valves are closed.

Remove the Spark Plug

Start by removing the spark plug from cylinder 1 (usually the front cylinder on most engines). This gives you access to the combustion chamber so you can feel when the piston is at TDC.

Install the Piston Stop Tool

Screw the piston stop tool into the spark plug hole. This tool has a threaded end that fits into the spark plug hole and a flat surface that the piston will contact when it reaches the top of its stroke.

If you don’t have a piston stop tool, you can use a long bolt that fits snugly into the spark plug hole. Just make sure it’s long enough to be touched by the piston but not so long that it causes damage.

Rotate the Engine by Hand

Using a socket wrench on the crankshaft pulley bolt, slowly rotate the engine in the normal direction of rotation (usually clockwise when viewed from the front). As you turn, the piston will rise and eventually contact the piston stop.

When the piston hits the stop, stop turning. Now, slowly rotate the engine in the opposite direction. The piston will move down, then back up again. When it hits the stop a second time, mark the position of the crankshaft pulley or timing mark.

The point halfway between these two contact points is TDC. Use your marker to make a clear line on the pulley or timing cover at this position.

Verify TDC on the Compression Stroke

It’s important to confirm that you’re at TDC on the compression stroke, not the exhaust stroke. To do this, remove the piston stop and place your thumb over the spark plug hole. Slowly rotate the engine. When you feel air being pushed out, you’re on the compression stroke. When the piston reaches TDC during this phase, you’ve found the correct position.

Step 2: Align the Distributor

Now that you’ve found TDC, it’s time to position the distributor so that the rotor is pointing to cylinder 1 and the ignition is ready to fire.

Check Distributor Position

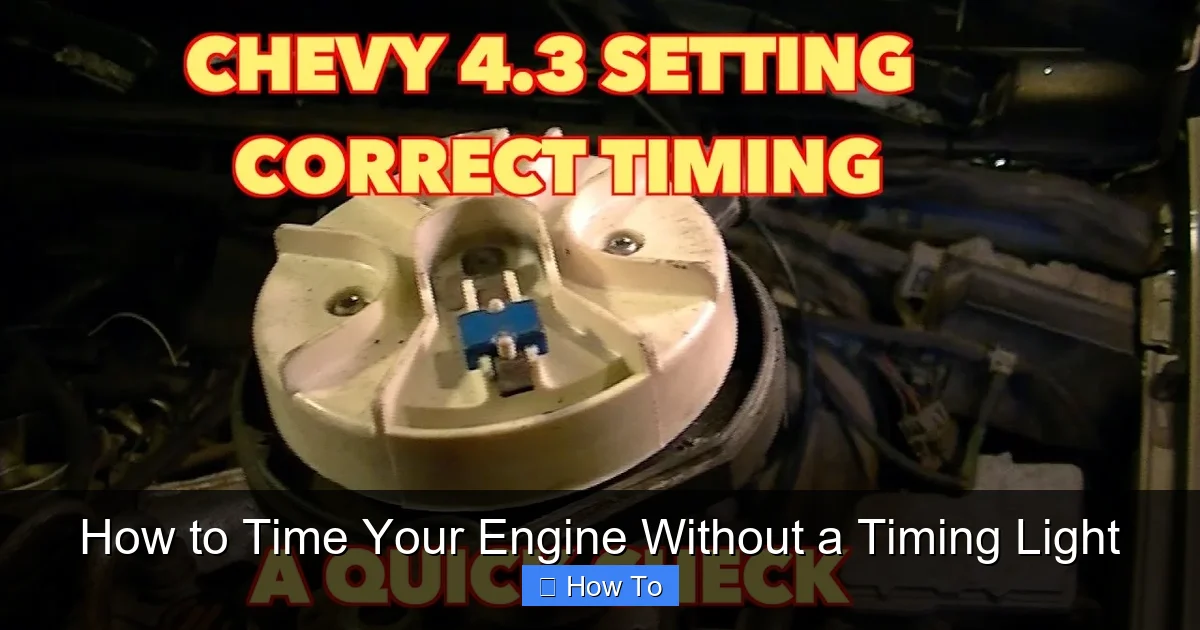

With the distributor cap removed, look at the rotor inside the distributor. It should be pointing toward the terminal for cylinder 1 on the distributor cap. If it’s not, you’ll need to adjust the distributor.

Loosen the Distributor Hold-Down Bolt

Use a wrench to slightly loosen the bolt that holds the distributor in place. This allows you to rotate the distributor body slightly to adjust timing.

Rotate the Distributor

Slowly rotate the distributor body until the rotor is pointing directly at the cylinder 1 terminal. You may need to wiggle it slightly to get it into the correct position.

Once aligned, tighten the hold-down bolt just enough to keep the distributor in place—don’t fully tighten it yet, as you may need to make small adjustments later.

Step 3: Set Initial Timing

Now that the distributor is aligned, you need to set the initial timing. This is the point at which the spark plug fires relative to TDC.

Use a Timing Tape or Degree Wheel (Optional)

If you have a timing tape or degree wheel attached to the crankshaft pulley, you can use it to measure exact degrees of advance. These tools have markings for degrees before TDC (BTDC), which is where most engines fire.

For example, if your engine calls for 10 degrees BTDC, you’ll want the timing mark to align with the 10-degree mark when the spark occurs.

If you don’t have a degree wheel, you can estimate using the factory timing marks. Most engines have a scale on the timing cover with numbers like 0, 5, 10, 15, etc. These represent degrees BTDC.

Estimate Timing Without a Degree Wheel

If you don’t have precise markings, you can estimate timing by using the distance between marks. For example, if the distance between 0 and 10 degrees is about 1 inch, then 5 degrees would be halfway.

Use your marker to make a temporary mark at the desired timing point. For most engines, start with 8–12 degrees BTDC as a baseline.

Adjust the Distributor

With the engine at TDC, rotate the distributor slightly to advance or retard the timing. Turning the distributor housing clockwise (as viewed from above) usually retards the timing, while counterclockwise advances it.

Make small adjustments—no more than 5 degrees at a time—and mark the new position.

Step 4: Test and Fine-Tune the Timing

Now it’s time to test your timing and make adjustments based on how the engine runs.

Reinstall Components

Replace the distributor cap, rotor, and spark plug. Reconnect the battery and any disconnected wires.

Start the Engine

Crank the engine and let it idle. Listen for smooth operation. If the engine runs rough, stalls, or knocks, the timing may be off.

Adjust Based on Performance

If the engine runs poorly, shut it off and make small adjustments to the distributor. Advance the timing slightly if the engine feels sluggish or lacks power. Retard it if you hear knocking or pinging.

Repeat this process until the engine runs smoothly at idle and responds well to throttle input.

Use the “Feel” Method

One traditional method is the “feel” method: with the engine running, gently rotate the distributor while listening to the engine. When the engine sounds smoothest and most responsive, you’ve likely found the optimal timing.

Be careful not to over-rotate the distributor, as this can damage the gears or cause the rotor to lose contact.

Step 5: Verify Valve Timing (If Applicable)

If you’ve recently replaced the timing belt or chain, or if you suspect valve timing is off, it’s important to verify that the camshaft and crankshaft are synchronized.

Check Timing Marks on the Camshaft

Locate the timing marks on the camshaft gear and crankshaft gear. These should align when the engine is at TDC on cylinder 1.

If the marks don’t line up, the valve timing is off, which can cause poor performance or engine damage.

Adjust the Timing Belt or Chain

If the marks are misaligned, you’ll need to adjust the timing belt or chain. This usually involves loosening the tensioner, repositioning the belt, and retightening.

Refer to your vehicle’s service manual for specific instructions, as procedures vary by engine.

Troubleshooting Common Timing Issues

Even with careful work, you might run into problems. Here are some common issues and how to fix them:

Engine Won’t Start

If the engine cranks but won’t start, check that the distributor is properly seated and the rotor is turning. Also, verify that the spark plug wires are connected in the correct firing order.

Engine Knocks or Pings

This usually indicates over-advanced timing. Retard the timing slightly and test again.

Engine Lacks Power or Runs Rough

This could mean the timing is too retarded. Advance the timing in small increments until performance improves.

Timing Marks Don’t Align

If your timing marks never seem to line up, double-check that you’re at TDC on the compression stroke. Also, ensure the crankshaft pulley hasn’t slipped or the timing belt hasn’t jumped a tooth.

Distributor Won’t Stay in Place

If the distributor moves after tightening, the hold-down bolt may be loose or the gasket may be worn. Replace the gasket and tighten the bolt securely.

Safety Tips and Best Practices

Timing an engine manually requires caution. Here are some safety tips to keep in mind:

• Always disconnect the battery before working on the ignition system.
• Never force the engine to turn—use a wrench on the crankshaft pulley, not the fan blades.
• Wear safety glasses when working near the engine.
• Keep loose clothing and long hair away from moving parts.
• Work in a well-ventilated area, especially when testing the engine.

Also, take your time. Rushing can lead to mistakes that damage the engine or require costly repairs.

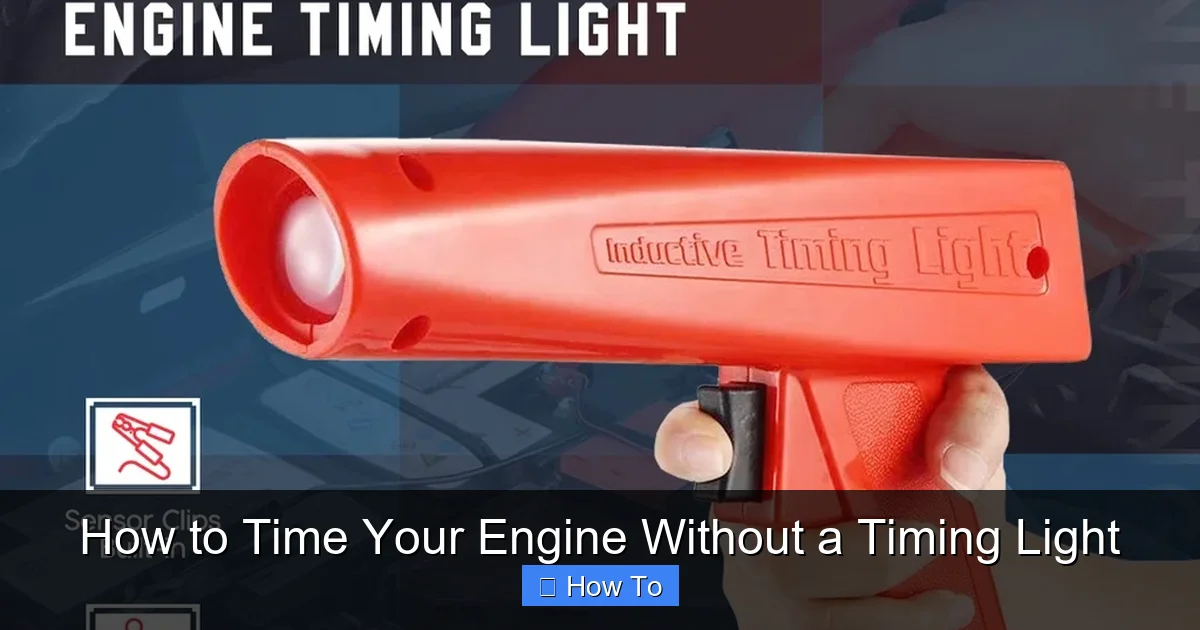

When to Use a Timing Light (And When You Don’t Need One)

While this guide focuses on timing without a timing light, it’s worth noting that a timing light is still the most accurate tool for the job—especially for fine-tuning or diagnosing issues.

However, for initial setup, classic cars, or emergency repairs, manual timing is a reliable alternative. It’s also a great way to learn how your engine works and build mechanical confidence.

If you plan to work on engines regularly, consider investing in a timing light. But for occasional use, the methods described here are more than sufficient.

Conclusion

Timing your engine without a timing light is a valuable skill that every DIY mechanic should know. By finding TDC, aligning the distributor, and making careful adjustments, you can achieve accurate ignition timing using basic tools and a little patience.

This method not only saves money on equipment but also deepens your understanding of engine mechanics. Whether you’re restoring a classic car or just want to avoid a trip to the shop, manual timing gives you control and confidence.

Remember to work slowly, double-check your marks, and test your adjustments carefully. With practice, you’ll be able to time any engine by hand—no electronics required.

Now that you know how to time your engine without a timing light, you’re ready to tackle your next project with skill and precision. Happy wrenching!
