How to Diagnose Check Engine Light on OBD1 Toyota
If you own a Toyota from the 1980s to mid-1990s—like a Camry, Corolla, Supra, or 4Runner—you likely have an OBD1 (On-Board Diagnostics, version 1) system. When your check engine light comes on, it can feel overwhelming, especially if you don’t have a modern OBD2 scanner. But don’t worry: diagnosing the issue on an OBD1 Toyota is actually quite straightforward—and you can do it with just a paperclip and a little patience.
In this guide, you’ll learn exactly how to diagnose a check engine light on OBD1 Toyota vehicles using the built-in self-diagnostic system. No expensive tools required. We’ll walk you through locating the diagnostic port, reading trouble codes manually, understanding what they mean, and taking the right steps to fix the problem.
What Is OBD1 and Why It Matters

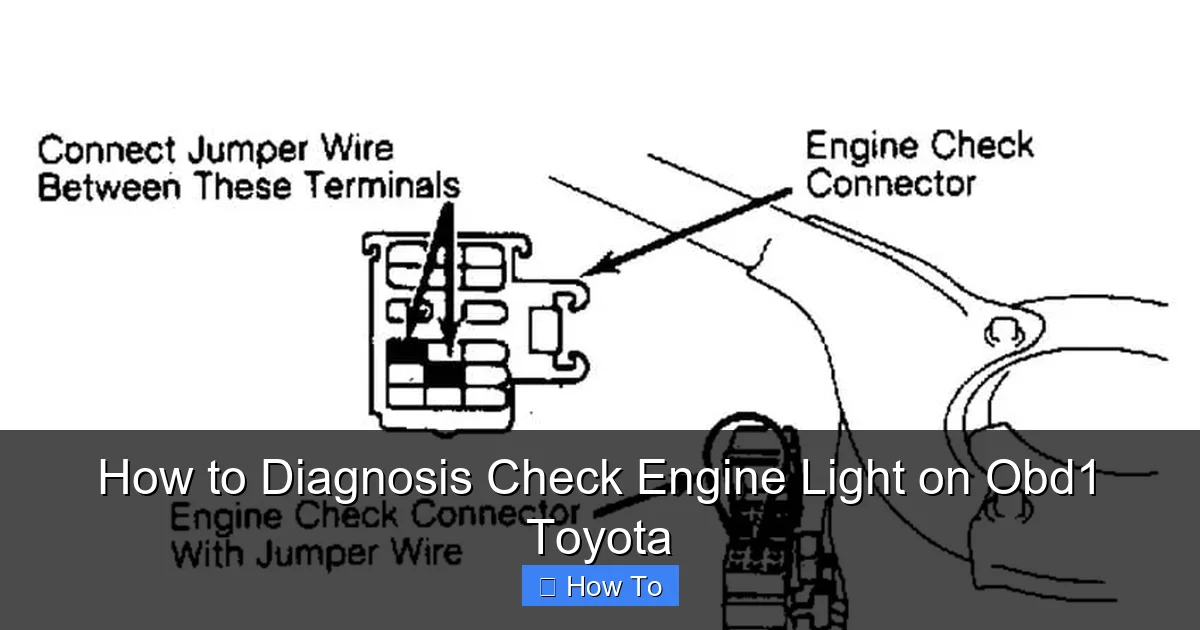

Visual guide about How to Diagnosis Check Engine Light on Obd1 Toyota
Image source: i.ytimg.com
Before diving into the steps, it’s important to understand what OBD1 is. OBD1 was the first generation of onboard vehicle diagnostics, used primarily in the 1980s and early 1990s. Unlike today’s OBD2 systems—which use a universal 16-pin connector and standardized codes—OBD1 systems vary by manufacturer and require manual methods to retrieve trouble codes.
Toyota’s OBD1 system stores diagnostic trouble codes (DTCs) in the Engine Control Unit (ECU). When a sensor or system detects a fault, the ECU turns on the check engine light and records a code. To read that code, you don’t need a scanner. Instead, you use a simple jumper wire to “talk” to the ECU and make it flash the code through the dashboard light.
This method is reliable, cost-effective, and perfect for DIYers who want to troubleshoot their classic Toyota without visiting a mechanic.
Tools You’ll Need
You don’t need much to perform this diagnostic. Here’s what to gather:
- A paperclip, small jumper wire, or a dedicated OBD1 diagnostic jumper
- A flashlight (to see the diagnostic port)
- Your vehicle’s service manual (optional, but helpful for code meanings)
- A notepad and pen (to record the codes)
That’s it! No scan tools, no apps, no subscriptions. Just basic items you probably already have at home.
Step 1: Locate the Data Link Connector (DLC)
The first step in diagnosing your OBD1 Toyota is finding the Data Link Connector (DLC). This is the port that allows communication between you and the ECU.
Where to Look
On most OBD1 Toyotas, the DLC is located under the hood, near the driver’s side firewall or close to the fuse box. It’s a small, rectangular plastic connector with two or three metal pins inside. It may be labeled “DIAGNOSTIC” or simply appear as an unmarked port.
Common locations include:
- Near the brake master cylinder
- Behind the fuse box cover
- Under the intake air duct
If you’re having trouble finding it, consult your owner’s manual or search online for your specific model and year. For example, a 1992 Toyota Camry’s DLC is typically behind the fuse box on the driver’s side.
Identify the Correct Pins
The DLC usually has three pins: TE1, E1, and sometimes +B. For reading codes, you only need to focus on TE1 and E1. These are typically the two pins on the left side of the connector.
TE1 stands for “Test Engine 1” and is used to trigger the diagnostic mode. E1 is the ground reference. By connecting these two, you tell the ECU to start flashing trouble codes.
Step 2: Prepare the Jumper Wire
Now that you’ve found the DLC, it’s time to create a simple jumper.
Make the Jumper
Straighten out a paperclip or use a short piece of insulated wire with exposed ends. You can also buy a pre-made OBD1 jumper online, but a paperclip works just as well.
Insert one end into the TE1 pin and the other into the E1 pin. Make sure the connection is secure—loose contact can prevent the system from entering diagnostic mode.
Safety Tip
Always perform this procedure with the engine off and the key in the “ON” position (but not running). This powers the ECU without starting the engine, which is safer and prevents accidental damage.
Step 3: Turn the Ignition On
With the jumper in place, turn the ignition key to the “ON” position. Do not start the engine—just turn it so that the dashboard lights up.
You should see the check engine light illuminate. If it doesn’t, double-check your connections and ensure the battery has enough charge.
Step 4: Read the Trouble Codes
This is the most important part: interpreting the flashes.
Watch the Check Engine Light
Once the ignition is on and the jumper is connected, the check engine light will begin to flash in a specific pattern. These flashes represent the trouble code.
Each code is a two-digit number. The first digit is shown by long flashes, and the second digit by short flashes.
For example:
- Code 21 = Two long flashes, then one short flash
- Code 41 = Four long flashes, then one short flash
- Code 12 = One long flash, then two short flashes
The ECU will repeat the code several times, then pause before showing the next one (if multiple codes are stored).
Record the Codes
Use your notepad to write down each code as it appears. Some common OBD1 Toyota codes include:
- Code 21: Oxygen sensor malfunction
- Code 22: Coolant temperature sensor issue
- Code 24: Intake air temperature sensor fault
- Code 25: Air-fuel ratio too rich
- Code 26: Air-fuel ratio too lean
- Code 41: Air-fuel ratio sensor circuit problem
- Code 71: Exhaust Gas Recirculation (EGR) system malfunction
Refer to your service manual or a reliable online OBD1 Toyota code chart for a full list.
Step 5: Interpret and Troubleshoot the Code
Once you have the code, it’s time to figure out what’s wrong.
Common Causes and Fixes
Let’s look at a few frequent issues:
Code 21 (Oxygen Sensor): The O2 sensor monitors exhaust gases to help the ECU adjust the air-fuel mixture. A faulty sensor can cause poor fuel economy and increased emissions. Check the sensor’s wiring and connector. If it’s damaged or corroded, replace it.
Code 41 (Air-Fuel Ratio Sensor): Similar to the O2 sensor, this code often points to a bad sensor or a vacuum leak. Inspect hoses and gaskets for cracks or loose connections.
Code 71 (EGR System): The EGR valve recirculates exhaust gases to reduce emissions. If it’s stuck or clogged, it can trigger this code. Clean or replace the valve as needed.
When to Seek Help
While many OBD1 codes can be resolved with basic repairs, some issues—like internal engine problems or wiring harness damage—may require professional diagnosis. If you’re unsure, consult a mechanic familiar with older Toyotas.
Step 6: Clear the Codes
After making repairs, you’ll want to clear the trouble codes and reset the ECU.
Disconnect the Battery
The simplest way to clear OBD1 codes is to disconnect the negative terminal of the battery. Use a wrench to loosen the clamp and remove the cable.
Leave it disconnected for at least 10–15 minutes. This allows the ECU to fully reset and lose its stored memory, including the trouble codes.
Reconnect and Test
Reattach the battery cable and tighten it securely. Turn the ignition back on and check if the check engine light remains off. If it comes back on, the problem may not be fully resolved—or a new issue has appeared.
Verify the Fix
To confirm the repair worked, repeat the diagnostic procedure. If no codes appear, you’ve successfully fixed the issue. If the same code returns, further investigation is needed.
Troubleshooting Tips
Even with the right steps, you might run into issues. Here are some common problems and solutions:
- No flashes at all: Check your jumper connection. Ensure the paperclip is fully inserted into TE1 and E1. Also, verify the ignition is on and the battery has power.
- Only one long flash: This usually means no codes are stored—either the system is clear or the ECU isn’t entering diagnostic mode. Recheck your connections.
- Intermittent codes: Some codes appear only under certain conditions (e.g., during cold starts). Drive the car normally for a few days and recheck.
- Multiple codes: Address them in order of priority. Start with emissions-related codes (like O2 sensor) before moving to less critical ones.
Final Thoughts
Diagnosing a check engine light on an OBD1 Toyota doesn’t have to be intimidating. With just a paperclip and a few minutes, you can read trouble codes, identify the problem, and take action—all without spending money on a mechanic or scanner.
Remember: the key steps are locating the DLC, jumpering TE1 and E1, reading the flash pattern, and interpreting the code. Once you’ve fixed the issue, clear the codes and verify the repair.
By mastering this process, you’ll save time, money, and gain confidence in maintaining your classic Toyota. Whether it’s a faulty oxygen sensor or a vacuum leak, you now have the tools to tackle it head-on.
Keep this guide handy for future reference, and don’t hesitate to consult your service manual for model-specific details. With a little know-how, your OBD1 Toyota will stay running smoothly for years to come.
