Installing headers can trigger a check engine light due to changes in exhaust flow and oxygen sensor readings. This guide walks you through diagnosing the issue, clearing codes, and ensuring your vehicle runs smoothly post-installation. You’ll also learn when a tune or sensor adjustment is necessary.
Key Takeaways
- Understand why the light comes on: Headers alter exhaust flow, which can confuse the ECU and trigger O2 sensor-related trouble codes.
- Use an OBD2 scanner to read codes: Identify the specific issue (e.g., P0420, P0135) before taking action.
- Clear the code temporarily: Use a scanner or disconnect the battery, but know this won’t fix the root cause.
- Consider a performance tune: A custom or off-the-shelf tune adjusts fuel and timing maps to match your new headers.
- Install O2 sensor spacers or simulators: These can trick the ECU into ignoring downstream sensor discrepancies.
- Check for exhaust leaks: Even small leaks can cause false readings and keep the light on.
- Be patient with drive cycles: Some monitors take multiple drive cycles to reset after clearing codes.
How to Remove Check Engine Light After Installing Headers
So, you’ve just installed a shiny set of performance headers on your car. You’re excited—better airflow, improved sound, maybe even a few extra horsepower. But then… the dreaded check engine light pops up on your dashboard. Don’t panic. This is actually pretty common after header installations, especially on modern vehicles with strict emissions monitoring systems.
The good news? You can often resolve this issue without expensive repairs or dealership visits. This guide will walk you through exactly how to remove the check engine light after installing headers—step by step. Whether you’re a DIY enthusiast or just trying to save a few bucks, you’ll learn how to diagnose the problem, clear the code, and keep your engine running smoothly.
We’ll cover everything from understanding why the light comes on, to using diagnostic tools, clearing codes, and even tuning your engine for optimal performance. By the end, you’ll know whether a simple reset will do the trick—or if you need a more advanced solution like a tune or sensor modification.
Let’s get started.
Why Does the Check Engine Light Come On After Installing Headers?

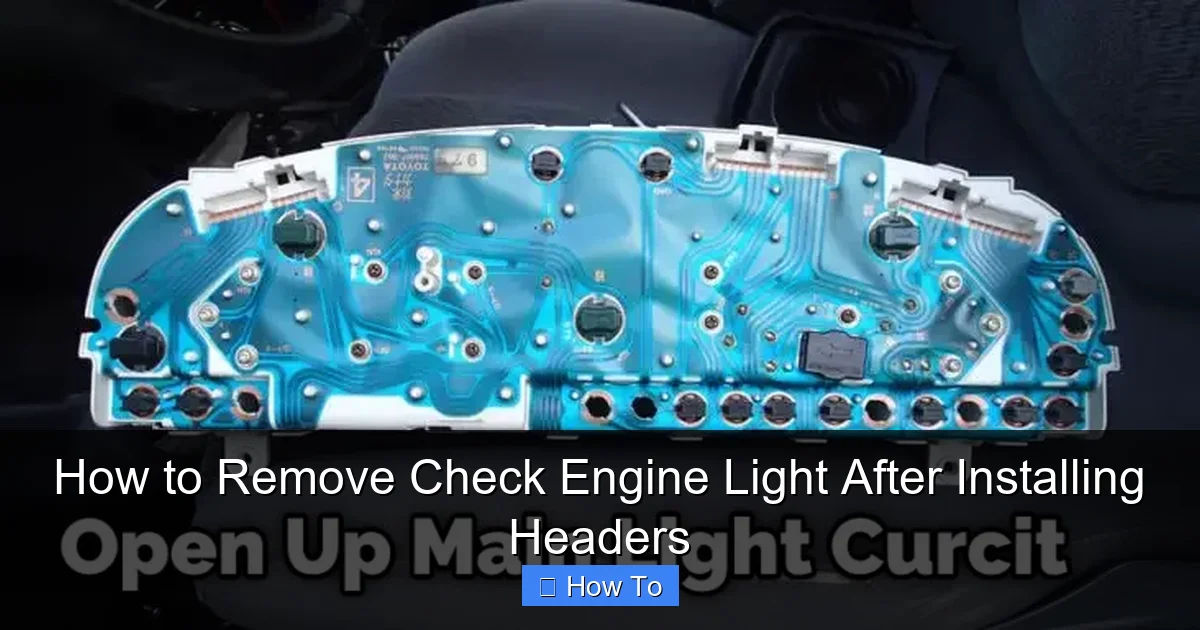

Visual guide about How to Remove Check Engine Light After Installing Headers
Image source: townsquare.media
Before we dive into fixes, it’s important to understand *why* the check engine light appears in the first place. Headers change the way exhaust gases flow out of your engine. While this improves performance, it can also confuse your car’s onboard computer—the Engine Control Unit (ECU).
Here’s what happens:
Your vehicle uses oxygen (O2) sensors to monitor the efficiency of the catalytic converter and the air-fuel mixture. There are typically two O2 sensors: one before the catalytic converter (upstream) and one after (downstream). When you install headers, especially long-tube or equal-length headers, the exhaust flow pattern changes. This can cause the downstream O2 sensor to read differently than expected.
The ECU compares the readings from both sensors. If it detects that the catalytic converter isn’t working as efficiently as it should (based on the downstream sensor), it may trigger a trouble code like P0420 (Catalyst System Efficiency Below Threshold). Even though your new headers aren’t hurting the environment, the ECU thinks something’s wrong.
Other common codes include:
– P0135: O2 Sensor Heater Circuit Malfunction (Bank 1, Sensor 1)
– P0141: O2 Sensor Heater Circuit Malfunction (Bank 1, Sensor 2)
– P0155 or P0161: Similar heater circuit issues for Bank 2
These codes often appear because the new headers may relocate or expose O2 sensors to different temperatures or exhaust flow patterns, causing the heater circuits to behave differently.
Additionally, if you removed or modified the catalytic converter (even slightly), the ECU will definitely notice. Some headers are designed to work with high-flow cats or cat-delete setups, but this can trigger emissions-related codes on vehicles that are still under emissions compliance.
In short: the check engine light isn’t necessarily a sign of damage. It’s your car’s way of saying, “Hey, something’s different down here—I’m not sure if it’s safe.”
Step 1: Read the Trouble Codes with an OBD2 Scanner
The first step in removing the check engine light is figuring out *why* it’s on. You can’t fix a problem if you don’t know what it is. That’s where an OBD2 (On-Board Diagnostics) scanner comes in.
What Is an OBD2 Scanner?
An OBD2 scanner is a small device that plugs into your car’s diagnostic port (usually under the dashboard, near the steering wheel). It reads the trouble codes stored in your ECU and displays them in plain language or as alphanumeric codes (like P0420).
You can buy a basic scanner for under $30, or invest in a more advanced one with live data and reset capabilities. Even a simple Bluetooth OBD2 adapter that works with your smartphone (via apps like Torque Pro or OBD Fusion) will do the job.
How to Use the Scanner
- Turn off your engine.
- Locate the OBD2 port—typically under the dashboard on the driver’s side.
- Plug in the scanner.
- Turn the ignition to the “ON” position (don’t start the engine).
- Follow the scanner’s instructions to read the codes.
Once you’ve retrieved the codes, write them down. Common ones after header installs include:
– P0420: Catalyst efficiency below threshold
– P0135/P0141: O2 sensor heater circuit issues
– P0430: Same as P0420, but for Bank 2
These codes will help you determine the best course of action.
What the Codes Mean
Let’s break down a few key codes:
P0420: This means the downstream O2 sensor isn’t seeing the expected drop in oxygen levels after the catalytic converter. With headers, exhaust flow changes can make the converter appear less efficient—even if it’s working fine.
P0135 or P0141: These indicate a problem with the heater circuit in the upstream or downstream O2 sensor. Headers can expose sensors to higher temperatures or vibration, potentially damaging the heater element or wiring.
P0430: Same as P0420, but for the passenger side (Bank 2) on V6 or V8 engines.
Knowing the exact code helps you decide whether to clear it, replace a sensor, or adjust your setup.
Step 2: Clear the Check Engine Light
Once you’ve read the codes, the next step is to clear the check engine light. This won’t fix the underlying issue, but it will turn off the light—at least temporarily.
Method 1: Use the OBD2 Scanner
Most scanners have a “Clear Codes” or “Erase DTCs” option. Simply select it, confirm, and the light should go off. This is the cleanest and most reliable method.
Method 2: Disconnect the Battery
If you don’t have a scanner, you can disconnect the car battery to reset the ECU:
- Turn off the engine and remove the key.
- Disconnect the negative (-) terminal of the battery.
- Wait 10–15 minutes (this allows the ECU to fully reset).
- Reconnect the terminal.
- Start the car and check if the light is off.
Note: This method may also reset radio presets, clock, and other settings. Some newer vehicles have backup power that prevents a full reset, so the light might come back.
Method 3: Drive Cycle Reset (Sometimes Works)
In rare cases, the ECU may clear the code on its own after a few drive cycles—especially if the issue was temporary (like a loose connection during install). A drive cycle involves starting the car, driving at various speeds, and letting it idle. However, this is unreliable and not recommended as a primary solution.
Important Note
Clearing the code is just a temporary fix. If the root cause isn’t addressed, the light will likely come back—sometimes within minutes or after a few miles. That’s why the next steps are crucial.
Step 3: Inspect for Exhaust Leaks
One of the most overlooked causes of post-header check engine lights is an exhaust leak. Even a small leak near an O2 sensor can introduce extra oxygen into the exhaust stream, fooling the sensor into thinking the catalytic converter isn’t working.
How to Check for Leaks
- Start the engine and let it idle.
- Listen for hissing or ticking sounds near the header flanges, collector, or O2 sensor bungs.
- Use a piece of cardboard or your hand (carefully!) to feel for air escaping.
- Spray soapy water on the joints—bubbles will form if there’s a leak.
Common leak points:
– Header-to-manifold gaskets
– Collector bolts (may need re-torquing)
– O2 sensor threads (if not sealed properly)
Fixing the Leak
– Tighten loose bolts to the manufacturer’s torque specs.
– Replace worn gaskets with high-temperature exhaust gaskets.
– Use anti-seize on O2 sensor threads (but not on the sensor tip).
– For persistent leaks, consider using exhaust sealant or replacing damaged components.
Once the leak is fixed, clear the code again and monitor the light.
Step 4: Check and Replace O2 Sensors (If Needed)
If the codes point to O2 sensor heater circuit issues (like P0135), the sensor itself may be damaged—especially if it was exposed to excessive heat or vibration during header installation.
How to Test O2 Sensors
You can test O2 sensors with a multimeter or advanced scanner:
– Check resistance across the heater circuit (should be 5–20 ohms, depending on the sensor).
– Use live data to see if the sensor is responding to changes in exhaust flow.
If the sensor is faulty, replace it with an OEM or high-quality aftermarket unit. Avoid cheap sensors—they often fail quickly and can cause more problems.
Tip: Use OEM Sensors When Possible
Aftermarket O2 sensors can sometimes cause compatibility issues. If you’re getting persistent codes, try an OEM sensor from your dealership or a trusted parts supplier.
Step 5: Install O2 Sensor Spacers or Simulators
If the check engine light keeps coming back due to a P0420 code (catalyst efficiency), and you’re confident your catalytic converter is working fine, you may need to trick the ECU.
What Are O2 Sensor Spacers?
O2 sensor spacers are small adapters that move the downstream O2 sensor slightly away from the exhaust stream. This reduces the sensor’s sensitivity to oxygen levels, making it less likely to trigger a P0420 code.
They’re especially useful if you’ve installed long-tube headers that move the catalytic converter further back, changing the exhaust flow pattern.
How to Install a Spacer
- Remove the downstream O2 sensor.
- Screw the spacer into the bung.
- Reinstall the O2 sensor into the spacer.
- Clear the code and test drive.
Note: Spacers are not a permanent fix and may not work on all vehicles. Some states consider them emissions tampering, so check local laws.
O2 Sensor Simulators (Advanced Option)
For a more permanent solution, consider an O2 sensor simulator (also called a “cat simulator” or “emulator”). These devices plug into the O2 sensor harness and mimic the signal of a working catalytic converter.
They’re more expensive ($100–$300) but highly effective. Popular brands include:
– Spark Innovations
– JDM Engineering
– Vivid Racing
Simulators are ideal for track cars or vehicles no longer under emissions testing.
Step 6: Get a Performance Tune
The most effective long-term solution for removing the check engine light after installing headers is a performance tune.
Why a Tune Helps
A tune reprograms your ECU to account for the new exhaust setup. It adjusts:
– Air-fuel ratios
– Ignition timing
– O2 sensor monitoring thresholds
This ensures your engine runs efficiently and prevents false trouble codes.
Types of Tunes
Off-the-Shelf (OTS) Tunes: Pre-written tunes for common modifications. Available from companies like Cobb, DiabloSport, or HP Tuners. Easy to install with a handheld tuner.
Custom Tunes: Created by a professional tuner using a dyno and real-time data. More expensive but optimized for your specific setup.
How to Get a Tune
1. Purchase a compatible tuning device (e.g., Cobb Accessport, DiabloSport Trinity).
2. Connect it to your OBD2 port.
3. Follow the prompts to upload the tune.
4. Drive the car to allow the ECU to adapt.
After tuning, clear any existing codes and complete a few drive cycles. The check engine light should stay off.
Tip: Combine with Other Mods
If you’ve also installed a cold air intake, throttle body, or camshaft, a tune becomes even more important. It ensures all components work together harmoniously.
Step 7: Complete Drive Cycles to Reset Monitors
Even after clearing codes and fixing issues, your vehicle’s onboard diagnostics system runs self-tests called “monitors.” These include:
– Catalyst monitor
– O2 sensor monitor
– Evaporative system monitor
Until these monitors complete, the check engine light may not stay off permanently—especially if you’re due for an emissions test.
How to Complete Drive Cycles
A drive cycle varies by vehicle, but generally includes:
– Cold start (engine off for at least 8 hours)
– Idle for 2–3 minutes
– Drive at 30–50 mph for 5–10 minutes
– Accelerate and decelerate smoothly
– Let the car idle again
Repeat this process 2–3 times. Use an OBD2 scanner to check monitor status—most show “Ready” or “Incomplete.”
Tip: Use a Scanner to Monitor Progress
Advanced scanners can show which monitors are complete. Aim for all critical monitors (catalyst, O2, EVAP) to be “Ready” before an emissions test.
Troubleshooting Common Issues
Even after following these steps, you might run into problems. Here’s how to handle them:
Light Comes Back Immediately
– Likely cause: Persistent O2 sensor issue or exhaust leak.
– Solution: Recheck sensors, wiring, and gaskets. Consider a tune.
Only One Bank Shows a Code (e.g., P0420 on Bank 1 Only)
– Likely cause: Uneven exhaust flow or a faulty sensor on one side.
– Solution: Swap sensors between banks to see if the code follows the sensor.
No Codes, But Light Is On
– Likely cause: Intermittent issue or pending code.
– Solution: Drive the car for a few days, then recheck with a scanner.
Vehicle Fails Emissions Test
– Likely cause: Monitors not ready or actual emissions issue.
– Solution: Complete drive cycles or consult a professional.
Final Tips for Success
– Always use high-quality headers and gaskets.
– Torque header bolts in the correct sequence to prevent leaks.
– Avoid cutting or welding O2 sensor bungs unless necessary.
– Keep your OBD2 scanner handy for future diagnostics.
– If in doubt, consult a professional tuner or mechanic.
Conclusion
Removing the check engine light after installing headers is totally doable—with the right approach. Start by reading the codes, then inspect for leaks, test your O2 sensors, and consider spacers or a tune if needed. While a simple code clear might work temporarily, a proper tune is the best long-term solution for performance and reliability.
Remember, the light is your car’s way of communicating. Listen to it, diagnose the issue, and take action. With this guide, you’re well-equipped to keep your engine running smoothly and your dashboard free of warnings.
Now go enjoy that sweet exhaust note—without the pesky light.
