Replacing the check engine light bulb in a 2000 Dodge Caravan is a simple DIY task that can save you a trip to the mechanic. This guide walks you through locating the bulb, removing the instrument cluster, and installing a new one safely and correctly.
Key Takeaways
- Understand the difference between a check engine light and a dashboard bulb: The check engine light is controlled by the vehicle’s computer, but the bulb that illuminates it can burn out and needs replacement.
- Gather the right tools before starting: You’ll need a screwdriver set, a replacement bulb (typically a #194 or #161), and possibly a socket wrench for dashboard access.
- Disconnect the battery for safety: Always disconnect the negative terminal to prevent electrical shorts or accidental airbag deployment.
- Handle the instrument cluster carefully: The cluster is fragile and connected by multiple wires—take your time to avoid damaging connectors or clips.
- Use the correct bulb type: Using the wrong bulb can lead to poor illumination or electrical issues—check your owner’s manual or existing bulb for specifications.
- Test the new bulb before reassembly: Reconnect the battery and turn on the ignition to confirm the light works before putting everything back together.
- Know when to seek professional help: If the light still doesn’t work after bulb replacement, the issue may be with the sensor or wiring, requiring a mechanic’s diagnosis.
How to Replace Check Engine Light Bulb 2000 Dodge Caravan
If you’ve noticed that the check engine light on your 2000 Dodge Caravan isn’t lighting up when you turn the key to the “on” position, it might not be a problem with your engine—it could simply be a burnt-out bulb. While the check engine light is controlled by your vehicle’s onboard computer (OBD-II system), the actual illumination comes from a small incandescent or LED bulb behind the instrument cluster. Over time, these bulbs can burn out just like any other light.
The good news? Replacing the check engine light bulb in a 2000 Dodge Caravan is a manageable DIY project for most car owners. You don’t need advanced mechanical skills, just patience, the right tools, and a clear guide. In this comprehensive how-to, we’ll walk you through every step—from preparing your workspace to testing the new bulb—so you can get your dashboard lighting back to normal without spending money at the repair shop.
This guide is designed for the 2000 Dodge Caravan, but many of the steps apply to similar minivans from that era. Whether you’re a weekend mechanic or a first-time DIYer, you’ll find clear instructions, helpful tips, and troubleshooting advice to make the job smooth and stress-free.
What You’ll Need

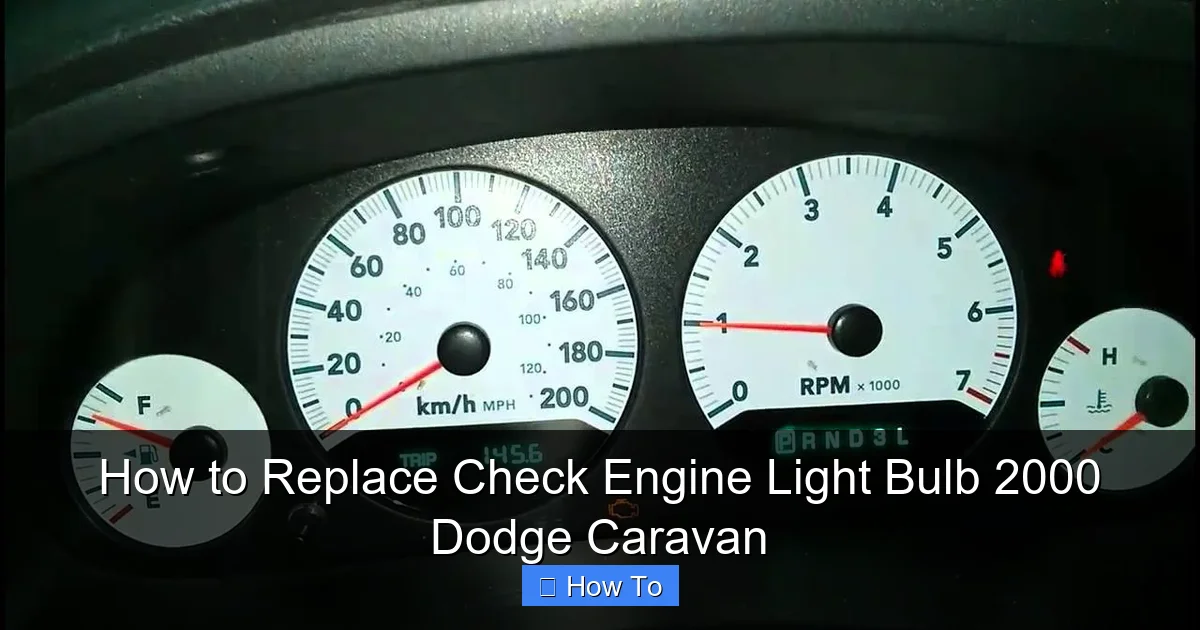

Visual guide about How to Replace Check Engine Light Bulb 2000 Dodge Caravan
Image source: i.ytimg.com
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-process.
- Replacement bulb: Most 2000 Dodge Caravans use a #194 or #161 wedge-base bulb for dashboard indicators. Check your owner’s manual or inspect the old bulb to confirm.
- Screwdrivers: A set of Phillips and flathead screwdrivers. A small flathead is especially useful for prying clips.
- Socket wrench set: A 10mm socket is commonly needed for dashboard screws.
- Trim removal tools (optional but helpful): Plastic pry tools prevent scratching or breaking dashboard trim.
- Flashlight: To see into tight spaces behind the dashboard.
- Gloves (optional): To protect your hands and keep oils off the new bulb.
- Clean cloth: For wiping down surfaces and handling the bulb.
- Electrical tape (optional): In case you need to secure a loose wire temporarily.
Safety First: Precautions Before Starting
Working inside a vehicle’s dashboard involves electrical components and delicate parts. Taking a few safety precautions can prevent injury and damage.
Disconnect the Battery
Always start by disconnecting the negative terminal of your car battery. This prevents accidental short circuits, electrical shocks, or triggering the airbag system while working near the steering column and dashboard.
- Open the hood and locate the battery.
- Use a wrench to loosen the nut on the negative (black) terminal.
- Remove the cable and tuck it away from the battery post so it doesn’t accidentally reconnect.
Allow the Vehicle to Cool
If your Caravan has been running recently, give it at least 30 minutes to cool down. This reduces the risk of burns from hot engine components and makes handling parts more comfortable.
Work in a Well-Lit, Clean Area
Choose a flat, well-lit workspace—ideally a garage with good lighting. Clear the area around your vehicle to give yourself room to move and lay out tools. A clean workspace also reduces the chance of losing small screws or parts.
Step 1: Remove the Instrument Cluster Bezel
The instrument cluster bezel is the plastic trim that surrounds the speedometer, tachometer, and warning lights. It must be removed to access the cluster itself.
Locate the Screws
On the 2000 Dodge Caravan, the bezel is typically held in place by four screws—two at the top near the windshield and two at the bottom near the steering column. Some models may have additional clips, so be gentle when prying.
Remove the Screws
Use a Phillips screwdriver to carefully remove all visible screws. Place them in a small container or magnetic tray so you don’t lose them.
Gently Pry Off the Bezal
Once the screws are out, use a plastic trim tool or a flathead screwdriver wrapped in cloth to gently pry the bezel away from the dashboard. Start at the bottom and work your way around. The bezel is usually held by plastic clips—apply even pressure to avoid breaking them.
Tip: If a clip feels stuck, wiggle the bezel slightly rather than forcing it. Most clips release with a soft “pop.”
Step 2: Remove the Instrument Cluster
With the bezel removed, you’ll now see the instrument cluster—the panel containing your gauges and warning lights.
Disconnect the Electrical Connectors
The cluster is connected to the vehicle’s wiring harness by one or more electrical connectors. These are usually located at the back of the cluster.
- Locate the main connector(s)—they’re often gray or black and have a locking tab.
- Press the tab and gently pull the connector straight out. Do not yank or twist.
- If there are multiple connectors, take a photo or label them to remember the correct order for reinstallation.
Remove the Cluster Screws
The cluster is typically secured by four screws—two on the top and two on the bottom. Use your screwdriver or socket wrench to remove them.
Carefully Pull Out the Cluster
Once the screws and connectors are removed, gently pull the cluster toward you. It should slide out smoothly. Be careful not to scratch the face of the gauges or damage the wiring.
Tip: If the cluster feels stuck, double-check for hidden screws or clips. Some models have a small screw under a sticker or cap.
Step 3: Access the Check Engine Light Bulb
Now that the cluster is out, you can access the back side where the bulbs are located.
Locate the Bulb Sockets
On the back of the cluster, you’ll see several small bulb sockets—each corresponding to a different warning light or gauge. The check engine light is usually labeled or positioned near the center, often marked with an engine icon.
Identify the Correct Socket
The check engine light bulb socket is typically a small, twist-lock type. It may be labeled “CHECK ENGINE” or have a diagram. If unsure, compare it to other sockets—the check engine light is often a single bulb, while others (like turn signals) may have dual filaments.

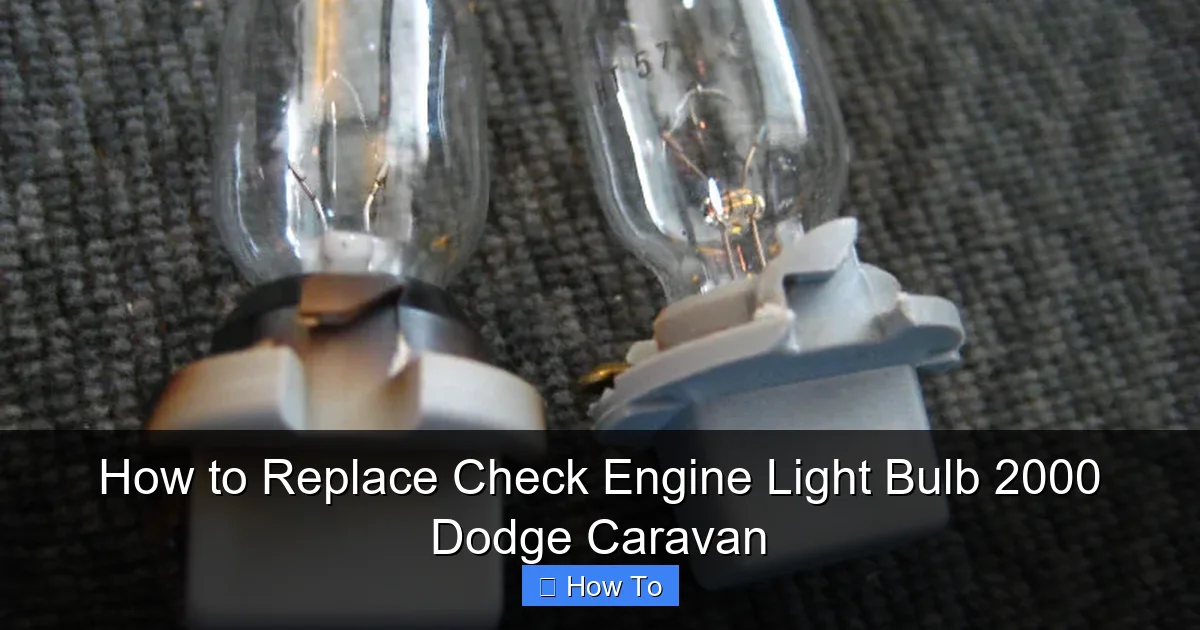

Remove the Old Bulb
To remove the bulb:
- Gently twist the socket counterclockwise (about 1/4 turn) until it unlocks.
- Pull the socket straight out from the cluster.
- The bulb will be seated in the socket—carefully pull it straight out.
Note: Some bulbs are wedge-base and simply pull out. Others may have a small clip. Avoid using excessive force.
Step 4: Install the New Bulb
Now it’s time to install the replacement bulb.
Choose the Right Bulb
As mentioned earlier, most 2000 Dodge Caravans use a #194 or #161 bulb. These are small, T3 wedge-base bulbs commonly used in dashboard applications. You can find them at auto parts stores, hardware stores, or online.
Tip: Bring the old bulb with you to the store to ensure a perfect match.
Insert the New Bulb
- Take the new bulb and align the wedge base with the socket.
- Gently push it in until it’s seated securely. Do not force it.
- Reinsert the socket into the cluster and twist it clockwise to lock it in place.
Important: Avoid touching the glass part of the bulb with your bare fingers. Oils from your skin can cause the bulb to overheat and fail prematurely. Use a clean cloth or gloves if necessary.
Step 5: Test the New Bulb
Before reassembling everything, it’s smart to test the new bulb to make sure it works.
Reconnect the Battery
Temporarily reconnect the negative battery terminal. This will allow power to flow to the cluster.
Turn the Ignition to “On”
Do not start the engine—just turn the key to the “on” position. This activates the dashboard lights.
Check the Check Engine Light
The check engine light should illuminate briefly (along with other warning lights) as part of the system check. If it lights up, the new bulb is working correctly.
Tip: If the light doesn’t come on, double-check that the socket is fully seated and the bulb is properly installed. Also, ensure the battery connection is secure.
Step 6: Reassemble the Dashboard
Once you’ve confirmed the bulb works, it’s time to put everything back together.
Reinstall the Instrument Cluster
- Carefully slide the cluster back into place, aligning it with the mounting holes.
- Secure it with the four screws you removed earlier.
- Reconnect the electrical connectors by pushing them in until they click.
Reattach the Bezel
- Align the bezel with the dashboard and press it into place.
- Start at the top and work your way down, ensuring all clips engage.
- Reinstall the screws and tighten them gently—do not overtighten, as this can crack the plastic.
Reconnect the Battery
Once everything is back in place, reconnect the negative battery terminal and tighten the nut securely.
Troubleshooting Common Issues
Even with careful work, you might run into a few hiccups. Here’s how to handle common problems.
The Check Engine Light Still Doesn’t Work
If the new bulb doesn’t light up after reassembly:
- Double-check the bulb installation—ensure it’s the correct type and properly seated.
- Inspect the socket for corrosion or damage. Clean it with electrical contact cleaner if needed.
- Verify that the electrical connector to the cluster is fully plugged in.
- Check the fuse for the instrument panel. A blown fuse could prevent power from reaching the cluster.
Other Dashboard Lights Are Out
If multiple lights are not working, the issue may be:
- A blown fuse—check the fuse box under the dashboard or in the engine compartment.
- A loose or damaged connector—recheck all wiring connections.
- A faulty instrument cluster—rare, but possible if the cluster was damaged during removal.
Airbag Light Comes On
If the airbag warning light appears after reassembly, it may have been triggered during disassembly. This can happen if the clockspring (a component behind the steering wheel) was disturbed. In most cases, the light will reset after a few drive cycles. If it persists, use an OBD-II scanner to clear the code or visit a mechanic.
Bulb Burns Out Quickly
If the new bulb burns out within a short time:
- Ensure you’re using the correct voltage and wattage.
- Avoid touching the bulb glass.
- Check for voltage spikes or grounding issues—consult a professional if problems continue.
Maintenance Tips to Prevent Future Issues
To keep your dashboard lights in good working order:
- Inspect dashboard lights periodically during oil changes or inspections.
- Replace bulbs in pairs if multiple indicators are dim or flickering.
- Keep the instrument cluster clean—dust and debris can affect bulb performance.
- Use dielectric grease on bulb sockets to prevent corrosion.
When to Call a Professional
While replacing a check engine light bulb is a simple task, there are times when professional help is needed:
- If the check engine light still doesn’t work after bulb replacement, the issue may be with the OBD-II system, sensor, or wiring.
- If you’re uncomfortable working with electrical systems or airbag components.
- If the instrument cluster is damaged or malfunctioning beyond a bulb issue.
A certified mechanic can run a diagnostic scan to determine if the problem is electrical, sensor-related, or computer-based.
Conclusion
Replacing the check engine light bulb in your 2000 Dodge Caravan is a straightforward DIY job that can save you time and money. With the right tools, a bit of patience, and this step-by-step guide, you can restore your dashboard’s functionality in under an hour. Remember to prioritize safety—disconnect the battery, handle components gently, and test your work before reassembly.
Not only does this repair improve your vehicle’s visibility and safety, but it also gives you confidence in handling future maintenance tasks. Whether you’re a seasoned DIYer or tackling your first car repair, this project is a great way to learn more about your vehicle’s systems.
If the check engine light comes on after replacement, don’t panic—it may simply be alerting you to a real engine issue. Use an OBD-II scanner to read the code and address the underlying problem. But if the light stays off and your dashboard looks good, you’ve successfully completed the job.
Keep this guide handy for future reference, and don’t hesitate to share it with fellow Dodge Caravan owners. With regular maintenance and a little know-how, your 2000 Caravan can keep running smoothly for years to come.
