Discover simple, safe methods to reset the engine management light on your Toyota Yaris, whether you’re using an OBD2 scanner, disconnecting the battery, or following a manual procedure. This guide covers all model years and includes troubleshooting tips to keep your Yaris running smoothly.
Key Takeaways
- Understand why the engine management light comes on: It’s usually triggered by emissions issues, sensor faults, or loose gas caps—not always serious problems.
- Use an OBD2 scanner for the most reliable reset: This tool reads error codes and safely clears the light after repairs are made.
- Manual reset methods work but aren’t always effective: Disconnecting the battery or using ignition cycles may clear the light temporarily, but won’t fix underlying issues.
- Always address the root cause first: Resetting the light without fixing the problem can lead to further damage or failed MOT tests.
- Check your gas cap—it’s a common culprit: A loose or damaged cap can trigger the light and is an easy, free fix.
- Some older Yaris models require specific procedures: Pre-2005 models may need longer ignition cycles or professional tools.
- Resetting won’t void your warranty: Using approved methods or dealership tools keeps your Toyota warranty intact.
How to Reset Engine Management Light on Toyota Yaris
If you’ve noticed the engine management light glowing on your Toyota Yaris dashboard, don’t panic—it’s a common occurrence. This amber or orange light, often shaped like an engine or labeled “Check Engine,” is your car’s way of saying something needs attention. While it can indicate anything from a loose gas cap to a serious engine fault, the good news is that resetting it is usually straightforward.
In this comprehensive guide, you’ll learn how to reset the engine management light on your Toyota Yaris using multiple methods—from simple DIY fixes to professional tools. Whether you drive a 2005 Yaris, a 2015 hybrid, or a 2022 model, we’ve got you covered. We’ll walk you through each step, explain why the light came on, and help you avoid common mistakes.
By the end of this guide, you’ll know exactly what to do when that little light pops up—and how to keep your Yaris running smoothly for years to come.
Why Does the Engine Management Light Come On?
Before you reset the light, it’s important to understand why it turned on in the first place. The engine management light (also called the Malfunction Indicator Lamp or MIL) is part of your Yaris’s onboard diagnostics system (OBD2). It monitors everything from fuel efficiency to emissions and engine performance.
Here are the most common reasons the light appears:
- Loose or faulty gas cap: This is one of the top causes. If the cap isn’t tightened properly after refueling, it can allow fuel vapors to escape, triggering the light.
- Oxygen (O2) sensor failure: These sensors monitor exhaust gases. A faulty one can reduce fuel efficiency and increase emissions.
- Mass airflow (MAF) sensor issues: This sensor measures how much air enters the engine. Dirt or damage can cause poor performance.
- Catalytic converter problems: A clogged converter can reduce power and increase emissions.
- Spark plug or ignition coil faults: Misfiring cylinders can trigger the light and cause rough idling.
- Evaporative emissions (EVAP) system leaks: Small leaks in the fuel vapor system can set off the light.
Important: The engine management light doesn’t always mean a major repair is needed. Sometimes, it’s as simple as tightening the gas cap. But ignoring it can lead to reduced fuel economy, higher emissions, or even engine damage over time.
Method 1: Use an OBD2 Scanner (Recommended)
The most reliable and accurate way to reset the engine management light on your Toyota Yaris is by using an OBD2 scanner. This handheld device plugs into your car’s diagnostic port and reads the error codes stored in the engine control unit (ECU). Once you’ve fixed the issue, the scanner can safely clear the codes and turn off the light.
Step 1: Locate the OBD2 Port
The OBD2 port is usually found under the dashboard on the driver’s side. In most Toyota Yaris models (2005 and newer), it’s located near the steering column, just above the pedals. It’s a 16-pin connector, often covered by a small plastic flap.
Tip: If you can’t find it, check your owner’s manual or look for a label that says “OBD” or “Diagnostics.”

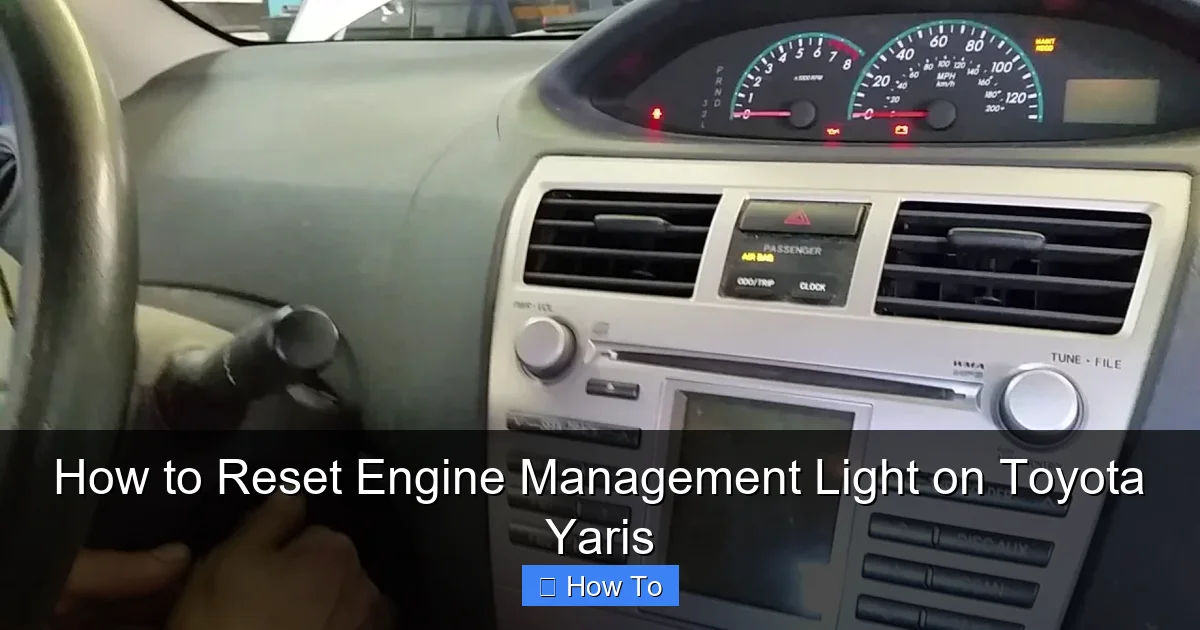

Visual guide about How to Reset Engine Management Light on Toyota Yaris
Image source: i.ytimg.com
Step 2: Plug in the OBD2 Scanner
Turn off the ignition, then plug the scanner into the OBD2 port. Make sure it’s fully inserted and secure.
Step 3: Turn the Ignition On (Do Not Start the Engine)
Turn the key to the “ON” position (or press the start button without pressing the brake). This powers up the car’s electrical system without starting the engine. The scanner should light up and display a menu.
Step 4: Read the Error Codes
Follow the scanner’s instructions to read the diagnostic trouble codes (DTCs). These codes (like P0420 or P0171) tell you exactly what’s wrong. Write them down or take a photo for reference.
Example: Code P0455 means “large EVAP leak”—often caused by a loose gas cap.
Step 5: Fix the Underlying Issue
Before resetting the light, address the problem. For example:
- If the code points to a loose gas cap, tighten it or replace it.
- If it’s an O2 sensor, you may need to replace it (costs $50–$200).
- If it’s a spark plug issue, inspect and replace as needed.
Never reset the light without fixing the problem. The light will just come back on, and you’ll waste time and money.
Step 6: Clear the Codes and Reset the Light
Once the issue is resolved, use the scanner to clear the codes. Most scanners have a “Clear Codes” or “Erase DTCs” option. Select it, and the scanner will send a command to the ECU to turn off the engine management light.
Step 7: Verify the Reset
Turn the ignition off, wait 10 seconds, then turn it back on. The engine management light should be off. If it stays off after driving for a few minutes, the reset was successful.
Pro Tip: Some scanners also let you view live data (like engine temperature or oxygen sensor readings). This can help confirm the repair worked.
Method 2: Disconnect the Battery (Manual Reset)
If you don’t have an OBD2 scanner, you can try resetting the engine management light by disconnecting the car battery. This method forces the ECU to reset, clearing stored error codes. However, it’s not always reliable—especially on newer Yaris models with advanced electronics.
Step 1: Turn Off the Ignition and Remove the Key
Make sure the car is completely off. Remove the key from the ignition or press the start button to turn off the engine.
Step 2: Locate the Battery
In most Toyota Yaris models, the battery is under the hood on the right side (driver’s side in left-hand drive countries). It’s a rectangular box with two cables attached.
Step 3: Disconnect the Negative Terminal
Use a wrench (usually 10mm) to loosen the nut on the negative terminal (marked with a “-” or black cover). Carefully remove the cable and tuck it away from the battery so it doesn’t touch the terminal.
Safety Tip: Always disconnect the negative terminal first to avoid short circuits.
Step 4: Wait 15–30 Minutes
Leave the battery disconnected for at least 15 minutes. This allows the ECU to fully reset. Some experts recommend up to 30 minutes for older models.
Step 5: Reconnect the Battery
Reattach the negative cable and tighten the nut securely. Make sure it’s snug but don’t overtighten.
Step 6: Turn On the Ignition
Turn the key to the “ON” position. The engine management light may flash or stay on briefly—this is normal. Start the engine and let it idle for a few minutes.
Step 7: Drive the Car
Take your Yaris for a short drive (10–15 minutes). The ECU will relearn sensor values and monitor systems. If the light stays off, the reset worked.
Note: This method may also reset other systems, like radio presets, clock, and climate settings. You’ll need to reprogram them.
Method 3: Use the Ignition Cycle Method (Older Yaris Models)
Some older Toyota Yaris models (pre-2005) allow you to reset the engine management light using a specific ignition cycle sequence. This method tricks the ECU into clearing stored codes.
Step 1: Turn the Ignition On and Off in a Sequence
Follow this exact order:
- Turn the ignition to “ON” (do not start the engine). Wait 3 seconds.
- Turn it back to “OFF.” Wait 3 seconds.
- Repeat this cycle three times.
- On the fourth time, leave the ignition in the “ON” position.
Step 2: Start the Engine
After the fourth “ON” position, start the engine. Let it idle for 1–2 minutes.
Step 3: Turn Off and Wait
Turn the engine off and wait 10 seconds. Then turn it back on. The engine management light should be off.
Warning: This method doesn’t work on all models. If the light returns, use an OBD2 scanner or visit a mechanic.
Method 4: Tighten or Replace the Gas Cap
Since a loose gas cap is one of the most common causes of the engine management light, always check it first—even if you plan to use another method.
Step 1: Turn Off the Engine
Park your Yaris on a flat surface and turn off the engine.
Step 2: Open the Fuel Door
Pull the fuel door release lever (usually near the driver’s seat) and open the fuel cap.
Step 3: Remove and Inspect the Cap
Unscrew the gas cap and check the rubber seal. Look for cracks, tears, or wear. If it’s damaged, replace it (costs $10–$20 at auto parts stores).
Step 4: Tighten the Cap Properly
Screw the cap back on until you hear 3–4 clicks. This ensures it’s sealed correctly.
Step 5: Drive the Car
Drive your Yaris for 10–15 minutes. The ECU will monitor the fuel system. If the cap was the issue, the light should turn off within a few days.
Pro Tip: After tightening the cap, the light may not turn off immediately. Toyota systems often require 2–3 drive cycles (starting and driving the car) to confirm the fix.
Troubleshooting Common Issues
Even after resetting the engine management light, you might run into problems. Here’s how to handle them:
The Light Comes Back On
If the light returns after a reset, the underlying issue wasn’t fixed. Use an OBD2 scanner to read the new codes. Common causes include:
- Faulty oxygen sensor
- Clogged catalytic converter
- Persistent EVAP leak
The Car Runs Poorly After Reset
Disconnecting the battery or resetting the ECU can cause temporary performance issues. The engine may run rough or idle high for a few minutes. This is normal—drive the car normally, and it should stabilize.
Radio or Clock Reset
If your radio presets or clock reset after disconnecting the battery, consult your owner’s manual to reprogram them. Some Yaris models have a backup power source to prevent this.
Hybrid Yaris Models
Toyota Yaris Hybrid models (like the 2012–2020 versions) have additional systems. Always use an OBD2 scanner compatible with hybrid vehicles. Manual resets may not work due to the dual power system.
When to See a Mechanic
While many engine management light issues are minor, some require professional help. Visit a Toyota service center or trusted mechanic if:
- The light flashes (indicates a serious misfire)
- You notice loss of power, rough idling, or strange noises
- The light comes back on immediately after reset
- You’re unsure how to interpret OBD2 codes
Remember: Ignoring a flashing engine light can cause severe engine damage. Don’t delay repairs.
Preventing Future Engine Management Light Issues
Once you’ve reset the light, take steps to avoid it coming back:
- Check the gas cap after every fill-up. Make sure it’s tight and the seal is intact.
- Use quality fuel. Low-quality petrol can cause sensor issues.
- Follow the maintenance schedule. Replace spark plugs, air filters, and oxygen sensors as recommended.
- Keep the engine clean. Dirt and oil buildup can affect sensors.
- Use a fuel system cleaner. Add it to your tank every 3,000–5,000 miles to clean injectors and sensors.
Conclusion
Resetting the engine management light on your Toyota Yaris doesn’t have to be stressful. Whether you use an OBD2 scanner, disconnect the battery, or simply tighten the gas cap, you now have the tools to handle it confidently.
The key is to always address the root cause before resetting the light. A quick fix might clear the warning, but it won’t solve the problem—and the light will return. By understanding your Yaris’s diagnostic system and following the steps in this guide, you’ll keep your car running efficiently and avoid unnecessary repairs.
So next time that little engine light pops up, don’t ignore it. Diagnose it, fix it, and reset it the right way. Your Yaris—and your wallet—will thank you.
