How to Scan Engine Light 2010 Jeep Patriot

Discover how to scan the engine light on your 2010 Jeep Patriot using an OBD2 scanner or free smartphone apps. This guide walks you through every step—from locating the port to interpreting error codes—so you can troubleshoot issues and save on mechanic costs.

Quick Answers to Common Questions

Can I scan my 2010 Jeep Patriot without a scanner?

No—you need an OBD2 scanner or adapter to read diagnostic codes. However, some auto parts stores (like AutoZone or O’Reilly) offer free code reading if you don’t own a scanner.

Does the engine need to be running to scan?

No. Most basic scans only require the ignition to be in the “ON” position. The engine doesn’t need to be running unless you’re checking live data or performing advanced tests.

How often should I scan my Jeep?

Scan whenever the check engine light comes on. For preventative care, consider scanning every 6–12 months or before long trips.

Will clearing codes fix the problem?

No. Clearing codes only turns off the light. You must fix the underlying issue first, or the light will return.

Are all OBD2 scanners compatible with the 2010 Jeep Patriot?

Yes. All OBD2 scanners work with vehicles made after 1996, including the 2010 Jeep Patriot. Just ensure the scanner supports standard OBD2 protocols.

How to Scan Engine Light 2010 Jeep Patriot: A Complete Step-by-Step Guide

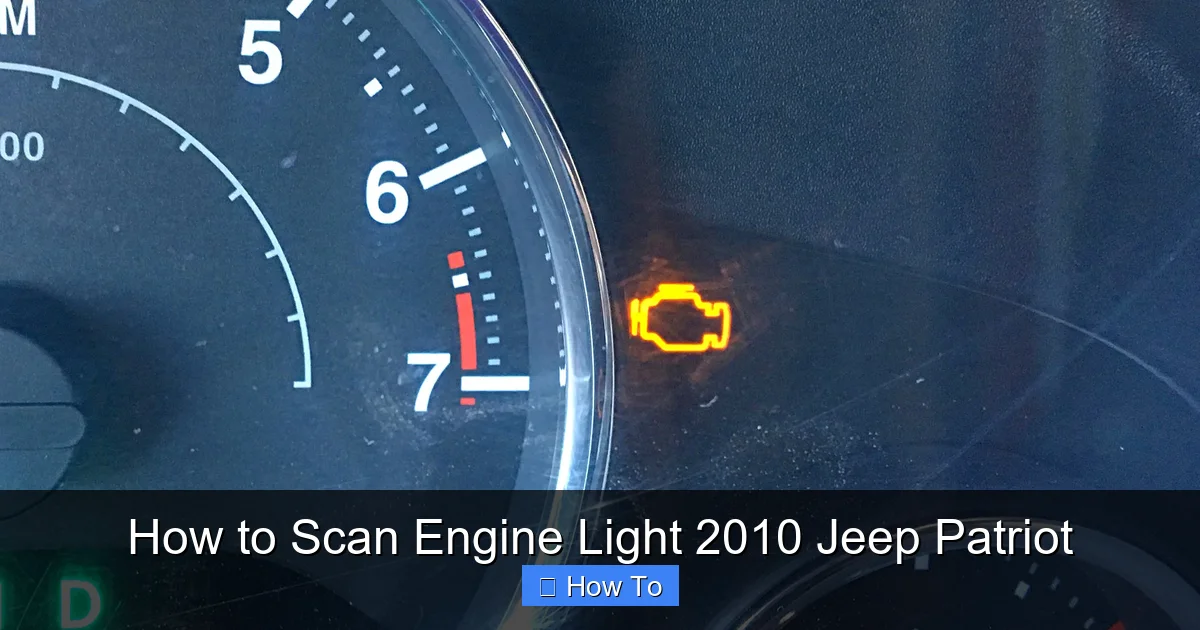

Seeing the check engine light pop up on your 2010 Jeep Patriot can be stressful. It might mean a minor issue like a loose gas cap—or something more serious like a failing oxygen sensor or ignition coil. The good news? You don’t need to rush to a mechanic right away. With the right tools and a little know-how, you can scan the engine light yourself, understand what’s wrong, and even fix some problems at home.

In this guide, we’ll walk you through everything you need to know about scanning the engine light on your 2010 Jeep Patriot. Whether you’re a DIY enthusiast or just trying to save money on diagnostics, this step-by-step tutorial will help you confidently read diagnostic trouble codes (DTCs), interpret them, and take action. We’ll cover where to find the OBD2 port, what tools to use, how to connect and scan, and what common codes mean. By the end, you’ll be equipped to handle most engine light issues like a pro.

Why Your 2010 Jeep Patriot’s Check Engine Light Is On

Before jumping into scanning, it helps to understand why the check engine light might be on in the first place. The 2010 Jeep Patriot, like all modern vehicles, is equipped with an onboard diagnostics system (OBD2) that monitors engine performance, emissions, and other critical systems. When something goes outside normal parameters, the system triggers the check engine light and stores a specific code.

Common causes include:

• A loose or faulty gas cap (one of the most frequent culprits)
• Failing oxygen (O2) sensors
• Misfiring spark plugs or ignition coils
• Catalytic converter issues
• Mass airflow (MAF) sensor problems
• Exhaust gas recirculation (EGR) valve malfunctions

Many of these issues are relatively inexpensive to fix, especially if caught early. That’s why scanning the engine light as soon as it appears is so important—it helps you avoid bigger, costlier repairs down the road.

Tools You’ll Need to Scan the Engine Light

You don’t need a professional-grade diagnostic tool to scan your 2010 Jeep Patriot. Here’s what you’ll need:

1. OBD2 Scanner

This is the most straightforward option. OBD2 scanners plug directly into your vehicle’s diagnostic port and display trouble codes on a screen. Basic models start around $20 and are perfect for reading and clearing codes. Look for one with a clear display, easy navigation, and the ability to show code definitions.

2. Bluetooth OBD2 Adapter + Smartphone App

If you prefer using your phone, a Bluetooth OBD2 adapter (like the popular ELM327) connects wirelessly to your Jeep and pairs with a free or low-cost app (such as Torque Pro for Android or OBD Fusion for iOS). This setup lets you view real-time data, graph sensor readings, and read/clear codes—all from your smartphone.

3. USB OBD2 Cable (for Laptop Use)

Some users prefer connecting to a laptop for more detailed analysis. A USB OBD2 cable works with software like FORScan or OBD Auto Doctor. This method is great if you want deeper diagnostics, but it’s overkill for most basic scans.

Optional but Helpful

• A flashlight (to help locate the OBD2 port in dim lighting)
• Your Jeep’s owner’s manual (for reference)
• A notebook or phone to record codes

For most people, a basic handheld OBD2 scanner or a Bluetooth adapter with a smartphone app is the easiest and most cost-effective choice.

Step 1: Locate the OBD2 Port in Your 2010 Jeep Patriot

The first step in scanning your engine light is finding the OBD2 port. In the 2010 Jeep Patriot, this port is standardized and easy to access.

Where to Look

The OBD2 port is located under the dashboard on the driver’s side, near the footwell. It’s usually just below the steering column and slightly to the left. You don’t need to remove any panels—it should be visible when you crouch down and look up from the driver’s floor area.

What It Looks Like

The port is a 16-pin connector, typically black or gray, with a trapezoidal shape. It may have a small cover or cap, but most Patriots leave it exposed. If you’re having trouble finding it, shine a flashlight into the area—you’re looking for a rectangular slot with multiple metal pins inside.

Pro Tip

If you still can’t locate it, check behind the fuse panel cover (also under the dashboard). In rare cases, the port might be tucked slightly behind other components, but in the 2010 Patriot, it’s almost always right in the open near the pedals.

Step 2: Prepare Your Vehicle for Scanning

Before connecting your scanner, make sure your Jeep is ready for a diagnostic scan.

Turn the Ignition to “ON”

You don’t need to start the engine, but you do need to turn the key to the “ON” position (also called “ignition on, engine off” or “KOEO”). This powers up the vehicle’s computer systems without running the motor. You’ll know you’re in the right position when the dashboard lights up, including the check engine light.

Ensure the Battery Is Charged

A weak battery can cause inaccurate readings or prevent the scanner from communicating with the vehicle. If your Jeep has been sitting for a while or the battery is old, consider charging it or jump-starting before scanning.

Close All Doors and Hood

Some scanners may not function properly if doors or the hood are open, as the vehicle’s computer expects certain systems to be closed for a full diagnostic check.

Stay Safe

Make sure the vehicle is in “Park” (or in gear with the parking brake on if manual), and the area around the driver’s seat is clear of clutter.

Step 3: Connect Your OBD2 Scanner

Now it’s time to plug in your scanner.

For Handheld Scanners

Take your OBD2 scanner and align the connector with the port. The shape ensures it only fits one way—don’t force it. Gently push it in until it clicks or feels secure. Most scanners will power on automatically once connected.

For Bluetooth Adapters

Insert the Bluetooth adapter into the OBD2 port just like a handheld scanner. Once plugged in, turn on your smartphone’s Bluetooth and open your chosen app (e.g., Torque Pro). The app should detect the adapter and prompt you to connect. Follow the on-screen instructions to pair the devices.

Troubleshooting Connection Issues

• If the scanner doesn’t power on, double-check that the ignition is on.
• If the app can’t find the Bluetooth adapter, try unplugging and reinserting it, or restart your phone’s Bluetooth.
• Ensure the adapter is fully seated—sometimes a loose connection prevents communication.

Step 4: Read the Diagnostic Trouble Codes (DTCs)

Once connected, it’s time to retrieve the codes.

Using a Handheld Scanner

1. Press the “Read” or “Scan” button on your device.
2. Wait a few seconds as the scanner communicates with your Jeep’s computer.
3. The screen will display one or more codes (e.g., P0420, P0302).
4. Some scanners also show a brief description (e.g., “Catalyst System Efficiency Below Threshold”).

Using a Smartphone App

1. Open your OBD2 app and tap “Connect” or “Scan.”
2. The app will search for stored trouble codes.
3. Codes will appear in a list, often with color-coding (red for serious, yellow for warning).
4. Tap on a code to see a detailed explanation.

Understanding Code Format

All OBD2 codes follow a standard format:

• P = Powertrain (engine/transmission)
• B = Body (airbags, windows, etc.)
• C = Chassis (ABS, suspension)
• U = Network/Communication

The next digit indicates if it’s a generic (0) or manufacturer-specific (1) code. The last three digits specify the exact issue.

For example, P0302 means “Cylinder 2 Misfire Detected”—a common issue in the 2010 Patriot due to worn spark plugs or ignition coils.

Step 5: Interpret the Codes

Reading the code is only half the battle—you need to understand what it means.

Use Free Online Resources

Websites like OBD-Codes.com or TroubleCodes.net allow you to enter any DTC and get a detailed explanation. Simply type in the code (e.g., P0420) and read about possible causes, symptoms, and fixes.

Common Codes in the 2010 Jeep Patriot

• P0420: Catalyst system efficiency below threshold—often due to a failing catalytic converter or O2 sensor.
• P0300-P0304: Random or specific cylinder misfires—usually caused by bad spark plugs, coils, or fuel injectors.
• P0455: Large evaporative emission leak—commonly a loose or cracked gas cap.
• P0171/P0174: System too lean—could indicate a vacuum leak or faulty MAF sensor.
• P0401: Insufficient EGR flow—often due to a clogged EGR valve.

Don’t Panic Over Multiple Codes

Sometimes one issue triggers several codes. For example, a misfire (P0302) might also cause a catalyst efficiency code (P0420) because unburned fuel damages the catalytic converter. Always address the root cause first.

Step 6: Clear the Codes (After Fixing the Problem)

Once you’ve identified and fixed the issue, you can clear the codes to turn off the check engine light.

How to Clear Codes

• On a handheld scanner: Navigate to “Clear Codes” or “Erase DTCs” and confirm.
• In a smartphone app: Tap “Clear Codes” or “Reset MIL” (Malfunction Indicator Lamp).

Important Warning

Never clear codes without fixing the underlying problem. The light will likely come back on, and you’ll lose valuable diagnostic information. Only reset after repairs are complete.

What Happens After Clearing?

The check engine light should turn off immediately. However, your Jeep’s computer needs time to relearn and run self-tests. Drive normally for a few days—this is called a “drive cycle.” If the problem is truly fixed, the light won’t return. If it does, the issue persists and needs further attention.

Troubleshooting Common Scanning Problems

Sometimes scanning doesn’t go as planned. Here’s how to handle common issues:

Scanner Won’t Connect

• Check that the ignition is on.
• Ensure the OBD2 port is clean and undamaged.
• Try a different scanner or adapter to rule out hardware failure.
• Verify your Jeep’s battery voltage (should be above 12V).

Codes Keep Coming Back

• The problem wasn’t fully resolved.
• There may be an intermittent issue (e.g., a loose wire).
• Some sensors take time to reset—complete a full drive cycle.

“No Communication” Error

• This usually means the scanner can’t talk to the vehicle’s computer.
• Try unplugging the scanner, waiting 10 seconds, and reconnecting.
• If using Bluetooth, ensure the app has proper permissions.

Check Engine Light Flashes While Driving

• A flashing light indicates a severe misfire that can damage the catalytic converter.
• Pull over safely and avoid driving until the issue is diagnosed and fixed.

Preventative Maintenance Tips

Regular scanning and maintenance can help prevent future engine light issues.

Check Your Gas Cap Monthly

A loose or damaged gas cap is one of the easiest fixes. Make it a habit to hand-tighten the cap after every fill-up.

Replace Spark Plugs on Schedule

The 2010 Jeep Patriot typically needs new spark plugs every 30,000 to 60,000 miles. Worn plugs are a leading cause of misfires.

Use Quality Fuel and Additives

Occasional use of fuel system cleaners can help prevent carbon buildup in the EGR valve and fuel injectors.

Scan Periodically

Even if the light isn’t on, scanning every 6–12 months can catch early signs of trouble.

When to See a Mechanic

While many issues can be handled at home, some problems require professional help.

Seek a mechanic if:

• The check engine light is flashing (indicating a severe misfire).
• You’re getting complex or multiple codes you can’t diagnose.
• The problem involves internal engine components (e.g., timing belt, head gasket).
• You’ve tried basic fixes but the light keeps returning.

A certified mechanic with Jeep experience can perform advanced diagnostics, such as live data streaming or component testing, that go beyond basic code reading.

Conclusion

Scanning the engine light on your 2010 Jeep Patriot is easier than you think. With a simple OBD2 scanner or a Bluetooth adapter and smartphone app, you can read diagnostic trouble codes, understand what’s causing the issue, and take action—whether that’s tightening a gas cap or replacing a spark plug. This not only saves you money on diagnostic fees but also helps you stay on top of your vehicle’s health.

Remember: the check engine light is your Jeep’s way of saying, “Hey, something’s not right.” Ignoring it can lead to bigger problems, but addressing it early keeps your Patriot running smoothly. Use this guide as your go-to resource whenever that little light appears. With the right tools and a bit of confidence, you’ve got this.
