How to Scan Your Car for Check Engine Light

Discover how to scan your car for a check engine light using affordable tools and easy steps. This guide covers everything from understanding the warning light to interpreting error codes so you can take action confidently.

Quick Answers to Common Questions

Tip/Question?

Can I scan my car with my smartphone?

Yes! Use a Bluetooth or Wi-Fi OBD2 scanner with a compatible app like Torque or OBD Fusion. Just plug in the scanner, connect via Bluetooth, and follow the app instructions.

Tip/Question?

How often should I scan my car?

Scan whenever the check engine light comes on. You can also do a quick scan every few months as part of routine maintenance.

Tip/Question?

Do I need to reset the light after fixing the problem?

Yes. Use your scanner to clear the codes after repairs. This turns off the light and confirms the fix worked.

Tip/Question?

Can a bad gas cap trigger the check engine light?

Absolutely. A loose, damaged, or missing gas cap is one of the most common causes. Tighten or replace it and clear the code.

Tip/Question?

Will clearing codes pass an emissions test?

Clearing codes resets the system, but your car must complete a drive cycle to pass. Drive normally for a few days before testing.

How to Scan Your Car for Check Engine Light

The check engine light—also known as the malfunction indicator lamp (MIL)—is one of the most common and confusing dashboard warnings drivers face. It can flash, stay solid, or even come on for seemingly no reason. But ignoring it could lead to serious engine damage, reduced fuel efficiency, or failed emissions tests. The good news? You don’t need to be a mechanic to figure out what’s going on. With the right tools and a little know-how, you can scan your car for the check engine light yourself, understand the problem, and decide whether it’s something you can fix or if it’s time to visit a professional.

In this guide, you’ll learn exactly how to scan your car for a check engine light, step by step. We’ll cover what the light means, how to use an OBD2 scanner, how to read and interpret diagnostic trouble codes (DTCs), and what to do after you’ve identified the issue. Whether you’re a first-time car owner or a DIY enthusiast, this guide will empower you to take control of your vehicle’s health—without spending hundreds at the repair shop.

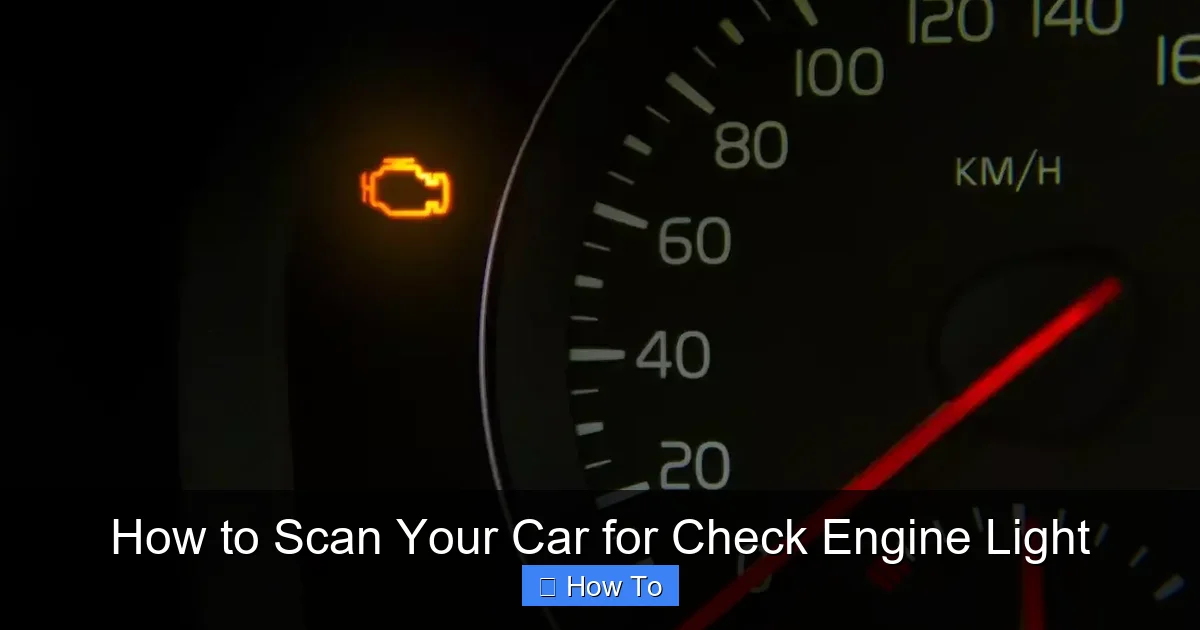

What Is the Check Engine Light?

Before jumping into scanning, it’s important to understand what the check engine light actually means. This small, often yellow or orange light on your dashboard is part of your car’s onboard diagnostic system (OBD). When the system detects a problem that could affect your engine’s performance or emissions, it triggers the light to alert you.

The check engine light can indicate a wide range of issues—from something as simple as a loose gas cap to more serious problems like a failing catalytic converter or engine misfire. The severity can vary: a solid light usually means a minor issue, while a flashing light suggests a serious problem that needs immediate attention.

For example, a flashing light might mean your engine is misfiring badly, which can damage the catalytic converter if not addressed quickly. On the other hand, a steady light could mean your oxygen sensor is faulty—something that affects fuel efficiency but won’t leave you stranded.

Understanding the difference helps you respond appropriately. But to know exactly what’s wrong, you need to scan the system for diagnostic trouble codes.

Why Scanning Your Car Matters

Scanning your car for the check engine light gives you valuable insight into what’s happening under the hood. Without a scan, you’re left guessing—and guessing can lead to unnecessary repairs or missed problems.

For instance, a P0420 code (catalytic converter efficiency below threshold) might seem like a major repair, but it could actually be caused by a bad oxygen sensor. If you don’t scan, you might replace the catalytic converter unnecessarily, costing hundreds or even thousands of dollars.

Scanning helps you:
– Identify the root cause of the problem
– Avoid costly misdiagnoses
– Save time and money on repairs
– Monitor your car’s health over time
– Prepare for emissions testing

Even if you plan to take your car to a mechanic, having the codes ready can speed up the diagnosis and ensure you’re not overcharged.

Tools You’ll Need to Scan Your Car

You don’t need a garage full of tools to scan your car. In fact, all you really need is an OBD2 scanner. Here’s what you should have:

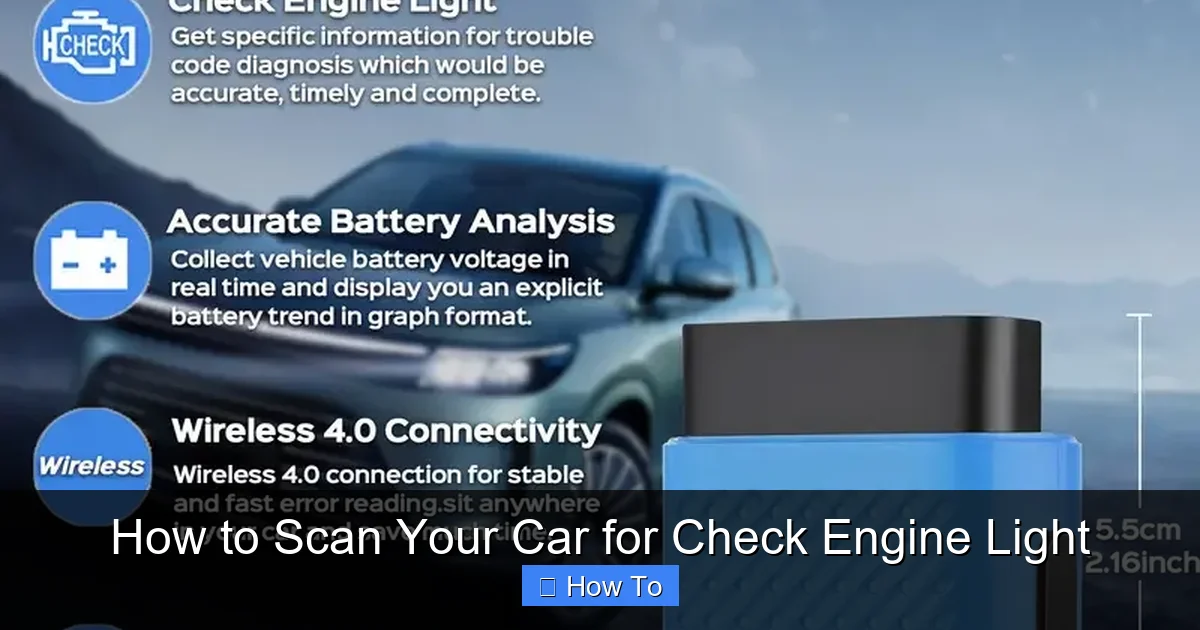

OBD2 Scanner

This is the most important tool. OBD2 (On-Board Diagnostics II) is a standardized system used in all cars sold in the U.S. since 1996. It allows you to connect a scanner to your car’s computer and read diagnostic codes.

There are several types of OBD2 scanners:
– Basic code readers: Affordable (under $20), easy to use, and great for reading and clearing codes. Ideal for beginners.
– Advanced scanners: More expensive ($50–$200), offer live data, freeze frame data, and can read manufacturer-specific codes. Best for DIYers who want deeper insights.
– Bluetooth/Wi-Fi scanners: Connect to your smartphone via an app. Popular apps include Torque (Android) and OBD Fusion (iOS). Convenient and often free or low-cost.

Smartphone (Optional)

If you’re using a Bluetooth or Wi-Fi scanner, you’ll need a smartphone with the compatible app installed. Make sure your phone’s operating system is up to date.

Owner’s Manual

Your car’s manual can help you locate the OBD2 port and understand basic warning lights.

Pen and Paper (or Notes App)

Write down the codes you retrieve so you can look them up later or share them with a mechanic.

Step-by-Step Guide to Scanning Your Car

Now that you have your tools, it’s time to scan your car. Follow these steps carefully.

Step 1: Locate the OBD2 Port

The OBD2 port is where you’ll plug in your scanner. It’s usually located under the dashboard on the driver’s side, near the steering column. In some cars, it might be behind a small cover or near the center console.

Common locations include:
– Under the dashboard, near the knee area
– Behind a small panel that pops open
– Near the fuse box
– Under the steering wheel

If you can’t find it, check your owner’s manual. The port is a 16-pin connector, shaped like a trapezoid, and should be easy to identify.

Step 2: Turn Off the Engine

Before connecting the scanner, make sure your car’s engine is off. This prevents any electrical issues and ensures a safe connection.

Step 3: Plug in the OBD2 Scanner

Insert the scanner’s connector into the OBD2 port. It should fit snugly—don’t force it. If it doesn’t go in easily, double-check the orientation.

Step 4: Turn on the Ignition

Turn the key to the “ON” position (but don’t start the engine). This powers up the car’s computer and allows the scanner to communicate with it.

Some scanners will power on automatically when connected. Others may have an on/off button—press it if needed.

Step 5: Follow the Scanner’s Instructions

Most scanners will display a menu. Use the buttons to navigate to “Read Codes” or “Scan for DTCs.” The process is usually automatic—just wait for the scanner to retrieve the data.

If you’re using a Bluetooth scanner with a smartphone app, open the app and follow the on-screen prompts to connect to the scanner.

Step 6: Read the Diagnostic Trouble Codes (DTCs)

Once the scan is complete, the scanner will display one or more codes. These are five-character alphanumeric codes, such as P0300 or P0420.

Each code follows a standard format:
– First character: System (P = Powertrain, B = Body, C = Chassis, U = Network)
– Second character: Code type (0 = Generic, 1 = Manufacturer-specific)
– Third character: Subsystem (e.g., fuel system, ignition)
– Last two characters: Specific fault

For example, P0300 means “Random/Multiple Cylinder Misfire Detected.”

Write down all the codes you see. Some scanners will also show a brief description of the code.

Step 7: Interpret the Codes

Now that you have the codes, it’s time to understand what they mean. You can:
– Use the scanner’s built-in code library (if available)
– Search online using the code (e.g., “P0300 meaning”)
– Use a free website like OBD-Codes.com
– Check your car’s service manual

Common codes include:
– P0300: Random engine misfire
– P0420: Catalytic converter efficiency low
– P0171: System too lean (bank 1)
– P0442: Small EVAP leak
– P0128: Coolant thermostat malfunction

Understanding the code helps you decide whether it’s a quick fix (like tightening the gas cap) or something that needs professional help.

Step 8: Clear the Codes (Optional)

If you’ve fixed the issue—or if you just want to see if the light comes back—you can clear the codes using the scanner. Navigate to “Clear Codes” or “Erase DTCs” and confirm.

Note: Clearing codes doesn’t fix the problem—it only resets the light. If the issue persists, the light will come back on.

Step 9: Turn Off the Ignition and Disconnect

Once you’re done, turn off the ignition and unplug the scanner. Store it in a safe place for next time.

What to Do After Scanning

Scanning gives you information—but what you do with it matters most.

If the Code Is Minor

Some issues are easy to fix yourself. For example:
– Loose gas cap: Tighten it or replace it if cracked.
– Dirty air filter: Replace it with a new one.
– Faulty oxygen sensor: May require replacement, but parts are affordable.

Check online forums or YouTube for DIY guides specific to your car model.

If the Code Is Serious

Some problems require professional attention. These include:
– Engine misfires
– Catalytic converter failure
– Transmission issues
– Electrical faults

If the check engine light is flashing, stop driving and call a mechanic immediately.

If You’re Unsure

When in doubt, consult a trusted mechanic. Bring your codes and any notes you took. A good mechanic will appreciate the information and may charge less for diagnosis.

Troubleshooting Common Scanning Issues

Sometimes, scanning doesn’t go as planned. Here’s how to handle common problems.

Scanner Won’t Connect

– Make sure the ignition is on.
– Check that the OBD2 port is clean and undamaged.
– Try a different scanner or cable.
– Restart the car and try again.

No Codes Found

– The light might be on for a non-OBD2 reason (e.g., maintenance reminder).
– The issue might be intermittent and not currently active.
– Try driving the car for a few days and scan again.

Codes Keep Coming Back

– The problem wasn’t fixed properly.
– There may be multiple related issues.
– Have a mechanic perform a thorough inspection.

Scanner Shows “No Communication”

– The car’s computer may be offline.
– Check the fuse for the OBD2 system (usually in the fuse box under the dashboard).
– The scanner may not be compatible with your vehicle.

Tips for Accurate Scanning

To get the best results from your scan, keep these tips in mind:
– Scan when the engine is cold or at normal operating temperature—avoid extreme conditions.
– Don’t scan immediately after refueling—wait a few hours.
– Use a high-quality scanner from a reputable brand (e.g., BlueDriver, Autel, Innova).
– Update your scanner’s software if possible.
– Keep a log of codes and repairs for future reference.

When to See a Mechanic

While scanning empowers you to understand your car, some situations require professional help:
– The check engine light is flashing.
– You’re getting multiple complex codes.
– You’ve tried basic fixes and the light returns.
– You’re not comfortable performing repairs.
– The car is running poorly, making noise, or losing power.

A certified mechanic has advanced tools and training to diagnose and fix issues that go beyond basic OBD2 codes.

Preventing Future Check Engine Light Issues

The best way to deal with the check engine light is to avoid it altogether. Regular maintenance is key:
– Change the oil and filter every 3,000–5,000 miles.
– Replace air filters every 12,000–15,000 miles.
– Check and tighten the gas cap after every fill-up.
– Use quality fuel and avoid contaminated gas stations.
– Address warning lights promptly—don’t wait.

Keeping your car well-maintained reduces the risk of unexpected problems and extends its lifespan.

Conclusion

Scanning your car for a check engine light is a simple, affordable way to stay on top of your vehicle’s health. With just an OBD2 scanner and a few minutes of your time, you can uncover hidden problems, avoid unnecessary repairs, and make informed decisions about your car’s care.

Remember: the check engine light is your car’s way of saying, “Hey, something’s not right.” Ignoring it can lead to bigger issues down the road. But by scanning regularly and understanding the codes, you take control of your vehicle’s performance and safety.

Whether you’re a seasoned DIYer or a first-time driver, this skill is worth mastering. So grab your scanner, follow the steps in this guide, and drive with confidence—knowing you’re ready to handle whatever the road throws your way.
