How to Test Engine Block Ground with a Test Light

This guide teaches you how to test engine block ground with a test light to identify and fix electrical problems in your vehicle. You’ll learn why grounding matters, how to use a test light safely, and what results mean for your car’s performance.

Quick Answers to Common Questions

Tip/Question?

Can I use a multimeter instead of a test light?

Yes—but a test light is faster for ground checks. Multimeters require setting ranges and interpreting numbers; test lights give instant yes/no feedback.

Tip/Question?

Should I test with the engine running?

No. Always test with the key in the “ON” position (engine off) unless specifically checking voltage drop under load—and even then, extreme caution is needed.

Tip/Question?

What if my test light doesn’t glow anywhere?

First, verify the test light works by touching probe to battery positive and clip to negative. If it still doesn’t glow, the test light may be faulty or the battery dead.

Tip/Question?

How tight should ground bolts be?

Snug is enough—overtightening can strip threads. Most ground straps need 8–15 ft-lbs. Use a torque wrench if possible.

Tip/Question?

Do electric cars need ground testing?

Yes—but differently. EVs use high-voltage systems requiring specialized tools and training. Stick to 12V systems unless certified.

Why Testing Engine Block Ground Matters

Your car’s electrical system runs on a closed loop: power flows from the battery through components (like lights, sensors, or the starter), then returns to the battery via the chassis or engine block. This return path is called the “ground.” If that ground connection is weak or broken, electricity can’t complete its circuit—even if everything else is working perfectly.

Think of it like a garden hose with a kink. Water (electricity) might trickle out, but it won’t deliver full pressure. In your car, that means dim headlights, slow cranking, flickering dash lights, or even a no-start condition. The engine block is a critical part of this ground path because many components—especially the starter motor and alternator—are mounted directly to it.

That’s why learning how to test engine block ground with a test light is one of the most valuable DIY diagnostic skills you can have. It’s fast, requires minimal tools, and can save you hundreds in mechanic fees.

What You’ll Need

Before we dive in, gather these items:

• A 12V test light (also called a continuity tester or neon probe)
• Safety gloves and eye protection
• A clean rag or wire brush
• Basic hand tools (wrench or socket set, if adjusting connections)
• Assistant (optional but helpful for turning the key or watching lights)

Note: A test light is not the same as a multimeter. While multimeters measure voltage, resistance, and current precisely, a test light simply shows whether voltage is present—making it ideal for quick ground checks.

Safety First: Preparing Your Vehicle

Never skip this step. Electricity and moving parts don’t mix well with careless hands.

Step 1: Park Safely

Park your car on a flat surface, engage the parking brake, and turn off the ignition. If you’re working under the hood, make sure the engine is cool to avoid burns.

Step 2: Disconnect the Battery

Locate the negative (-) terminal on your battery (usually black cable). Use a wrench to loosen the clamp and carefully remove the cable. Tuck it away from the battery so it can’t accidentally touch the terminal while you work.

Why? Even with the key off, some circuits remain live. Disconnecting the negative terminal cuts all power and prevents accidental shorts that could fry your ECU or cause sparks near flammable fumes.

Step 3: Inspect Visually

Before testing, look at the main ground strap(s). Most cars have a thick braided copper or steel strap connecting the engine block to the chassis or battery negative post. Check for:

• Corrosion (white or green crust)
• Looseness (wiggling bolts)
• Cracks or fraying in the strap
• Paint or rust under mounting surfaces

If you see any of these, clean or tighten them now—it might solve your problem without further testing!

Understanding How a Test Light Works

A test light has two leads: a probe tip and an alligator clip. When you touch the probe to a powered circuit and clip the other end to a good ground, the light inside glows if voltage is present.

But here’s the key: **to test a ground, you reverse the logic**. You’ll connect the test light’s clip to a known good power source (like the battery positive terminal) and use the probe to check if the engine block can complete the circuit back to the battery’s negative side.

If the ground is solid, current flows → light glows brightly.
If the ground is poor, current struggles → light is dim or off.

This method tests the entire ground path, not just a single point.

Step-by-Step: Testing the Engine Block Ground

Step 1: Reconnect the Battery (Temporarily)

Yes, we just disconnected it—but now we need power to test. Reattach the negative battery cable and tighten it securely. We’ll disconnect it again once testing is done.

⚠️ Warning: Only reconnect the negative terminal—not the positive. And keep metal tools away from both terminals to avoid short circuits.

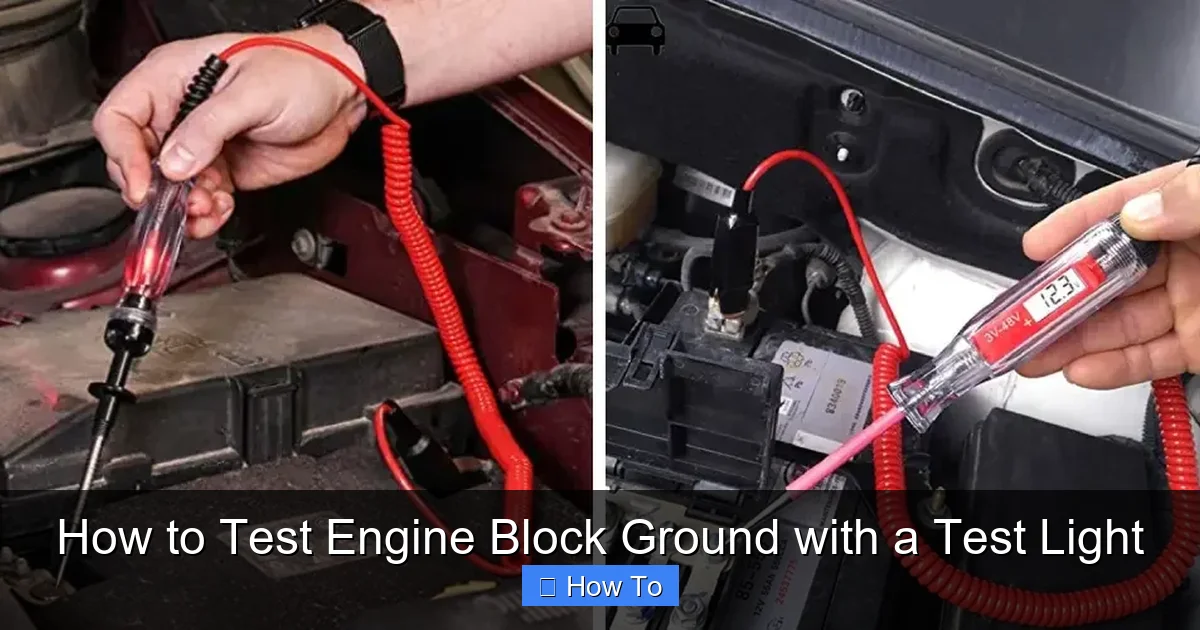

Step 2: Set Up the Test Light

Attach the alligator clip of your test light to the **positive (+) terminal** of the battery. Make sure it makes solid contact—no paint or corrosion should be between the clip and metal.

Now, hold the probe tip in your hand (don’t touch the metal part—you’re not part of the circuit!).

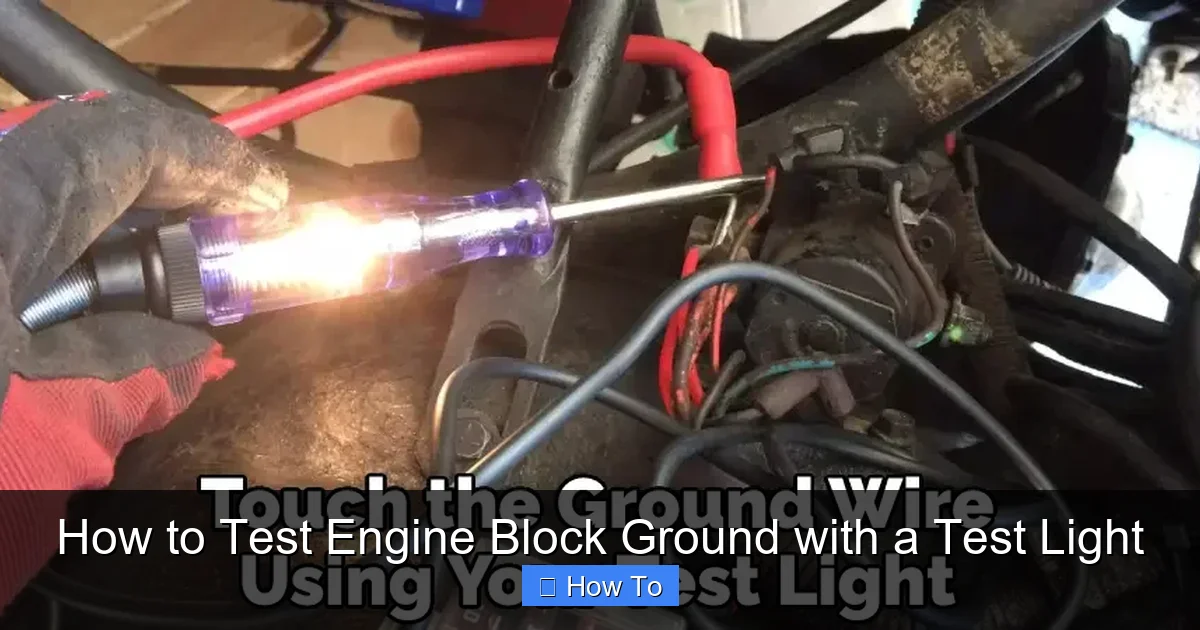

Step 3: Probe the Engine Block

Touch the probe tip to a clean, unpainted metal surface on the engine block. Good spots include:

• The engine head (near a bolt)
• The intake manifold (if metal)
• A bare engine mount bracket

Avoid painted surfaces, plastic covers, or rubber mounts—they won’t conduct.

Step 4: Observe the Light

– **Bright, steady glow**: Excellent! The engine block has a solid ground connection back to the battery.
– **Dim or flickering light**: There’s resistance in the ground path—likely corrosion, loose bolts, or a damaged ground strap.
– **No light at all**: Open circuit. The ground path is completely broken.

💡 Pro Tip: Have an assistant turn the ignition key to “ON” (not start) while you watch the light. If it flickers or dims when accessories turn on, that confirms a weak ground under load.

Step 5: Test Additional Ground Points

Don’t stop at one spot. Test near the starter motor, alternator case, and transmission housing. These high-draw components rely heavily on good grounding.

Also, test the main ground strap connection:

• Probe where the strap connects to the engine block
• Then probe where it connects to the chassis or battery

If the light is bright at the battery end but dim at the engine end, the problem is in the strap or its mounting.

Interpreting Your Results

Let’s break down what different outcomes mean—and what to do next.

Scenario 1: Light Glows Brightly Everywhere

Great! Your ground system is healthy. If you’re still having electrical issues, the problem lies elsewhere—maybe a bad relay, blown fuse, or faulty component.

Scenario 2: Light Is Dim or Flickering

This indicates high resistance in the ground path. Common causes:

• Corroded connections: Clean bolt heads and contact surfaces with a wire brush.
• Loose bolts: Tighten ground strap bolts to manufacturer specs (usually 8–15 ft-lbs).
• Painted surfaces: Scrape off paint under washers or straps—metal must touch metal.
• Damaged ground strap: Replace if frayed, cracked, or excessively corroded.

After cleaning or tightening, retest. The light should glow brighter.

Scenario 3: No Light at All

This means there’s no complete circuit. Possible culprits:

• The ground strap is completely disconnected or severed.
• The battery negative cable isn’t making contact (even if it looks connected).
• Severe corrosion has eaten through a connection point.

Check the battery cable first—wiggle it. If it moves easily, reseat it. If the strap is broken, replace it immediately. Most auto parts stores sell universal ground straps for under $20.

Troubleshooting Common Ground Issues

Even after testing, you might run into tricky situations. Here’s how to handle them.

Problem: Light Works at Battery but Not at Starter

The starter draws massive current—up to 200+ amps. A tiny resistance can cause big voltage drops.
Solution: Run a dedicated ground wire from the starter case to the battery negative terminal (called a “starter ground upgrade”). This bypasses any weak links.

Problem: Light Flickers When Engine Is Running

Vibration can loosen connections over time.
Solution: Recheck all ground bolts after a test drive. Consider using thread locker on critical connections.

Problem: Multiple Electrical Gremlins

If your radio resets, windows move slowly, and the check engine light flickers—it’s often a shared ground issue.
Solution: Locate the main chassis ground point (usually near the firewall) and clean it thoroughly. Many sensors and modules share this ground.

Preventative Maintenance Tips

An ounce of prevention is worth a pound of cure—especially with electrical systems.

• Inspect annually: Add ground strap checks to your oil change routine.
• Use dielectric grease: Apply a thin layer to connections after cleaning to repel moisture and slow corrosion.
• Avoid spray cleaners near electronics: They can leave residues that increase resistance.
• Upgrade if needed: Older cars may benefit from additional ground straps (e.g., from engine to chassis, or transmission to chassis).

When to Call a Professional

Most ground issues are DIY-friendly. But if you’ve cleaned, tightened, and replaced straps—and still get no light—there may be hidden corrosion inside wiring harnesses or a faulty battery. In that case, consult a mechanic with a digital multimeter and load-testing equipment.

Also, if your car has a fiberglass body (like some older Corvettes or kit cars), the ground path is entirely dependent on straps—any break is critical and may require expert rewiring.

Final Thoughts

Testing your engine block ground with a test light is a simple, powerful way to diagnose one of the most overlooked causes of electrical problems. It takes less than 10 minutes, costs nothing if you already have a test light, and can save you from replacing perfectly good parts.

Remember: electricity follows the path of least resistance. If your engine block isn’t providing a solid return path, your car’s electronics will find weird ways to complete the circuit—often through sensors or control modules, which can lead to expensive damage.

By mastering this quick check, you’re not just fixing problems—you’re preventing them. So next time your headlights dim when you turn on the AC, don’t panic. Grab your test light, pop the hood, and follow these steps. More often than not, you’ll find the fix is simpler than you thought.

Stay safe, stay grounded, and happy wrenching!
