Adding a light to your engine compartment improves visibility for maintenance and repairs, especially in low-light conditions. This guide walks you through choosing the right light, wiring it safely, and mounting it securely—all with simple tools and beginner-friendly steps.
Key Takeaways
- Choose the right light type: LED lights are energy-efficient, long-lasting, and ideal for engine bays due to their brightness and low heat output.
- Prioritize safety: Always disconnect the battery before starting any electrical work to prevent shocks or short circuits.
- Use proper wiring techniques: Splice wires carefully, use heat-shrink tubing, and secure connections to avoid corrosion or loose contacts.
- Mount the light securely: Position the light where it won’t interfere with moving parts or get damaged by heat or fluids.
- Test before finalizing: Turn the power back on and test the light to ensure it works before closing the hood.
- Consider a switch or remote: Adding a toggle switch or wireless remote gives you control without opening the hood every time.
- Follow local laws: Some regions restrict aftermarket lighting; check regulations to avoid fines or inspection issues.
How to Add a Light to Your Engine Compartment
If you’ve ever tried to check your oil, inspect a belt, or troubleshoot an engine issue at night, you know how frustrating it can be to work in near-total darkness. Even with a flashlight, it’s hard to see into tight spaces or get a clear view of components under the hood. That’s why adding a light to your engine compartment is one of the smartest and most practical upgrades you can make to your vehicle—especially in 2026, when DIY automotive projects are more accessible than ever.
Whether you’re a weekend mechanic, a car enthusiast, or just someone who likes to be prepared, installing an engine bay light is a simple, affordable, and highly effective modification. In this comprehensive guide, we’ll walk you through every step—from choosing the right light to wiring it safely and mounting it securely. You’ll learn how to do it with basic tools, minimal experience, and maximum safety. By the end, you’ll have a bright, reliable light that turns on whenever you open the hood, making maintenance easier, safer, and more efficient.
Why Add a Light to Your Engine Compartment?

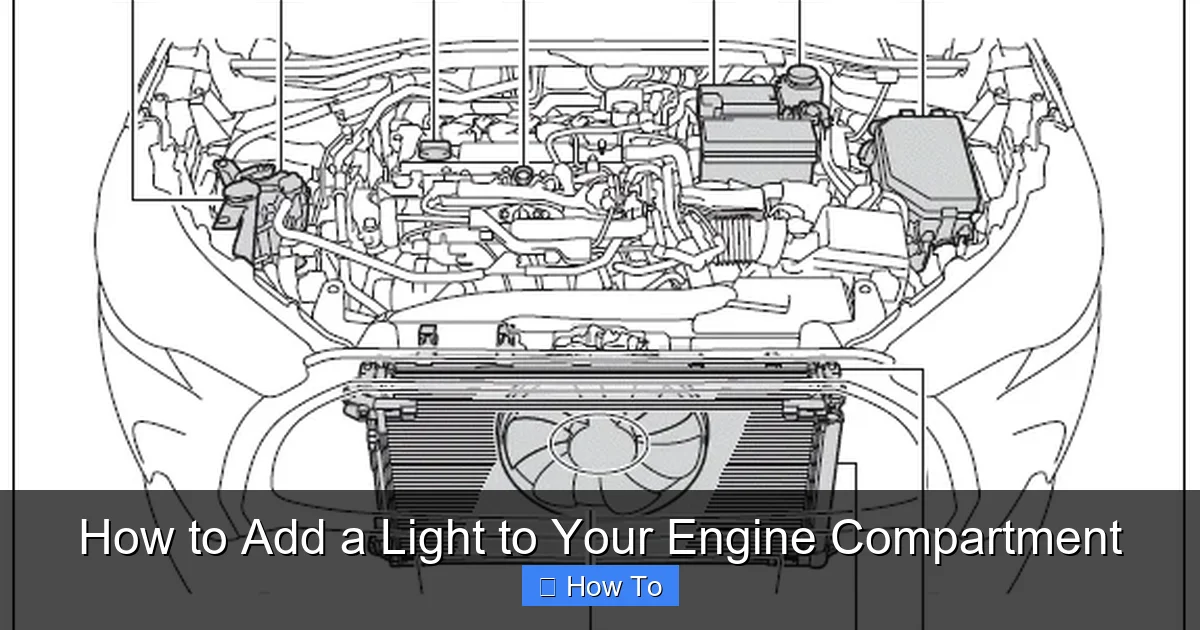

Visual guide about How to Add a Light to Your Engine Compartment
Image source: rrevoque.org
Before diving into the installation, it’s worth understanding why this upgrade is so valuable. Modern vehicles are packed with complex systems, and even routine tasks like checking fluid levels or inspecting hoses can be challenging without proper lighting. A dedicated engine compartment light solves this problem by providing consistent, hands-free illumination exactly where you need it.
Here are a few key benefits:
- Improved visibility: See belts, hoses, fuses, and fluid reservoirs clearly, even in dim garages or at night.
- Faster diagnostics: Spot leaks, cracks, or loose connections quickly during inspections.
- Enhanced safety: Reduce the risk of burns or injuries by clearly seeing hot or moving parts.
- Convenience: No more fumbling with a flashlight or asking someone to hold a phone light for you.
- Resale value: A well-installed light can be a small but appealing upgrade for potential buyers.
In 2026, with advancements in LED technology and smart vehicle accessories, adding a light is easier and more efficient than ever. Many new kits come with wireless controls, motion sensors, or even smartphone integration. But even a basic setup can make a huge difference.
Tools and Materials You’ll Need
Before starting, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during the installation.
Essential Tools
- Screwdrivers (Phillips and flathead)
- Wire strippers
- Crimping tool
- Electrical tape
- Heat shrink tubing (optional but recommended)
- Multimeter (for testing connections)
- Drill and drill bits (if mounting requires holes)
- Zip ties or wire loom (for cable management)
Materials
- LED light strip or pod light (waterproof, high-lumen)
- 12V automotive relay (if not included in kit)
- Inline fuse holder and fuse (typically 5A or 10A)
- Wire (16-18 gauge, red and black)
- Toggle switch or wireless remote switch (optional)
- Mounting brackets or adhesive pads (depending on light type)
- Butt connectors or solder and soldering iron
Safety Gear
- Work gloves
- Safety glasses
- Fire-resistant mat (optional, for added protection)
Most of these items can be found at auto parts stores, hardware stores, or online retailers. If you’re buying a pre-made engine bay lighting kit, it may include many of these components. Always check the product description to see what’s included.
Choosing the Right Light for Your Engine Compartment
Not all lights are created equal—especially when it comes to the harsh environment under your hood. The engine bay is exposed to heat, oil, moisture, and vibration, so your light must be durable and reliable.
LED Lights: The Best Choice
In 2026, LED (Light Emitting Diode) technology remains the gold standard for automotive lighting. Here’s why:
- Energy efficient: LEDs use far less power than halogen or incandescent bulbs, putting minimal strain on your vehicle’s electrical system.
- Long lifespan: Quality LEDs can last 50,000 hours or more—often outlasting the vehicle itself.
- Bright and clear: Modern LEDs produce a crisp, white light that mimics daylight, making it easier to see colors and details.
- Low heat output: Unlike halogens, LEDs don’t get dangerously hot, reducing fire risk near engine components.
- Compact size: Many LED strips or pods are slim and flexible, fitting into tight spaces.
Types of Engine Bay Lights
There are several styles to choose from, depending on your needs and vehicle layout:
- LED Light Strips: Flexible and easy to mount along the inner fender or firewall. Great for wide coverage.
- LED Pod Lights: Compact, powerful, and often waterproof. Ideal for focused beams on specific areas like the battery or alternator.
- Magnetic LED Lights: Can be temporarily placed on metal surfaces. Useful for testing or temporary setups.
- Hood-Mounted Lights: Attached to the underside of the hood, pointing downward. Provides even illumination across the engine.
For most DIYers, a 12V waterproof LED strip (around 12–24 inches) is a great starting point. Look for one with at least 600–1000 lumens for bright, usable light.
Important Features to Look For
When shopping, keep an eye out for these key features:
- Waterproof rating (IP65 or higher): Protects against oil, coolant, and rain.
- Heat resistance: Should withstand temperatures up to 200°F (93°C) or more.
- Vibration resistance: Engine vibrations can loosen connections; choose a sturdy design.
- Easy mounting: Adhesive backing, magnetic bases, or screw mounts should be secure and simple.
- Included wiring harness: Kits with pre-attached wires and connectors save time.
Avoid cheap, no-name brands. Invest in a reputable product from a trusted automotive supplier. In 2026, many brands offer smart features like Bluetooth control or app integration, but these are optional for basic functionality.
Safety First: Preparing Your Vehicle
Electrical work on a vehicle can be dangerous if not done correctly. Always prioritize safety to prevent injury, damage, or fire.
Disconnect the Battery
Before touching any wires, disconnect the negative terminal of your car battery. This prevents accidental short circuits, sparks, or electrical shocks. Use a wrench to loosen the clamp and carefully remove the cable. Tuck it away so it doesn’t accidentally touch the terminal.
Pro Tip: Wait at least 10–15 minutes after disconnecting the battery to allow residual power to drain from the system.
Work in a Safe Environment
Choose a well-ventilated, dry area to work. Avoid installing lights in the rain or on a wet garage floor. Keep flammable materials away from the engine bay, especially if you’re using a soldering iron or heat gun.
Wear Protective Gear
Even with the battery disconnected, there’s still a risk of cuts, burns, or eye injuries. Wear gloves and safety glasses throughout the process.
Inspect the Engine Bay
Before installing anything, take a few minutes to inspect the engine compartment. Look for:
- Areas with high heat (near exhaust manifolds or turbochargers)
- Moving parts (fan blades, belts, pulleys)
- Fluid lines (oil, coolant, brake fluid)
- Sharp edges or tight spaces
Avoid mounting the light where it could be damaged or interfere with engine operation. The goal is to illuminate, not obstruct.
Step-by-Step Installation Guide
Now that you’re prepared, let’s get to the fun part—installing your engine bay light. Follow these steps carefully for a clean, safe, and effective setup.
Step 1: Plan the Light Placement
Decide where you want the light to go. Common locations include:
- Along the inner fender (driver or passenger side)
- On the firewall (the metal wall between the engine and cabin)
- Under the hood, near the latch
- On a bracket near the battery or fuse box
Choose a spot that:
- Provides even lighting across the engine
- Is protected from direct heat and moving parts
- Is easy to access for wiring
- Won’t be blocked when the hood is closed
Use a flashlight to simulate the light’s coverage. Mark the spot with a piece of tape if needed.
Step 2: Mount the Light
Once you’ve chosen the location, secure the light.
- If using adhesive-backed LED strips, clean the surface with isopropyl alcohol, let it dry, then press firmly. Hold for 30 seconds to ensure a strong bond.
- If using screws or brackets, drill pilot holes (if necessary) and fasten securely. Avoid over-tightening, which can crack plastic housings.
- For magnetic lights, simply place on a clean metal surface.
Pro Tip: Use zip ties or wire loom to keep excess wire tidy and prevent it from dangling into moving parts.
Step 3: Run the Wiring
Now it’s time to connect the light to power. The goal is to wire it so it turns on when the hood is opened—this is usually done by tapping into the hood switch circuit.
Locate the Hood Switch
Most vehicles have a hood switch (also called a hood pin switch) that detects when the hood is open. This switch is typically located near the latch on the driver’s side. It’s a small plastic or metal switch that gets depressed when the hood is closed.
Use your vehicle’s repair manual or search online for your make and model to find its exact location.
Identify the Wires
The hood switch usually has two wires:
- One connected to ground (black or brown)
- One that sends a signal to the vehicle’s computer or lighting system (often yellow, green, or white)
You’ll want to tap into the wire that sends power when the hood is open. Use a multimeter to test which wire becomes live when the hood is lifted.
Splice the Wires
Cut a small section of the signal wire and strip about 1/2 inch of insulation from both ends. Connect your light’s positive (red) wire to this circuit using a butt connector or solder. Secure with heat shrink tubing or electrical tape.
Connect the light’s negative (black) wire to a solid ground point—such as a bolt on the chassis or engine block. Clean the surface first to ensure a good connection.
Step 4: Add a Fuse for Protection
Always include an inline fuse near the power source to protect against overloads or shorts. Use a 5A or 10A fuse, depending on your light’s power draw.
Insert the fuse into the inline fuse holder and connect it between the positive wire and the power source. This is a critical safety step—don’t skip it.
Step 5: Test the Light
Reconnect the battery and test the system:
- Open the hood—the light should turn on.
- Close the hood—the light should turn off.
If it doesn’t work, double-check your connections, fuse, and ground. Use a multimeter to verify voltage at the light terminals.
Step 6: Secure and Organize Wiring
Once everything works, tidy up the wiring:
- Use zip ties to bundle wires together.
- Route wires away from hot or moving parts.
- Secure loose wires with adhesive mounts or clips.
- Wrap exposed connections with electrical tape or heat shrink.
A clean installation not only looks better but also reduces the risk of future problems.
Optional Upgrades: Switches and Smart Controls
While the basic setup turns the light on with the hood, you might want more control. Here are a few upgrades to consider:
Add a Toggle Switch
Install a small toggle switch in the cabin (e.g., near the dashboard or center console). Wire it in line with the light so you can turn it on manually, even with the hood closed. This is useful for inspections or showing off your engine.
Use a Wireless Remote
Some LED kits come with a remote control. You can turn the light on from inside the car or from a distance. Great for nighttime repairs or car shows.
Smart Lighting (2026 Trend)
In 2026, many drivers are opting for smart engine lights that connect via Bluetooth or Wi-Fi. These can be controlled through a smartphone app, set to timers, or even change colors. While not essential, they add a modern touch and extra functionality.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones:
Light Doesn’t Turn On
- Check the fuse—replace if blown.
- Verify battery connection—ensure it’s tight and clean.
- Test the hood switch—use a multimeter to confirm it’s sending power.
- Inspect wiring—look for loose, corroded, or broken connections.
Light Flickers or Is Dim
- Check ground connection—clean and tighten the ground point.
- Ensure wire gauge is adequate—16-18 gauge is recommended.
- Look for voltage drop—long wire runs can reduce power.
Light Turns On When Hood Is Closed
- The hood switch may be faulty or miswired.
- Double-check which wire you tapped into—only the signal wire should be used.
Adhesive Fails
- Clean the surface thoroughly before applying.
- Use high-temperature adhesive or mechanical fasteners for better hold.
Maintenance and Long-Term Care
Once installed, your engine bay light should require little maintenance. However, a few simple checks can ensure it lasts:
- Inspect the light and wiring every few months for damage or corrosion.
- Clean the lens with a soft cloth to maintain brightness.
- Check connections after long trips or rough driving.
- Replace the fuse if it blows—don’t just bypass it.
With proper care, your light can serve you well for years.
Conclusion
Adding a light to your engine compartment is a simple, practical upgrade that pays big dividends in visibility, safety, and convenience. Whether you’re performing routine maintenance, diagnosing an issue, or just showing off your ride, a well-placed LED light makes all the difference.
In 2026, with advanced lighting options and easy-to-follow guides like this one, there’s no reason not to tackle this project. By following the steps outlined here—choosing the right light, wiring it safely, and mounting it securely—you’ll have a reliable, hands-free lighting solution in no time.
Remember: safety first, plan carefully, and test thoroughly. With a little effort, you’ll wonder how you ever worked under the hood without it.
So grab your tools, disconnect that battery, and light up your engine bay like a pro. Your future self—and your car—will thank you.
