Adding an oil light to your engine is a smart upgrade that alerts you to low oil pressure before serious damage occurs. This guide walks you through selecting the right components, wiring the system safely, and testing it properly—even if you’re a beginner.
Key Takeaways
- Choose the right oil pressure switch: Match the switch type (normally open or closed) to your desired warning behavior and engine specs.
- Wiring must be done correctly: Use proper gauge wire, secure connections, and avoid interference with moving engine parts.
- Mount the light where it’s visible: Install the dashboard indicator in your line of sight for quick recognition during driving.
- Test the system before final assembly: Verify the light turns on at startup and off once oil pressure builds.
- Safety first: Always disconnect the battery and follow manufacturer guidelines to prevent electrical shorts or engine damage.
- Use a relay for high-current lights: Protect your ignition circuit and ensure reliable operation with a 12V automotive relay.
- Regular maintenance matters: Even with an oil light, check oil levels and change oil on schedule to keep your engine healthy.
How to Add an Oil Light to an Engine
If you’re driving a classic car, building a custom engine, or simply upgrading your vehicle’s safety features, adding an oil light is one of the smartest DIY modifications you can make. An oil pressure warning light gives you real-time feedback about your engine’s lubrication system—alerting you instantly if oil pressure drops below safe levels. In 2026, with more enthusiasts restoring older vehicles and building performance engines, this simple upgrade is more relevant than ever.
In this comprehensive guide, you’ll learn exactly how to add an oil light to an engine—step by step. Whether you’re working on a carbureted V8, a modern inline-four, or a custom-built motor, the principles remain the same. We’ll cover everything from choosing the right components to wiring, testing, and troubleshooting. By the end, you’ll have a reliable oil pressure warning system that could save your engine from catastrophic failure.
Why You Need an Oil Light

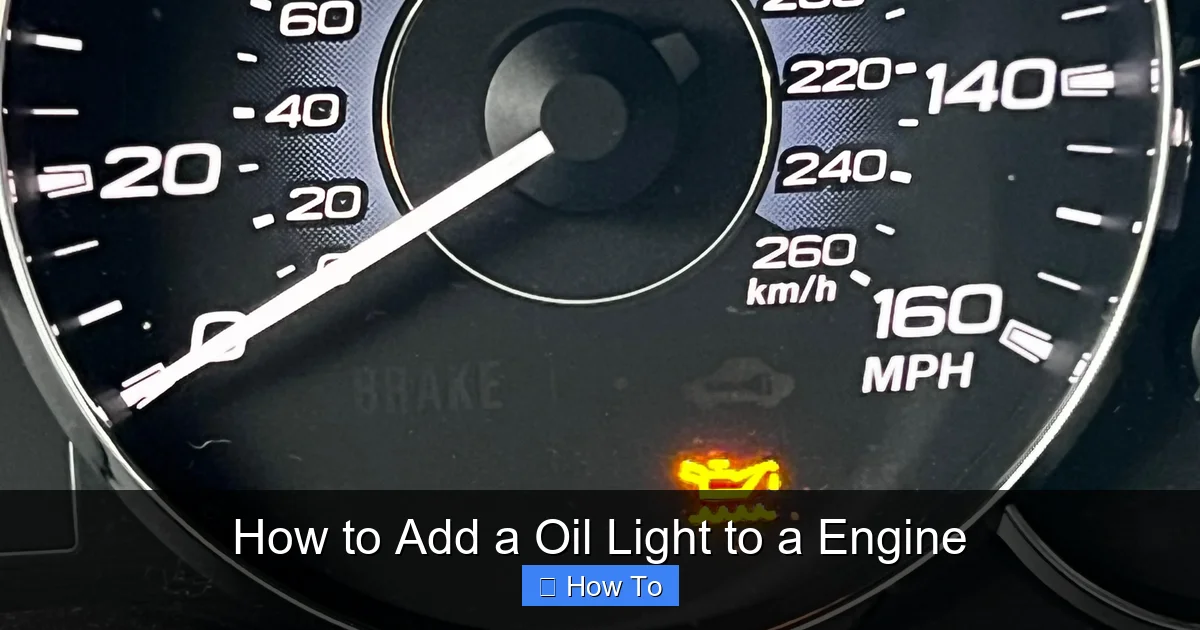

Visual guide about How to Add a Oil Light to a Engine
Image source: i.redd.it
Oil is the lifeblood of your engine. It reduces friction, cools internal components, and prevents metal-to-metal contact. Without proper oil pressure, bearings, camshafts, and pistons can overheat and seize within minutes. Unfortunately, many older vehicles—and even some modern ones—don’t come with a dedicated oil pressure warning light. Instead, they rely on gauges or no indication at all.
An oil light acts as an early warning system. It triggers when oil pressure falls below a safe threshold (typically around 5–10 psi at idle). This gives you time to pull over, shut off the engine, and diagnose the issue before serious damage occurs.
Common causes of low oil pressure include:
- Low oil level
- Worn oil pump
- Clogged oil filter
- Excessive engine wear
- Using the wrong oil viscosity
Adding an oil light doesn’t just improve safety—it also gives you peace of mind, especially during long drives or high-performance use.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and parts. Having everything ready will save time and reduce frustration.
Essential Tools
- Socket set and wrenches
- Screwdrivers (flathead and Phillips)
- Wire strippers and crimpers
- Multimeter (for testing continuity and voltage)
- Electrical tape or heat shrink tubing
- Drill and drill bits (if mounting a new light)
- Zip ties or wire loom (for clean routing)
Required Components
- Oil pressure switch (also called a pressure sender or sensor)
- 12V LED or incandescent warning light (amber or red recommended)
- 12V automotive relay (30/40 amp rating)
- Fuse holder and 5–10 amp fuse
- 16–18 gauge automotive wire (red, black, and optional color for signal)
- Wire connectors (butt connectors, spade terminals, ring terminals)
- Mounting hardware for the light (if not using existing dashboard hole)
Optional but Helpful
- Wire loom or conduit
- Heat shrink tubing with adhesive lining
- Electrical contact cleaner
- Multimeter with backlight
- Work light or headlamp
Step 1: Choose the Right Oil Pressure Switch
The oil pressure switch is the heart of your warning system. It detects low pressure and completes (or breaks) the circuit to trigger the light. There are two main types:
Normally Open (NO) Switch
This switch remains open (no connection) when oil pressure is low. When pressure builds (usually above 5–10 psi), it closes the circuit and turns the light off. This is the most common type used in oil warning systems.
Normally Closed (NC) Switch
This switch is closed when pressure is low and opens when pressure rises. It’s less common for oil lights but may be used in specific applications.
For most DIY installations, a normally open (NO) oil pressure switch is recommended. It ensures the light turns on at startup (when pressure is low) and turns off once the engine is running and oil circulates.
Selecting the Right Thread and Location
Oil pressure switches typically use 1/8” NPT (National Pipe Thread) or 1/4” NPT threads. Check your engine’s existing oil pressure sender or gauge port to match the size.
Common mounting locations include:
- The oil filter housing
- The engine block near the oil gallery
- The oil pressure sender port (if replacing an existing gauge sender)
If your engine doesn’t have a spare port, you may need to install a tee fitting or use an oil filter relocation kit. Always consult your engine manual or a trusted mechanic if you’re unsure.
Step 2: Plan Your Wiring Route
Good wiring is clean, safe, and reliable. Before making any connections, plan how you’ll route the wires from the engine bay to the dashboard.
Key Principles
- Keep wires away from heat sources: Avoid routing near exhaust manifolds, turbochargers, or headers.
- Secure wires properly: Use zip ties or wire loom to prevent chafing or vibration damage.
- Use the shortest practical path: Longer wires increase resistance and risk of interference.
- Protect connections: Use heat shrink tubing or electrical tape to seal splices.
Typical Wiring Path
1. From the oil pressure switch → through the firewall
2. Into the cabin → to the relay and fuse
3. From the relay → to the warning light on the dashboard
4. Ground the light and relay to a solid chassis point
Use existing grommets or firewall holes when possible. If you need to drill a new hole, seal it with a rubber grommet to prevent water and debris from entering.
Step 3: Install the Oil Pressure Switch
Now it’s time to mount the switch. Always work on a cool engine and disconnect the battery before starting.
Step-by-Step Installation
- Locate the mounting point: Find a suitable port on the engine block or oil filter housing. Clean the area with a rag and brake cleaner.
- Apply thread sealant: Use Teflon tape or liquid thread sealant on the switch threads. Wrap tape clockwise (2–3 layers) to prevent leaks.
- Screw in the switch: Hand-tighten first, then use a wrench to snug it. Do not overtighten—this can crack the casting or damage the switch.
- Connect the wire: Attach a spade terminal to the switch’s single wire. This will connect to your circuit later.
Safety Tip
Never install the switch while the engine is running or hot. Oil under pressure can spray out if the port is compromised.
Step 4: Wire the Relay and Fuse
A relay is essential for protecting your ignition circuit and ensuring the light operates reliably. It acts as a switch controlled by a low-current signal (from the oil switch) to power a higher-current load (the light).
Relay Wiring Diagram (Standard 5-Pin SPDT)
- Pin 30: Constant 12V power (from battery via fuse)
- Pin 87: Output to the warning light
- Pin 85: Ground (connected to chassis)
- Pin 86: Signal from oil pressure switch
- Pin 87a: Not used in this setup
Step-by-Step Wiring
- Connect Pin 30 to fused power: Run a red wire from the positive battery terminal (or a fused ignition source) to Pin 30. Install an inline fuse holder with a 5–10 amp fuse near the battery.
- Connect Pin 87 to the light: Run a wire from Pin 87 to the positive terminal of the warning light.
- Connect Pin 85 to ground: Attach a black wire from Pin 85 to a clean, unpainted metal surface on the chassis or engine block.
- Connect Pin 86 to the oil switch: Run a wire from Pin 86 to the terminal on the oil pressure switch.
- Ground the light: Connect the negative terminal of the warning light to a solid ground point (chassis or battery negative).
Why Use a Relay?
Without a relay, the oil switch would have to carry the full current of the light. This can cause premature failure of the switch. The relay allows the switch to handle only a small control current, extending its life and improving reliability.
Step 5: Mount the Warning Light
The warning light should be clearly visible to the driver. Common locations include:
- Existing dashboard warning light cluster
- Custom gauge pod
- Center console or A-pillar
Installation Tips
- Use a bezel or housing: This gives a professional look and protects the light.
- Drill carefully: Measure twice, drill once. Use a step drill bit for clean holes in plastic dashboards.
- Secure the light: Use nuts, clips, or adhesive to prevent vibration loosening.
- Label the light: Add a small “OIL” label or use a light with an oil icon for clarity.
For LED lights, ensure polarity is correct (positive to power, negative to ground). Most automotive LEDs are polarity-sensitive.
Step 6: Connect and Test the System
With everything wired, it’s time to test. Reconnect the battery and follow these steps:
Test Procedure
- Turn the ignition to “ON” (do not start the engine): The oil light should illuminate. If it doesn’t, check:
- Fuse integrity
- Relay connections
- Ground continuity
- Light bulb or LED functionality
- Start the engine: The light should turn off within 2–5 seconds as oil pressure builds. If it stays on, there may be:
- A wiring fault
- A faulty oil pressure switch
- Low oil level or pressure
- Rev the engine slightly: The light should remain off. If it flickers or comes on, check for loose connections or low oil.
Troubleshooting Common Issues
- Light stays on: Test oil pressure with a mechanical gauge. If pressure is good, the switch may be faulty or wired incorrectly.
- Light doesn’t come on at startup: Check for blown fuse, bad ground, or reversed polarity (for LEDs).
- Light flickers: Inspect for loose wires, poor connections, or vibration-induced shorts.
- No power to relay: Verify fuse and battery connection. Use a multimeter to test voltage at Pin 30.
Step 7: Secure and Finish the Installation
Once the system is working, finalize the installation for durability and safety.
Final Steps
- Secure all wires: Use zip ties and wire loom to bundle and protect wiring. Avoid sharp edges or moving parts.
- Seal firewall penetrations: Use silicone or rubber grommets to prevent water and fumes from entering the cabin.
- Label wires (optional): Use tape or heat shrink labels to identify circuits for future maintenance.
- Reassemble panels: Replace dashboard trim, engine covers, or other removed components.
- Test again: Start the engine and confirm the light behaves correctly under normal driving conditions.
Maintenance and Best Practices
An oil light is only effective if your engine is properly maintained. Here are some tips to keep your system reliable:
- Check oil level weekly: Low oil is the #1 cause of low pressure.
- Change oil and filter regularly: Follow manufacturer recommendations (typically every 5,000–7,500 miles).
- Use the correct oil viscosity: Thicker oil may not flow properly in cold weather; thinner oil may not maintain pressure at high temps.
- Inspect wiring annually: Look for frayed wires, loose connections, or corrosion.
- Test the light monthly: Turn the key to “ON” and confirm the light illuminates.
Advanced Tips for 2026
In 2026, automotive technology continues to evolve. While this guide focuses on a traditional mechanical oil light, consider these modern upgrades:
- Digital oil pressure gauge: Provides real-time PSI readings and can trigger alerts.
- Bluetooth-enabled sensors: Some aftermarket systems send oil pressure data to your smartphone.
- Integrated with CAN bus: On modern engines, you may be able to tap into the ECU for oil pressure data.
- Programmable relays: Allow custom delay times or multi-stage warnings.
Even with these advances, a simple oil light remains one of the most reliable and cost-effective safety upgrades.
Conclusion
Adding an oil light to your engine is a straightforward project that delivers significant safety benefits. By following this guide, you’ve learned how to select the right components, wire the system safely, and test it thoroughly. Whether you’re restoring a classic car or building a high-performance engine, this upgrade can prevent costly repairs and extend your engine’s life.
Remember: safety starts with awareness. An oil light gives you that awareness—alerting you the moment something goes wrong. With proper installation and regular maintenance, your oil warning system will serve you reliably for years to come.
Take your time, double-check your connections, and don’t hesitate to consult a professional if you’re unsure. Your engine will thank you.
